Характеристики
Product Description
Air Operated Oil Pump-OA5940
Details Images

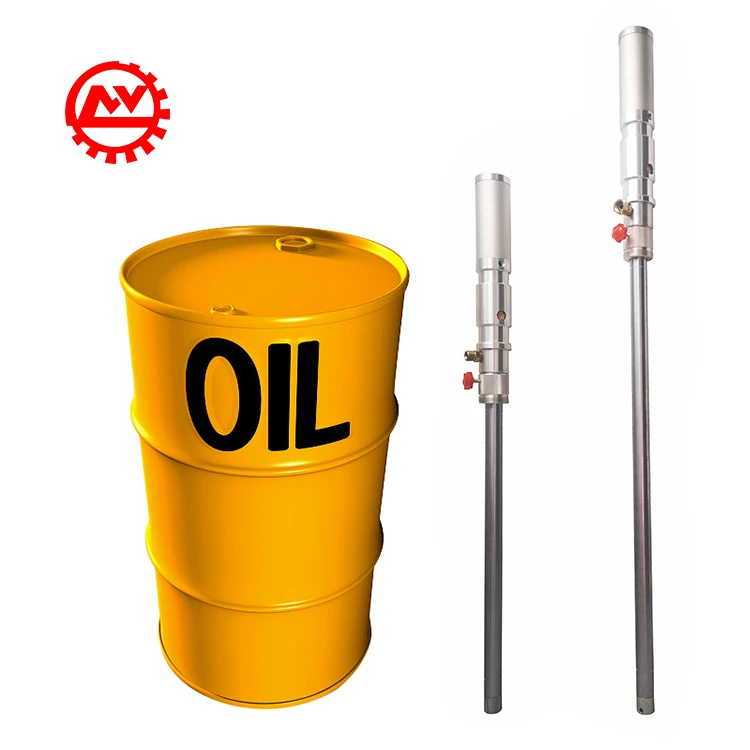

Pneumatic piston drum pump
The Barrel Drum Pumps are made by precision-machined parts to ensure high quality for long time use.The Pumps are with Oil Seal in the Oil Inlet Guarantee the Sealing.A filter at the pump bottom to protect the pump inner parts.
5:1 pressure ratio, the oil pump can dispense varies of lubricating oil up to 240SAE: motor oil, engine oil, hydraulic oil, gear oil, and anti-freeze.
Oil Pump Technique Specification | ||||||
Pressure Ratio: | 5:1 | Air inlet: | 1/4'' | |||
Air Input Pressure: | 6-8bar | Oil outlet: | 1/2'' | |||
Flow Rate: | 8-18L/min | Drum application: | 400LB/55gal | |||
Thanks to the Bung Adaptor, the pump can be fixed on the drum firmly. The Pump tube can be customized for 20L, 60L. 200L, 205L, 208L, 1000L drums, and can be changed to stainless steel material for dispensing some chemicals.
Pump Series | ||||||||
OA5270 | For drum 20L | |||||||
OA5640 | For drum 60L | |||||||
OA5940 | For drum 200L, 205L, 208L | |||||||
OA5940L | For drum 1000L | |||||||

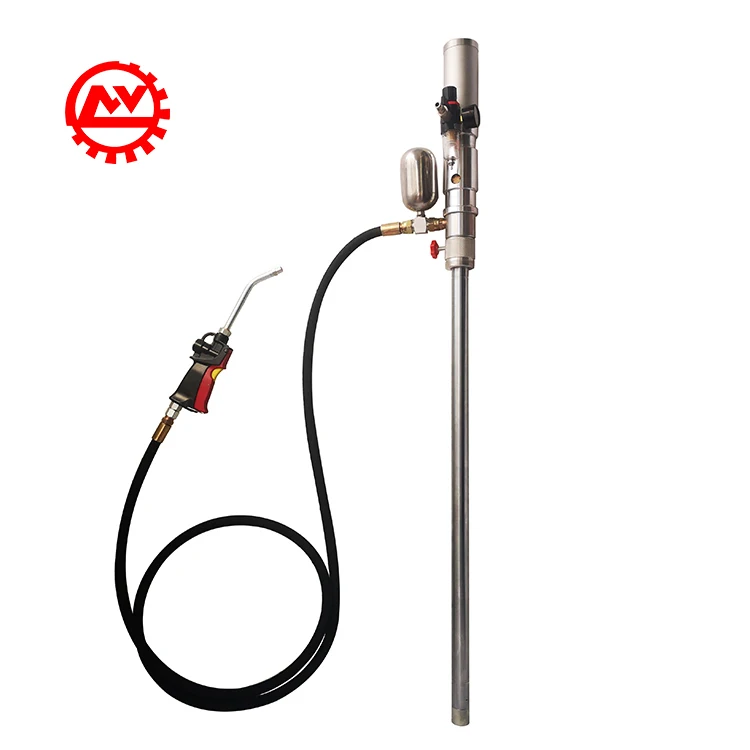

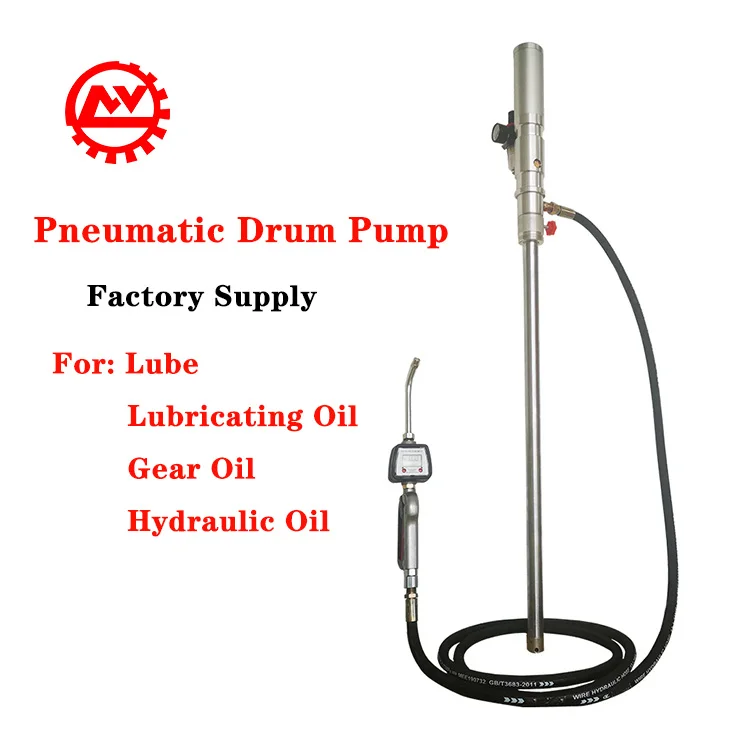

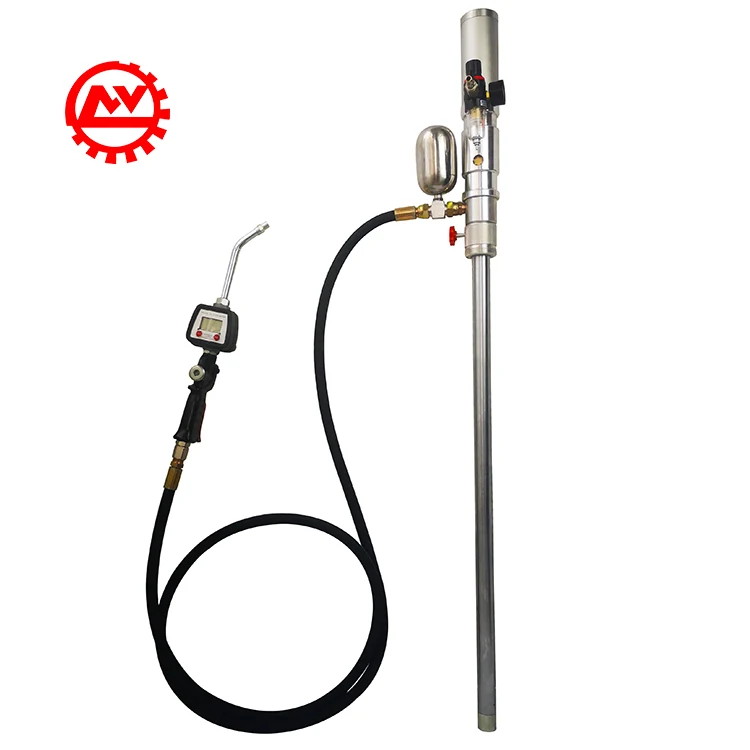

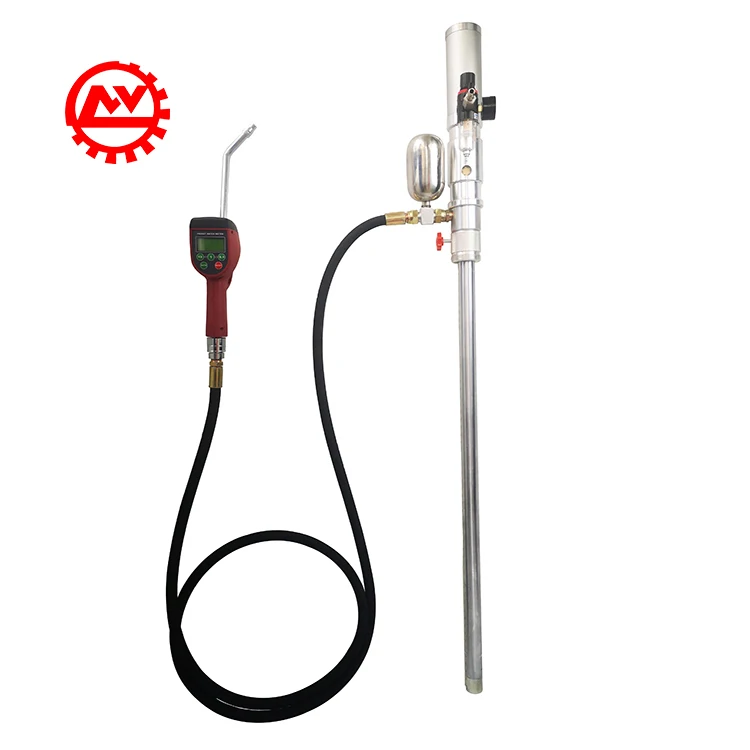

3 types of oil guns can be selected to dispense oil.1) General Oil Gun, 2) Digital Oil Meter Gun, 3) Preset Digital Oil Meter Gun for different work.
Features
1.Mobile 5:1 oil pump, can be equipped with oil gun,easy to use & maintain
2. High flow rate to 18 L/min
3. Max air inlet pressure 6-8 BAR
4.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant
5.Pump can be barrel, cart or wall mounted.
2. High flow rate to 18 L/min
3. Max air inlet pressure 6-8 BAR
4.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant
5.Pump can be barrel, cart or wall mounted.
What's Included
(1) Single Oil pump
The pumps are widely used in lubrication in Oil Change Maintenance Center, Auto Repair shops, Automobile, Auto door locks/brakes/wipers/seat rails, Ships, Agricultural Vehicles, Subways etc. It is also widely used in Workshop Production Line, Metallurgy, Paper-making, Electronics, Electric Power, Port, Construction Machinery.
Model:OA940G

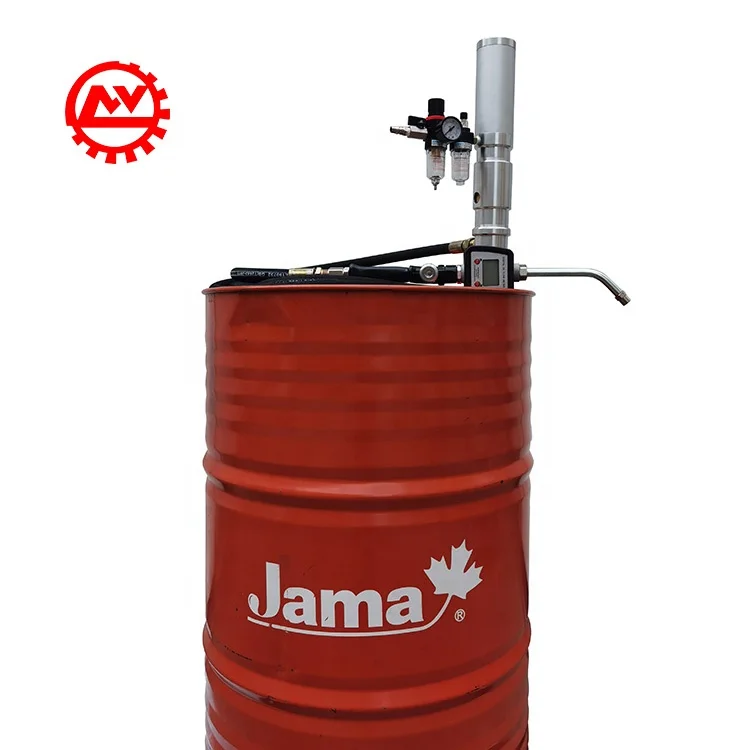

Air Operated Drum Pump Kit
The Oil Pump Kit is for 200L drums, With General oil gun, to supply a high flow rate oil injection service.
Model: OA940HG
Wall Mount Pneumatic Oil Pump Kit
Oil Pump Kit with High Pressure Hose Reel to supply long distance service.Equipped Anti-leakage General Oil Gun.
Company Profile
Shenzhen Folawing Technology Co.,Ltd focus on the automotive aftermarket,based on more than 10 years of rich R&D experience, we can provide various customized dispensers and non-standard equipment, which are used for lubrication in Oil change Maintenance Center, Auto Repair shops, Automobile, Auto door locks/brakes/wipers/seat rails, Ships, Agricultural Vehicles, Subways etc. It is also widely used in Workshop Production Line, Metallurgy, Paper-making, Electronics, Electric Power, Port, Construction Machinery. In addition, it can be used in Bearing when assemble the seal cover, the Reduction Gear in Micro Motor Industry Assembly line and Gear Pair Assemble in Electric Tool Industry, etc.
Our Advantages
1. A strong technique team, with more than 10-year experience of making lubricating equipment.
2. ODM products can be supplied, especially the non-standard high precision lubricating dispensers.
3. Products are with stable quality and low maintenance cost.
4.Competitive price and quicky delivery.
5.We provide best service for all of our guests!
FAQ
Q1: What's your delivery time?
A: Usually we have hundreds of oil pumps in stock. The delivery time will be within 1week when order confirmed.
Q2: What's the MOQ?
A: The MOQ is 1set. More quantity, better price.
Q3: What kind of ODM equipment can you supply?
A: All kinds of lubricating equipment, such as Quantify Oil Dispenser, Grease Dispenser and Heavy Duty Hose Reel can be designed and produced based on customer's requirements.
