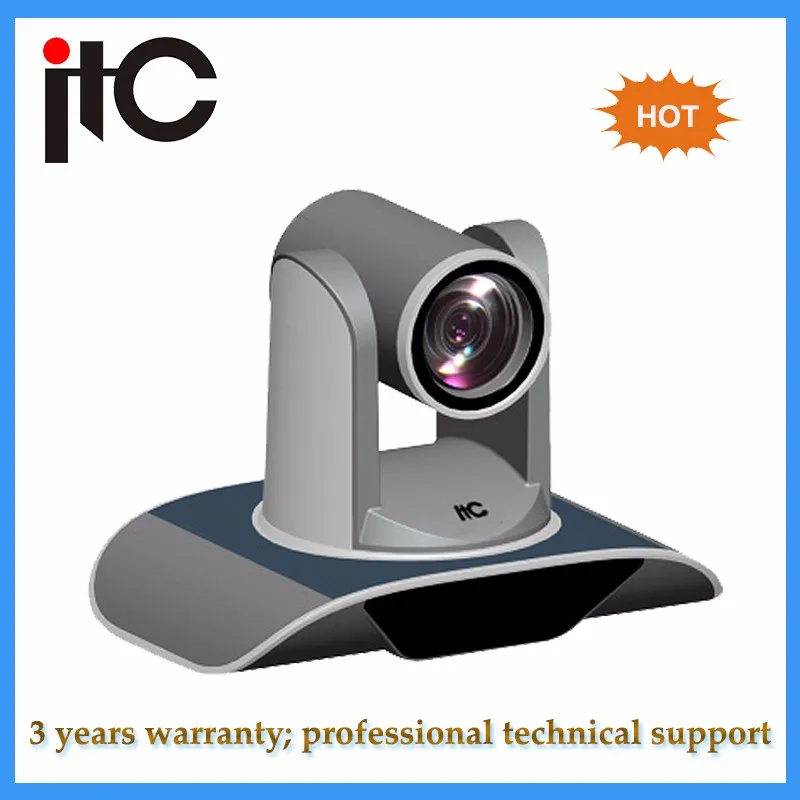

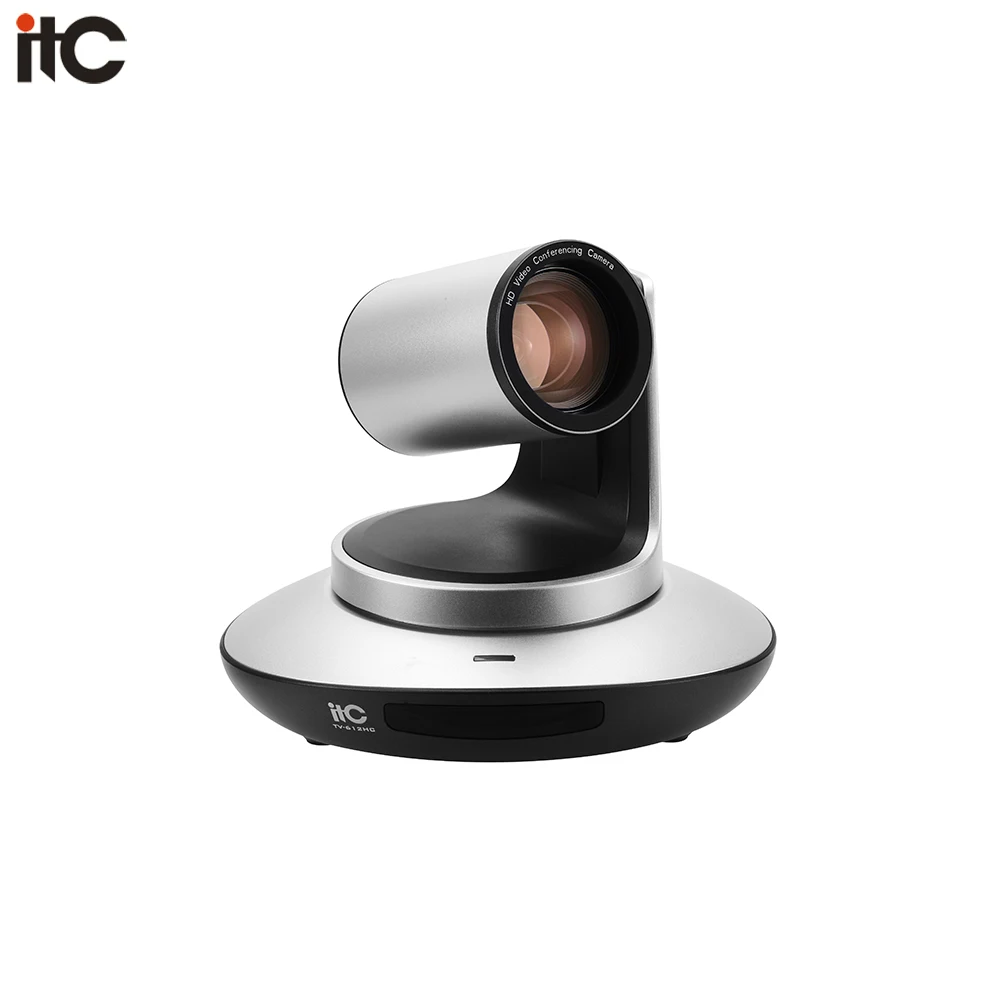

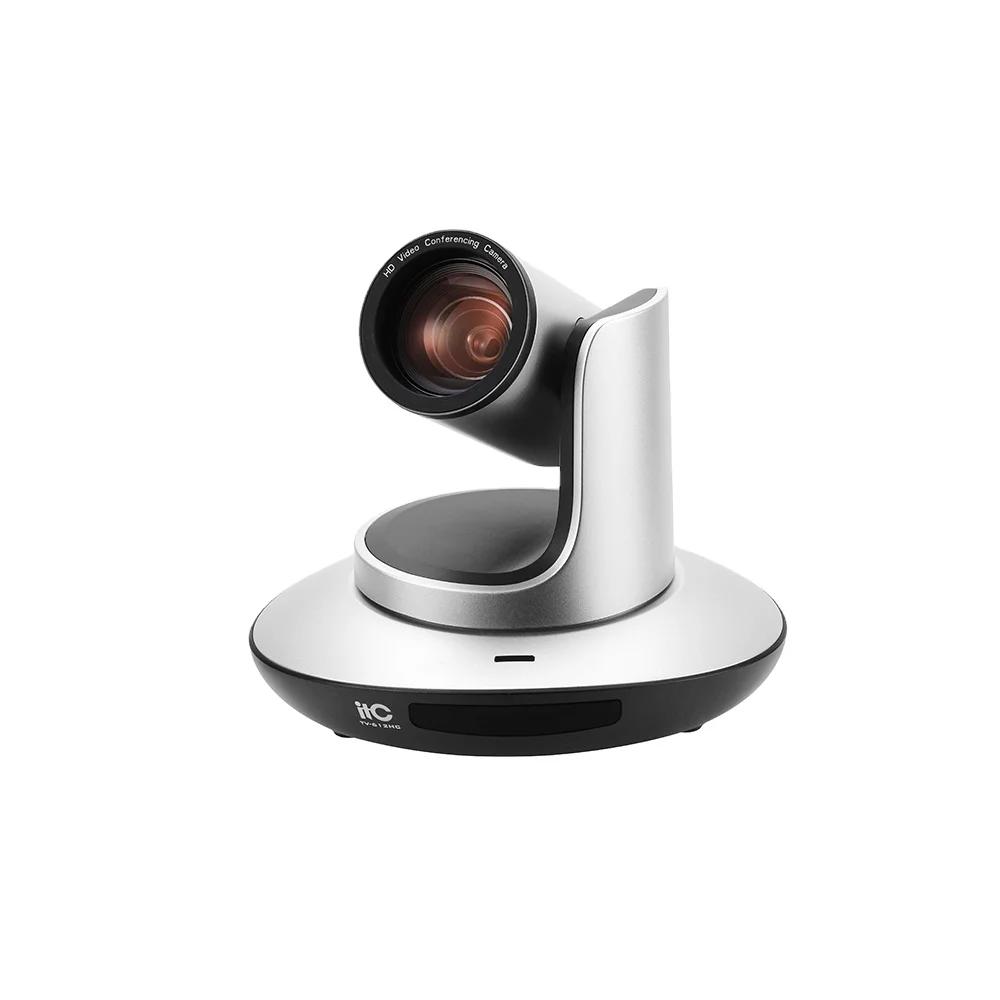

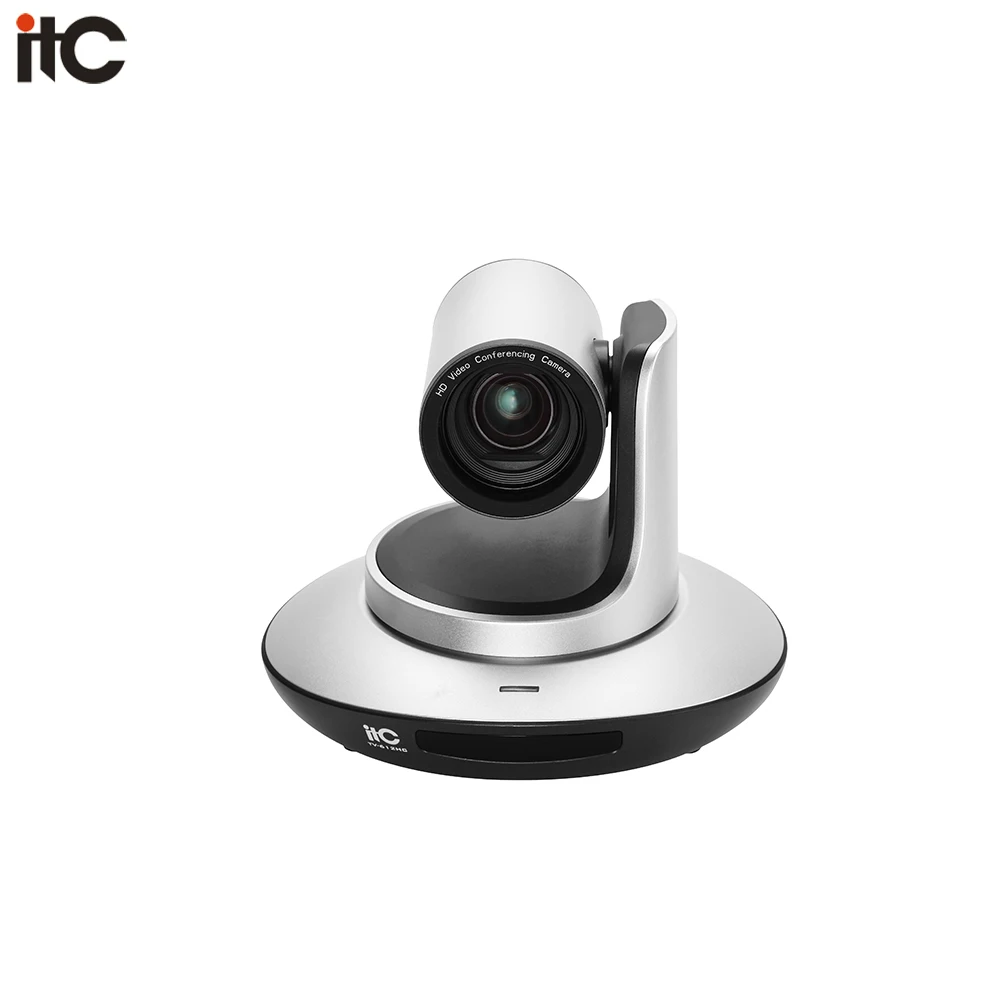

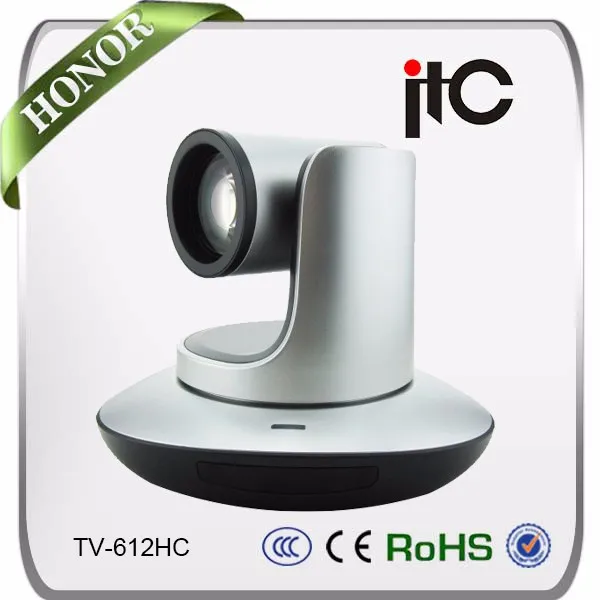

TV-612HC 1080P HD Audio hd ptz video conference camera for conference system



1. Cloud based architecture

Adopt cloud based architecture, with distributed MCU







2. First class picture quality

With high 1080p quality, the highest video technology, rich in detail, makes you feel in the picture





3.Save much bandwidth

Home ADSL can run HD video conference system,

only 2M to run 1080p/60,

       1M to run 1080p/30,

       512k to run 720p,

       64k make the continuous picture and sound





4. With Strong network self-adaption ability

Adopt H.264SVC technology to adapt to high-lass network, available for interest network.





5. Easy operation, one key into conference

The branch venues can be one key enter co conference from the terminal, no need professional operators







6. Flexible expansion function

According to customer's applicatin needs to provide electronic white board, document sharing and remark, collaborative browsing, remote voting, video file sharing, etc





System connection





Product Features

HD Video Conference Camera (1080P)



* Super HD image: high quality HD CMOS sensor, 1920x1080 ultra high resolutions; 5000000 pixel HDCMOS sensor, 2000000 effective pixels, support 1080P60/50; output high resolution quality image and at the same time meet the demand of the smooth picture.

* 12x optical zoom: Rapid, accurate and stable auto focus lens; reaches 12 times optical zoom;  coupled with the high precision PTZ positioning for easy vision shooting

* Ultra wide viewing angle: the maximum angle up to 70 degrees

* Wide range, high speed, low noise PAN / pitch operation: new stepping motor driver, running very smoothly and quietly; can quickly move to the to the designated location, and a wide range

   of shooting

* Multi format full HD video output: support variety of high-definition video 1080P30, 1080P25, 720P60, 720P50, 720P30; output HD analog and digital video signal in multiple interfaces DVI-I,

   HD-MI, HD - SDI

* Through the high definition multimedia interface for high quality image transmission: DVI-I digital high-definition multimedia interface, can be compatible with both analog and digital HD

   video output, can be directly used cable connected to the high-definition display devices

* RS-232C remote control (VISCA): RS-232C (VISCA protocol) interface, for all camera settings and pan / tilt / zoom r remote high-speed communication control operation

* Location preset: for multiple locations preset, including the level, pitch, variable times; even when the camera power down after close, the preset data can also be saved

* Support camera flip: structurally support camera flip, set the image level through serial command; image flip command has the electricity-off saving function

* Equipped with remote control: equipped with a remote control device; has the advantages of simple operation, basic set, level, pitch, zoom control, manually set related camera Parameter

   through the remote controller

* OSD menu: OSD menu, the user can adjust the camera exposure parameters via the OSD menu, switch to video mode, view the current status

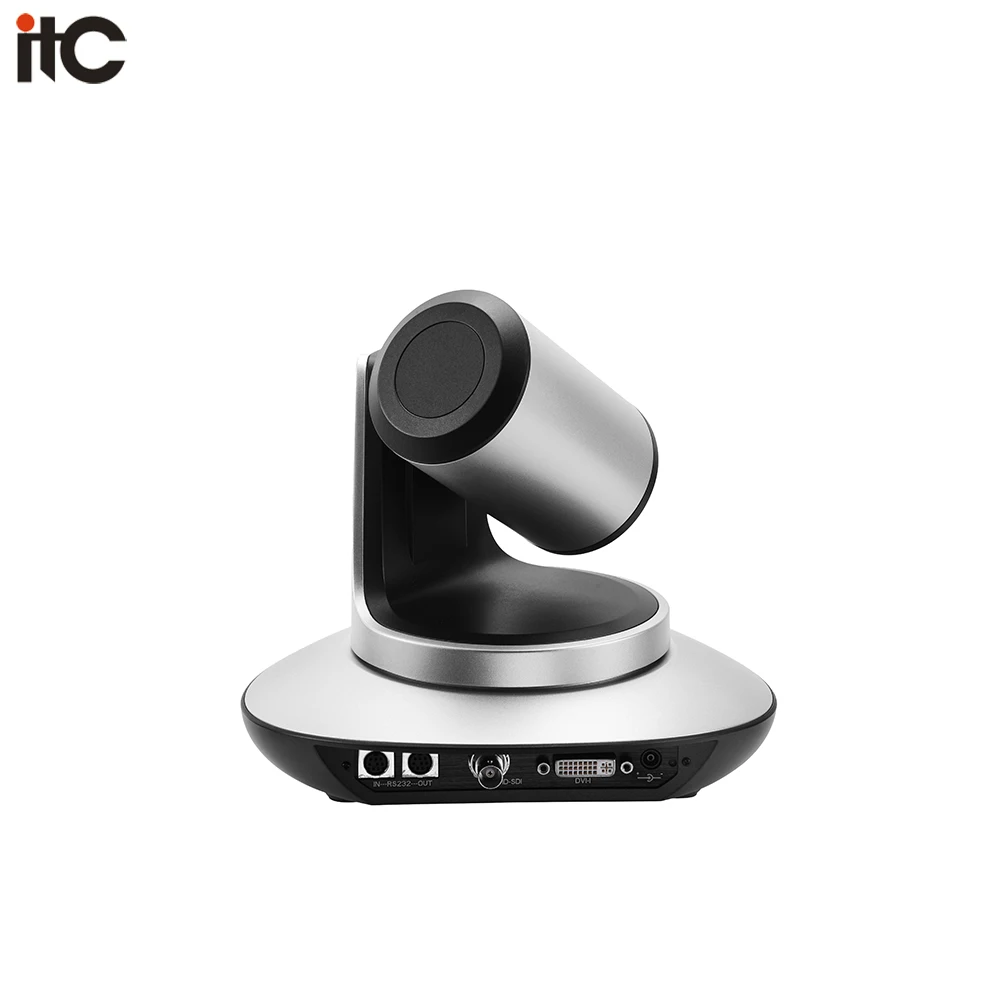

Input/Output Interface

HD Video Conference Camera (1080P)

* HD interface: DVI-I high-definition multimedia interface

* HD interface: HD-SDI

* Control signal interface: 8 core Mini DIN

* Power interface: HEC3800 power supply socket



Electrical characteristics

HD Video Conference Camera (1080P)

* Power adapter: AC 110V-AC 220V to DC 12V/2.5A

* Input voltage: DC 12V (DC 11.5-DC 12.5V)

* Power: 15W (maximum)



Electrical characteristics

HD Video Conference Camera (1080P)

* Size (width high): 265x144x171 (mm)

* Weight (about): 1.5Kg

* Storage temperature: -10°C to +60°C

* Working temperature: 0°C to +45°C



Specification

Model	TV-612HC
Output resolution	1080P59.94/50/29.97/25,1080I59.94/50,720P59.94/50/29.97/25(HD-MI); 1080P59.94/50/29.97/25,1080I59.94/50,720P59.94/50/29.97/25(SDI)
Video interface	DVI-I,3G-SDI
Sensor	1/2.3 inch high quality, 12 million HD CMOS sensor
Effective Pixels	207million  2.07 million
Camera lens	F3.92~47.32mm(12X), F1.8–2.8, viewing angle: 72.5° (wide angle)-6.3° (narrow angle)
PTZ range	Level: ±170°; pitch: -30°~+90°, can be flipped
PTZ speed	Level: 0.1°-120°/s; pitch: 0.1°-80°/s
Number of presets	10 remote controls, 128 serial ports, preset accuracy: 0.1°
Control interface	RS232, RS485, 8-pin miniDIN
Minimum illumination	0.01Lux
White balance	Automatic / Manual
Focus	Automatic / Manual
Aperture	Automatic / Manual
Shutter	Automatic / Manual
Exposure compensation	Support
BLC	Support
2D noise reduction	Support
3D noise reduction	Support
Relative humidity	10%~85%
Operating temperature	0℃~+45℃
Power interface	HEC3800 power socket
Input voltage	DC12V
Power consumption	18W(MAX)
Size	220mm×173mm×117mm
Net weight	1.25Kg
