Product Description

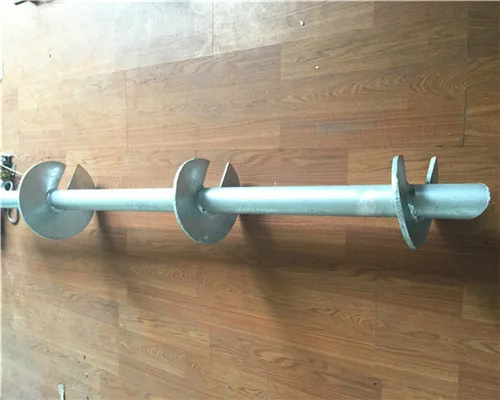

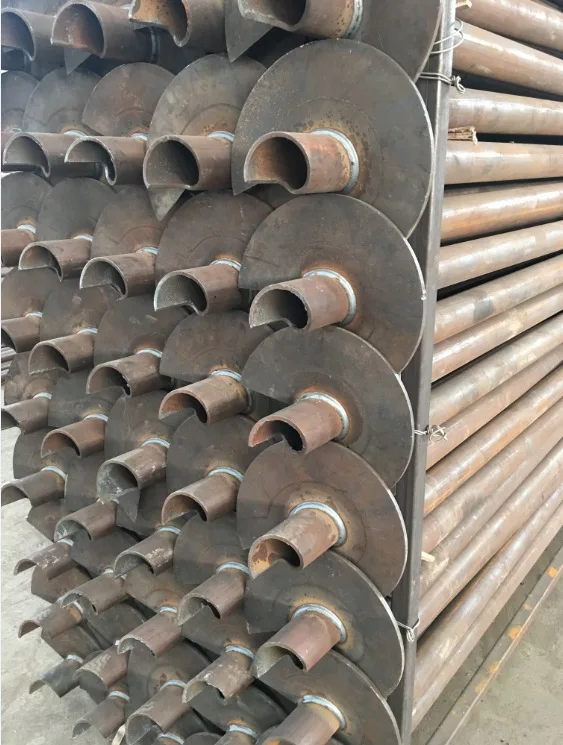

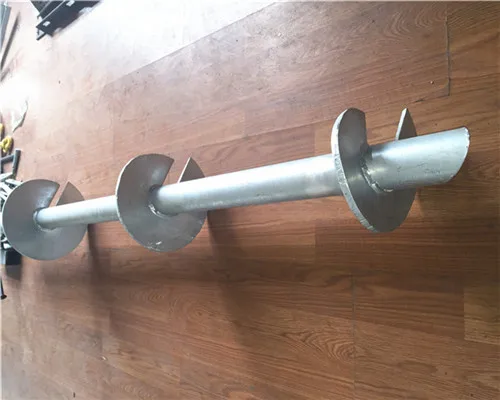

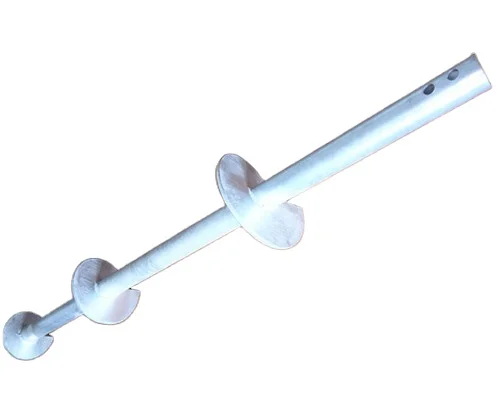

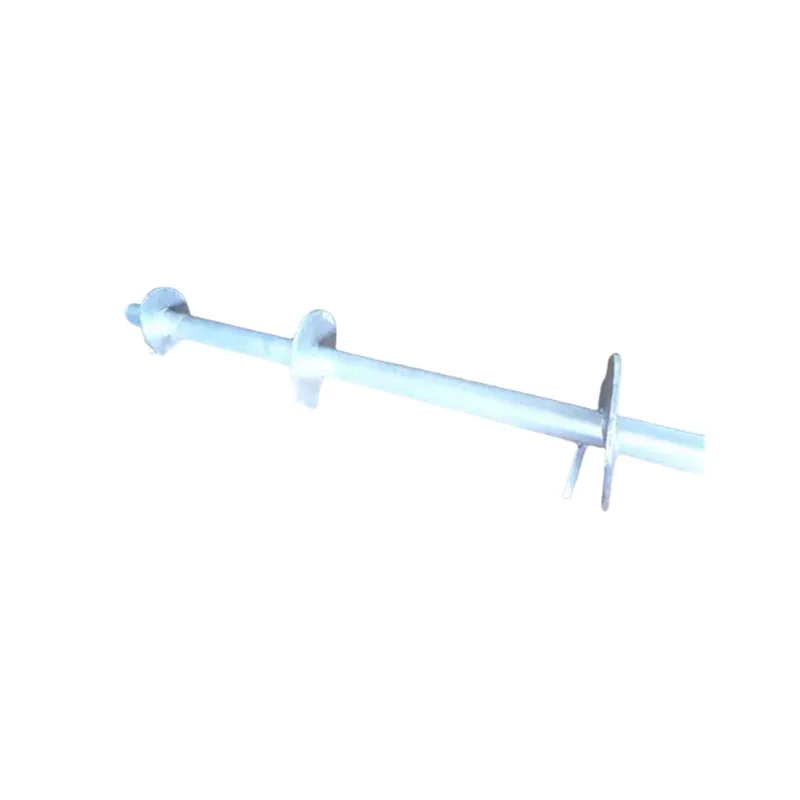

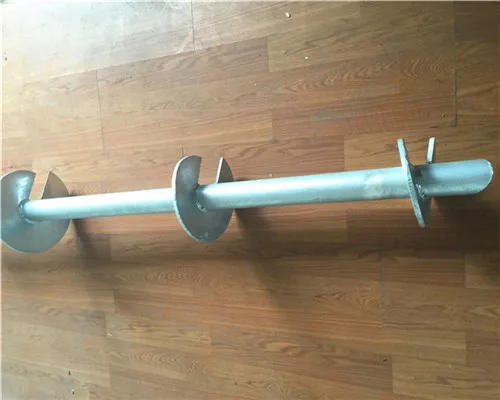

Earth Helical Piers Underpinning Screw Pile
Helical Screw Anchor
Helical anchors are used for new construction and to support existing structures. They are designed for applications in expansive soils, high water tables, fill areas, and other areas where unstable soils require a deep foundation. In compression they are used as footers and in tension they may be used to support retaining or foundation walls. Helical piers are round or square, tubular or bar steel shafts with round helix plates welded to them.
Specifications | |||||
Shaft Size (inch) | Wall Thick(inch) | Helix Thick(inch) | Lead Length (ft) | Helix Size (inch) | Extension Length (ft) |
2.375 OD. | 0.19 | 3/8 or 1/2 | 3ft/5ft/7ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
2.875 OD. | 0.203/0.217 | 3/8 or 1/2 | 3ft/5ft/7ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
3.50 OD. | 0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
4.50 OD. | 0.290/0.337 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
5.50 OD. | 0.362 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
6.625 OD. | 0.562 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B
Helices material: ASTM A36 Hot rolled plate
Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
Leading edge of Helices beveled 45 degrees
Greater Section Modulus Strength to resist Twisting and Deflection
Greater Load Capacities
Helical Torque AnchorsTM may be the preferred solution for your foundation repair project due to these factors:
- Ease of Installation
- Little to No Vibration
- Immediate Load Transfer upon Installation
- Installed Torque Correlates to Capacity
- Easily Load Tested to Verify Capacity
- Installs Below Active Soils
- Installation under any Weather Conditions
- Little to No Disturbance to the Site
![IMG_3814.JPG]()
Advantages
solar ground screw anchor is:offset eye helical anchor
1. extremely environmentally friendly and economical, can be recycled.
2. installed in a matter of minutes without digging and concrete.
3. more efficiency, lower cost, low labor strength.
4. operated precisely, flexible during drilling process.
5. no negative effects on landscape, no damaging on surrounding area.
6. long lifetime. Helical Soil Anchors
7. subjected to strict quality assurance, approved by LGA in Germany.
OTHER ACCESSORIES LIKE T BAR, EXTENSION, CAP,UNDERPINNING FOUNDATION :
