Продажа по заводской цене кристалл лития ниобата с LiNbO3 CAS

Продажа по заводской цене кристалл лития ниобата с LiNbO3 CAS

Категория: Other Metals & Metal Products >>>
Поставщик: Easmaterial,Group,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.40 $*	0.22 $*
Aug-19-2025	0.27 $*	0.27 $*
Jul-19-2025	0.98 $*	0.35 $*
Jun-19-2025	0.35 $*	0.5 $*
May-19-2025	0.21 $*	0.30 $*
Apr-19-2025	0.91 $*	0.43 $*
Mar-19-2025	0.32 $*	0.57 $*
Feb-19-2025	0.45 $*	0.65 $*
Jan-19-2025	0.57 $*	0.1 $*

Характеристики

Product Description

Crystal Structure	Rhombohedral, space group R3c
Cell Parameters	a=0.515, c=13.863, Z=6
Curie point	about 1140
Moh's hardness	5
Transmission Range	420-5200nm
Refractivity	ne=2.156, no=2.322 1064nm
Nonlinear optical coefficient	d33=34.4 pm/V
	d31=d15=5.95 pm/V
	d22=3.07 pm/V
Optical Homogeneity	Delta n<5×10-5/cm
Clear Aperture	>90%
Flatness	≤λ/8632.8nm
Parallelism	≤10"
Perpendicularity	≤10′
Damage Threshold	CLN: ~200MW/cm21064nm, CW
	MgLN: ~300MW/cm21064nm, CW
	SMgLN: >500MW/cm21064nm, CW

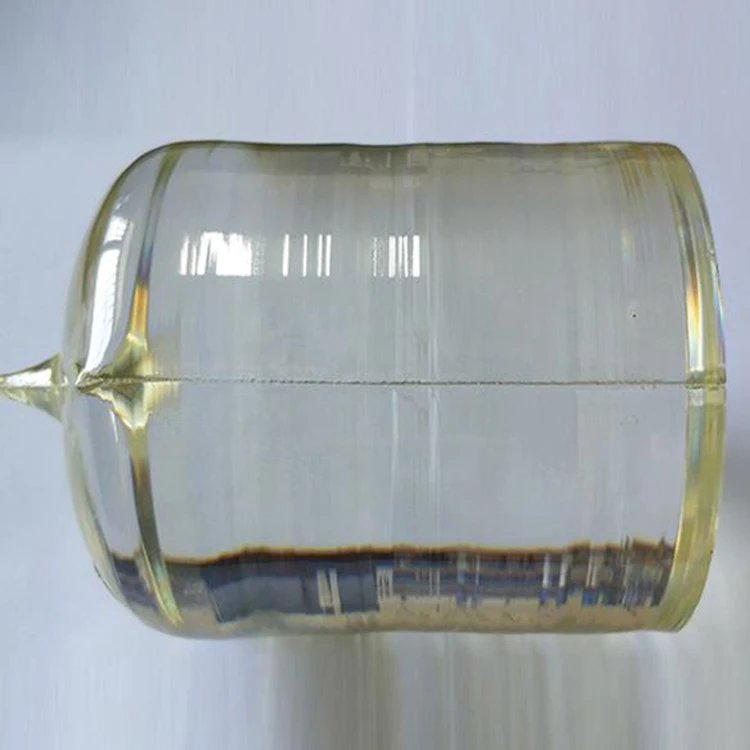

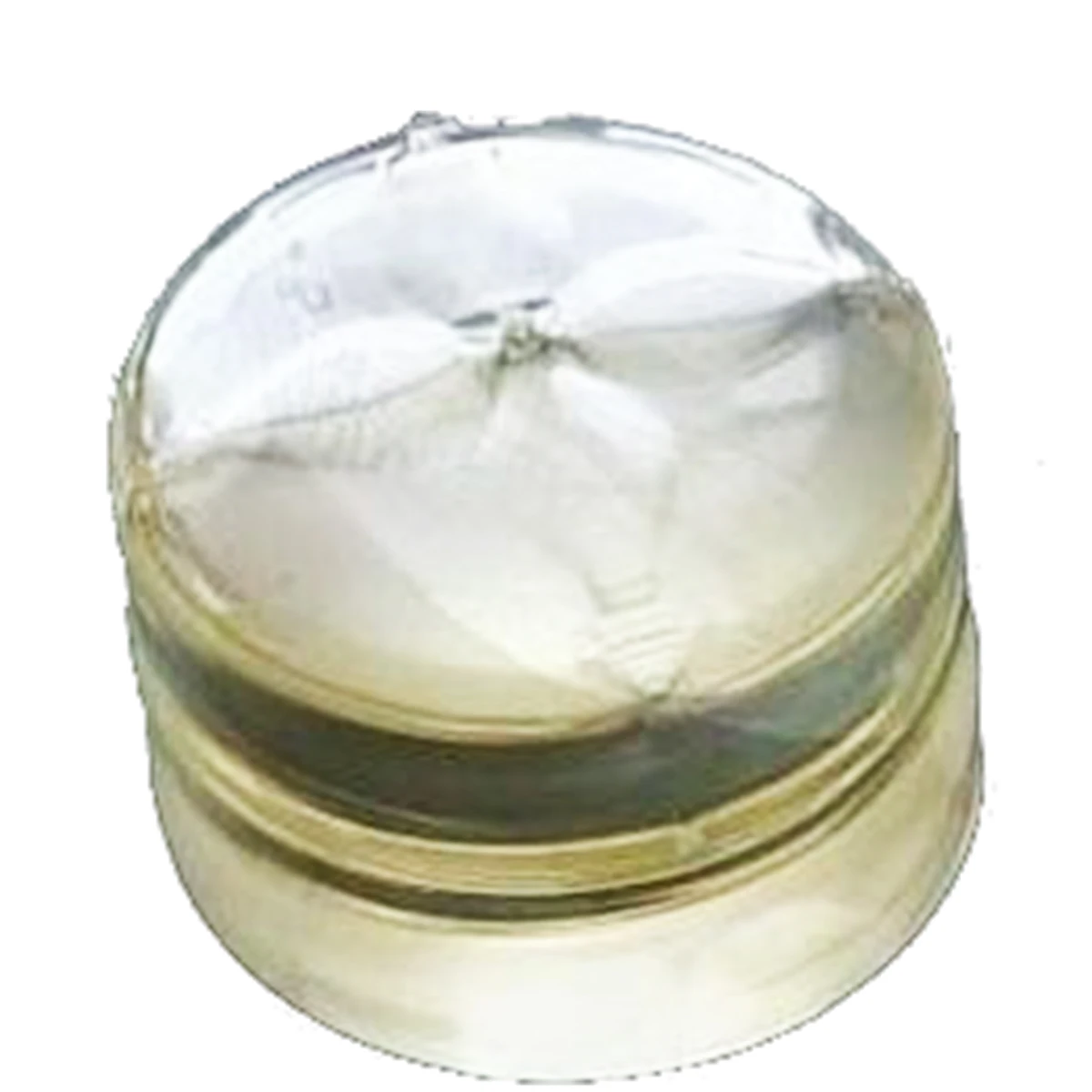

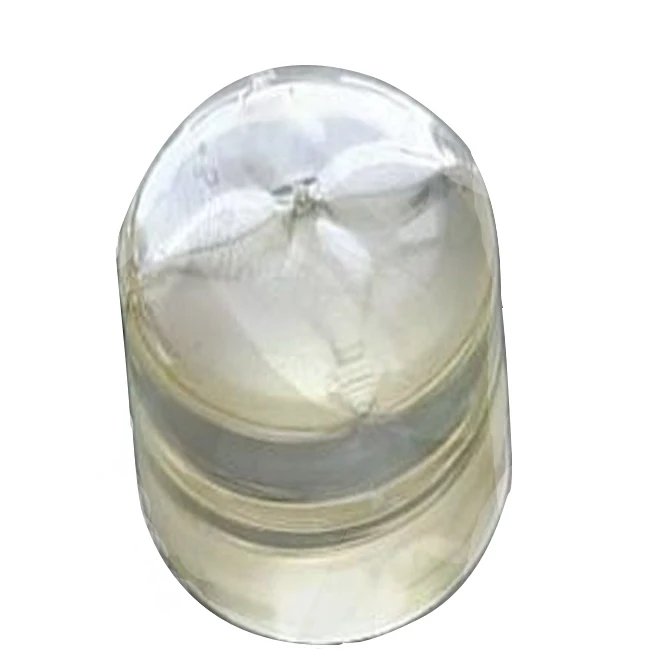

LiNbO3

Lithium niobate crystals are often abbreviated as LN or LNB, melting point of about 1253 ℃, negative uniaxial crystal, trigonal system, the light transmission band 0.4-5μm. Lithium niobate sets a variety of physical effects in one, with piezoelectric, electro-optic, nonlinear, photoelectric, photorefractive, birefringence, pyroelectric and laser activity and other effects. Optical waveguide substrate made of lithium niobate crystal, electro-optical Q-switch, SAW device, birefringent wedge angle chip and superlattice structure are widely used in waveguide modulators, laser gyros, Q-switched lasers, Devices, optical isolators, optical circulators, optical parametric oscillator and other devices, these devices occupy an important position in the optical communications, aerospace, military, electronics industry and scientific research and other fields.

Product Name

CTH:YAG

Cr4+:YAG

Er:YAG

Er:Glass

KTP

Nd:YAG

LiNbO3

Nd:Ce:YAG

Nd:YVO4

Nd:LuAG

Yb:YAG

ZGP

Bonded

Packaging & Shipping

Packing:	50KGs Iron Drum or 1000KGs Jumb Bag or packing as per request.
Storare:	Storing in sealed, dry and cool condition, not exposing to air for long time, avoiding moisture.
Characteristics:	Pink powder, slightly soluble in inorganic acid, insoluble in water.
