Очистка сточных вод Suote один двойной и Тройной эффект поднимающийся/падающий пленочный Многофункциональный концентрационный
- Категория: Испаритель >>>
- Поставщик: Wenzhou,Suote,Pharmaceutical,And,Chemical,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4760.16 $* | 4998.70 $* |
| Aug-15-2025 | 4720.37 $* | 4956.52 $* |
| Jul-15-2025 | 3960.87 $* | 4158.70 $* |
| Jun-15-2025 | 4640.39 $* | 4872.46 $* |
| May-15-2025 | 4040.31 $* | 4242.30 $* |
| Apr-15-2025 | 4560.20 $* | 4788.0 $* |
| Mar-15-2025 | 4520.39 $* | 4746.71 $* |
| Feb-15-2025 | 4480.47 $* | 4704.21 $* |
| Jan-15-2025 | 4440.24 $* | 4662.83 $* |
Характеристики
Product Description

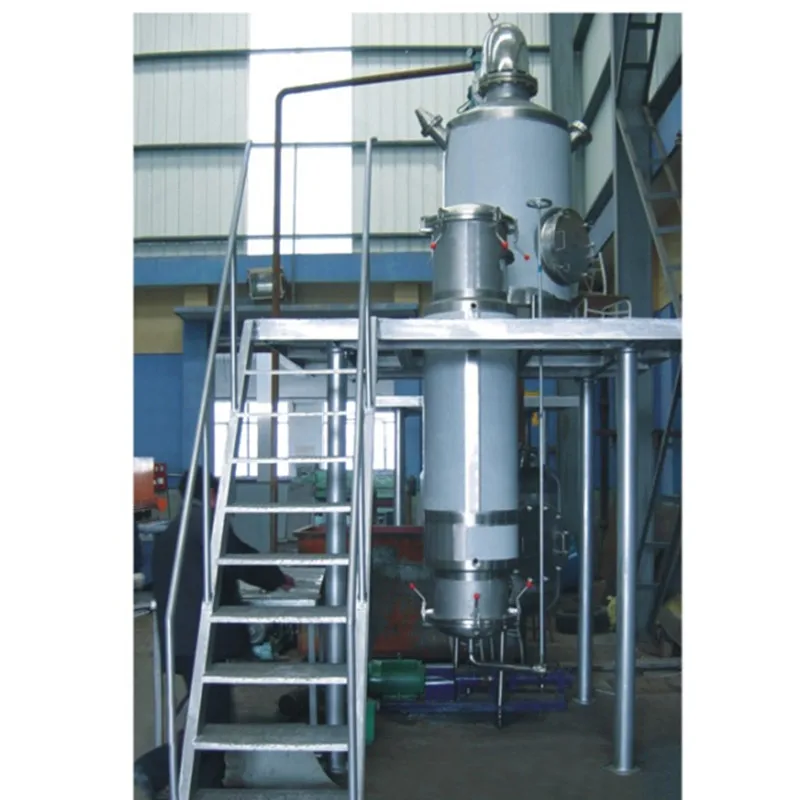

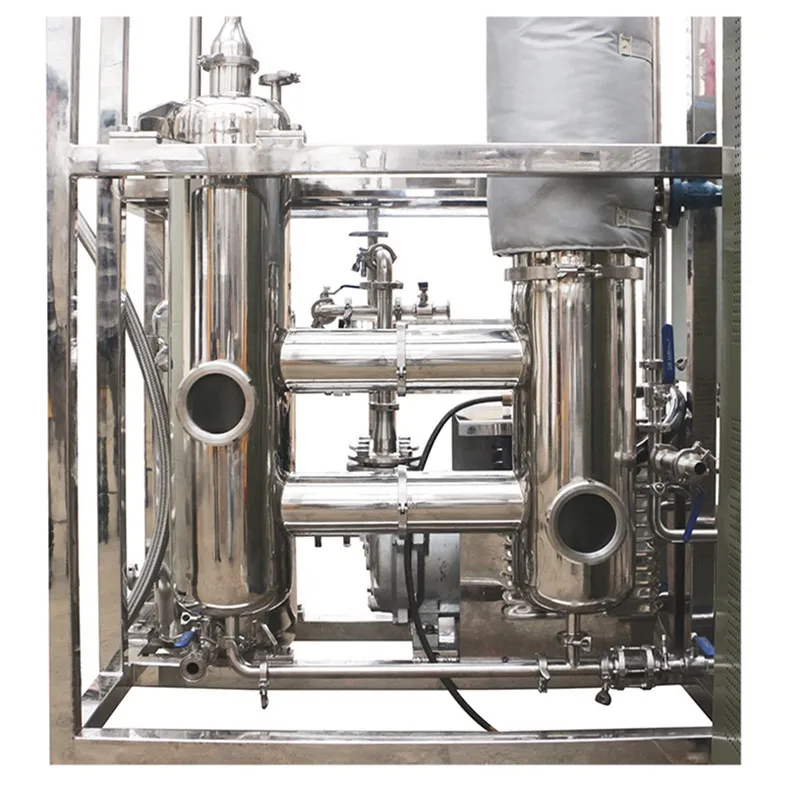

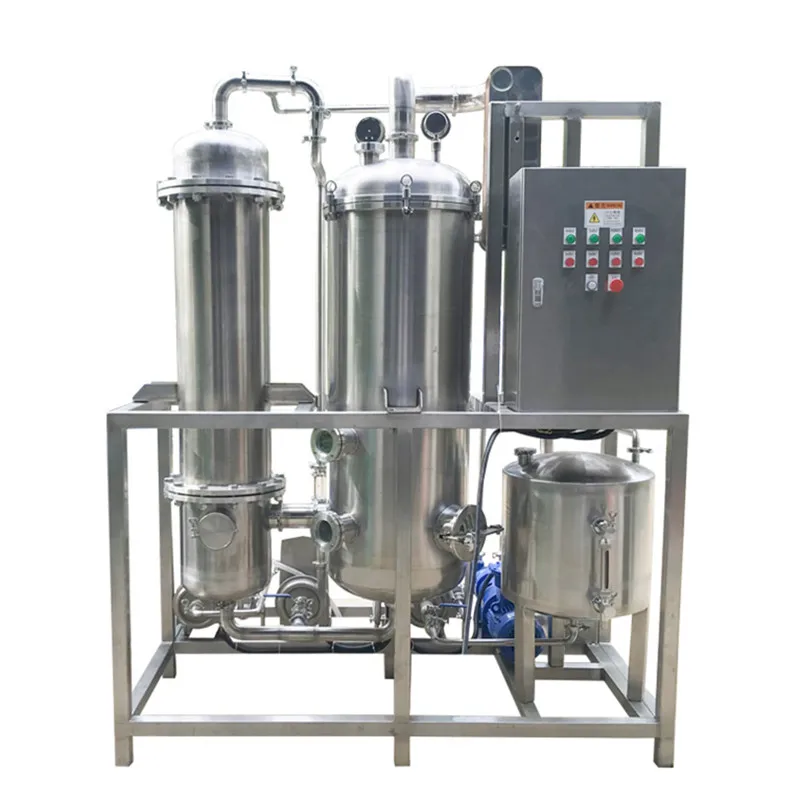

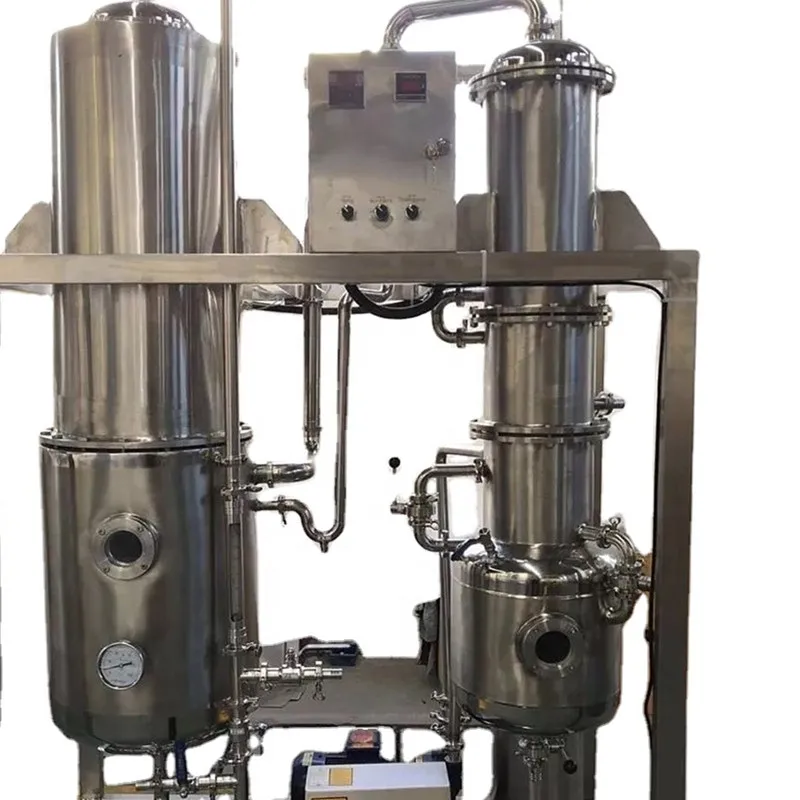

Suote wastewater treatment single effect double effect triple effect rising /falling film Multi-effect concentration evaporator
Working principle
In the falling film evaporator .the liquid enters the heating tube for heating by adopting the principle of the siphon pump and flows into the separator,after that, the liquid and steam are separated and then return to the evaporator through the circulation pipe,and a closed circulation is formed .Therefore, this evaporator Called external circulation evaporator.when it comes to the evaporator selection. If the evaporation capacity is large, a multi-effect device can be used to save steam and reduce energy consumption.
Use
Widely used in petroleum, chemical, pharmaceutical, fertilizer, paper, aluminum, monosodium glutamate, wine, sugar and other fields
Scope of application
The rising film evaporator is suitable for handling solutions with large evaporation, heat sensitivity, low viscosity and easy foaming, but it is not suitable for solutions with high viscosity, crystal precipitation and easy scaling.
In the falling film evaporator .the liquid enters the heating tube for heating by adopting the principle of the siphon pump and flows into the separator,after that, the liquid and steam are separated and then return to the evaporator through the circulation pipe,and a closed circulation is formed .Therefore, this evaporator Called external circulation evaporator.when it comes to the evaporator selection. If the evaporation capacity is large, a multi-effect device can be used to save steam and reduce energy consumption.
Use
Widely used in petroleum, chemical, pharmaceutical, fertilizer, paper, aluminum, monosodium glutamate, wine, sugar and other fields
Scope of application
The rising film evaporator is suitable for handling solutions with large evaporation, heat sensitivity, low viscosity and easy foaming, but it is not suitable for solutions with high viscosity, crystal precipitation and easy scaling.
waste water treatment machine
waste water treatment equipment is also called waste water treatment equipment ,for more detail ,please contact us .thanks .
with more than 20 years of technological in this area .Suote pharmaceutical is your trusted partner !
Details Images
Size Information
Model | FFE-100L | FFE-200L | FFE-500L | FFE-1000L | |||
Evaporation Rate (L/hr) | 100 | 200 | 500 | 1000 | |||
Evaporator Part Dimension (cm) | 95 x 85 x 255 | 110 x 90 x 275 | 120 x 100 x 460 | 140 x 120 x 520 | |||
Condenser Part Dimension (cm) | 120 x 85 x 230 | 130 x 90 x 250 | 130 x 100 x 420 | 130 x 120 x 460 | |||
Feeding Pump (kW) | 0.37 | 0.37 | 0.37 | 0.75 | |||
Discharge Pump (Oil, kW) | 0.75 | 0.75 | 0.75 | 0.75 | |||
Discharge Pump (Ethanol, kW) | 0.75 | 0.75 | 0.75 | 0.75 | |||
Panel (kW) | <50 | <50 | <50 | <50 | |||
Total Weight (kg) | 1000 | 1300 | 1500 | 1800 | |||
Total Power (kW) | 4 | 4 | 6.5 | 6.5 | |||
Electricity | 240V, 3 Phase, 60Hz or Customizable | ||||||
Best Selling
Company Profile
Wenzhou Suote Pharmaceutical and Chemical Engineering Co., Ltd.
We are high—tech enterprise specialized in design，manufacturing and installation of Pharmaceutical equipment, biochemical equipment，dairy and food equipment, environmental protection equipment，sanitary fluid pumps＆valves and etc.
Exhibition
National Pharmaceutical Machinery Expo and China International Pharmaceutical Machinery Expo
The 55th (Spring 2018) National Pharmaceutical Machinery Expo and China International Pharmaceutical Machinery Expo were held from
April 20 to April 22, 2018 at the Chongqing International Expo Center.
April 20 to April 22, 2018 at the Chongqing International Expo Center.
Wenzhou Sote is inviting to invite the Fuzhou Strait International Exhibition
The 52nd (Fall 2016) National Pharmaceutical Machinery Expo and China International Pharmaceutical Machinery Expo were held from
November 5th to November 8th, 2016 at the Fuzhou Strait International Convention and Exhibition Center.
November 5th to November 8th, 2016 at the Fuzhou Strait International Convention and Exhibition Center.
Certifications
FAQ
Q: Are you manufacturer or trading company?
A: Suote is a professional manufacturer begin at 1998，have 22 years experence on Medicine, Food, Beverage, Dairy and Beer production machinery industrial.
Q:.Q: Where is your factory located?
A:We got three plant in Zhejiang Province, and Jiangsu Province and Fujian province,supply all kind of Stainess steel product.15 Minute driving to Wenzhou Airport. 1 hour to Shanghai ,1.5 hours to Guangzhou and shenzhen 2 hours to Beijing city.
Q:How could we confirm the details of the products?
A: we can discuss detaols by alibaba online trade manager ,wechat ,mail or whatspp ,skype.etc...
Q:Will you charge us for drafting if we have special requests?
A: the drafting drawing is free charge ,please fell free to contact us for any project.
Q: How long the warranty will be?
A: 1 Year warranty.
A: 1 Year warranty.
Q: How about the installation? And what if the machine not working well?
A: Yes, we will do that. There are two options:
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as
ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts
will be provided free, but the transportation cost of it shall be on you side.
A: Yes, we will do that. There are two options:
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as
ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts
will be provided free, but the transportation cost of it shall be on you side.
Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable.better if we can act alibaba online insurance order.
A: Yes, we accept Western Union, T/T and irrevocable L/C payable.better if we can act alibaba online insurance order.
Q. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
A: EXW, FOB, CIF, DDU.
Q. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
A: Yes, we can produce by your samples or technical drawings.
Q.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
