Промышленная электрическая машина для сушки овощей горячим воздухом сушеные фрукты манго сушильная
- Категория: Dry Cabinet >>>
- Поставщик: Henan,Katto,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.93 $* | 0.8 $* |
| Aug-19-2025 | 0.60 $* | 0.80 $* |
| Jul-19-2025 | 0.42 $* | 0.8 $* |
| Jun-19-2025 | 0.77 $* | 0.24 $* |
| May-19-2025 | 0.3 $* | 0.66 $* |
| Apr-19-2025 | 0.37 $* | 0.48 $* |
| Mar-19-2025 | 0.93 $* | 0.69 $* |
| Feb-19-2025 | 0.46 $* | 0.62 $* |
| Jan-19-2025 | 0.51 $* | 0.95 $* |
Характеристики
Product Description
Description of Food Drying Machine
Our Food Drying Machine is suitable for heating, solidification, drying and dehydration of many raw materials such as fruit,
vegetable, meat, fish, nuts and so on. It has adopted no noise high temperature resistance axial flow fan and automatic
temperature controlling system. The circle system is fully sealed. It makes the hot efficiency increased from 3-7% of traditional
oven to nearly 40%. The maximum hot efficiency can be up to 70%.
All of the Food Drying Machines are produced according to international quality standards and come up to advanced world standards.
They are energy saving and can reduce greatly the products cost and raise economic effect.
vegetable, meat, fish, nuts and so on. It has adopted no noise high temperature resistance axial flow fan and automatic
temperature controlling system. The circle system is fully sealed. It makes the hot efficiency increased from 3-7% of traditional
oven to nearly 40%. The maximum hot efficiency can be up to 70%.
All of the Food Drying Machines are produced according to international quality standards and come up to advanced world standards.
They are energy saving and can reduce greatly the products cost and raise economic effect.
Working principle

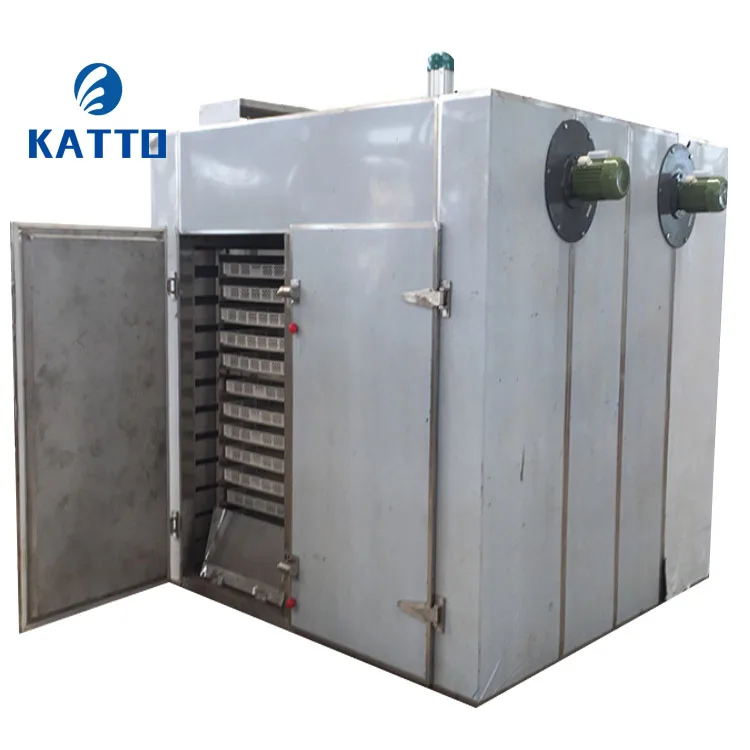

CT-C series hot air circulation tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays
loaded with wet material are placed on top of each other in trolleys.
In drying process, fresh cold air is sucked into the drying chamber by the circulation fan and flows through the steam radiator or electrical heating tubes installed in the top to get required temperature. With the help of air distributor, the hot air evenly flows through each layer of trays for heat transfer and carries way the evaporated moisture. Most of the damp air flows back to
the circulation fan for next drying circulation while part of the damp air is exhausted for energy saving. The drying process is batch type. When the drying is finished, open the chamber door and pull out the trolleys for unload the dried product.
CT-C series hot air circulation tray dryer can be used for drying or heating almost all kinds of wet materials, such as liquid,
slurry, paste, cake, powder, granule or sliced materials in almost all kinds of industries.
loaded with wet material are placed on top of each other in trolleys.
In drying process, fresh cold air is sucked into the drying chamber by the circulation fan and flows through the steam radiator or electrical heating tubes installed in the top to get required temperature. With the help of air distributor, the hot air evenly flows through each layer of trays for heat transfer and carries way the evaporated moisture. Most of the damp air flows back to
the circulation fan for next drying circulation while part of the damp air is exhausted for energy saving. The drying process is batch type. When the drying is finished, open the chamber door and pull out the trolleys for unload the dried product.
CT-C series hot air circulation tray dryer can be used for drying or heating almost all kinds of wet materials, such as liquid,
slurry, paste, cake, powder, granule or sliced materials in almost all kinds of industries.
Model | Capacity | Power /steam to be consumed | Backing trays | Dimension (mm) | Material | |||||
CT-C-O | 50kg-60KG/batch | 0.45kw/10kg/h | 24 | 1400*1200*2000 | sus304 | |||||
CT-C-I | 100kg-120KG/batch | 0.45kw/18kg/h | 48 | 2300*1200*1200 | sus304 | |||||
CT-C-II | 200 kg-240KG/batch | 0.9kw/36kg/h | 96 | 2300*1200*2000 | sus304 | |||||
CT-C-III | 300kg-360/batch | 1.35kw/54kg/h | 144 | 2300*3220*2000 | sus304 | |||||
CT-C-IV | 400kg-480/batch | 1.8kw /72kg/h | 192 | 4450*2200*2000 | sus304 | |||||
please note :any size we can make it for customers | ||||||||||
Feature of food dryer drying machine
1) Most of the hot air is circulated in the herbs dehydration machine. By using
the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.
2) Heating source: electricity, steam, far infrared of steam and electricity.
3) Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C.
Electricity heat 50-350°C.
4) automatic control system and computer control system for your choice.
the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.
2) Heating source: electricity, steam, far infrared of steam and electricity.
3) Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C.
Electricity heat 50-350°C.
4) automatic control system and computer control system for your choice.
Details Images
Our Advantages
1:The thermal insulation system layer thickness is 150mm, we use the White aluminum silicate as the thermal insulation material.the temperature of the machine outer wall is less than 50 degree. | ||||||||
2:whole 304 stainless steel, durable and easy to clean. | ||||||||
3:automatic temperature control, easy to operate. | ||||||||
4:heating source, electricity, gas, diesel for your choose | ||||||||
5:drying the food by hot air | ||||||||
6:6 kinds of capacity, 25/60/120/340/360/480 kg/batch. | ||||||||
Why Choose Us
1.We can change the mahine voltage as customer requirements.
2.Our engineer can go outside to install and train your workers to operate the full machine line, such as wood pellet machine line, wood block machine line, charcoal briquette machine line etc.
3. All the machine warranty time is one year except man-made damage.
4.Professional sales will reply your inquiry within 12 hours and ship your machine within 15-20 working days.
5. We have 4 year foreign trade experience and more than 20 years machine producing in this aera,our customers are from USA,UK,India,Colombia, Spain,Ecuador,Europe etc.
2.Our engineer can go outside to install and train your workers to operate the full machine line, such as wood pellet machine line, wood block machine line, charcoal briquette machine line etc.
3. All the machine warranty time is one year except man-made damage.
4.Professional sales will reply your inquiry within 12 hours and ship your machine within 15-20 working days.
5. We have 4 year foreign trade experience and more than 20 years machine producing in this aera,our customers are from USA,UK,India,Colombia, Spain,Ecuador,Europe etc.
