DM-46SW 370 46 мм червячный редуктор электродвигатель постоянного тока квадратный d работающего на постоянном токе 12 В в
- Категория: Редукторы скорости >>>
- Поставщик: Shenzhen,Dongming,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5.54 $* | 5.73 $* |
| Aug-19-2025 | 5.51 $* | 5.34 $* |
| Jul-19-2025 | 4.10 $* | 4.94 $* |
| Jun-19-2025 | 5.29 $* | 5.49 $* |
| May-19-2025 | 4.3 $* | 4.49 $* |
| Apr-19-2025 | 5.45 $* | 5.73 $* |
| Mar-19-2025 | 5.55 $* | 5.41 $* |
| Feb-19-2025 | 4.42 $* | 4.14 $* |
| Jan-19-2025 | 4.33 $* | 4.76 $* |
Характеристики

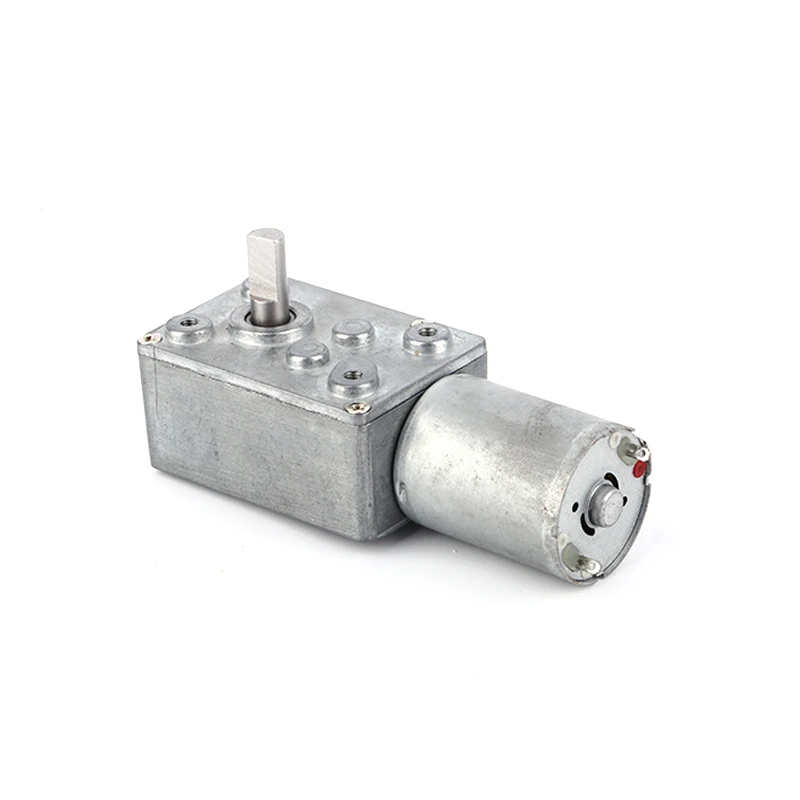

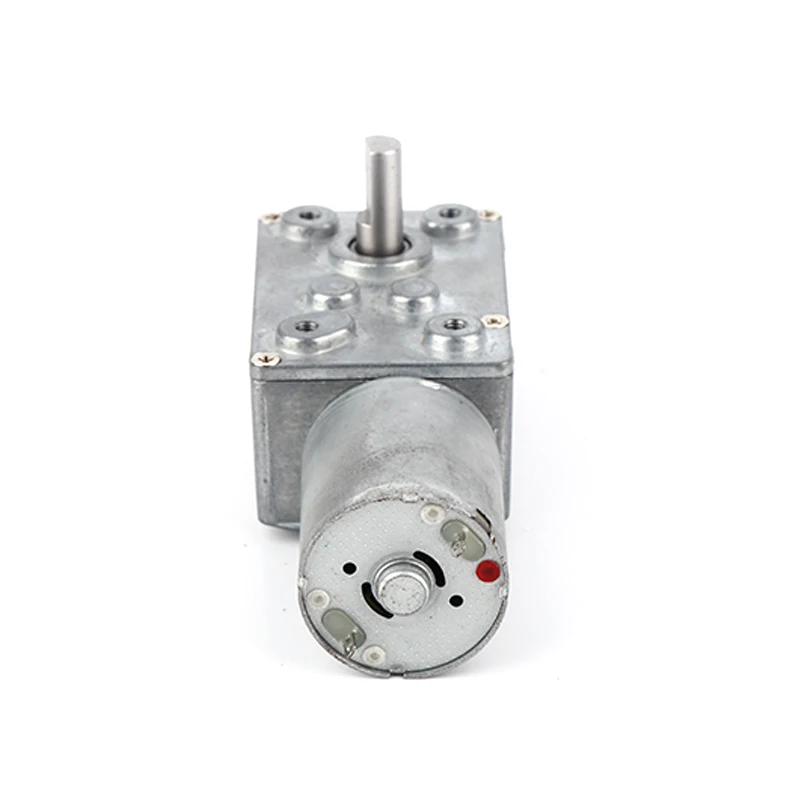

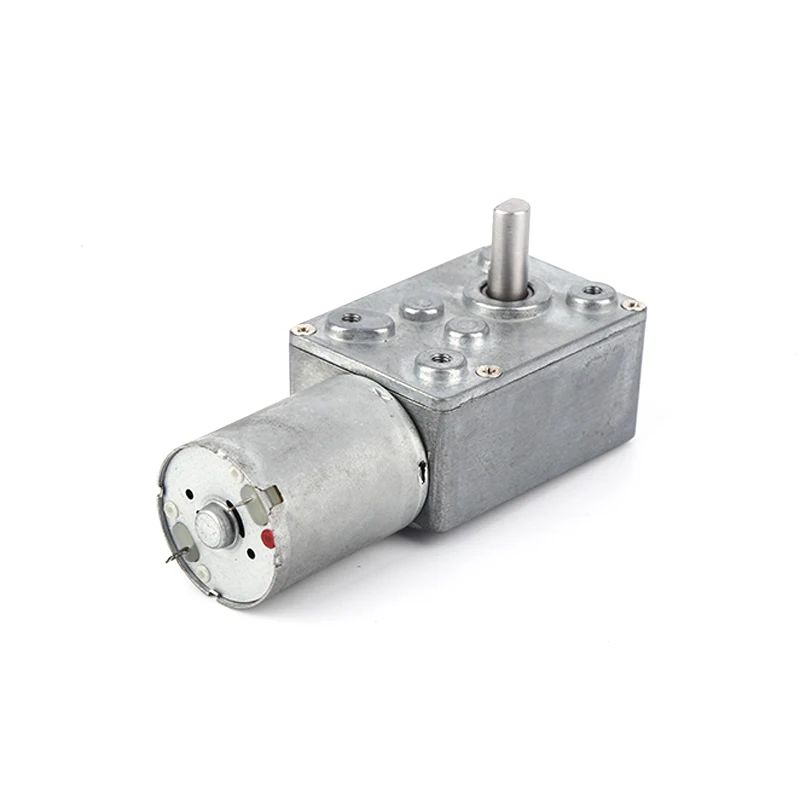

Products Description

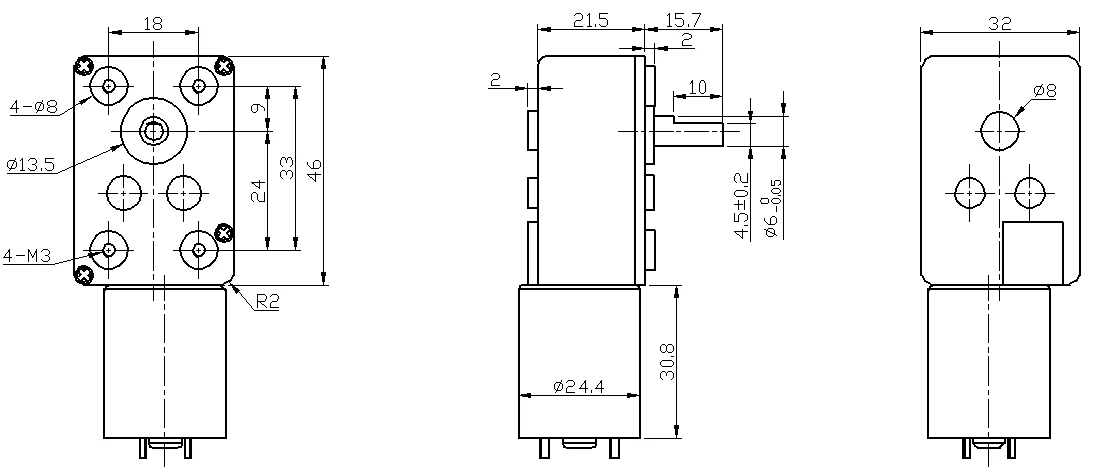

Appearance size:
Products Specification
Gearbox Data:
Number of stages | 3 | 4 |
Reduction ratio | 71,109,127,153,174,190 | 244,263,285,309,336,367,441, 486,539,603,684,742,806,865, 938,1020,1112,1217,1336,1474,1635 |
Gearbox length “L”mm | 25 | 25 |
Breaking torque(kgf.cm) | 10 | 15 |
Gearbox efficiency | 40% | 36% |
Driving Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | ||||||||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||||
V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||||||
DM-370-006-3000 | 6 | ≤40 | 3000 | ≤160 | 2500 | 15 | 0.4 | ≥68 | ≥520 | |||||
DM-370-006-4500 | 6 | ≤56 | 4500 | ≤300 | 3300 | 25 | 0.8 | ≥115 | ≥860 | |||||
DM-370-006-6000 | 6 | ≤80 | 6000 | ≤450 | 4500 | 35 | 1.6 | ≥165 | ≥1800 | |||||
DM-370-012-3000 | 12 | ≤20 | 3000 | ≤80 | 2500 | 15 | 0.4 | ≥68 | ≥250 | |||||
DM-370-012-4500 | 12 | ≤35 | 4500 | ≤150 | 3300 | 25 | 0.8 | ≥115 | ≥550 | |||||
DM-370-012-6000 | 12 | ≤50 | 6000 | ≤220 | 4500 | 35 | 1.6 | ≥165 | ≥980 | |||||
Gear Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | ||||||||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||||
V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | ||||||
DM-46SW3700068500-330K | 6.0 | 0.11 | 24.7 | 0.50 | 19.2 | 2.05 | 0.40 | 9.19 | 1.89 | |||||
DM-46SW3700123000-1650K | 12.0 | 0.03 | 1.7 | 0.08 | 1.4 | 6.36 | 0.09 | 30.02 | 0.31 | |||||
DM-46SW3700123250-255K | 12.0 | 0.04 | 12.6 | 0.12 | 8.9 | 1.30 | 0.12 | 4.47 | 0.31 | |||||
DM-46SW3700124150-330K | 12.0 | 0.02 | 13.1 | 0.10 | 10.5 | 1.60 | 0.17 | 8.18 | 0.45 | |||||
DM-46SW3700125700-69K | 12.0 | 0.13 | 73.8 | 0.37 | 52.8 | 0.70 | 0.38 | 2.47 | 0.96 | |||||
DM-46SW3700128500-100K | 12.0 | 0.07 | 84.7 | 0.41 | 71.1 | 1.05 | 0.77 | 6.54 | 2.20 | |||||
DM-46SW3700246000-1656K | 24.0 | 0.02 | 4.1 | 0.07 | 3.0 | 7.70 | 0.24 | 30.30 | 0.21 | |||||
DM-46SW3700247000-69K | 24.0 | 0.05 | 97.8 | 0.19 | 72.9 | 0.77 | 0.58 | 3.02 | 0.60 | |||||
DM-46SW3700248500-180K | 24.0 | 0.02 | 50.7 | 0.13 | 43.8 | 1.16 | 0.52 | 8.56 | 0.78 | |||||
DM-46SW3700248500-330K | 24.0 | 0.02 | 27.8 | 0.14 | 23.6 | 2.33 | 0.56 | 15.35 | 0.81 | |||||
DM-46SW37002410000-180K | 24.0 | 0.03 | 56.9 | 0.19 | 48.2 | 1.55 | 0.77 | 10.09 | 1.07 | |||||
Curve Chart :

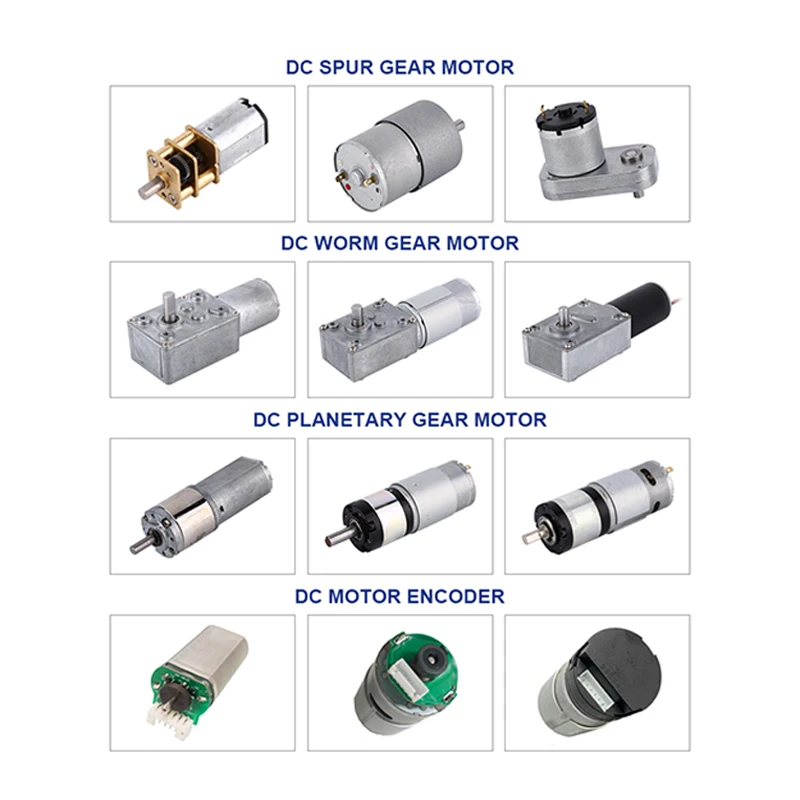

Shenzhen Dongming Motor Co., Ltd. is specialized in designing, manufacturing and selling micro DC motors, especially gear motors.
We have successfully worked out over 100 series of micro DC motors. Our products are widely applied in household appliances,
audio/video products, office equipment, health-care and beauty-care facilities, medical appliances, high-class toys, electronic
tools, electronic commodity, automotive parts and automatic systems.We have a team of professional staff who are working on R&D
and QC. They ensure our good quality managing system and advance technology.
