Products Description

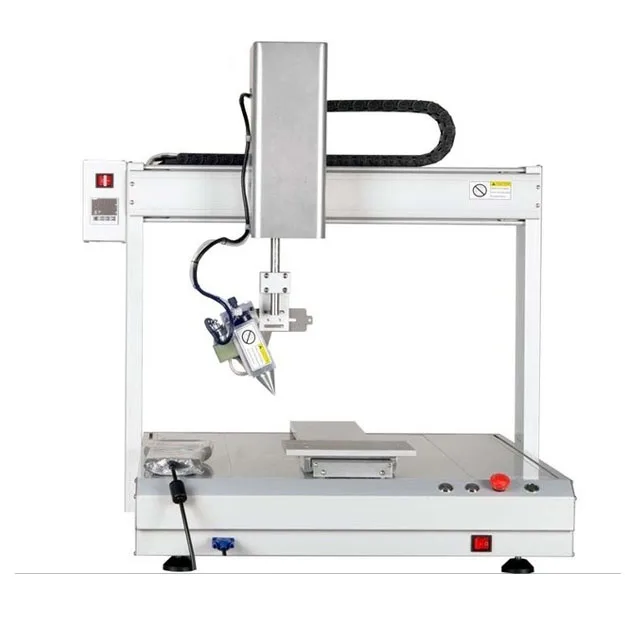

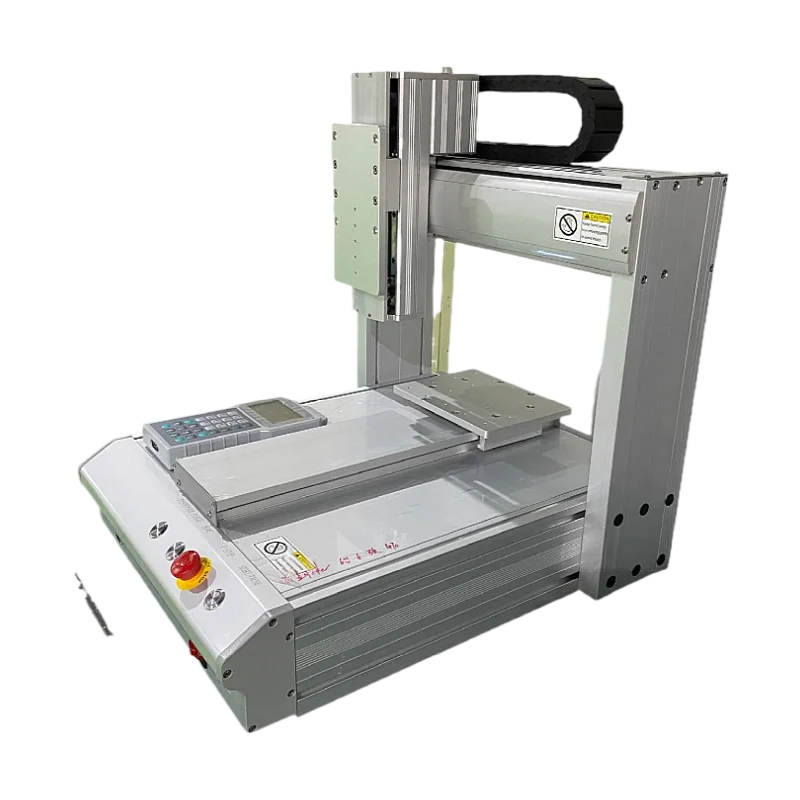

KTS-400 Bench Top Fluid Dispensing Robot
Features:
1.Computer Control, Windos OS;
2.Servo Motor + Ball Screw Driven;
3.X,Y,Z robotic arms repeatability accuracy up to 0.015mm;
4.Hidden PC design, compact external dimension, easy to move;
5.Dispensing bench with Vacuum absorption function;

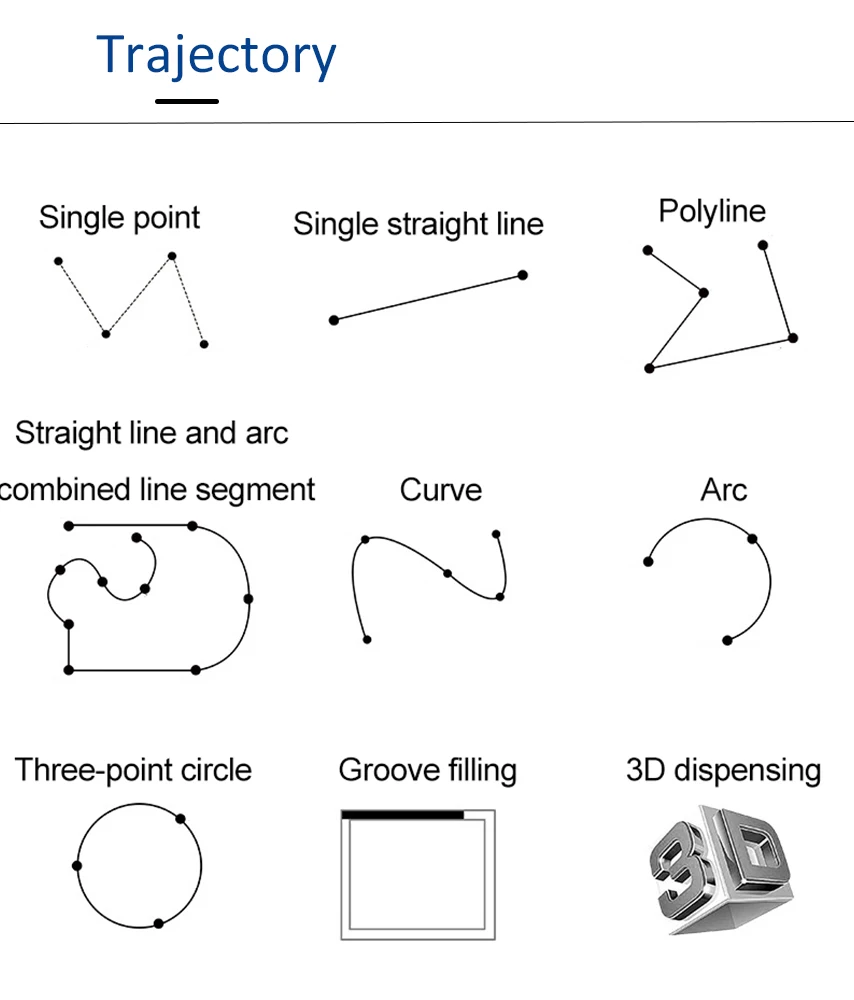

6.Visual dispensing patterns,easy programming of dots, stripes arcs, compound arcs and patterns;
Products Parameters
MODEL | KTS-400 Glue Dispensing Machine | ||||||
Repeatability Accuracy | ±0.015mm/Axis | ||||||
X/Y/Z Working Range | X400mm * Y400mm * Z100mm | ||||||
XY/Z Speed | Max:800/500 (mm/s) | ||||||
Motion/Drive System | Servo Motor, Ball Screw, Linear Slide | ||||||
Control Method | Industrial Computer + Motion Controller + LCD Display | ||||||
Positioning | 300,000 Resolution CCD Vision Camera | ||||||
Material Supply(customized) | Glue Tank(2600ml optional) 5cc/10cc/30cc/50cc Cartridge(optional) 30cc syringe | ||||||
Laser Height Measurement | Automatic Laser Height (precision:0.001mm) Detection & Z Axis Height Calibration Optional | ||||||
Power Supply | AC 110/220V, 50/60Hz, 1Kw | ||||||
Air Pressure | 0.5-0.7Mpa, 0.2m²/h | ||||||
CAD Impot | DXF Format | ||||||
Low Fluid Sensor/Warning | Optional | ||||||
Memory Capacity | 1000 Programs - Unlimited (Data Storage via USB) | ||||||
