Станок плазменной резки с ЧПУ станок по низкой


Поделиться:


Цена:4 000,00 $ - 5 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 4760.71 $* 4998.50 $*
Aug-15-2025 4720.90 $* 4956.49 $*
Jul-15-2025 3960.86 $* 4158.19 $*
Jun-15-2025 4640.77 $* 4872.96 $*
May-15-2025 4040.70 $* 4242.88 $*
Apr-15-2025 4560.10 $* 4788.50 $*
Mar-15-2025 4520.46 $* 4746.65 $*
Feb-15-2025 4480.57 $* 4704.19 $*
Jan-15-2025 4440.84 $* 4662.90 $*

Характеристики



CNC Plasma Cutting Machine CNC Cutting Machine Plasma With Cheap Price


Product Description

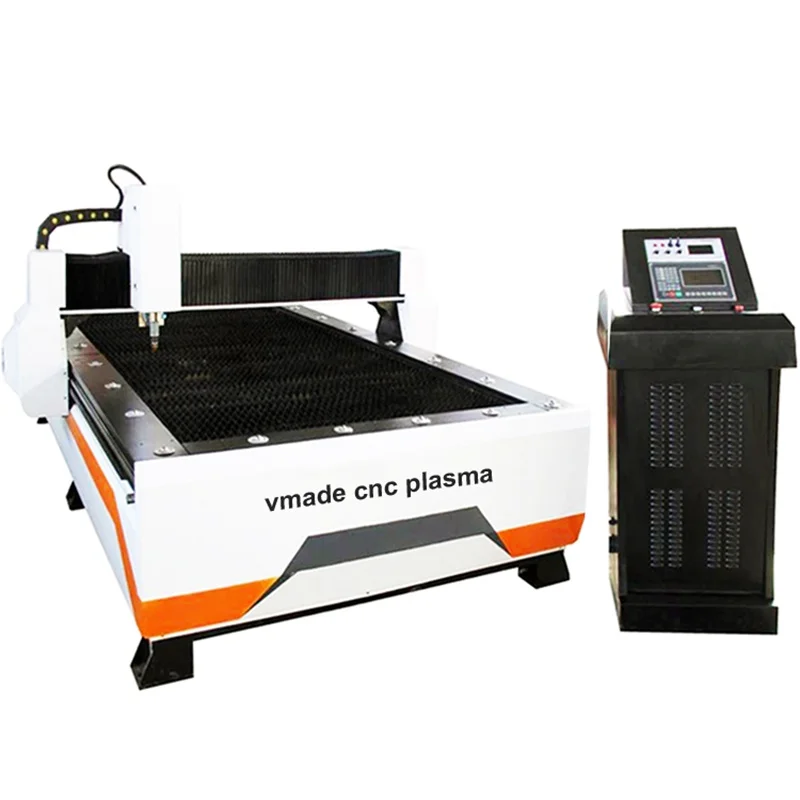

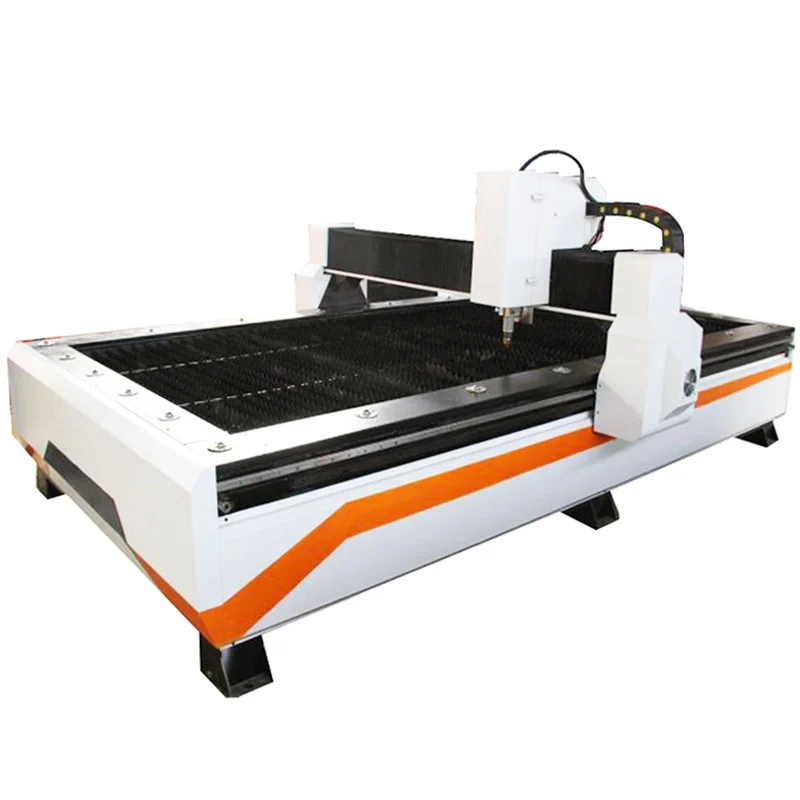

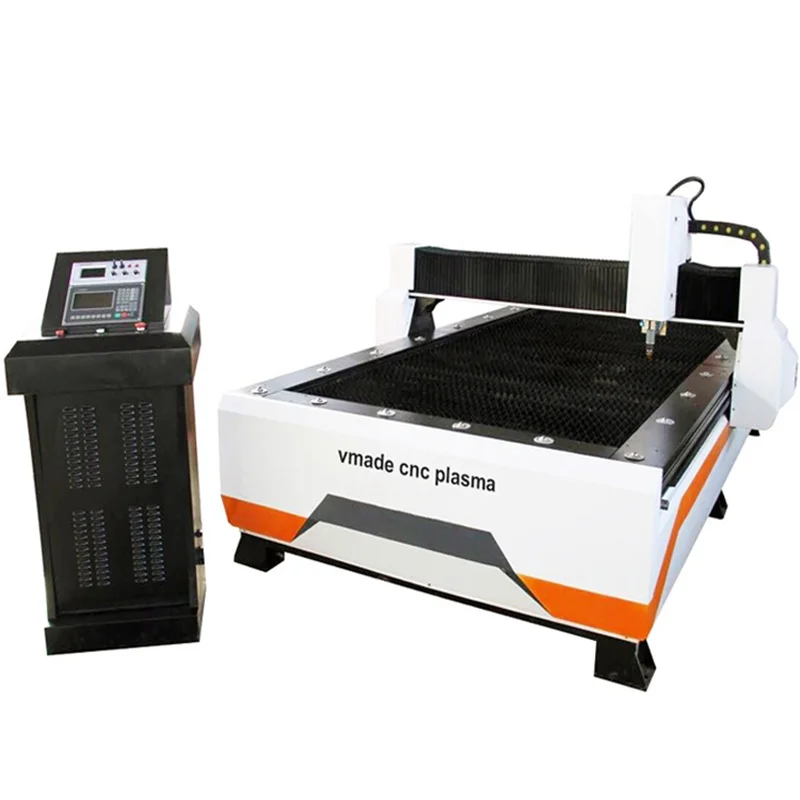

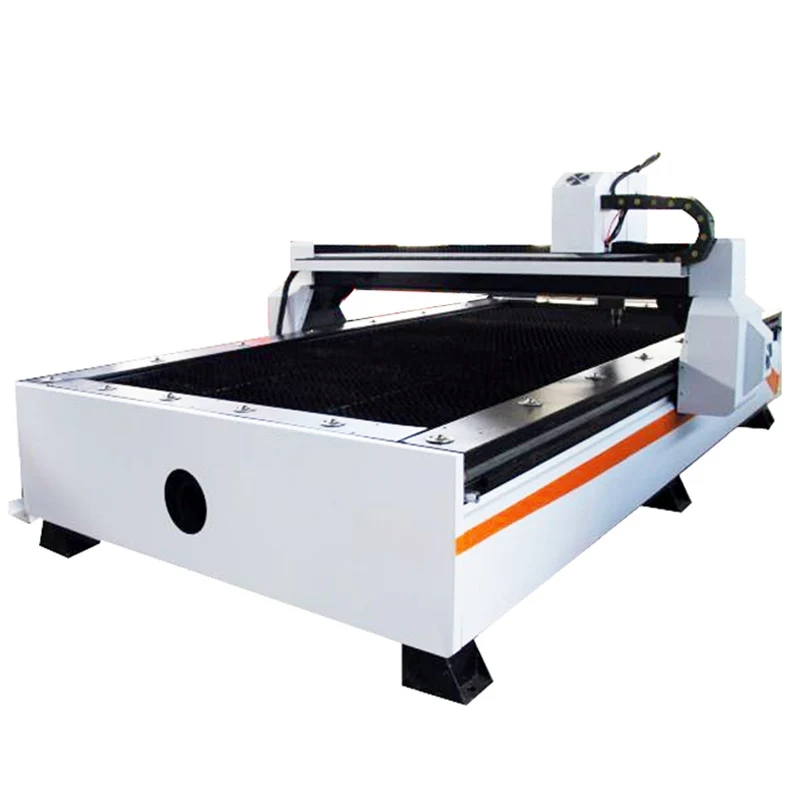

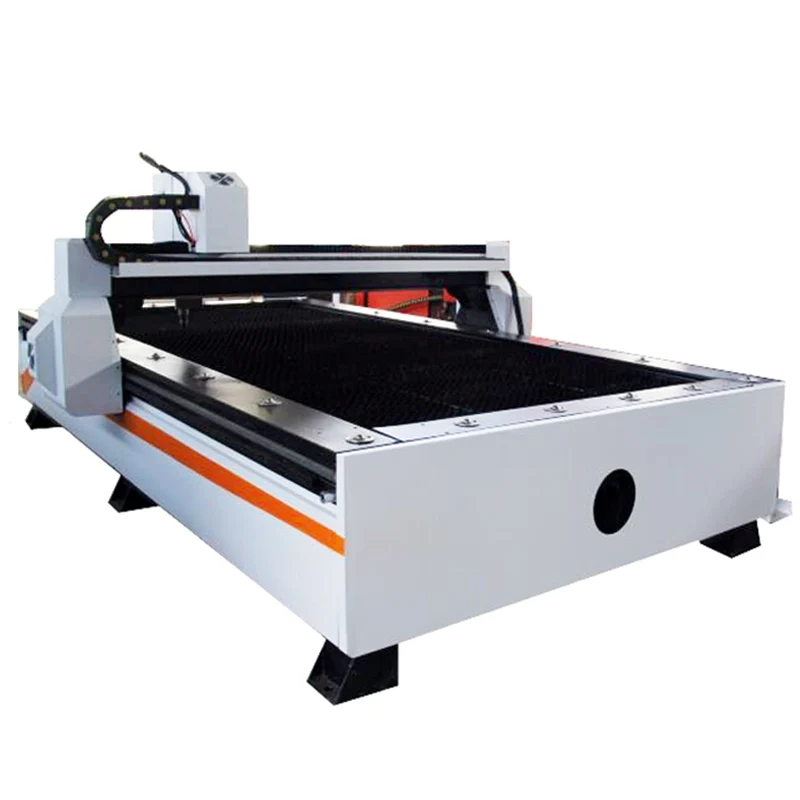

Plasma Metal Cutting Machine
CNC Plasma Cutting Machine CNC Cutting Machine Plasma With Cheap Price
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. Gantry-type structure,
Y axis synchronous dual-motor drive and X/Y/Z axis with circular rail (optional formula-type linear guide), steady transmission and
high accuracy.
3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy
good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
4. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
5. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated
file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk
exchange control system processing files, easy to operate.


Detailed Images


China Huayuan Plasma Source
USA Hyperthem Plasma Source(Option)
High Quality Cutting Head


STARTFIRE Control System
HYD THC
Guide Rail+Rack Gear


Manual Oil Injection System
Leadshine Stepper Motor and Driver
Saw Tooth Table


Product Paramenters


Model

Plasma Cutting Machine

Working Size

600*900mm,1200*1200mm,1300*2500mm,1500*3000mm,2000*4000mm

Repeat positioning accuracy

+-0.05mm

Traveling Speed

0-24000rpm/min

Cutting Speed

10-15mm/min

Transmission model

Gear Rack Drive

Transmission System

X,Y Axis Taiwan Hiwin High-precision,

Zaro Clearance increased,

Linear guide+rack

Operation System

START or DSP with USB Interface

Drive

Stepper, Leadshine-Stepper,YASKAWA or Pansonic

Plasma Power Supply

USA Hyperthem or China best HUAYUAN

Cutting thickness

0.1-30mm(different power cutting different thickness)

Cutting type

Plasma/Oxy[-acetylene or Propane

Input Voltage

3 phase ,220V/380V+-10%

Model of file transfer

USB Interface

Guide Way

Imported square rail

Table-board

Steel blade saw tooth mesa

Straight line positioning precision

+-0.2mm/10m

Straight line positioning precision

+-0.3mm/10m

Environmental Temperature

-5~45℃

Humidity

<90% NO concreting



sample picture


Plasma Source Brand and Cutting Thickness

China HUAYUAN Source:

USA Hyperthem Source:

63A(Max 5mm thickness matel plate)

45A(Max 5mm SS,Aluminum.8mm CS.)

100A(Max 6mm SS,Aluminum.12mm CS.)

65A(Max 8mm SS,Aluminum.12mm CS.)

120A(Max 10mm SS,Aluminum.18mm CS.)

85A(Max 12mm SS,Aluminum.16mm CS.)

160A(Max 15mm SS,Aluminum.25mm CS.)

105A(Max 16mm SS,Aluminum.20mm CS.)

200A(Max 20mm SS,Aluminum.30mm CS.)

125A(Max 18mm SS,Aluminum.25mm CS.)





Packing & Delivery


VLP-1325 model Packing Size:3300*2280*1750mm Weight:1100Kg

VLP-1530 model Packing Size:3900*2280*2220mm Weight:1700Kg

VLP-2060 model Packing Size:6800*2260*1700mm Weight:2000Kg
