XD04 новый дизайн пользовательский 1000кг вакуумный подъемник для стекла в
- Категория: Вакуумные подъемники >>>
- Поставщик: Hangzhou,Sino-Cold,Sci-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 3630.61 $* | 3812.17 $* |
| Aug-20-2025 | 3599.88 $* | 3779.53 $* |
| Jul-20-2025 | 3020.98 $* | 3171.50 $* |
| Jun-20-2025 | 3538.43 $* | 3715.68 $* |
| May-20-2025 | 3081.27 $* | 3235.14 $* |
| Apr-20-2025 | 3477.44 $* | 3651.13 $* |
| Mar-20-2025 | 3447.35 $* | 3619.74 $* |
| Feb-20-2025 | 3416.95 $* | 3587.45 $* |
| Jan-20-2025 | 3386.44 $* | 3555.54 $* |
Характеристики

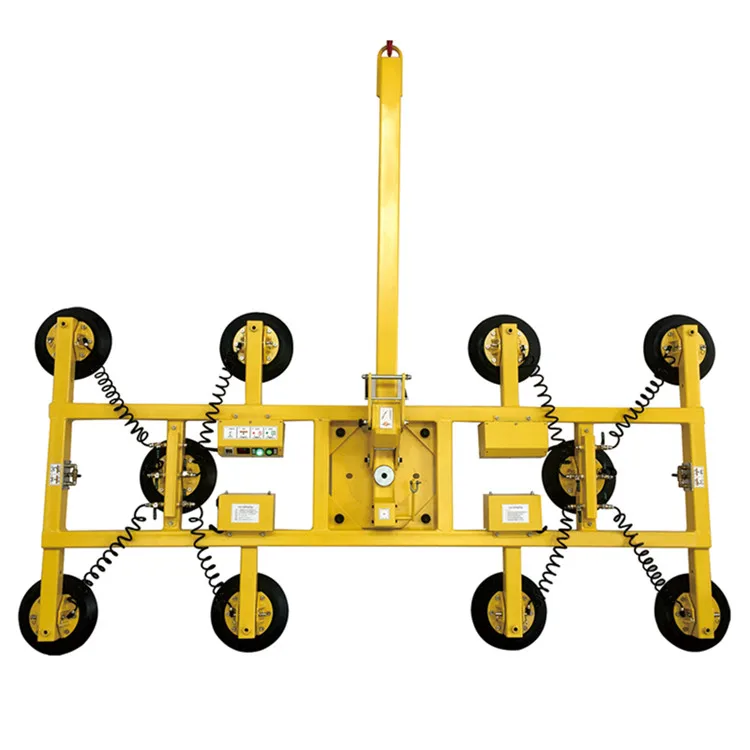

XD04 New Design Custom design 1000kgs suction cup glass vacuum lifter Factory in China
XD04 New Design Custom design 1000kgs suction cup glass vacuum lifter Factory in China
XD04 New Design Custom design 1000kgs suction cup glass vacuum lifter Factory in China
XD04 New Design Custom design 1000kgs suction cup glass vacuum lifter Factory in China
Product Description
Product Name | Glass Vacuum Lifter | Model | XD04 |

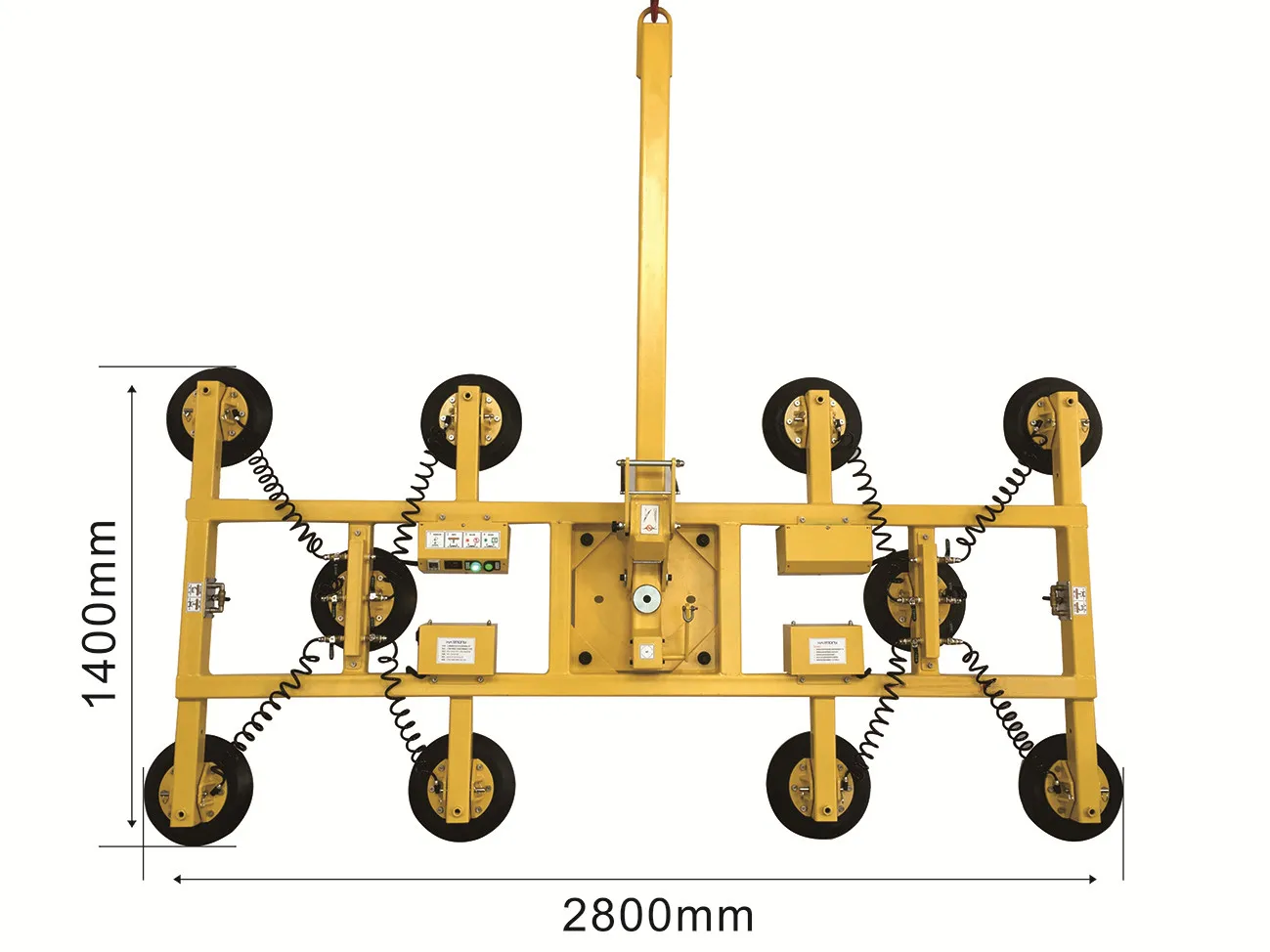

Power System | DC 12V | Size | 2800*1400*240MM |
Safety Loading | 1000KG | Charger | AC200V |
Weight | 220KGS | Inclined Angle | 90°~360° |
Glass Curtain wall Small-Scale Suction Crane Equipment HP-GX
1. HP-GX series of equipment are widely used in glass transition and
1. HP-GX series of equipment are widely used in glass transition and
2. glass curtain wall installation.\u2029
3. American THOMAS DC vacuum pump ＋Panasonic DC battery are adopted; When using, there is no need to connect other air source or power source.
4.Digital display vacuum pressure switch and battery charge indicator, which can monitor safe operation of equipment more clearly
5.With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.
3. American THOMAS DC vacuum pump ＋Panasonic DC battery are adopted; When using, there is no need to connect other air source or power source.
4.Digital display vacuum pressure switch and battery charge indicator, which can monitor safe operation of equipment more clearly
5.With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.

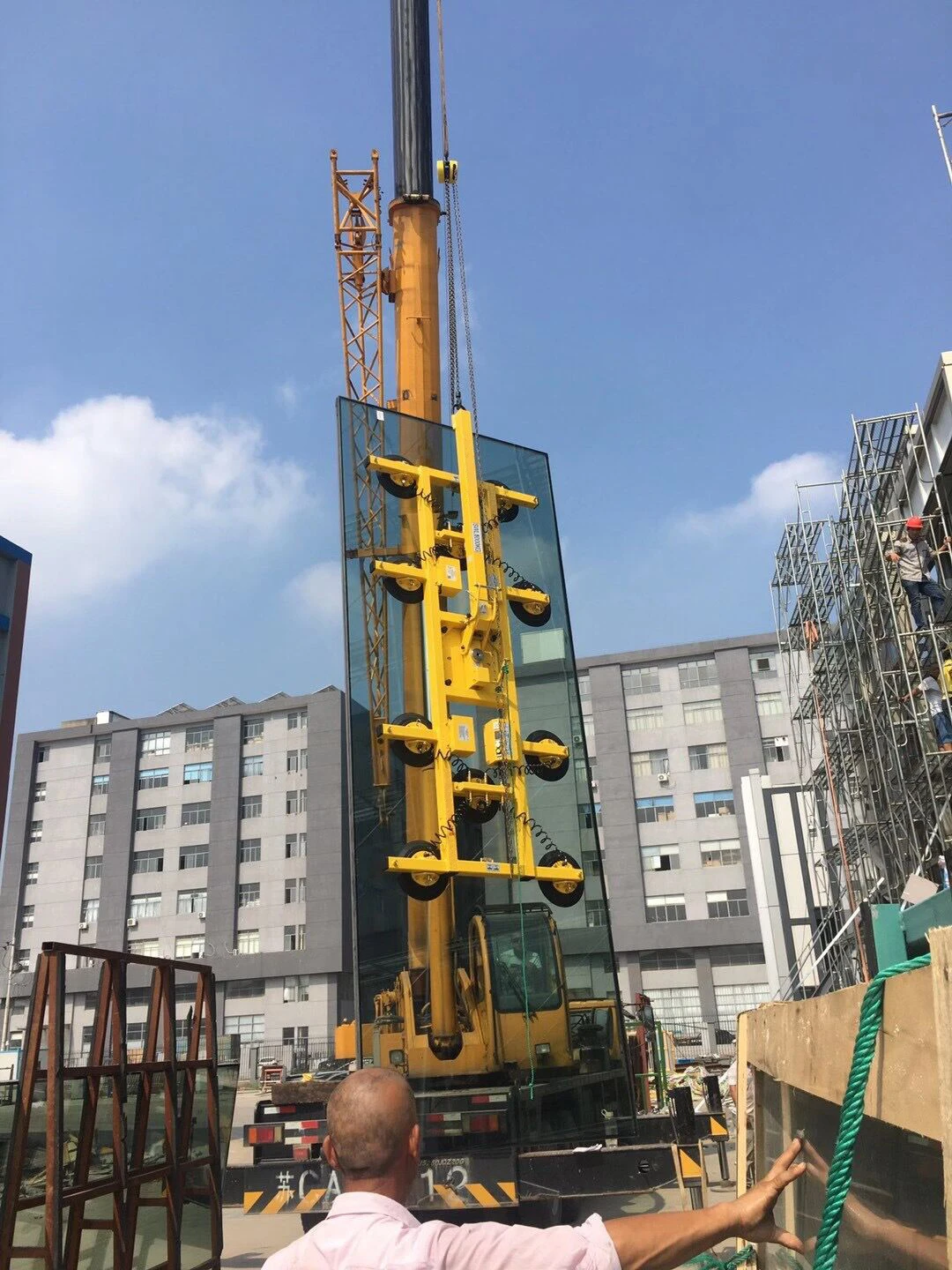

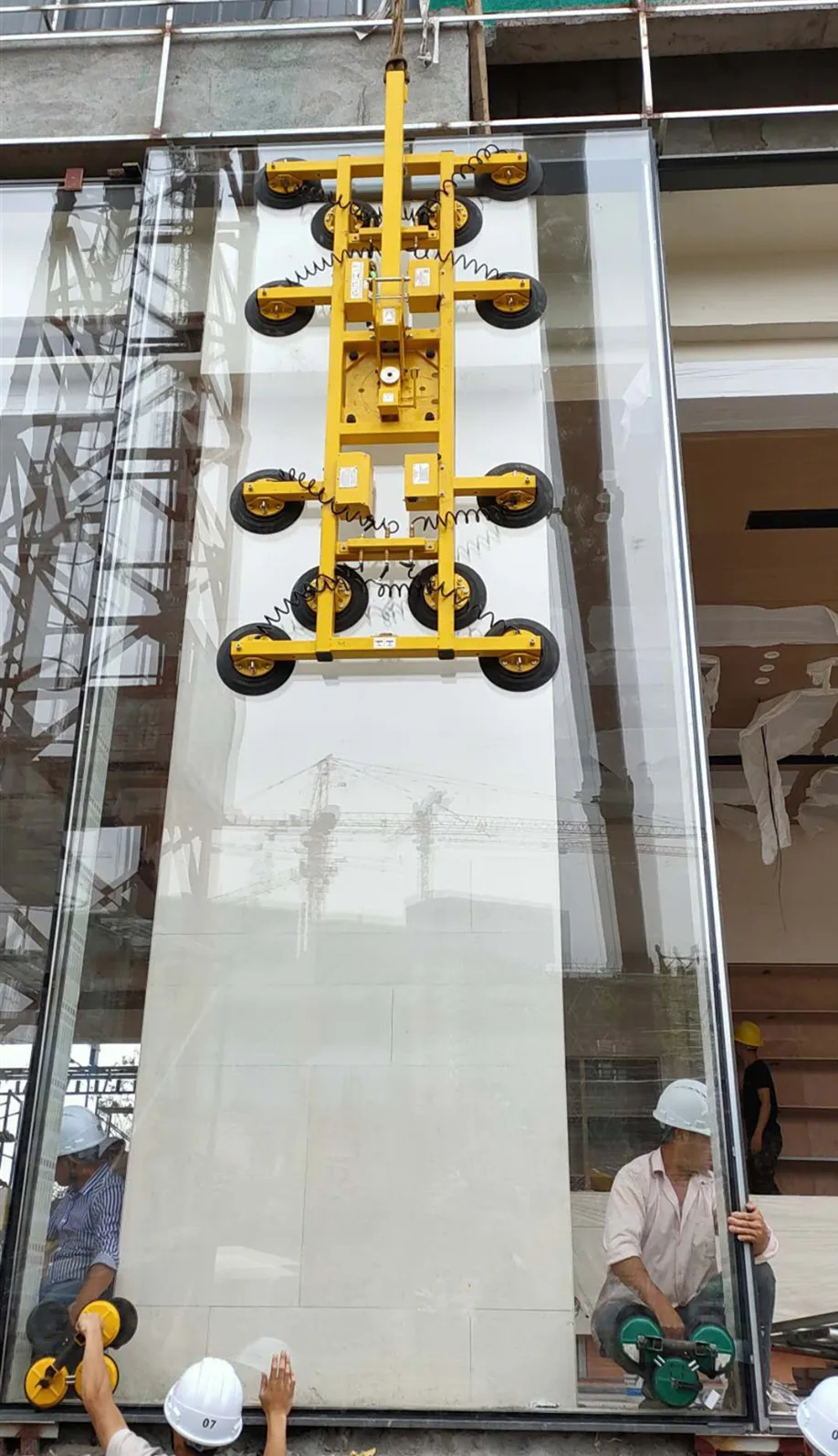

Application
DETAILS PACKING
Vacuum glass lifter instruction（The instructions are applicable to HP-GX AND HP-GH series vacuum glass lifter. ）
1.Clean the surface of the suction cup and the glass before use, and then place the suction hoist in the center of the glass.
2.Suction method:HP-GX: Turn on the power (see Fig. 1) and turn off the vent valve on the right side of the electric box (see Fig. 2), the vacuum pump begins to work.HP-GH: Turn on the power supply valve (see Fig. 1) and close the vent valve on both sides (see Fig. 2), the vacuum pump begins to work.
3.When the red light is converted to green light (see Fig. 1) and the digital pressure switch (see Fig. 8), the pressure value is from 0 kPa to - 66 kpa, it can be lifted when the vacuum pump stops working. No lifting is allowed at red light (see Figure 3).
4.When using the flip function, please pull down the flip handle (see Figure 4).
5.When using the rotation function, please pull down the rotary spanner, if you need 90° locking to restore the spanner (see Figure 5).
6.Deflation method:
HP-GX: When the glass is fixed, open the vent valve on the right side of the electric box (see Fig. 2) and then deflate.
HP-GH: When the glass is fixed, open the vent valve on both sides (see Fig. 2) and then deflate.
1.Clean the surface of the suction cup and the glass before use, and then place the suction hoist in the center of the glass.
2.Suction method:HP-GX: Turn on the power (see Fig. 1) and turn off the vent valve on the right side of the electric box (see Fig. 2), the vacuum pump begins to work.HP-GH: Turn on the power supply valve (see Fig. 1) and close the vent valve on both sides (see Fig. 2), the vacuum pump begins to work.
3.When the red light is converted to green light (see Fig. 1) and the digital pressure switch (see Fig. 8), the pressure value is from 0 kPa to - 66 kpa, it can be lifted when the vacuum pump stops working. No lifting is allowed at red light (see Figure 3).
4.When using the flip function, please pull down the flip handle (see Figure 4).
5.When using the rotation function, please pull down the rotary spanner, if you need 90° locking to restore the spanner (see Figure 5).
6.Deflation method:
HP-GX: When the glass is fixed, open the vent valve on the right side of the electric box (see Fig. 2) and then deflate.
HP-GH: When the glass is fixed, open the vent valve on both sides (see Fig. 2) and then deflate.
Detailed Images
Digital vacuum pressure display and LCD battery colume display
The suction cup has three sealing rings ,and there is a grid between each sealing ring

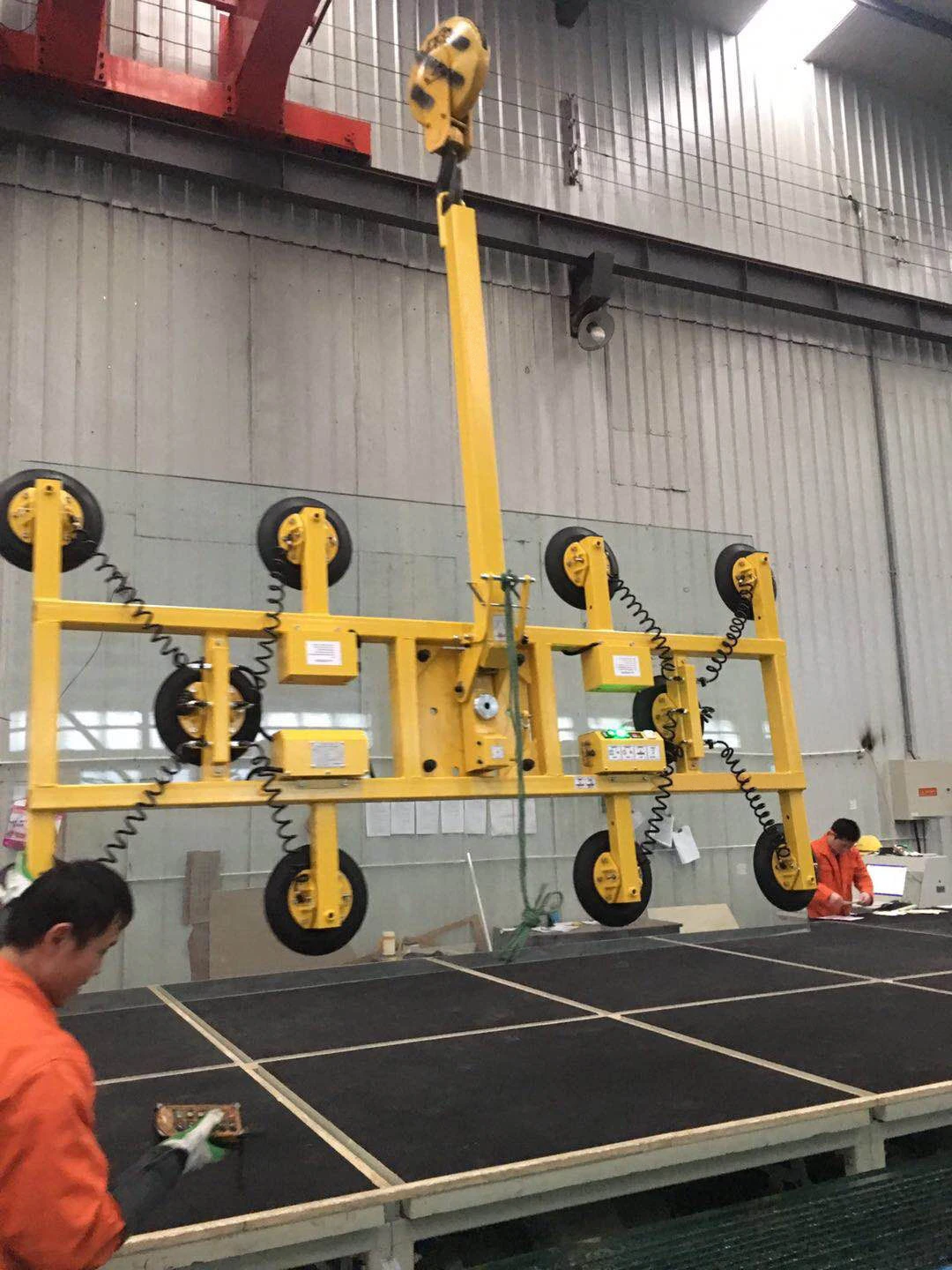

Vertical 90° turning and horizontal 360° roating

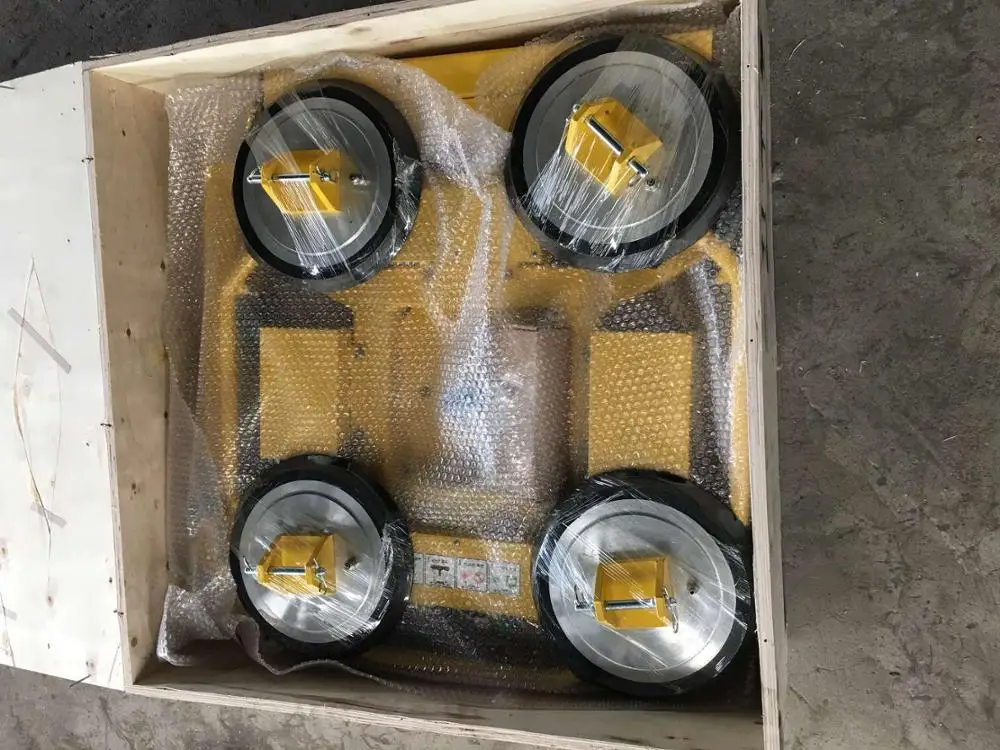

Plastic stretch film coating, plywood case package
Related Products
Our Company
Exhibition
Pre-Sales Service
* Inquiry and consulting support. * Sample testing support. * View our Factory.
After-Sales Service
*Advicing how to install the machine, Advicing how to use the machine. * Engineers available to service machinery overseas on customer cost.
After-Sales Service
*Advicing how to install the machine, Advicing how to use the machine. * Engineers available to service machinery overseas on customer cost.
FAQ
Q: How about the warranty for your products?
A: All of our products have one year warranty. During the guarantee period, if there
are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A:We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in.
Q: May I have a free sample? I need test your quality first.
A: We are regret to tell you that we could not offer free sample to our customers, which is our company rule. But if you agree, we can quote special price to better support you for trail order.
are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A:We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in.
Q: May I have a free sample? I need test your quality first.
A: We are regret to tell you that we could not offer free sample to our customers, which is our company rule. But if you agree, we can quote special price to better support you for trail order.
