Цифровой расходомер воды DN40 электронный магнитный для сточных
- Категория: Расходомер >>>
- Поставщик: Kaifeng,Philemon,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 393.70 $* | 413.24 $* |
| Aug-16-2025 | 389.64 $* | 408.88 $* |
| Jul-16-2025 | 327.27 $* | 343.75 $* |
| Jun-16-2025 | 383.34 $* | 402.82 $* |
| May-16-2025 | 333.21 $* | 350.91 $* |
| Apr-16-2025 | 376.65 $* | 395.73 $* |
| Mar-16-2025 | 373.72 $* | 392.16 $* |
| Feb-16-2025 | 370.98 $* | 389.35 $* |
| Jan-16-2025 | 366.32 $* | 384.73 $* |
Характеристики

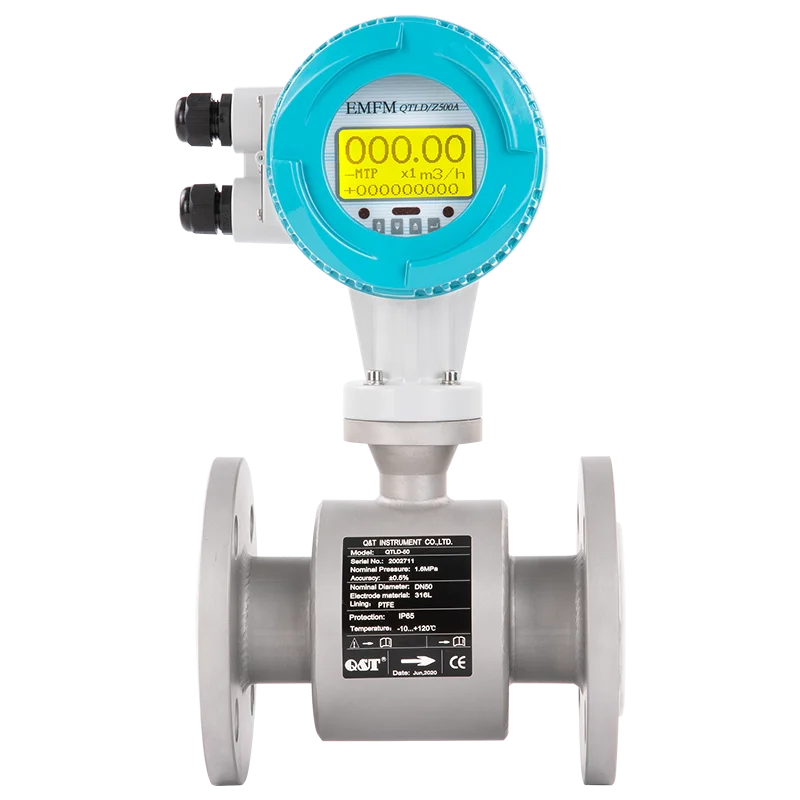

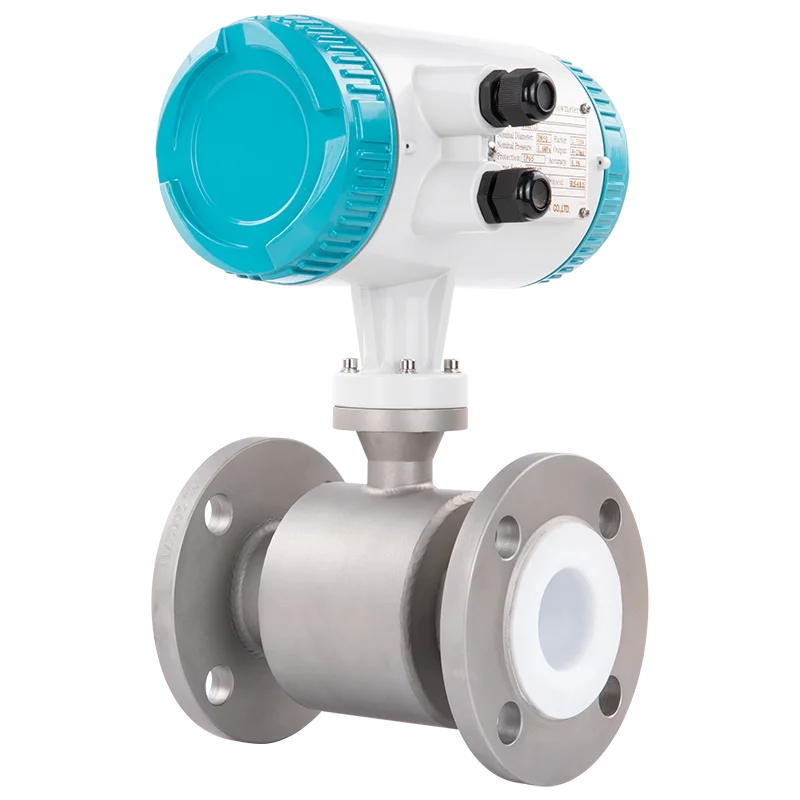

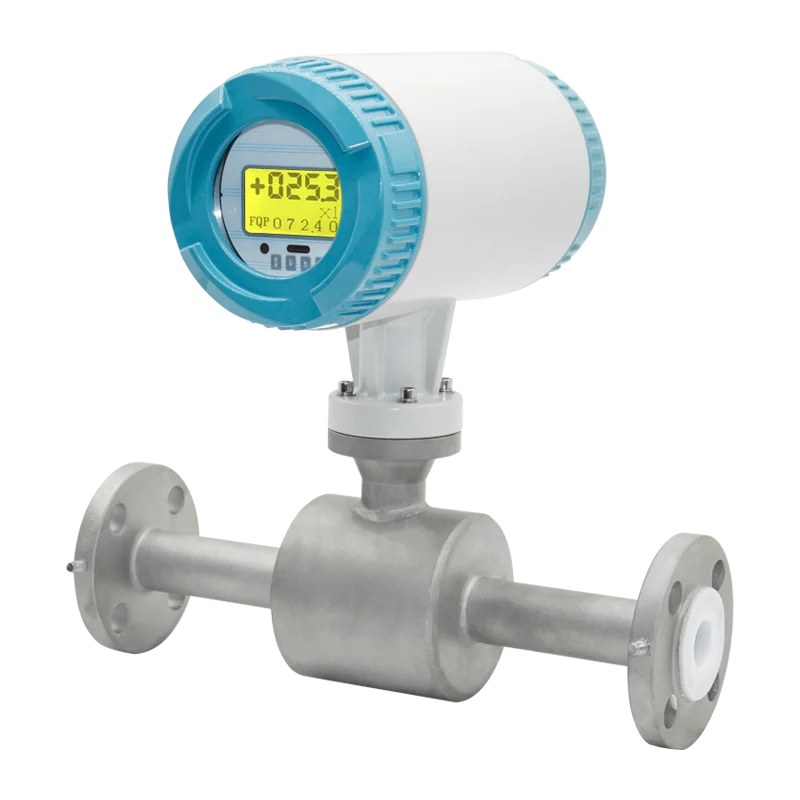

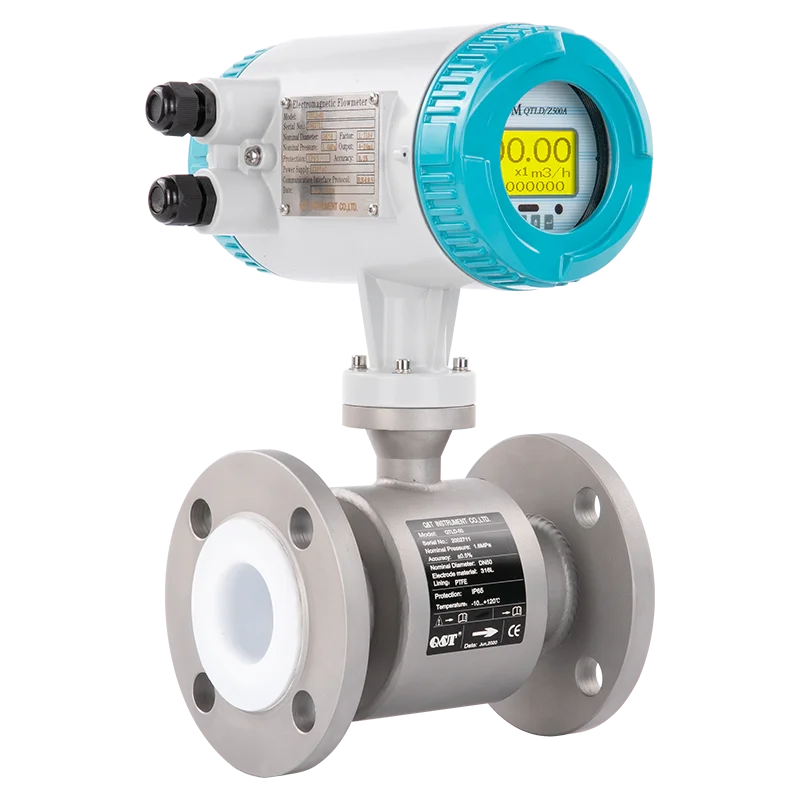

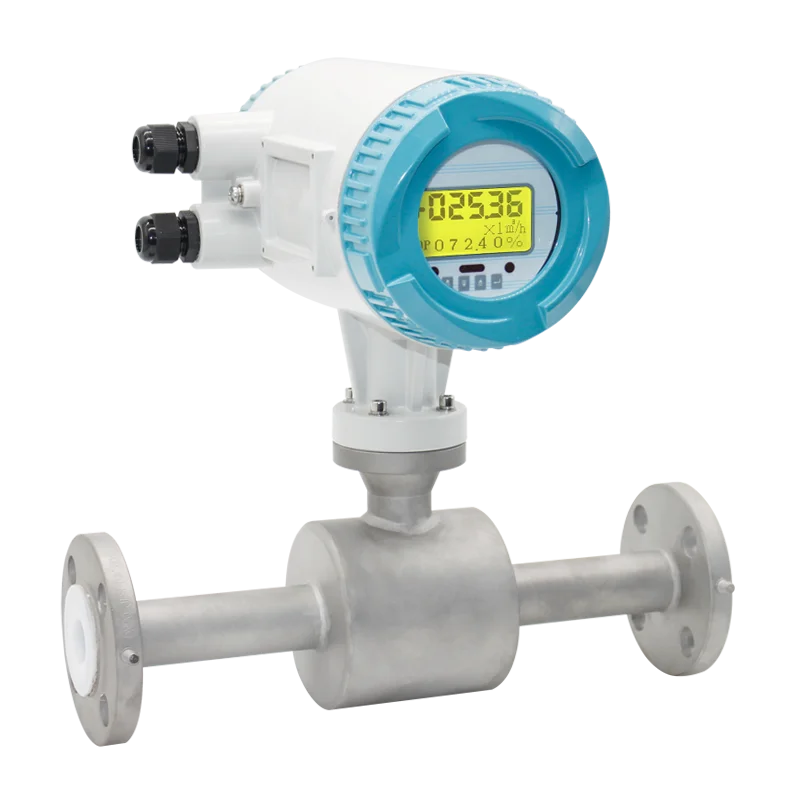

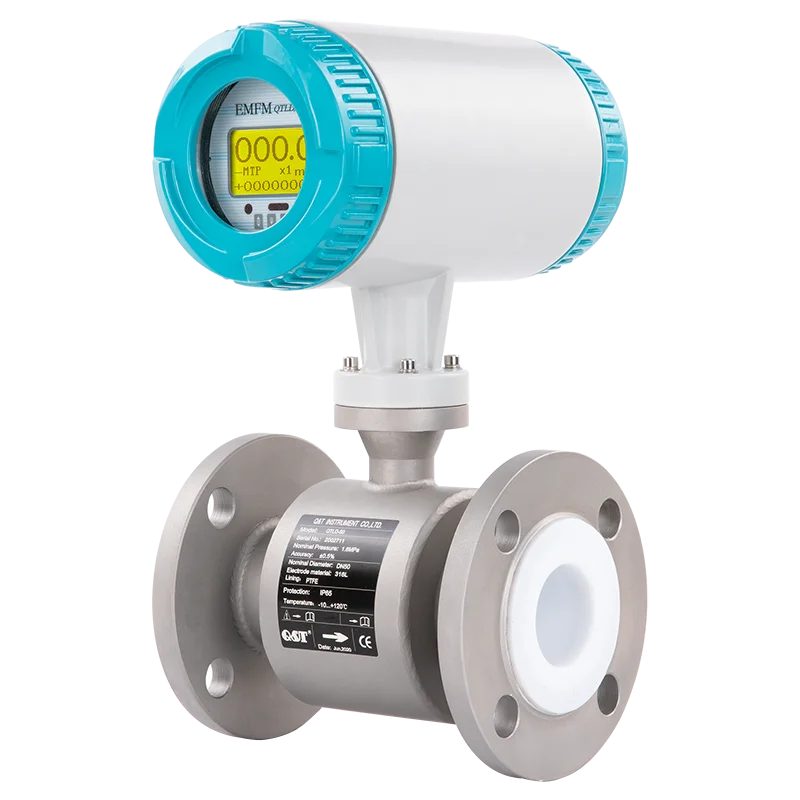

DN40 electronic flow meter sewage magnetic flowmeter
WHY CHOOSE US?
Refined Material & Accurate Measurement
ENVIRONMENTAL TEST
High & Low temperature tests, Different Humidity Test ,
Make sure instruments can resist any harsh environments
- Main Performances Parameters
| Size | DN3-DN3000mm |
| Nominal Pressure | 0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa) |
| Accuracy | +/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional) |
| Liner | PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA |
| Electrode | SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium |
| Structure Type | Integral type, remote type, submersible type, ex-proof type |
| Medium Temperature | -20~+60 degC(Integral type) |
| Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC Remote type(PTFE/PFA/FEP) -10~+160degC | |
| Ambient Temperature | -20~+60deg C |
| Ambient Humidity | 5-100%RH(relative humidity) |
| Measuring Range | Max 15m/s |
| Conductivity | >5us/cm |
| Protection Class | IP65(Standard); IP68(Optional for remote type) |
| Process Connection | Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional) |
| Output Signal | 4-20mA/Pulse |
| Communication | RS485(Standard), HART(Optional),GPRS/GSM (Optional) |
| Power Supply | AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional) |
| Power Consumption | <20W |
| Alarm | Upper Limit Alarm / Lower Limit Alarm |
| Self-diagnosis | Empty Pipe Alarm, Exciting Alarm |
| Explosion Proof | ATEX |
- Main Performances Of The Electrode Materials
| Electrode Material | Application |
| SUS316L | Applicable to industrial/municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries. |
| Hastelloy B | Strong resistance to hydrochloric acids below the boiling point. Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids. |
| Hastelloy C | Exceptional resistance to strong solutions of oxidizing salts and acids. For example, Fe+++, Cu++, Nitric acids, mixed acids |
| Titanium | Titanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkali. Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids. |
| Tantalum | Highly resistant to corrosive mediums. Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali. |
| Platinum-iridium | Applicable to all chemical mediums except for Ammonium salts and Fortis. |
- Velocity-Flow Range Table
Remark: Recommend flow velocity range 0.5m/s - 15m/s
