Характеристики
Product Description

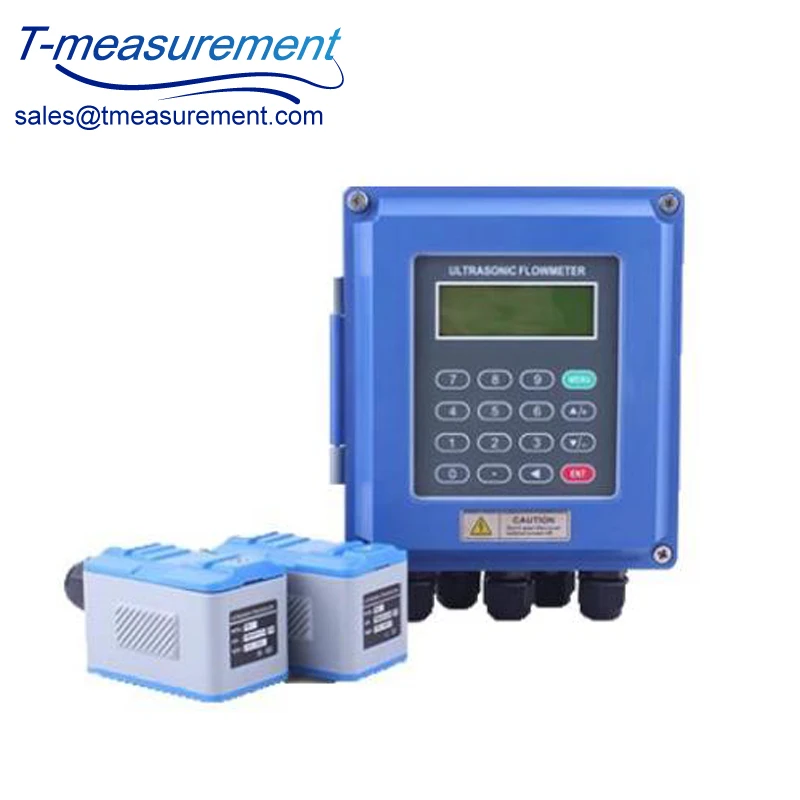

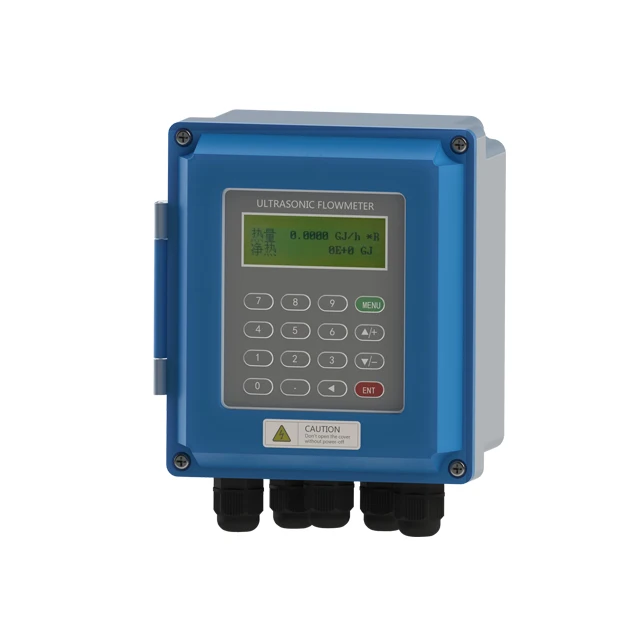

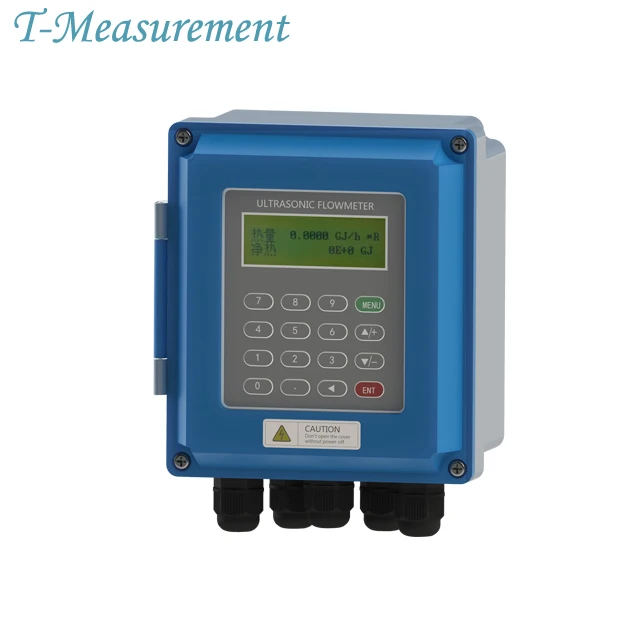

TUF2000B fixed ultrasonic flow meter can operate with all our instruments transducer. Their electronic enclosures are rated as IP65,thus,can be installed for both indoor and outdoor.
Product Features
1.Better than 1% accuracy
2.0.2% of repeatability
3.2x20 English letters LCD display
4.4x4 key tactile-feedback membrane keypad
5.85~264VAC or 24VDC power supply
6.Pipe diameters from 15mm to 6000mm

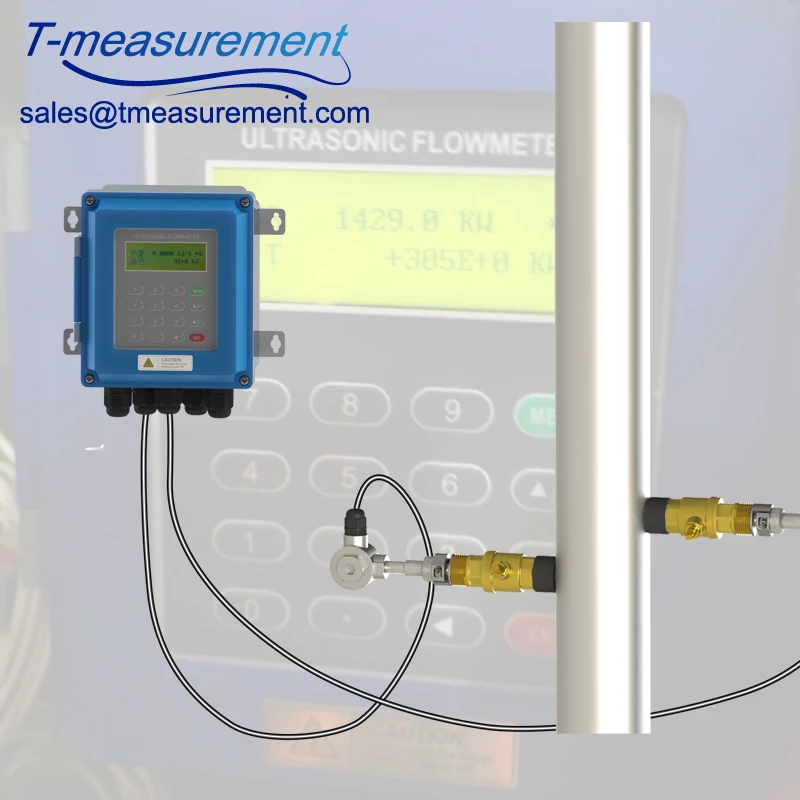

7.Operate with clamp on, insertion and flow-cell transducer
8.RS485 Output
9.One channel programmable 4-20mA output
10.Two channel programmable digital out (isolated OCT and Relay)
11.IP65
12.SD USB data memory ( 1G,4G,8G etc )
2.0.2% of repeatability
3.2x20 English letters LCD display
4.4x4 key tactile-feedback membrane keypad
5.85~264VAC or 24VDC power supply
6.Pipe diameters from 15mm to 6000mm
7.Operate with clamp on, insertion and flow-cell transducer
8.RS485 Output
9.One channel programmable 4-20mA output
10.Two channel programmable digital out (isolated OCT and Relay)
11.IP65
12.SD USB data memory ( 1G,4G,8G etc )
Technical Parameter
Pipe Size | DN15mm~6000mm |
Power Consumption | Less than 1.5W |
Measurement Principle | Transit-time measurement principle |
Power Supply | AC 85-264V or DC 8-36VDC |
Output | RS485,4-20mA ,0-20mA or OCT |
Input | 4-20mA |
Protocol | MODBUS~RTU |
Protection Class | IP65 |
Memory | Automatic memory the positive,negative,net totaliser flow rate and heat quantity of the last 512 days,128 months,10years |
Pipe Material | All metals,most plastics,fiber glass,etc, |
Accuracy | Better than ±1.0 % |
Repeatability | 0.20% |
Measurement Period | 0.5S |
Display | LCD with backlight. 2x20 letters. |
Liquids Temperature | -40°C~160°C |
Environment Temperature | -30°C~80°C |
Environment Humidity | 85% RH |
Sensor Details
Clamp on TS-2 | Suitable for DN15-100mm Temperature :-30-90℃ |
Clamp on TM-1 | Suitable for DN50-700mm Temperature :-30-90℃ |
Clamp on TL-1 | Suitable for DN300-6000mm Temperature :-30-90℃ |
Clamp on TS-2-HT | Suitable for DN15-100mm Temperature :-30-160℃ |
Clamp on TM-1-HT | Suitable for DN50-700mm Temperature :-30- 160℃ |
Clamp on TL-1-HT | Suitable for DN300-6000mm Temperature :-30-160℃ |
Produce and workshop
Make Sensor of TUF-2000B Flow Meter ,.From formation to completion, our skilled workers will complete
Each Sensor do test and calibration carefully and then match for flow meter transmitter.
Shipment show
Customer Install Feedback
