Манометр с жидкостным наполнением 40
- Категория: Pressure Measuring Instruments >>>
- Поставщик: Maanshan,Naite,Instrument,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.13 $* | 1.91 $* |
| Jul-18-2025 | 1.55 $* | 1.21 $* |
| Jun-18-2025 | 1.80 $* | 1.31 $* |
| May-18-2025 | 1.17 $* | 1.12 $* |
| Apr-18-2025 | 1.99 $* | 1.77 $* |
| Mar-18-2025 | 1.32 $* | 1.11 $* |
| Feb-18-2025 | 1.1 $* | 1.64 $* |
| Jan-18-2025 | 1.37 $* | 1.26 $* |
Характеристики

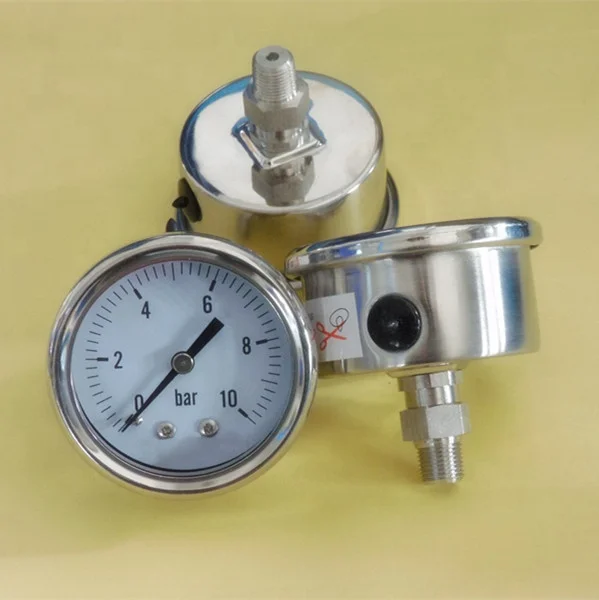

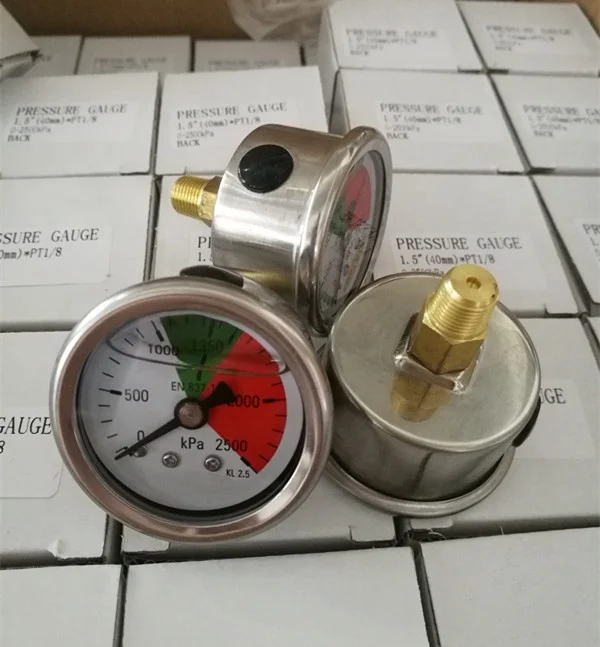

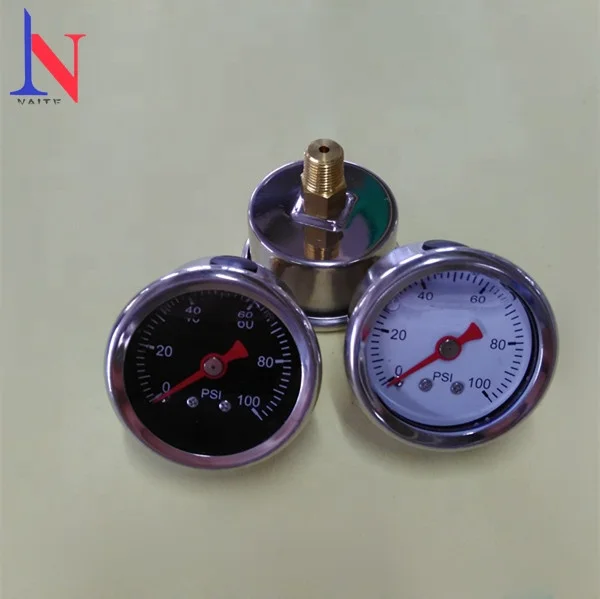

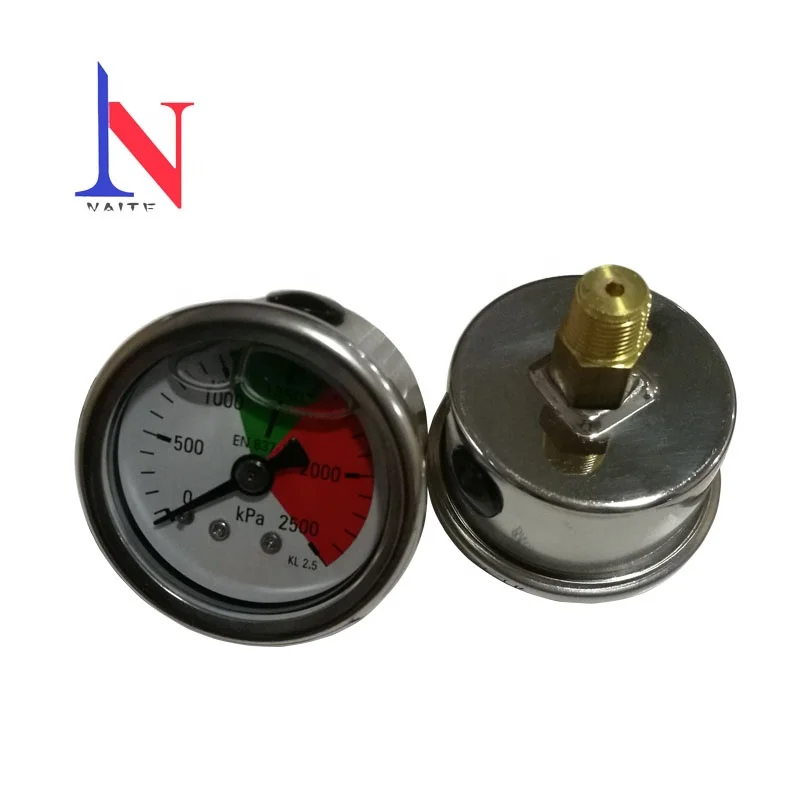

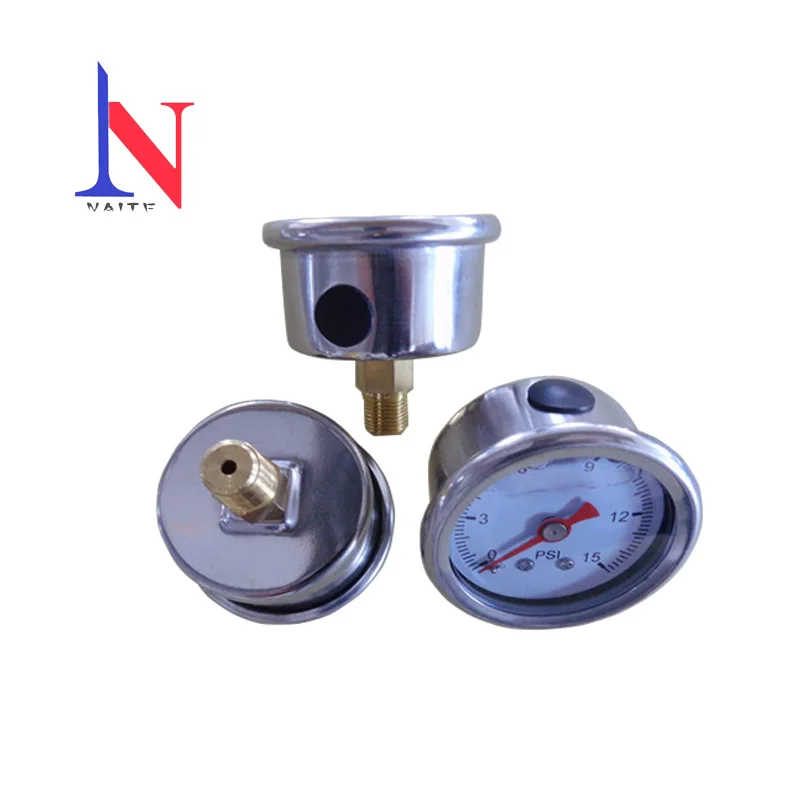

1.5" /40mm Stainless Steel Liquild Pressure Gauge
Applications
. With liquid filled case for applications with high dynamic pressure pulsations or vibration pressure pulsations or vibration
. Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
. Process industry: chemical/petrochemical, power,stations, mining, on and offshore, environmental technology,mechanical engineering and plant construction
Available Options
- Flange or U clamp
- Glycerin or Silicone filled
- Tempered glass or safety glass window
- Black metal case or ABS case
- Special connections
- Face with customer logo
| Pressure gauge specification | ||||
| Dials Size | 1.5, 2, 2.5, 3, 3.5, 4 and 6 inches | |||
| Pressure range | - 0.1 - 0 -100Mpa | |||
| Case | stainless steel, plastic , forged brass and steel | |||
| Bezel | stainless steel, steel or wihtout | |||
| Movement | stainless steel, brass | |||
| Socket | stainless steel, brass | |||
| Connection sizes | 1/8, 1/4, 3/8 and 1/2 inches | |||
| Connection threads | NPT, BSP (G, PF), BSPT (ZG, PT) | |||
| Connection mounting | bottom, top, left, right and center back | |||
| Connector | stainless steel, Brass | |||
| Bourdon tube | stainless steel, phosphor bronze | |||
| Dial and pointer | aluminum | |||
| Dial plate | single and dual scale (psi, kpa,mpa, bar, kg/cm2 avaible | |||
| Window | tempered glass, polycarbonate | |||
| Accuracy range | 1%, 1.6%, 2.5% full scale | |||
| Working temperture | -20°C- 70°C | |||
| Filled medium | glycerine,Silicone | |||
| Filling cap | neoprene Or Silica gel | |||
Our More products
Dry black metal case
Oil pressure gauge with flange
Oil pressure gauge with flange
Packaging & Shipping
Packing Way
Company Information
Our Factory
Certificate
FAQ
Q1: Are you factory?
A1: Yes, we are a pressure gauge factory with 11 years experience.
Q2: What's your MOQ?
A2: There's no MOQ limits, 1 piece for test at first is acceptable.
Q3: Are you Trade Assurance Supplier ?
A3: Yes, we are a member of Alibaba Trade Assurance,we have Trade Assurance amount of USD 44,000 which granted by Aliababa.com .
Q4: Can we print our logo on the gauge?
A4: Yes, we can print logo as customer requirement.
Q5: What about your quality?
A5: We guarantee that our pressure gauges are 100% inspection before ship to our client.
Q6: What is your production capacity ?
A6: Our production capacity is about 100,000 pieces per month.
Q7: What's delivery way?
A7: We suggest to send by sea for large quanitity order, but for less 1 pallet order, courier is best choice.
Q8: What's your payment terms?
A8: Our acceptable payment is TT, Western Union, Paypal, LC(large order)
Our Contact Way
| Factory: | Maanshan City Naite Instrument Technology Co.,Ltd | |||
| Add: | Hushan Industrial Cluster District, Huashan Dist, Maanshan, Anhui Province, China | |||
| Contact Person: | Marsha Zhu | |||
| Tel: | 86-555-2473738 | |||
| Fax: | 86-555-2401153 | |||
| Mobile: | 86-13865607900 | |||
| QQ: | 2094198285 | |||
| Skype: | Marsha96011 | |||
