Conference Usb2.0 Broadcast Optical Zoom 3g-sdi 12x 30x Hd Usb Hd Output 20x Ptz Camera
Conference Usb2.0 Broadcast Optical Zoom 3g-sdi 12x 30x Hd Usb Hd mi Output 20x Ptz Camer
Product Description
Features of multi-format Video Conferencing Camera :
{ USB3.0 Interface
{ Private Tooling design High Definition PTZ camera
{ Fast and smooth video handling
{ Power ON-OFF switch
{ Work & Standby LED indicator
{ Speed Match
{ Auto/Manual focus/brightness/WB
{ RS-232C/VISCA Protocol
{ Lens/Dome OSD
{ Boundary scanning
{ Standby & wakeup status
{ Swap video format key
Performance of multi-format Video Conferencing Camera :
{ 1920x1080 pixels progressive @30fps
{ 20 optical x 12 digital zoom
{ F=4.7-94 mm F1.6-F3.5
{ HOV 58.7 degree
{ 1/2.8” Progressive CMOS 2.1 Mega Pixel Sensor
{ Pan ±177.5 degree
{ Tilt +90 degree, -45degree
{ 64 preset positions
{ 4 cruise lines
{ DC 12V, 2A
Dimension of multi-format Video Conferencing Camera :
{ L 145mm x W 148mm x H160mm
{ N. Weight: 0.98 kgs
{ G. Weight: 2.48 kgs
Installation of multi-format Video Conferencing Camera :
{ Desktop
{ Ceiling mount
{ Standard Tripod accessory

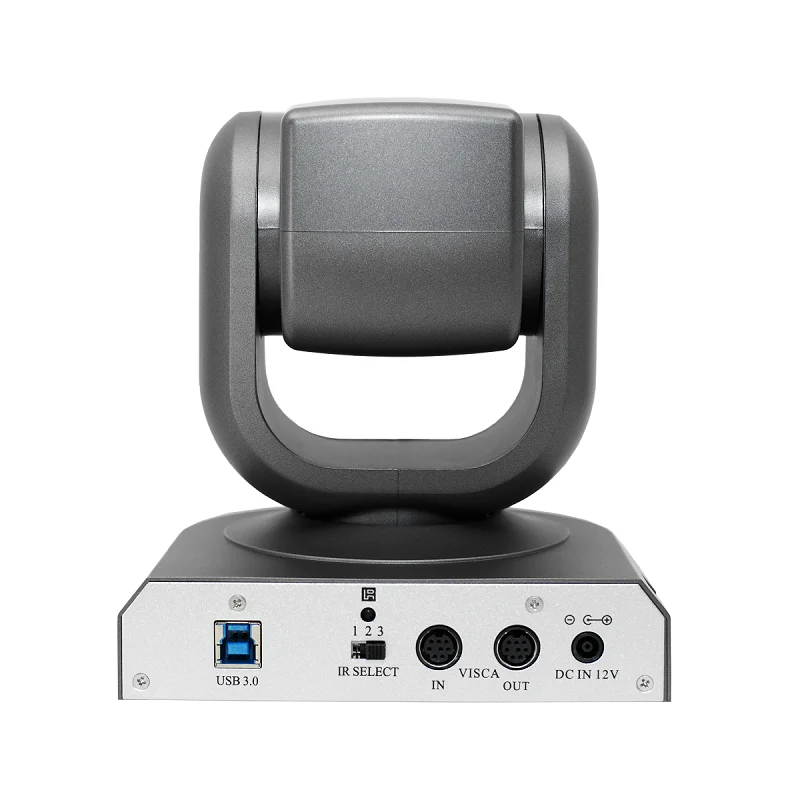

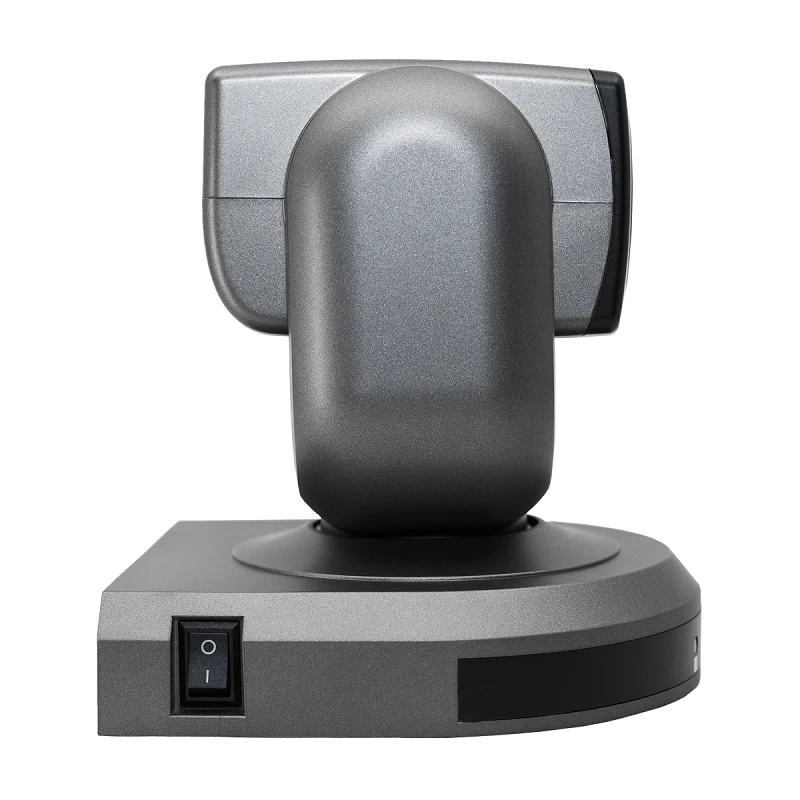

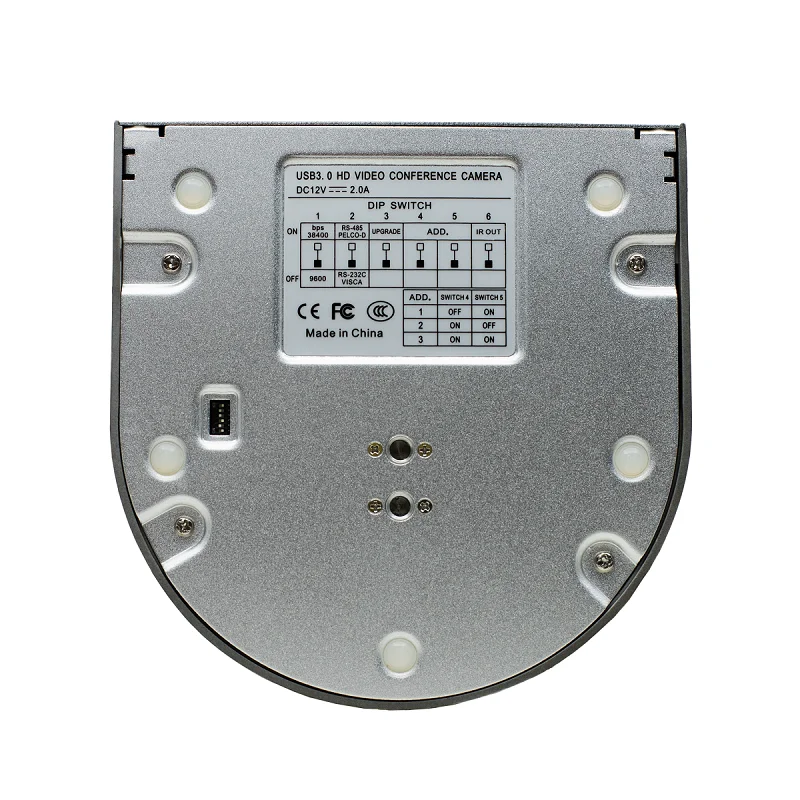

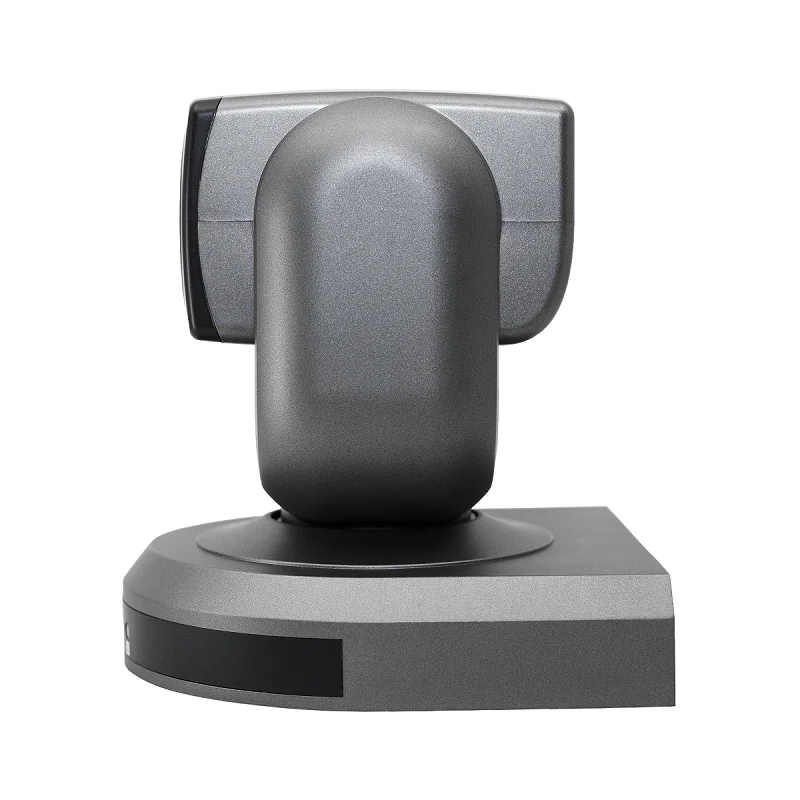

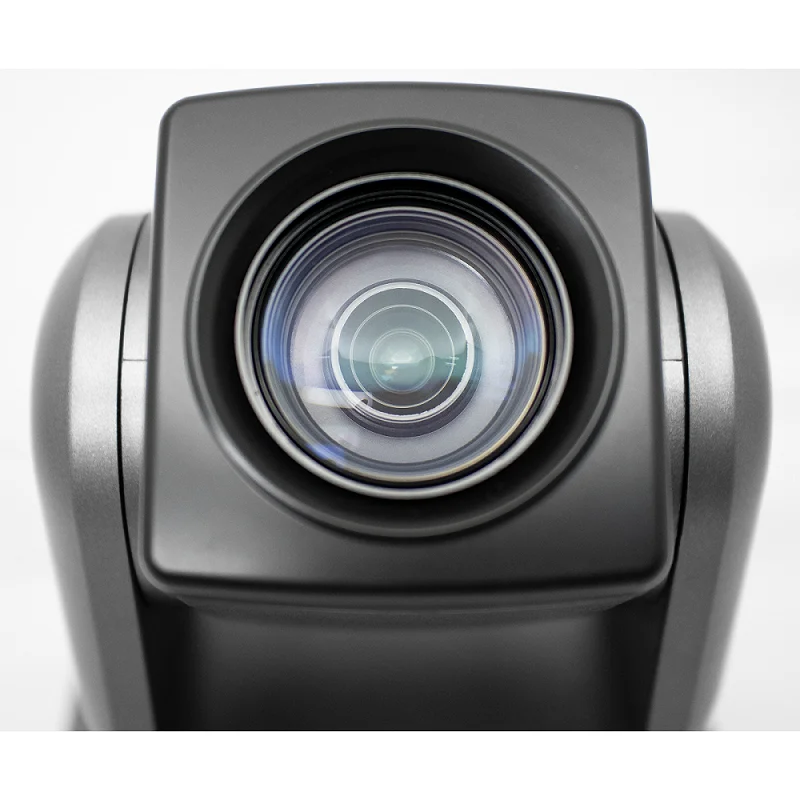

Image of multi-format Video Conferencing Camera :
Our Services
Specification of multi-format Video Conferencing Camera :
Full HD Multi-format Video Conferencing Camera ideally suited for TV Broadcasting Equipment
Model No. | HD920-U30-K5 | |
Image | Image Sensor | 1/2.8" Progressive CMOS |
Effective Pix | 2.1 Megapixel | |
Min. Illumination | 0.5Lux at F1.6 | |
White balance | Auto/Manual | |
Gain control | Auto/Manual | |
Backlight compensation | On/Off | |
Shutter speed | 1/1 - 1/10,000S | |
S/N ratio | >50db | |
Lens | Focus | f=4.7-94mm F1.6-F3.5 |
Iris | Auto/Manual | |
Lens | 20 Optical x 12 digital zoom | |
Horizontal view angle | 58.7-3.2 | |
Video output | USB3.0 | |
Signal system | 1080P30,720P30,800X600,640X480 | |
Control terminal | EIA/RS232C,EIA/RS485(Bidirectional) USB | |
Control Protocol | VISCA,PELCO-D | |
baud rate | 9600/38400bps | |
patrol line | 4 cruise sequence | |
preset position | 64 preset positions | |
Speed Match | Pan/Tilt movement speed depends on camera module zoom in/out | |
OSD Menu | Access to OSD Menu and adjust camera module parameters | |
Image auto flp | Support Horizontal/Vertical image flip | |
Pan movement speed | 1-60°/Second | |
Tilt movement speed | 1-60°/Second | |
Pan movement range | Pan: 0-355° | |
Tilt movement range | Up: 45°, Down: 45° | |
Pan scanning automatically | Support Pan scanning automatically | |
Boundary scanning | 0-355°(programmable) | |
Remote controller | IR Wireless Remote controller P/T/Z | |
Power supply | DC12V,2A | |
Work Temperature | 0-50℃ | |
Humidity | 0-95%RH | |
LxWxH | ||
Weight | 1100g | |
Accessories kits in package :
1x HD20-U30-K5 Video Camera
1x DC 12V/2A Power Adaptor
1x Serial Control Line
1x RS-232C to RS-485 Cable
1x 3m USB3.0 Cable
1x Installation brackets & screws
1x User’s manual
1x IR Remote Controller
- Business Type: Manufacturer, Trading Company
- Main Products: Network Camera, Mini PTZ Camera, Vandal Proof PTZ Camera, HD PTZ Speed Dome Camera, HD Video Conference Camera
- Location: Guangdong, China (Mainland)
- Year Established:2005
- Year start exporting: 2005
- Number of Employees: 101 - 200 People
- Total Revenue: US$2.5 Million - US$5 Million
- Main Markets: Southeast Asia, Northern Europe, Western Europe, South Asia, Mid East
- Certifications: ISO9001
- Product Certifications: CE
Buying Guides
more products
company information
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom.us, Join.me, Vidyo, Lync,Gotomeeting,Blue Jeans, Cisco,
Vsee, and Awaya platform.
Q2:What are the pixels of this product? Can shoot a full flat conference room?
A:The pixels of this product is 2.10 million. and it can shoot a full meeting room if camera put in the end/front of the conference
room!
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x
and 30x PTZ cameras for larger meeting rooms. Q4:Is it easy to operation? A:One step to Plug-in, Driver free, Plug&Play
Q5: What's your MOQ of video conferencing camera?
A: We accept small quantity orders to support your business growing up step by step,and we ensure the 100% quality of each
camera.
Q6: Is your video conferencing camera quality certified?
A: Yes. Oneking has more than 16 years OEM/ODM experience and we can provide the professional certificates for our video
conferencing camera, such as UL, FCC, CE, WEEE, PSE, ROHS, CSA,etc.
Q7 :What is your payment term?
A: We accept Paypal, WU, T/T, FFT, L/C at Sight and Alibaba Trade Assurance.
Q8:What is your warranty period?
A: The warranty period is 24 months.and we provide 36 months for exclusive distributors.
Q9:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q10: How about your delivery time?
A: We have Samples in stock for fast shipping, For bulk order, Pls negotiate with our sales.
Q11:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q12: Can the camera be mounted upside down on the ceiling?
A: This PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod and
cannot be installed in an inverted positio
