TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Автоматическая машина для резки туалетной бумаги производственная линия и бревен салфеток лица туалета полотенец
- Категория: Paper Product Making Machinery >>>
- Поставщик: Weifang,Greatland,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 8925.32 $* | 9371.71 $* |
| Aug-17-2025 | 8850.59 $* | 9293.63 $* |
| Jul-17-2025 | 7425.21 $* | 7796.13 $* |
| Jun-17-2025 | 8700.23 $* | 9135.52 $* |
| May-17-2025 | 7575.31 $* | 7954.56 $* |
| Apr-17-2025 | 8550.20 $* | 8978.39 $* |
| Mar-17-2025 | 8475.50 $* | 8899.25 $* |
| Feb-17-2025 | 8400.5 $* | 8820.44 $* |
| Jan-17-2025 | 8325.12 $* | 8741.24 $* |
Характеристики
Item | Specifications |
Cutting speed | Max.180cut/min. |
Cutting range | L: 100-250mm |
Cutting size | W: 90-110mm. |
H: 15-120mm | |
Paper conveying | Servo system control |
Total power | 10kw |
Air source | 0.5-0.8Mpa (by client) |
Blade diameter | 610mm |
Grinding system | Automatic sharpening, parameters can be set on the HMI. |
Cutting error | 1mm |
Cutting channel | Single, double |
Control system | PLC control, color touch screen (HMI) |
Trim waste paper | The trimmed waste paper can be automatically separated with finished product. |
Protection | Protect the main transmission components with protective covers |
Paper clamp | Upper and lower conveyor belt |
Machine weight | 2000kg |
Power | 380v, 60HZ, 3phase |
Dimension | 2640x1550x2200mm. |

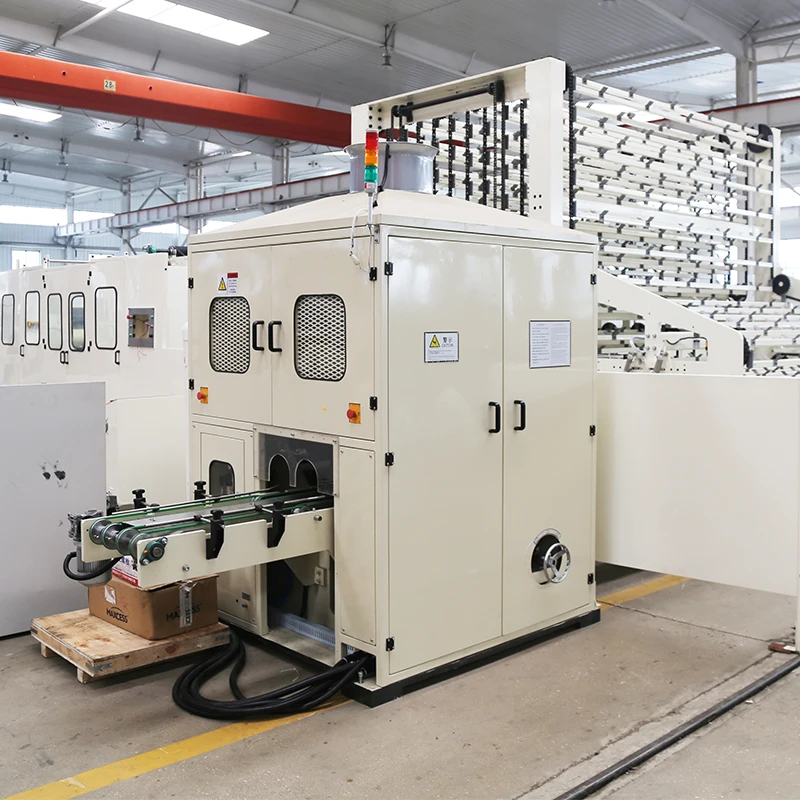

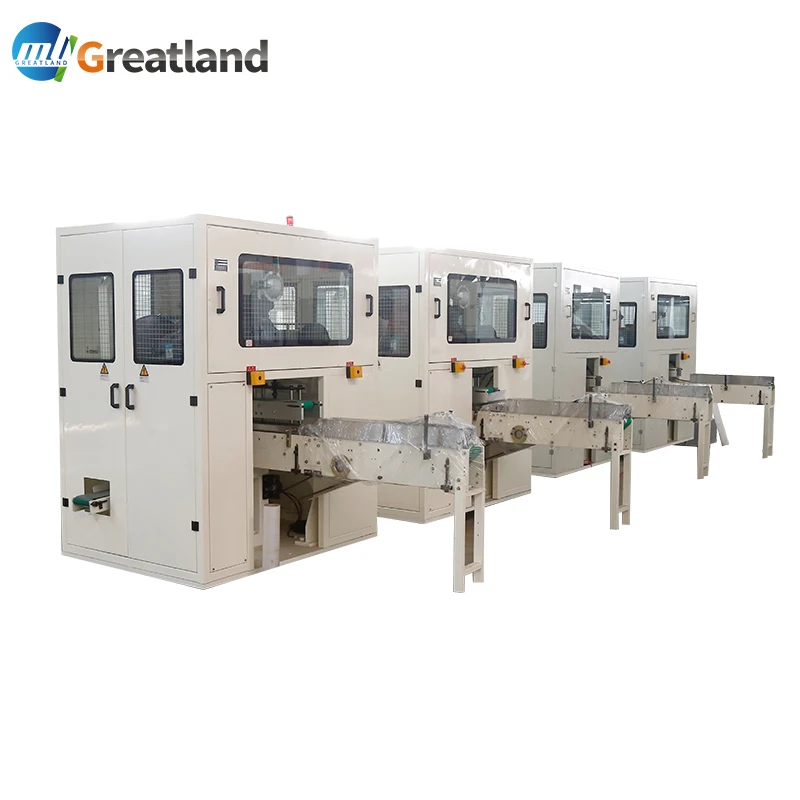

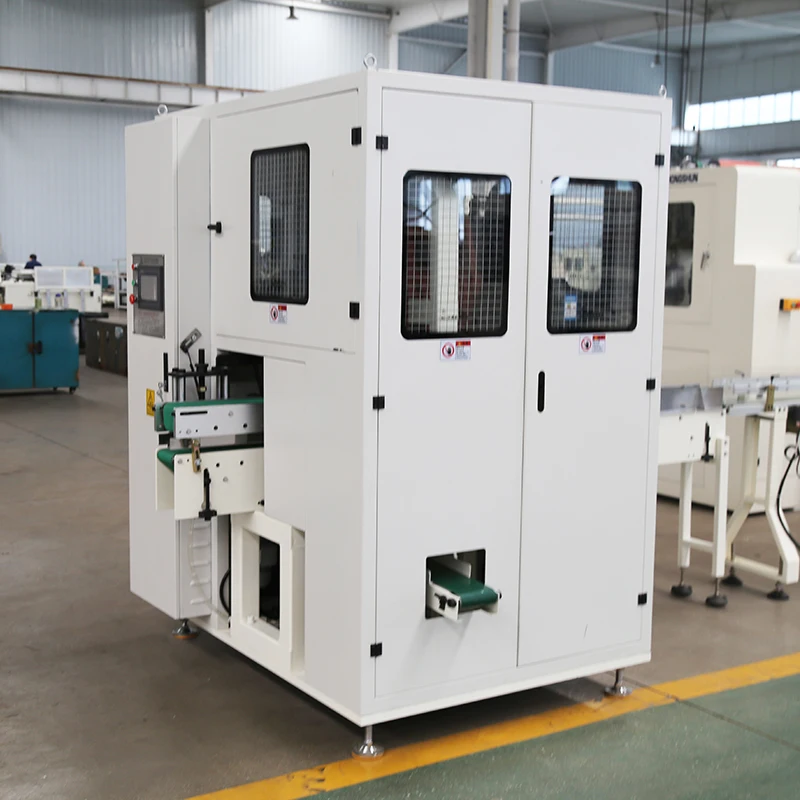

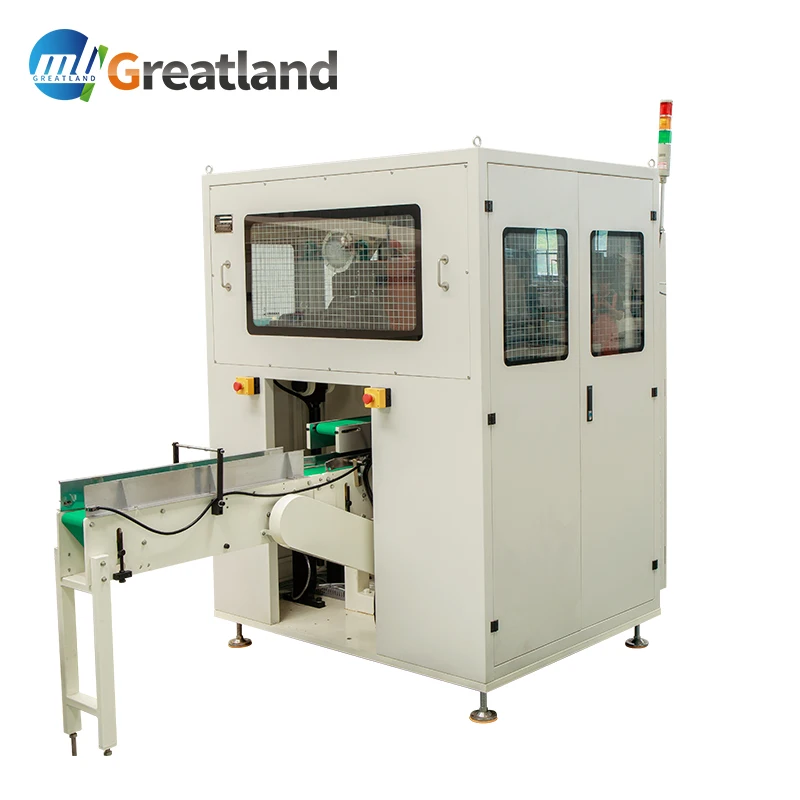

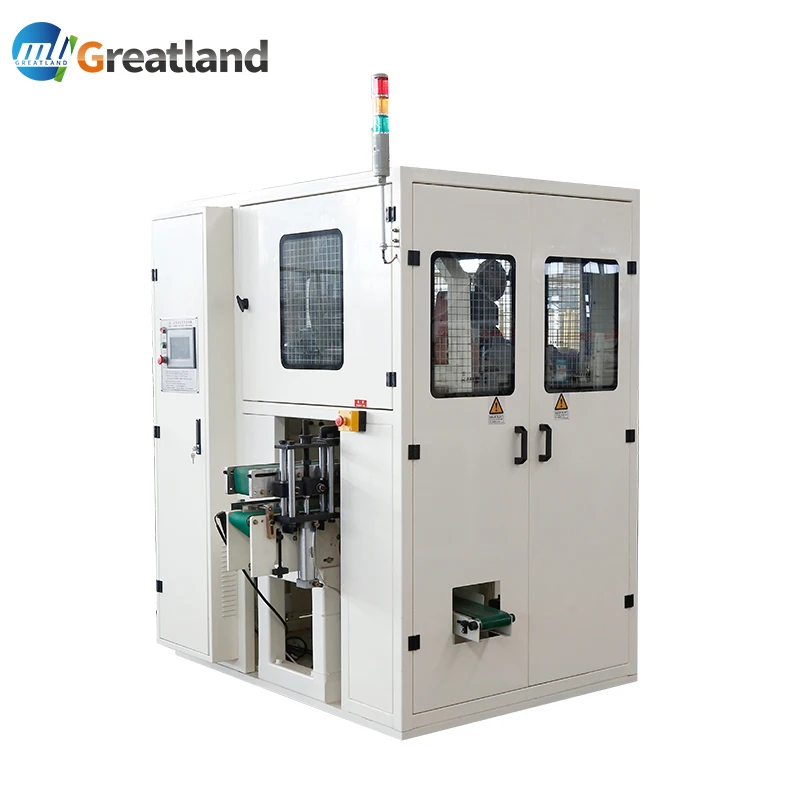

1.Automatic cutting machine, can use with rewinder and facial tissue machine;
2.Adopt PLC control, servo motor drive, size more nicety;
3.Automatic trims removal;
4.Two lanes can cut different size onetime.
This machine is the ideal equipment for facial tissue cutting as it works efficiently and safely and reliably.
2.Adopt PLC control, servo motor drive, size more nicety;
3.Automatic trims removal;
4.Two lanes can cut different size onetime.
This machine is the ideal equipment for facial tissue cutting as it works efficiently and safely and reliably.
Weifang Greatland Machinery Co., Ltd.
Weifang Greatland Machinery Co., Ltd. belongs to Greatland Group, which is specialized in paper converting equipment from 2001.In 2015, we built up our new workshop occupied more than 30000 square meters. Greatland always devotes to research and innovation of our products. Apart from normal model, all roducts can be specially customized for our partners.
Our products mainly include:
Fully automatic high speed toilet paper production line,
Fully automatic facial tissue paper production line,
Fully automatic hand towel production line,
Fully automatic napkin paper production line,
Fully automatic pocket tissue production line,
Fully automatic neck paper production line,
Slitting rewinder series, etc.
Annually our products are exported to all over the world with turnover USD 10million.
We sincerely hope to establish more cooperation based on our trustworthy quality and in-heart service. Paying continuous attention on the development of paper converting products, GREATLANDers not only devote to creating more and more mutual benefits, but also do the best to improve spiritual pursuit for all of our partners. Sincerely hope we are getting better and better through our joint efforts.
Greatland has professional technical team for installation, commissioning, and related services, also has a very hole some file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.Within the quality guarantee, Greatland settle the problems on site.
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
