Пряжа арамидная нить для оптоволоконного кабеля
US $24.36-$32.90
T700 углеродное волокно PREG пряжа prepreg шелк с
- Категория: Other Yarn >>>
- Поставщик: Shanghai,Lishuo,Composite,Material,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 36.62 $* | 38.14 $* |
| Aug-17-2025 | 35.98 $* | 37.95 $* |
| Jul-17-2025 | 30.9 $* | 32.32 $* |
| Jun-17-2025 | 35.67 $* | 37.67 $* |
| May-17-2025 | 30.51 $* | 32.21 $* |
| Apr-17-2025 | 34.35 $* | 36.52 $* |
| Mar-17-2025 | 34.42 $* | 36.78 $* |
| Feb-17-2025 | 34.23 $* | 36.68 $* |
| Jan-17-2025 | 33.97 $* | 35.11 $* |
Характеристики
Product Description

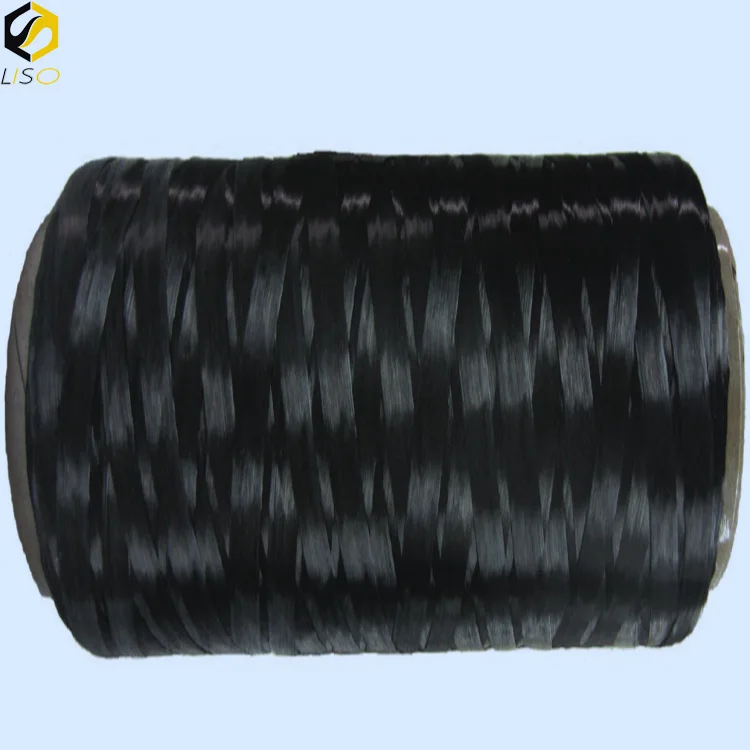

T700 carbon fiber prepreg yarn, carbon fiber prepreg silk with high strength
Carbon fiber prepreg yarn is directly impregnated from carbon fiber yarn，suitable for all kinds of pressure vessels or stressed parts，thermosetting bisphenol A epoxy resin can kept a long time at room temperature. the fibers are pre expanded to a uniform width，it can be directly put into use when it needs to run.
Prepreg yarn lead the winding technology more accurate，and it can be through increasing the winding speed， simplifying processing to reduce the cost, it also benefits health, safety and environmental protection.
Features
High precision uniform positioning increase the freedom of composite design and manufacturing accuracy.
Not have yarn impregnated process, bring faster winding speed, reduce the cost and increase the output.
More cleaner operation, no need to clean and collect resin residues everywhere，make the whole production process more smooth.
The resin soaking tank, resin mixer, resin replenishing machine and so on are omitted for the factory.
Not have resin waste, reduce the operating costs.
It can be stored at room temperature, reduce the stock cost.
carbon fiber prepreg yarn performance | ||
Density | 1.45g/cm3 | |
Width | 6.4/ 3.2 mm | |
Thickness | 0.13/ 0.25 mm | |
Resin content | 25-35 % | |
Glass transition temperature | 105 ℃ | |
Tensile Strength | 2500 Mpa | |
Tensile modulus | 135Gpa | |
Elongation | 1.9 % | |
Compressive strength | 1450 Mpa | |
Compression modulus | 120 Gpa | |
Interlaminar shear strength | 95 Mpa | |
Transverse tensile strength | 64 Mpa | |
Carbon fiber performance | ||
Carbon fiber type | 12k | |
Fiber strength | 4700 Mpa | |
Fiber modulus | 230 Gpa | |
Elongation | 2.1% | |

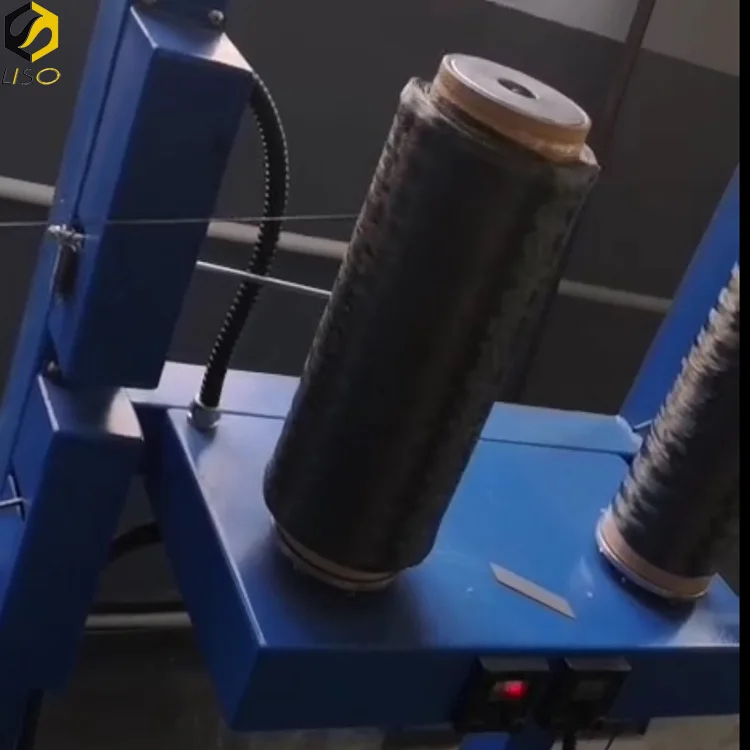

Detailed Images
Packing & Delivery
Packing
Delivery
333
Our Service
1,OEM manufacturing is welcome
2,Sample order is ok
3,we will reply your inquiry in 24 hours
4,After sending out the goods, we will track the product when you got them , when you got the goods,test them and please give us the feedback if possible, any question about the product, just feel free to contact us.
Our Company
Shanghai Lishuo composite material technology co.,Ltd. A comprehensive technological company inter-grating manufacturing, processing, technical research and trade, with material science and engineering Academy of Shanghai Donghua University as technical supporter. Relying on rich experiences in the fields of research, development, production and trade, we have successfully developed a series of carbon fiber materials, aramid and related high performed products.
