Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-16-2025 | 14.15 $* | 15.34 $* |
Aug-16-2025 | 14.26 $* | 15.13 $* |
Jul-16-2025 | 12.72 $* | 13.11 $* |
Jun-16-2025 | 14.70 $* | 15.2 $* |
May-16-2025 | 12.78 $* | 13.73 $* |
Apr-16-2025 | 14.16 $* | 15.11 $* |
Mar-16-2025 | 14.56 $* | 15.92 $* |
Feb-16-2025 | 13.63 $* | 14.53 $* |
Jan-16-2025 | 13.16 $* | 14.24 $* |

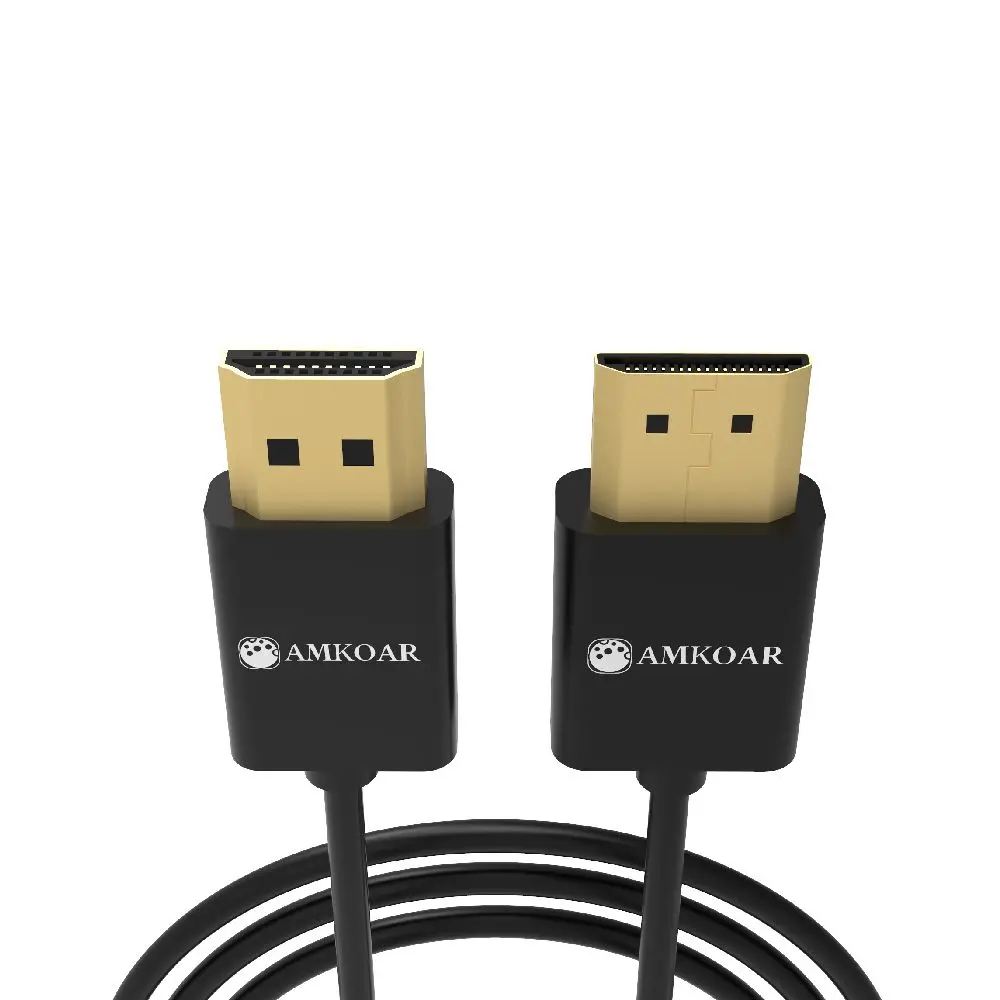

HDTV Cable HDR: Our HDTV cable supports 10K/60Hz, 8K/60Hz, and 4K/144Hz video, and has a 48Gbps signal transmission capability;
The eARC (enhanced Audio Return Channel): used in our HDTV 2.1 cable also supports more advanced audio formats, which can achieve lossless transmission of Dolby Atmos and other signals, and perfectly present high-quality audio and video experience to every user;
Variable Refresh Rate (VRR): used in games to reduce or eliminate picture delay, stuttering, and tearing, ensuring smoother games and more complete details;
Quick Media Switching (QMS): Used for movies and videos to eliminate the delay caused by the white screen before the content is displayed;
Quick Frame Transfer (QFT): Reduce the delay, the game has no lag, and the VR virtual reality can interact in real-time;
The last is the Automatic Low-Latency Mode (ALLM), which allows automatic setting of the best delay to achieve smooth, non-stop, and non-interrupted viewing and interaction.
HDTV Cable's Attributes & Parameters | |||
---|---|---|---|
Item | Basic Attribute | Parameter | |
Model No. | H21AMTH21CM01 | ||
Version | HDTV 2.1 | ||
Function | Transmit Video /Audio signal | ||

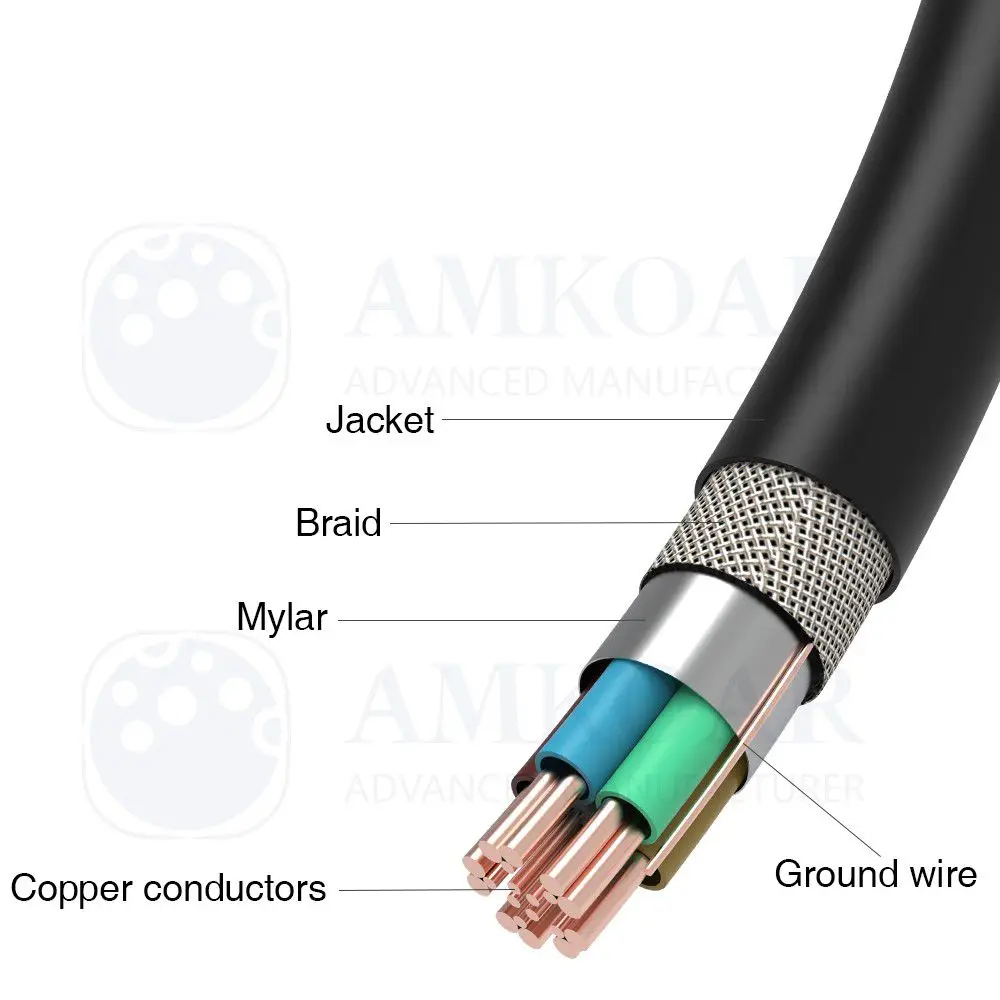

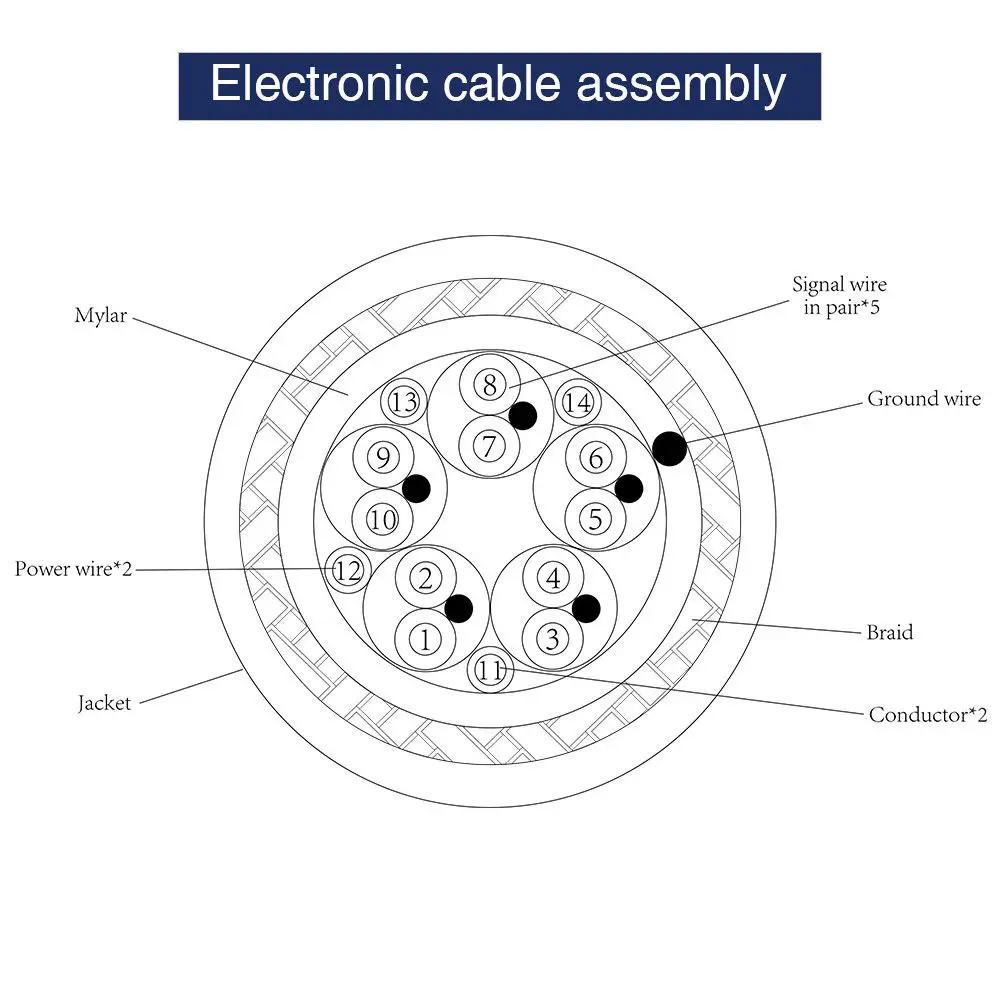

Specification | (7/0.10TS*1P+D+AL+HM)*5C+7/0.10TS*4C+F+AB16/11/0.10TC OD:6.5 | ||
Cable | Single wire | 4C, 7/0.10±0.008(30AWG), Tinned copper stranded, Red, White, Yellow, Orange | |
Pair wire | 5P, 7/0.10±0.008(30AWG), Tinned copper stranded, White & Blue | ||
Power wire | |||
Mylar | AL FACE INSIDE | ||
Filler | COTTON YARN | ||
Braid | 16/11/0.10±0.008, Tinned copper | ||
Ground wire | 7/0.10TS(30AWG) | ||
Jacket | PVC, BLACK | ||
Connector | Connector Basic Attribute | Connector A Parameter | Connector B Parameter |
Interface type | Type A male | Type C male | |
Pin | Copper cable; gold-plated: 3μ | Copper cable; gold-plated: 3μ | |
Plastic | Color; Material (customizable) | Color; Material (customizable) | |
Metal shell | Material; Thickness | Material; Thickness | |
Dimension | xxxxx (max tolerance: 0.1mm) | xxxxx (max tolerance: 0.1mm) | |
Mold | Basic Attribute | Parameter | |
Inner mold | Material | ||
Outer mold | Material | ||
Iron Shell | One-piece or Top and Bottom | ||
Lock | Material | Material | |
Screw fastener | Material | Material | |
Mold customization | |||
Logo Customization | |||
PCB board (Converter) | Basic Attribute | Parameter | |
Thickness | |||
Dimension | |||
IC function | adapter, amplifier | ||
Extra function | Short circuit protection, open circuit protection, voltage instability protection | ||
Accessories | Anti-interference magnetic ring | If you need to add extra anti-EMI, we can add a magnetic ring | |
Item | Important Attribute | Parameter | |
Physical performance | The tensile strength test is before aging | JACKET:1500PSI min Aged:70% min | |
Elongation before aging | JACKET: 100% min, Aged: 65% min | ||
Flame test of cable | VW-1 | ||
Electrical performance | Voltage rating | 30V | |
Temperature rating | 80℃ | ||
Spark test | AC- 1500V/In the air | ||
Dielectric strength | AC-500V/1 sec MIN | ||
Insulation resistance | FOAM-PE/PE DC-500V 100MΩ.KM MIN.at 20 ℃ | ||
Conductor resistance | 30AWG-376Ω/KM MAX at 20℃ |
