Малошумящий воздушный молот кузнеца пневматические воздушные силы под давлением кованый кузнечный
- Категория: Metal Forging Machinery >>>
- Поставщик: Zaozhuang,DS,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2975.55 $* | 3124.82 $* |
| Aug-20-2025 | 2950.4 $* | 3098.52 $* |
| Jul-20-2025 | 2475.87 $* | 2599.87 $* |
| Jun-20-2025 | 2900.67 $* | 3045.1 $* |
| May-20-2025 | 2525.66 $* | 2651.79 $* |
| Apr-20-2025 | 2850.62 $* | 2993.79 $* |
| Mar-20-2025 | 2825.51 $* | 2966.97 $* |
| Feb-20-2025 | 2800.64 $* | 2940.86 $* |
| Jan-20-2025 | 2775.37 $* | 2914.42 $* |
Характеристики

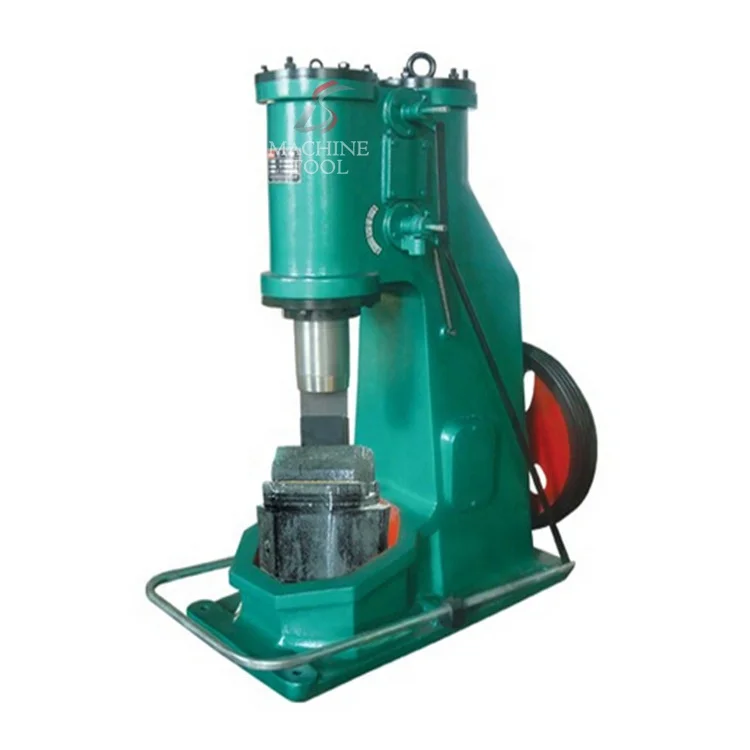

C41 Products air power forging hammer
Main Features
The air hammer with small size,low noise,simple structure ,
easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawingout ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for opendie forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and selfemployed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
Specifications
1.Durable and great power
2.Easy installation and operation
3.Convenient maintenance
PECIFICATIONS:
| SPECIFICATION | UNIT | C41-40KG | C41-55KG | C41-75KG | C41-150KG |
| SEPARATE/SINGLE | SEPARATE | SEPARATE | SEPARATE | ||
| Max. hit force | kj | 0.53 | 0.7 | 1 | 2.2 |
| Height of working area | mm | 245 | 265 | 300 | 370 |
| Hit number | min -1 | 245 | 230 | 210 | 180 |
| Dimension of top and bottom die surface(LxW) | mm | 120*50 | 120*55 | 145*65 | 200*85 |
| Max. square steel can be forged | mm | 52*52 | 52*52 | 65*65 | 130*130 |
| Max. Round steel can be forged(Diameter) | mm | 68 | 68 | 85 | 145 |
| Motor power | kw | 4 | 5.5 | 7.5 | 15 |
| Speeds of motor | r. p. m | 1440 | 1440 | 1440 | 1470 |
| Anvil weight | kg | 400/0 | 600 | 850 | 1800 |
| Total weight | kg | 1350/880 | 1700 | 2800 | 5060 |
| Overall dimensions(L*W*H) | mm | 1080*600*1430 | 1320*670*1620 | 1400*760*1950 | 2080*1240* 2350 |
| Model | C41-250 | C41-400 | C41-560 | C41-750 | C41-1000 | C41-2000 | |
| Weight of falling parts(kg) | 250 | 400 | 560 | 750 | 1000 | 2000 | |
| Hit energy (kj) | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 | |
| Hit frequency(min-1) | 140 | 120 | 115 | 105 | 95 | 80 | |
| Height of working area(mm) | 450 | 530 | 600 | 670 | 800 | 1000 | |
| Depth of throat(mm) | 420 | 520 | 550 | 750 | 800 | 950 | |
| Working Piece | Square(mm*mm) | 145× 145 | 220× 220 | 270× 270 | 270× 270 | 290× 290 | 350× 350 |
| Round(mm) | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 | |
| Motor | Model | Y180L- 4-B3 | Y200L- 4-B3 | Y280S- 6-B3 | Y280M- 6-B3 | Y315S- 6-B3 | Y315L2- 6-B3 |
| Power (kw) | 22 | 30 | 45 | 55 | 75 | 132 | |
| Weight | Without anvil(kg) | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
| Outside size (mm) | 2639× 1155× 2540 | 1785× 1400× 2884 | 3464× 1500× 3157 | 3905× 1370× 3175 | 3770× 1500× 4125 | 4200× 2300× 4390 | |
