60 м противотуманная пушка для тумана с
- Категория: Другое оборудование для очистки воздуха >>>
- Поставщик: Zhengzhou,Zhengtong,Fan,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.13 $* | 0.87 $* |
| Aug-17-2025 | 0.73 $* | 0.94 $* |
| Jul-17-2025 | 0.27 $* | 0.60 $* |
| Jun-17-2025 | 0.22 $* | 0.28 $* |
| May-17-2025 | 0.8 $* | 0.48 $* |
| Apr-17-2025 | 0.3 $* | 0.52 $* |
| Mar-17-2025 | 0.83 $* | 0.96 $* |
| Feb-17-2025 | 0.88 $* | 0.66 $* |
| Jan-17-2025 | 0.73 $* | 0.50 $* |
Характеристики
Product Overview

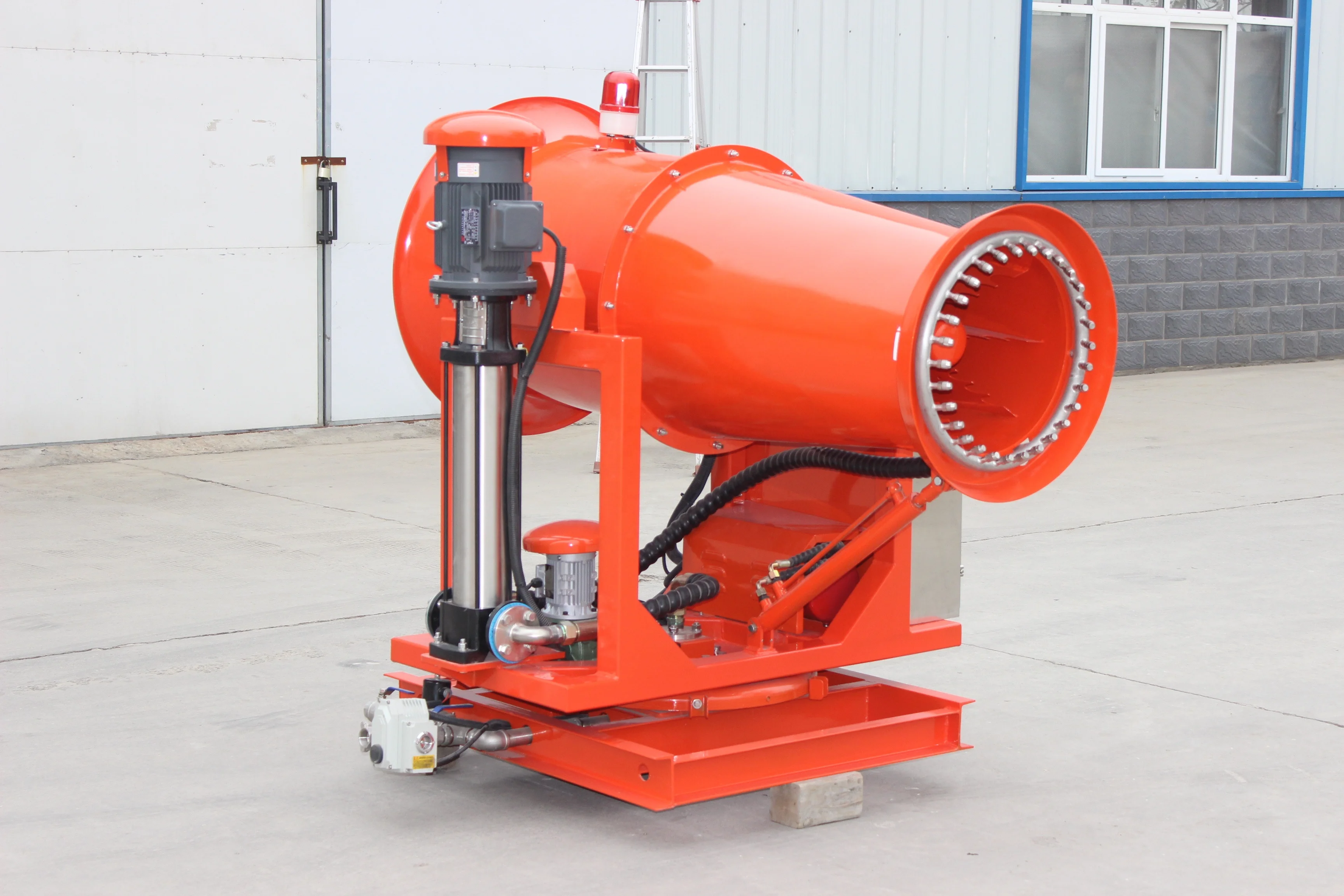

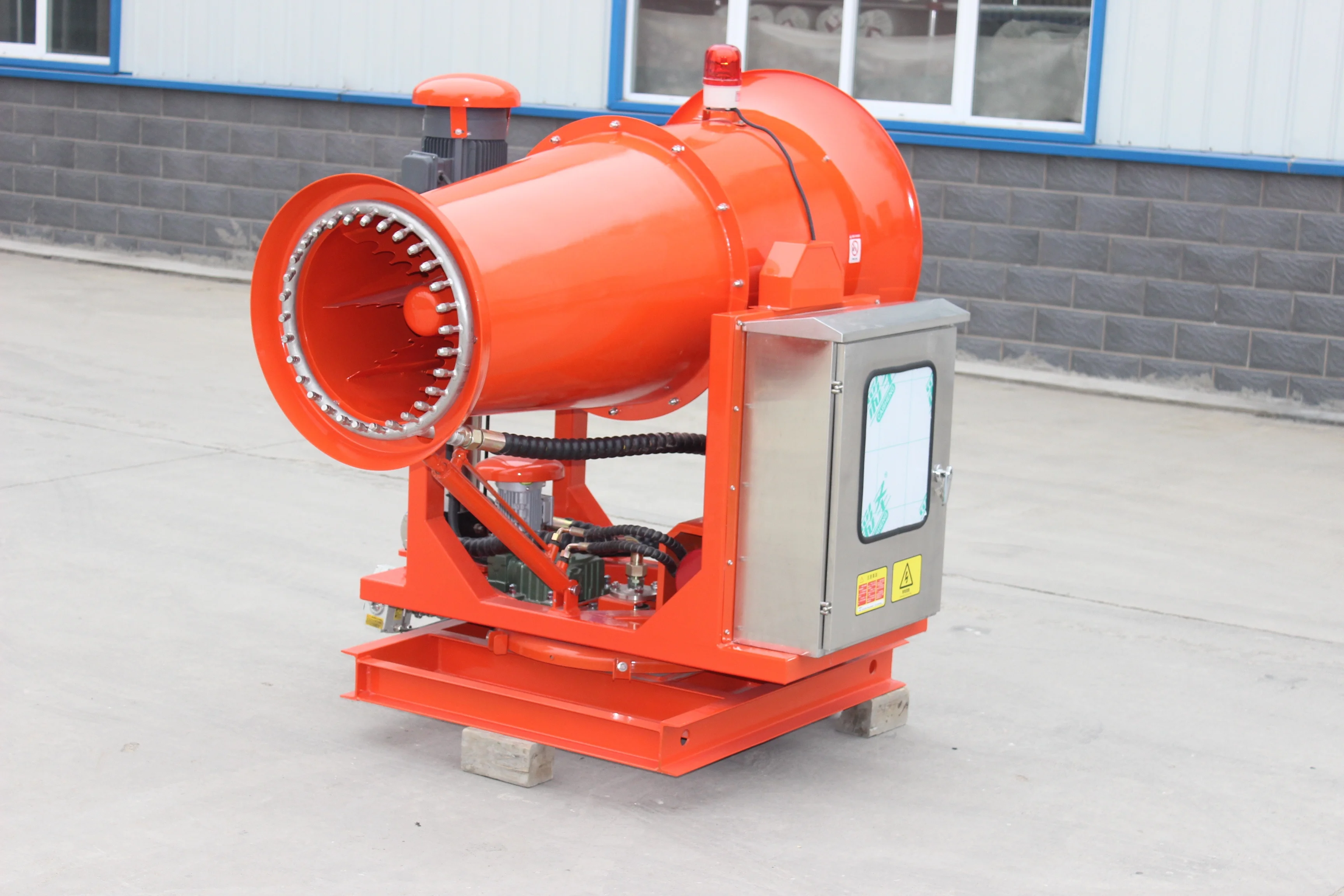

40-60 meters Fog cannon machine
According to the principle of air delivery, the fog cannon uses high pressure pump and micro atomizing nozzle to
atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the
water mist is larger with the help of the rotary mechanism.
atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the
water mist is larger with the help of the rotary mechanism.
FEATURES AT A GLANCE
Baking paint finishing process
High strength slewing support
Local, remote control, PLC automatic control
Stainless steel multistage centrifugal pump
Industrial remote control
Stainless steel water ring and nozzle
Motor overload, under-voltage and default phase protection function
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | ZT-40 | ZT-50 | ZT-60 |
1 | Range（M） | 40-45 | 50-55 | 60-65 |
2 | Horizontal Rotation Angle(°) | 0-340 | 0-340 | 0-340 |
3 | Pitching Angle（°） | -10~40 | -10~40 | -10~40 |
4 | Fan Power（KW） | 11 | 15 | 18.5 |
5 | Pump Power（KW） | 3 | 4 | 5.5 |
6 | Weight（KG） | 550 | 700 | 850 |
7 | Dimensions（mm） | 1550×1350×1400 | 1750×1550×1650 | 1950×1650×1700 |
8 | Water flow（m³/hr） | 1~2 | 2~4 | 3~6 |
PRODUCT CONFIGURATION
High efficiency three phase asynchronous motor
Stainless steel multistage centrifugal pump
Siemens PLC, Schneider electric components
Successful Project
Coal yard
Steel plant
Construction site
Company Profile
