Новейший HM-13 двойной последовательный Ble 4 0 Bt беспроводной модуль Shanhai

Новейший HM-13 двойной последовательный Ble 4 0 Bt беспроводной модуль Shanhai

Категория: Other Telecommunications Products >>>
Поставщик: Shenzhen,Shanhai,Technology,Ltd.

Цена:4,90 $ - 7,60 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	5.91 $*	5.14 $*
Aug-20-2025	5.24 $*	5.99 $*
Jul-20-2025	4.16 $*	4.6 $*
Jun-20-2025	5.73 $*	5.9 $*
May-20-2025	4.54 $*	4.5 $*
Apr-20-2025	5.77 $*	5.55 $*
Mar-20-2025	5.69 $*	5.40 $*
Feb-20-2025	4.57 $*	4.43 $*
Jan-20-2025	4.5 $*	4.77 $*

Характеристики

Newest HM-13 Dual Serial Ble 4.0 bt wireless Module Shanhai hot selling

Wireless Module--BT BLE Module
High speed
Smaller

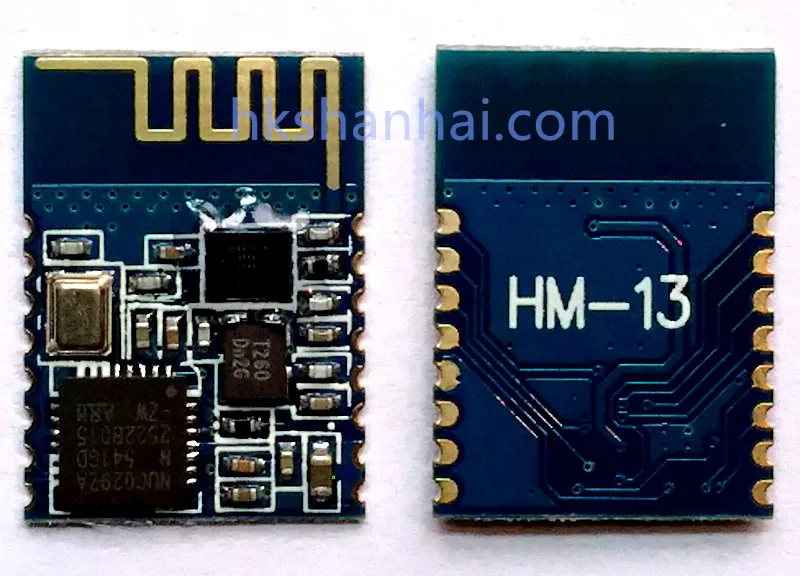

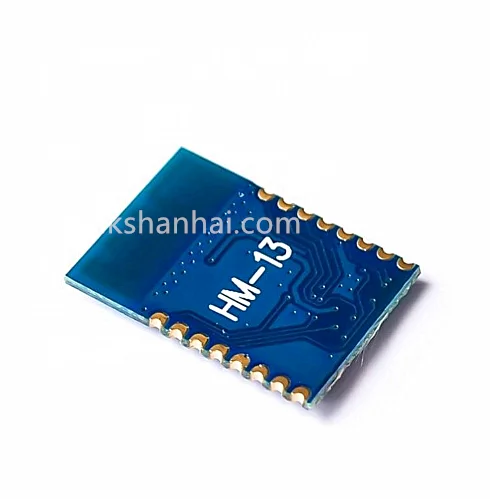

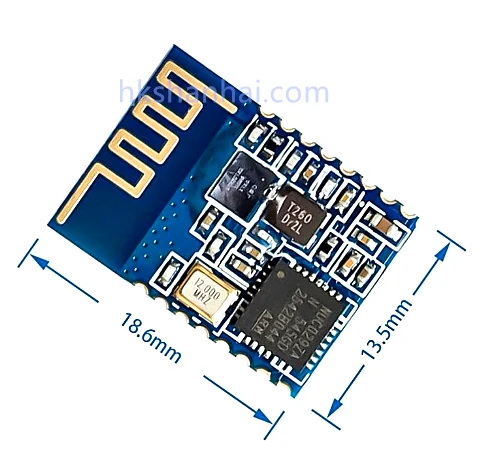

THE good of hm-13 EDR (SPP) 4.0 and ble4.0 modes are supported. Dual mode standby at the same time, without switching. IOS devices use ble mode, and the ble of IOS is stable. Using EDR (SPP) mode for Android and computers is more stable than ble mode. Especially under Android system, EDR (SPP) mode is the best support mode. Android ble has always been more embarrassing. Android ble can not be used, it can not be used well. Small volume, large energy, size is only 13 * 18mm, the signal is the strongest under the same conditions. The pins are compatible with hm-11 (ble4.0), hm-17 (ble4.2), and hm-19 (ble5.0). The boards are only required to be arranged once, and the modules you want to use only need to be replaced without changing the boards. Hm-13 not only supports dual-mode, double standby and single-pass, but also supports dual-mode, double standby and double-way mode. Hm-13, with smaller size and stronger performance, must be the first choice for you to build high-quality wireless transmission products.

Details Images

Product Description

Product name	HM-13
Model Number	HM-13
BT Protocol	BT 4.2/5.0 Ble
Operating frequence	2.4Ghz ISM band
modulation mode	GFSK
Transmitting power	-23dbm,-6dbm,0dbm,6dbm
sensitivity	≤-84dbm at 0.1% BER
Safety characteristics	Authentication and encryption
Support services	Cernteral & Peripheral
Supply Power	2.5~3.7v 50mA
Operating temperature	-20~105°C
Size	BT 4.2/5.0 Ble
More Details	Please contact us
Get Newest Price	Please contact us

Newest HM-13 Dual Serial Ble 4.0 bt wireless Module Shanhai hot selling

Related Product

Modules	VDD	Size(mm)	Flash	Chip	BT Version
HM-01	2.5-3.7V	27 13 2.2	8M	BC417143	V2.1+EDR
HM-02A	2.5-3.7V	27 13 2.2	6M	BC31A223	V2.1
HM-02B	2.5-3.7V	27 13 2.2	6M	BC41C671	V2.1+EDR
HM-03A	2.5-3.7V	27 12.5 4.3	6M	BC31A223	V2.1
HM-03B	2.5-3.7V	27 12.5 4.3	6M	BC41C671	V2.1+EDR
HM-04A	2.5-3.7V	Not for sale
HM-04B	2.5-3.7V	Not for sale
HM-05/06A	2.5-3.7V	18 13 2.2	6M	BC31A223	V2.1
HM-05/06B	2.5-3.7V	18 13 2.2	6M	BC41C671	V2.1+EDR
HM-07	2.5-3.7V	18 13 2.2	8M		V2.1+EDR
HM-08	2.5-3.7V	27 13 2.5	8M	Class 1	V2.1+EDR
HM-09	2.5-3.7V	27 13 2.2	8M		V2.1+EDR
HM-10	2.2-3.7V	27 13 2.2	256Kb	CC2540/1	V4.0 BLE
HM-11	2.2-3.7V	18 13 2.2	256Kb	CC2540/1	V4.0 BLE
HM-12	2.5-3.9V	27 13 2.2	64KB	Dual mode	EDR 40 + BLE 40
HM-13	2.5-3.9V	18 13 2.2	64KB	Dual mode	EDR 40 + BLE 40
HM-14	2.2-4.0V	13 12 2.0		Dual mode	EDR40 + BLE 40
HM-15	5V	65 32 16	256Kb	CC2540	BLE V4.0
HM-16	2.1-5.5V	27 13 2.2	128KB		BLE V4.1
HM-17	2.1-5.5V	18 13 2.2	128KB		BLE V4.1
HM-18	2.1-5.5V	27 13 2.2	256KB		BLE V4.2
HM-19	2.1-5.5V	18 13 2.2	256KB		BLE V4.2

If you can not find the required product specifications, please contact us, thank you for your cooperation!
