Поставка с завода Электрический многоступенчатый центробежный водяной насос 50 Гц CNP номера 12
- Категория: Pumps >>>
- Поставщик: Tiger,(hangzhou),Flow,Systems,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.83 $* | 0.12 $* |
| Aug-18-2025 | 0.89 $* | 0.76 $* |
| Jul-18-2025 | 0.78 $* | 0.58 $* |
| Jun-18-2025 | 0.98 $* | 0.63 $* |
| May-18-2025 | 0.19 $* | 0.71 $* |
| Apr-18-2025 | 0.79 $* | 0.43 $* |
| Mar-18-2025 | 0.5 $* | 0.37 $* |
| Feb-18-2025 | 0.78 $* | 0.48 $* |
| Jan-18-2025 | 0.38 $* | 0.65 $* |
Характеристики
Recommend Products
Product Description

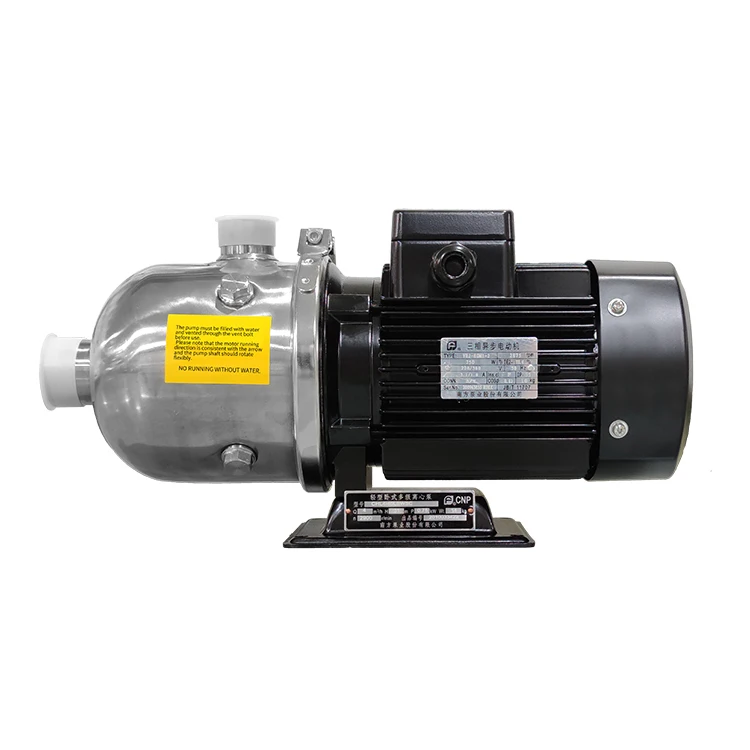

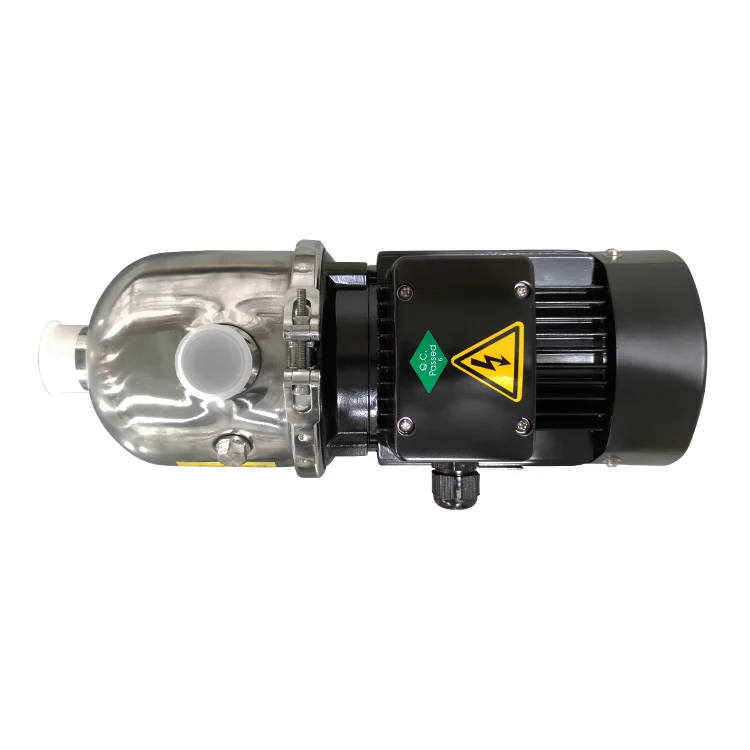

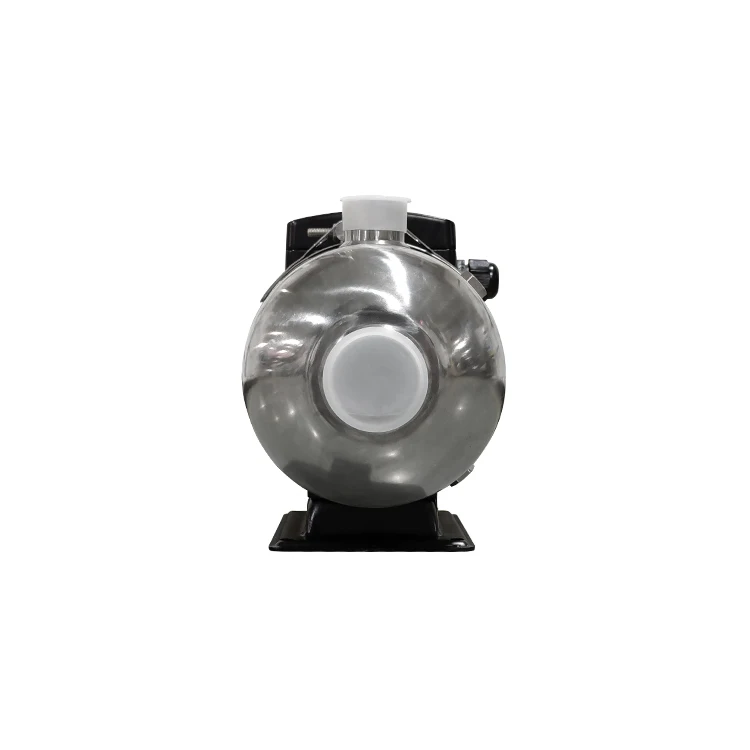

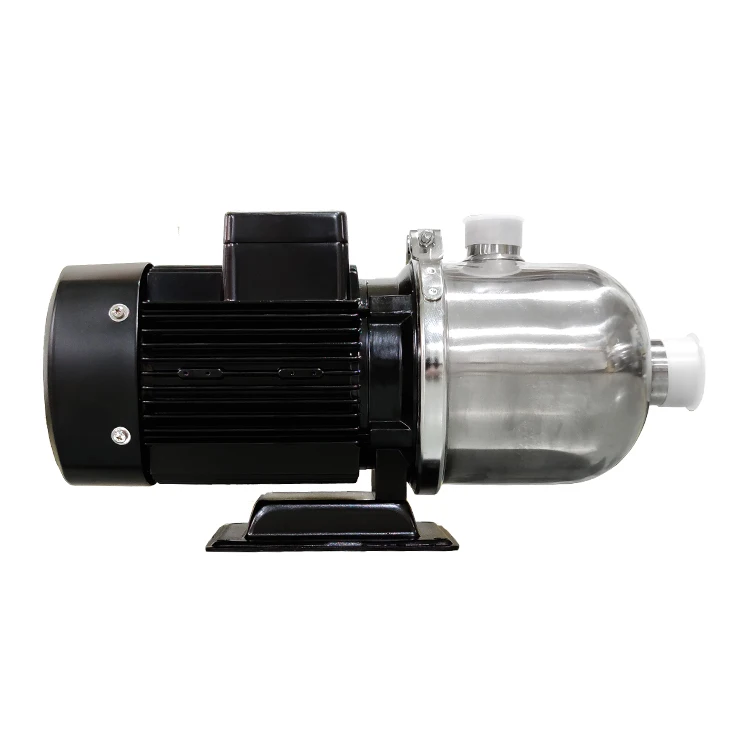

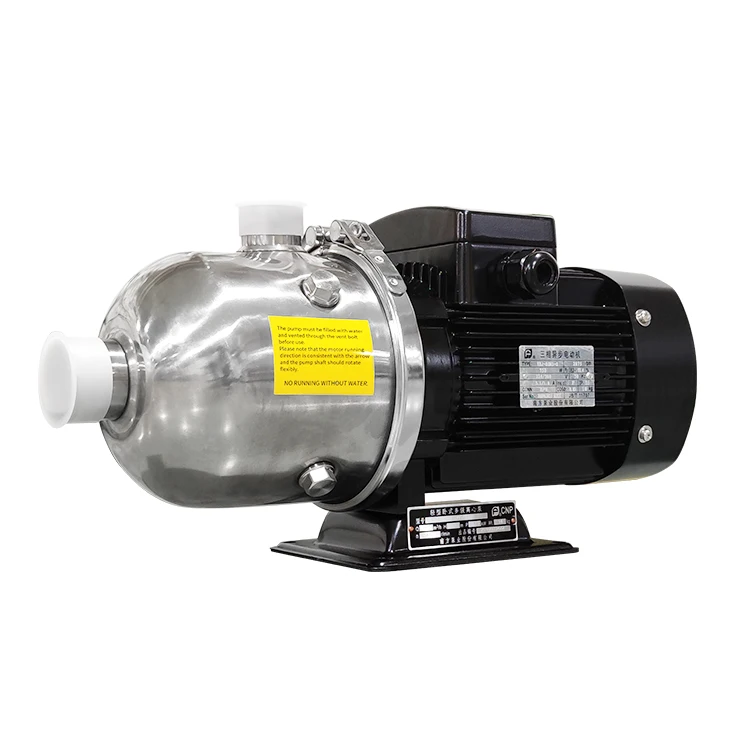

Product name | Factory Supply CNP CHL12 50HZ Electric Stainless Steel Horizontal Multistage Centrifugal Booster Water Pump |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description

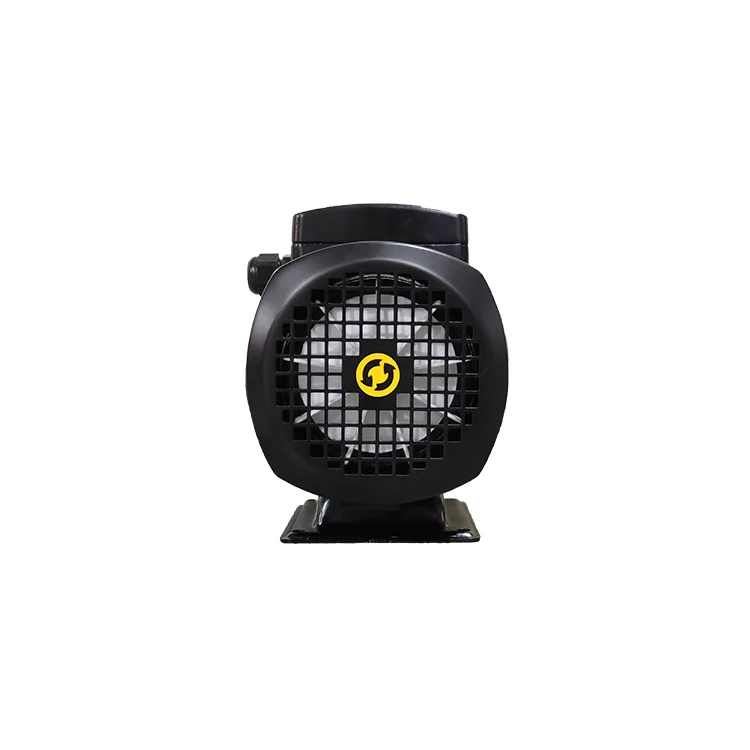

Motor
TEFC motor 2-pole
Protection class：IP 55
Insulation class：F
Standard voltage: 50Hz: 1x 220-240V
3x220-240V/380-415V
Standard voltage: 60Hz: 1x 220-240V
3 ×220-240V/380-415V
Single phase motor(max) ：2.4kW
Protection class：IP 55
Insulation class：F
Standard voltage: 50Hz: 1x 220-240V
3x220-240V/380-415V
Standard voltage: 60Hz: 1x 220-240V
3 ×220-240V/380-415V
Single phase motor(max) ：2.4kW
Applicable medium
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor
of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor
of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
Operation condition
Liquid temperature: Normal temperature type：-15℃-+70℃
Hot water type：-15℃-+110℃
Ambient temperature：up to+40℃
Max.operation pressure：10bar
Max.inlet pressure is limited by max.Operation pressure
Liquid temperature: Normal temperature type：-15℃-+70℃
Hot water type：-15℃-+110℃
Ambient temperature：up to+40℃
Max.operation pressure：10bar
Max.inlet pressure is limited by max.Operation pressure
Curve conditions
Following conditions are suitable for the performance curves shown above.
All curves are based on the measured values of 50Hz: constant motor speed 2900r/min
60Hz：constant motor speed 3500r/min；
Curve tolerance in conformity with ISO9906: 2012, 3B.
Measurement is done with 20℃air-free water, kinematic viscosity of lmm-/sec.
The operation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flow rate or overload f motor due to too large flow rate.
Following conditions are suitable for the performance curves shown above.
All curves are based on the measured values of 50Hz: constant motor speed 2900r/min
60Hz：constant motor speed 3500r/min；
Curve tolerance in conformity with ISO9906: 2012, 3B.
Measurement is done with 20℃air-free water, kinematic viscosity of lmm-/sec.
The operation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flow rate or overload f motor due to too large flow rate.
Material
NO | Name | Material | ANSI/ASTM |
1 | Inlet&Outlet Chamber | Stainless Steel | AISI 304 |
2 | Connection Pipe | Stainless Steel | AISI 304 |
3 | Clamp Plate | Stainless Steel | AISI 304 |
4 | Impeller | Stainless Steel | AISI 304 |
5 | Shaft | Stainless Steel | AISI 304 |
6 | Plug | Stainless Steel | AISI 304 |
7 | Discharge Diffuser | Stainless Steel | AISI 304 |
8 | Mechanical Seal | AISI 304 | |
9 | Motor End Cover | Aluminum Alloy | |
10 | Base Plate | Steel Plate | AISI 304 |
11 | Spannband | Stainless Steel | AISI 304 |
12 | Diffuser | Stainless Steel | AISI 304 |
13 | Support Diffuser | Stainless Steel | AISI 304 |
14 | Induser | Stainless Steel | AISI 304 |
Performance Table
