Гибочный станок Shijiazhuang Hebei Cnc
US $9600-$22000
Станок для резки арматуры/автоматический стальной станок арматуры/станок арматуры с
- Категория: Арматурогибочный станок >>>
- Поставщик: Xingtai,Judu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 17850.56 $* | 18743.4 $* |
| Aug-17-2025 | 17700.87 $* | 18585.25 $* |
| Jul-17-2025 | 14850.4 $* | 15593.86 $* |
| Jun-17-2025 | 17400.34 $* | 18270.4 $* |
| May-17-2025 | 15150.91 $* | 15908.15 $* |
| Apr-17-2025 | 17100.50 $* | 17955.43 $* |
| Mar-17-2025 | 16950.38 $* | 17798.38 $* |
| Feb-17-2025 | 16800.3 $* | 17640.74 $* |
| Jan-17-2025 | 16650.10 $* | 17483.2 $* |
Характеристики
Product Description

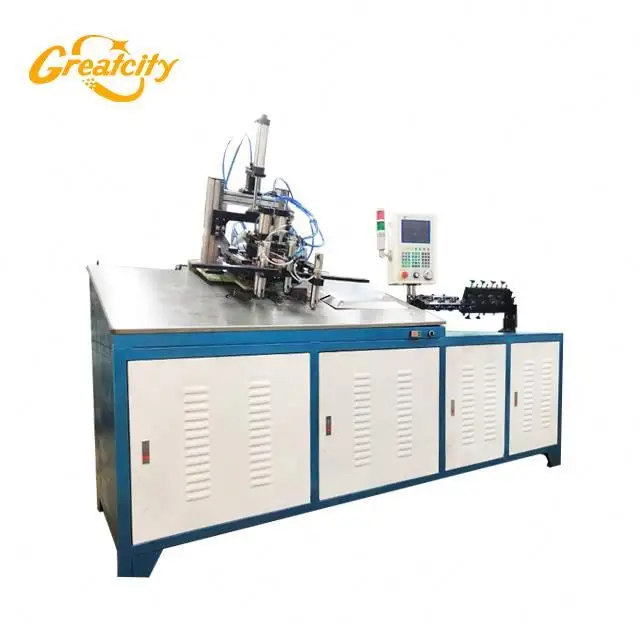

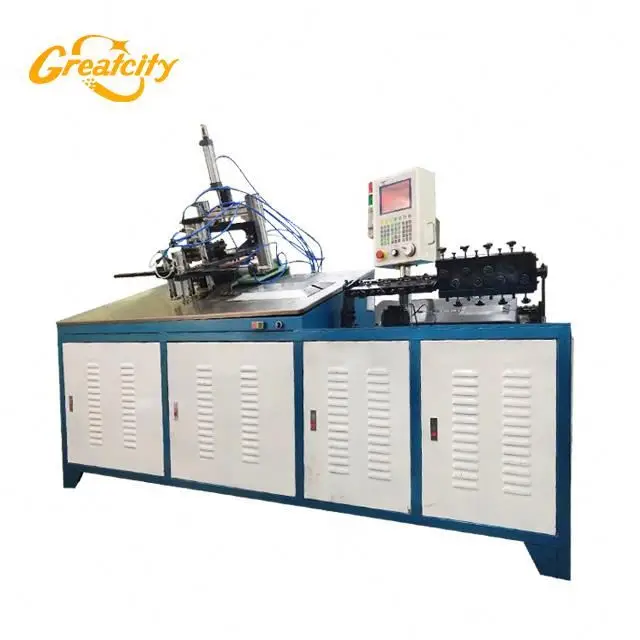

Automatic precision 2D wire welding machine
Product Application of wire welding machine
1. Replace manual labor with machine to improve production efficiency, no mold opening is needed, and one-time molding is featured by high precision and cost saving.
2.applicable to iron wire, steel wire, stainless steel and non-ferrous metal wire (round, square, flat), square, round, polygonal and irregular shape, all kinds of plane buckle, all kinds of hooks.
3.The application of automatic 2D servo wire bending machine is currently focused on the following five areas:
一. Automobile parts: production of automobile seat frame, door lock pull rod, snake spring, including single snake and double snake, automobile cat head clamp spring, sun visor frame, automobile seat support steel wire parts, motorcycle spare parts, bicycle spare parts, car basket, etc.
二. Daily hardware: kitchen display rack, shelf, egg beater, cabinet pull basket, refrigerator shelf, bathroom shelf.
三.iron wire craft products, lighting molding products, fishing accessories products, including wine rack, household fruit bowl, garden garden flower rack, Christmas wire gift.
四.Processing of various cages: bird cage, dog cage, pet cage, breeding cage, trap cage, etc.
五.Hanger, shoe hanger, curtain hook, shelf hook, display rack hook and other hooks.
The company's new research and development of precision 2D wire welding integrated molding machine, using a new motion control system, equipped with excellent butt welding equipment, realizes the integration of molding and welding, and can be carried out at the same time. The efficiency of 2D machine is greatly improved. Compared with the previous PLC control system, the wire forming host has the advantages of simple operation, high accuracy and large amount of information storage. The perfect combination of the host and butt welding equipment truly realizes the full-automatic forming. It can realize butt welding, argon arc welding, welding iron wire and stainless steel wire.
The driving device of the main machine adopts high precision and imported accessories, driven by multiple servo motors, and the internal and external molds can rotate, which greatly improves the flexibility and diversity of bending, and greatly improves the accuracy of wire feeding and bending. It is the leader of automatic 2D wire forming and welding machine.
The driving device of the main machine adopts high precision and imported accessories, driven by multiple servo motors, and the internal and external molds can rotate, which greatly improves the flexibility and diversity of bending, and greatly improves the accuracy of wire feeding and bending. It is the leader of automatic 2D wire forming and welding machine.
Greatcity | SPECIFICATIONS FOR WIRE WELDING MACHINE | ||||||
Model | WB2-6 | WB2-8 | |
Electric voltage | Three-phase four-wire + grounding wire | Three-phase four-wire + grounding wire | |
Straightening wheel number | Group 22 | Group 22 | |
Feeding wheel number | Group 3 | Group 3 | |
Servo motor power | 2.2kw | 7.5kw | |
Oil cylinder cutter | φ 6 wire | φ 11wire | |
Oil pressure range | 6mpa | 6mpa | |
Hydraulic oil type | 46#68# | 46#68# | |
Applicable wire | Round line, flat line, square line | Round line, flat line, square line | |
Applicable range of wire | 2-6mm wire standard | 2-8mm wire standard | |
Appearance dimension | 2600mm*850mm*1500mm | 3700mm*850mm*1580mm | |
Perimeter range | unlimited | unlimited | |
Store | 1000 sets of data, 200 action groups | 1000 sets of data, 200 action groups | |
Feed speed | 60m/min | 60m/min | |
Maximum bending speed | 300 rpm / angle ± 180 ° | 300 rpm / angle ± 180 ° | |
Action direction | Internal mode- move down / up? External mode-downward movement / upward shift 360 °in reverse direction | Internal mode- move down / up? External mode-downward movement / upward shift 360 °in reverse direction | |
Bending accuracy | ±0.5mm | ±0.5mm | |
Wire feeding accuracy | ±0.5mm | ±0.5mm | |
Effectiveness | 13-15/min (as in the 200*200 box) | 8-10/min (as in the 200*200 box) | |
Pressure regulating valve | 1 | 1 | |
Pressure relief valve | Yes | Yes | |
The electromagnetic valve | 6 | 6 | |
Pressure gauge | 1 | 1 | |
Oil circuit substrate | 1 | 1 | |
Cooling pump | Air cooled | Air cooled | |
Feeding maximum torque | 50 Nm | 50 Nm | |
Feeding maximum bend | 50 Nm | 50 Nm | |
Control panel | Touch screen | Touch screen | |
PLC | Mitsubishi Japan | Mitsubishi Japan | |
Mechanical system energy | The mechanical action of the machine is controlled by the bending speed of the program made up by the microcomputer, and all kinds of instructions are issued to form various types and different specifications of products. | ||
Motion control, automatic feeding, automatic material withdrawal, straightening and cutting, bending and welding forming. | |||
Up to 500 action settings to combine various shapes | |||
Main Features for wire welding machine
1. The error of the full servo motor is smaller, the bending efficiency is higher, and the error is smaller than similar products of hydraulic press.
2, CNC operation is more simple than the same TYPE of PLC product operation, simple and easy to learn, generally have a primary school education in half an hour can edit the simple program.
3, because all the servo motor, no hydraulic fault, lower failure rate, more convenient scrubbing, no pollution caused by oil pollution.
2, CNC operation is more simple than the same TYPE of PLC product operation, simple and easy to learn, generally have a primary school education in half an hour can edit the simple program.
3, because all the servo motor, no hydraulic fault, lower failure rate, more convenient scrubbing, no pollution caused by oil pollution.

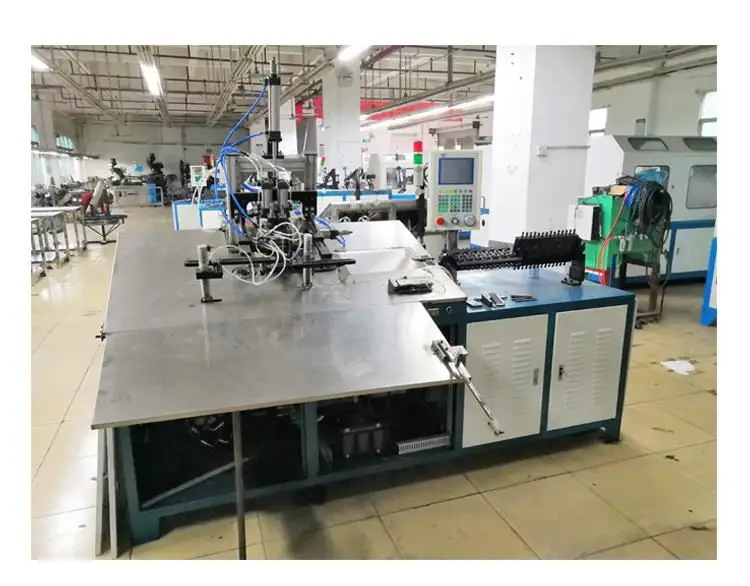

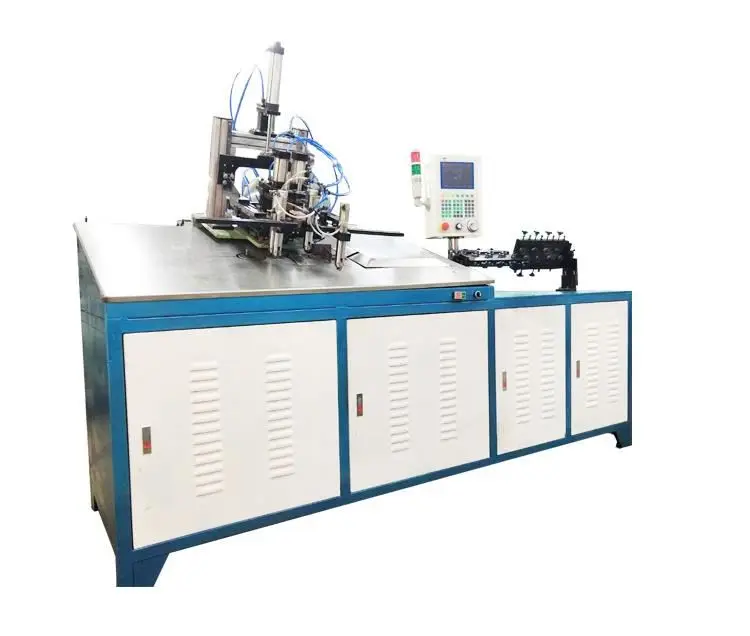

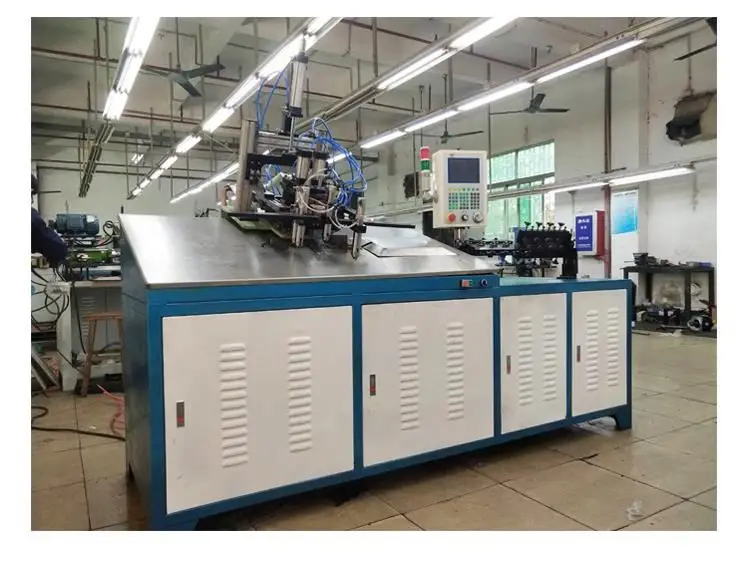

Detailed Images
The process shapes of wire welding machine
Our machine could process 500 kinds shapes
Packing & Delivery
Packing of wire welding machine | ||
Size | 265cm*115cm*170cm | |
Weight | 900KG | |
Packaging Details | The normal package is wooden case(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
