Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Энкодер 23bit 2500ppr ac 750w сервопривод ethernet-контроль с
- Категория: Motors >>>
- Поставщик: Shanghai,Dikai,Automation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 339.37 $* | 346.27 $* |
| Jul-18-2025 | 275.56 $* | 281.76 $* |
| Jun-18-2025 | 334.37 $* | 341.81 $* |
| May-18-2025 | 331.89 $* | 338.53 $* |
| Apr-18-2025 | 264.30 $* | 269.24 $* |
| Mar-18-2025 | 326.28 $* | 333.49 $* |
| Feb-18-2025 | 323.64 $* | 329.73 $* |
| Jan-18-2025 | 320.72 $* | 326.15 $* |
Характеристики
Encoder Cable Ac 750w Maquinas De Coser Control Drive Servo Motor Stabilizer
Product Description

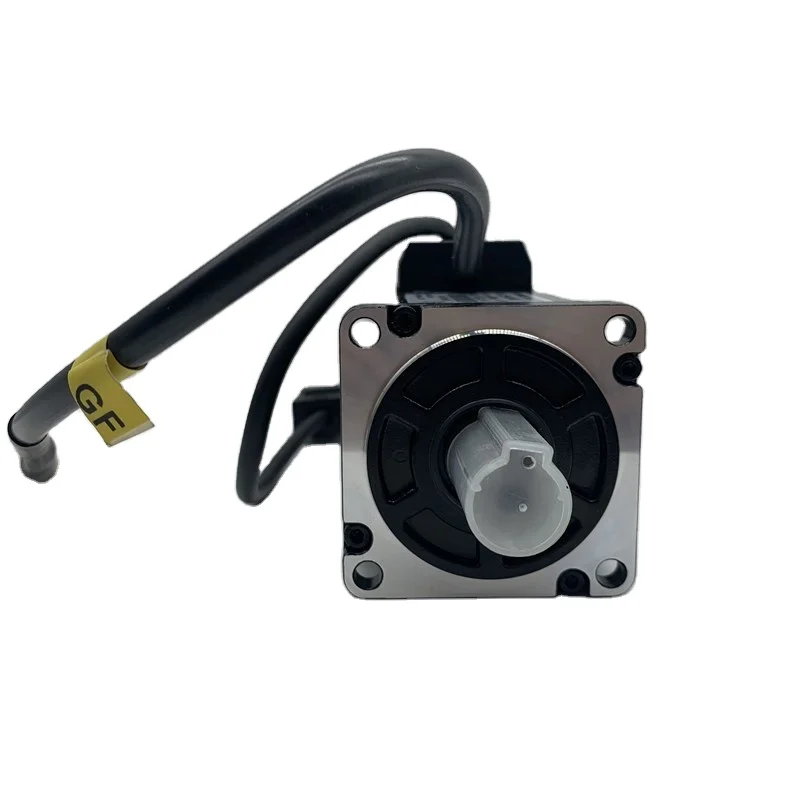

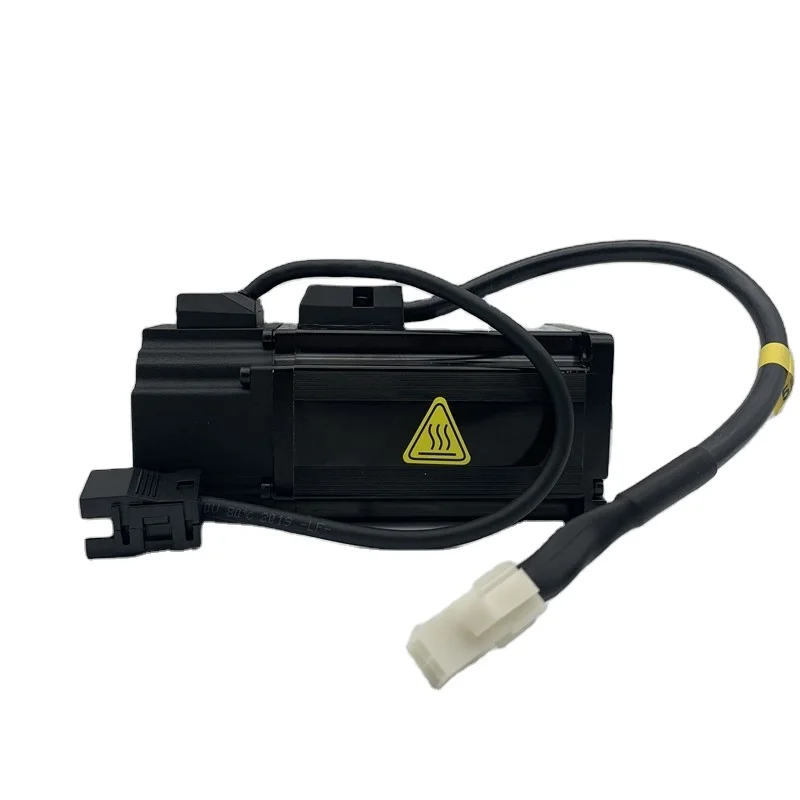

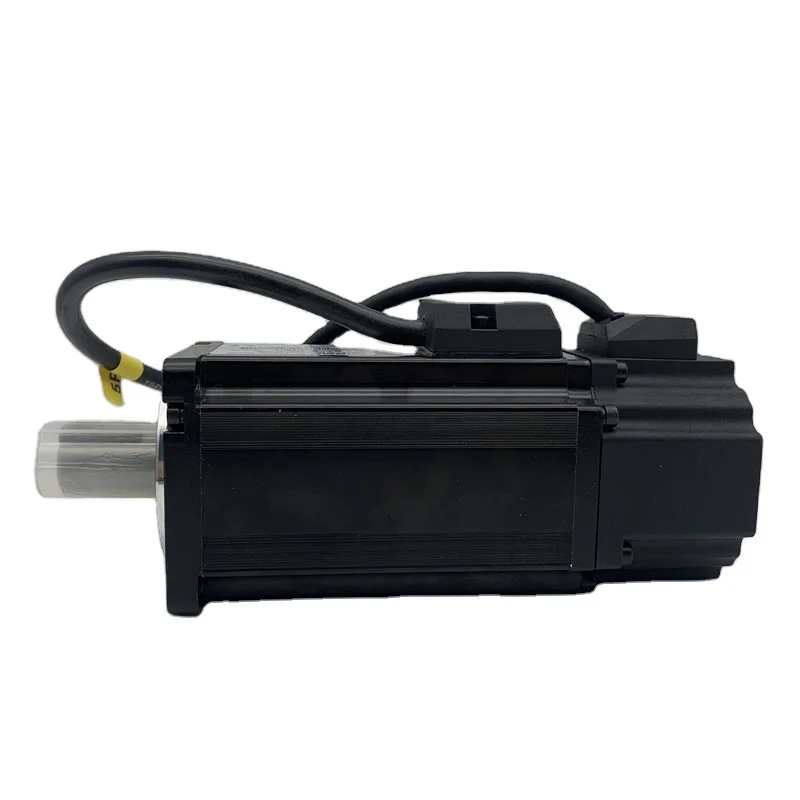

Ac servo motor Specification:
| Model | SM800730T2NAMD |
Supply Voltage | 220VAC |
| Rated Power(kW) | 0.75 |
| Rated Torque(N.m) | 2.39 |
| Rated current(A) | 3.7 |
| Rated Speed(RPM) | 3000 |
| Max Speed(RPM) | 5000 |
| Torque constant(N.m/A) | 0.64 |
| Back electromotive force constant(V/Krpm) | 43 |
| Motor Weight | 2.93KG |
IP Level | IP65 |
Flange Dimensions | 80 |
| Operating temperature(℃) | 0-40 |
| Working humidity | 20-90%RH |
| Vibration resistant | 2.5G |
| Ac servo driver specification: | |
| Model | SDE107T2AA |
| Lnput Power | Three-phase, 220VAC+10~-15%, 50/60Hz |
| Suitable Standard | CE |
| Environment Temperature | 0℃~+55℃ |
| Storage Temperature | -20℃~85℃ |
| Cleanliness Level | 2 |
| Protection degree | IP10 |
| Communication Function | RS485/Ethercat |
| Encoder | 23bit/2500ppr |
Encoder 23bit 2500ppr ac 750w servo drive ethercat control with motor kits
For more information, please click below:
