Китай, Мраморная дробильная установка, Щековая камнедробилка
US $7851-$8851
Гидравлический скважины сверлильный станок буровая установка земли для бурения скважин на воду
- Категория: Energy & Mineral Equipment >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 774.81 $* | 813.0 $* |
| Aug-18-2025 | 767.35 $* | 805.41 $* |
| Jul-18-2025 | 644.20 $* | 676.28 $* |
| Jun-18-2025 | 754.65 $* | 792.84 $* |
| May-18-2025 | 657.99 $* | 690.57 $* |
| Apr-18-2025 | 741.33 $* | 778.19 $* |
| Mar-18-2025 | 735.22 $* | 772.69 $* |
| Feb-18-2025 | 728.3 $* | 764.33 $* |
| Jan-18-2025 | 722.32 $* | 758.55 $* |
Характеристики

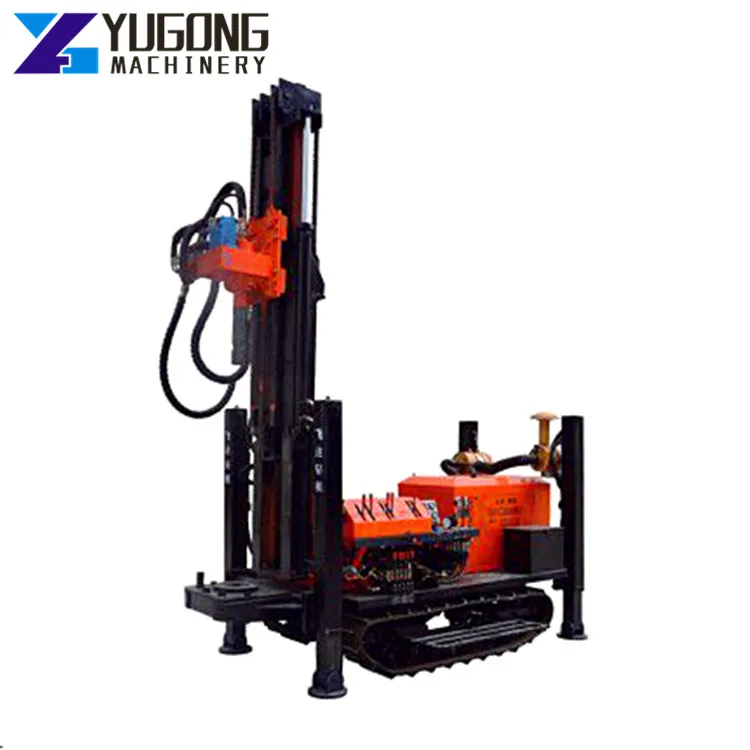

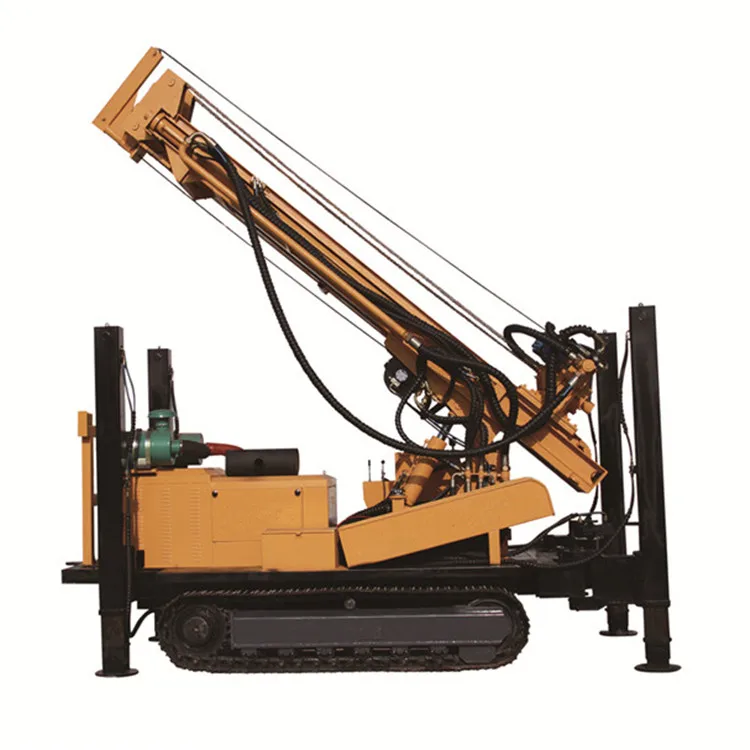

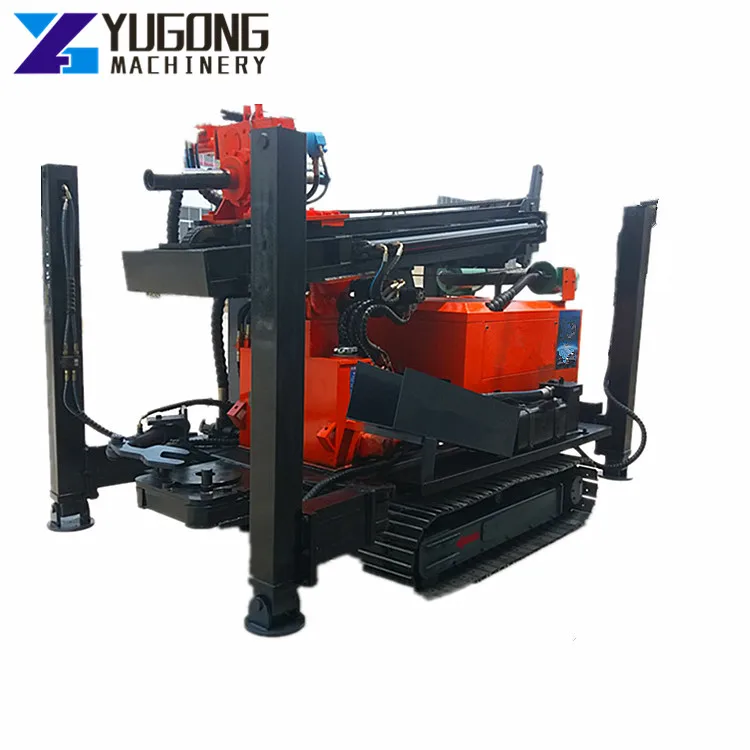

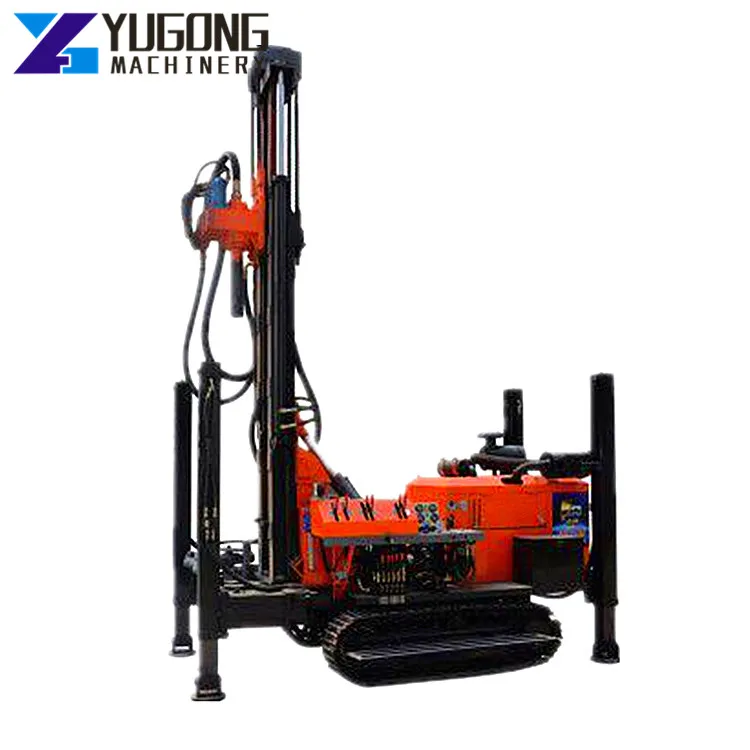

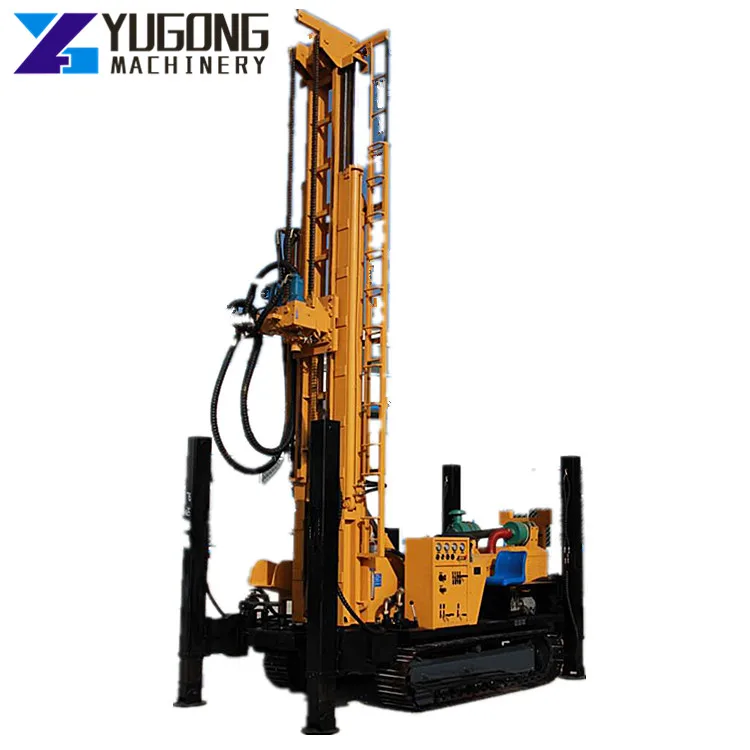

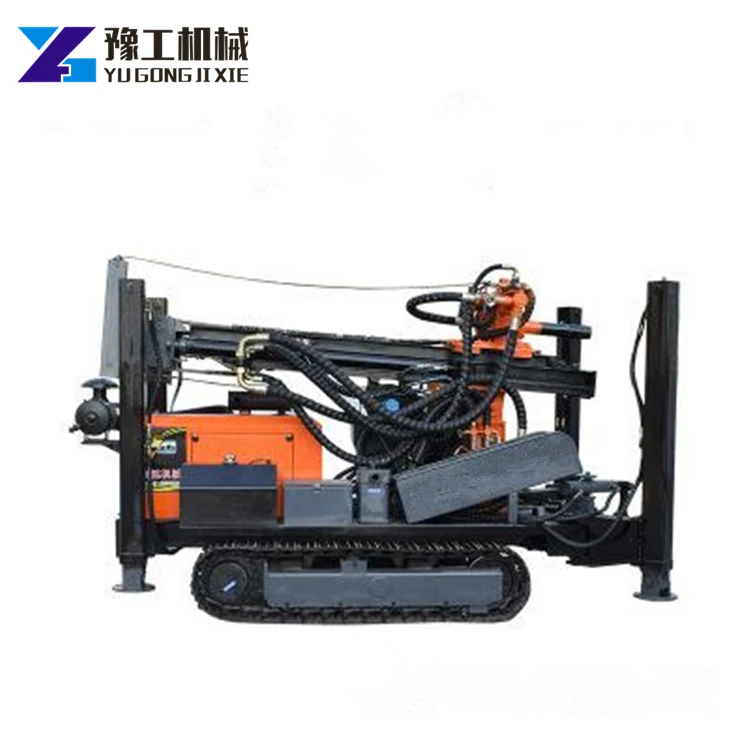

Hydraulic Well Bore Drill Machine Land Drilling Rig Water Well Drilling Machine
Product Description
Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.The rig can be drill in different layers.deep water well drilling rig uses full hydraulic control, and the top drive to drive the rotation of drilling tools with very high drilling efficiency.reasonable overall layout uses the tractor-mounted or full ground challis for transportation with good maneuverability.Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.The top mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
| YG-180 | YG-200 | YG-300 | YG-300A | YG-400 | YG-600 | YG-800 | |
| The weight(T) | 4.5 | 5.8 | 9 | 7 | 10 | 12 | 13 |
| The hole diameter(mm) | 140-254 | 140-305 | 140-325 | 140-325 | 140-350 | 140-350 | 140-500 |
| Drilling depth(m) | 180 | 200 | 300 | 300 | 400 | 600 | 800 |
One-time advance length(m) | 3.4 | 3.4 | 6.6 | 3.4 | 6.6 | 6.6 | 6.6 |
Walking speed (km/h) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Climbing angles (Max.) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Equipped capacitor(KW) | 55 | 65-70 | 84 | 75.8 | 92 | 115 | 140 |
| Using air pressure(mpa) | 1.7-2.5 | 1.7-3.0 | 1.7-3.3 | 1.7-3.0 | 1.7-3.5 | 1.7-3.5 | 1.7-3.5 |
Air consumption (m3/min) | 17-31 | 17-30 | 17-35 | 17-35 | 17-35 | 17-35 | 17-35 |
| Drill pipe diameter(mm) | 76 89 | 76 89 | 89 102 | 76 89 102 | 89 102 108 | 102 108 114 | 76 89 102 |
| Drill pipe length(m) | 1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 |
| Rig lifting force(T) | 15 | 12 | 20 | 16 | 22 | 28 | 35 |
| Swing speed(rpm) | 45-65 | 45-70 | 55-115 | 40-70 | 45-115 | 45-115 | 55-115 |
| Swing torque(N.m) | 3200-4600 | 3500-4800 | 6200-8500 | 5700-7500 | 6500-9000 | 8500-11000 | 8660-11150 |
| Dimension(mm) | 3800*1500*2200 | 4000*1750*2450 | 5900*2000*2850 | 4100*1950*2600 | 5900*2100*2850 | 6000*2200*2850 | 6100*2100*2900 |
Feature:
1.Safe and stable walking mechanism.
2.The center of gravity is low and the ground clearance is large, so that it can cross the rough road easily. Special wheel motor drive has strong climbing ability and low failure rate.
3.Advanced automatic leveling function of crawler and stop brake system not only make the drilling rig run stably, but also greatly reduce the impact of the ground on the drilling rig and ensure the driving safety.
4. The unique anti stripping device has greatly improved the reliability of the drilling truck when walking.
5.Vehicle-mounted diesel engine is adaptable to harsh environment. It can walk freely without external air compressor and is easy to move.
Details:
Working Site:
Production Process
Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, sandblasting equipment, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
Advantages
1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
Packaging & Shipping
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
FAQ
