Стальная арматурная винтовая машина для прокатки резьбы по более низкой цене
US $580.00-$670.00
Высококачественная стальная машина для волочения проволоки в
- Категория: Формовочное оборудование для металла >>>
- Поставщик: Shijiazhuang,Satle,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.97 $* | 0.42 $* |
| Aug-19-2025 | 0.56 $* | 0.81 $* |
| Jul-19-2025 | 0.91 $* | 0.70 $* |
| Jun-19-2025 | 0.90 $* | 0.89 $* |
| May-19-2025 | 0.60 $* | 0.98 $* |
| Apr-19-2025 | 0.83 $* | 0.30 $* |
| Mar-19-2025 | 0.69 $* | 0.18 $* |
| Feb-19-2025 | 0.35 $* | 0.30 $* |
| Jan-19-2025 | 0.17 $* | 0.72 $* |
Характеристики
Product Description
1.Product Introduction

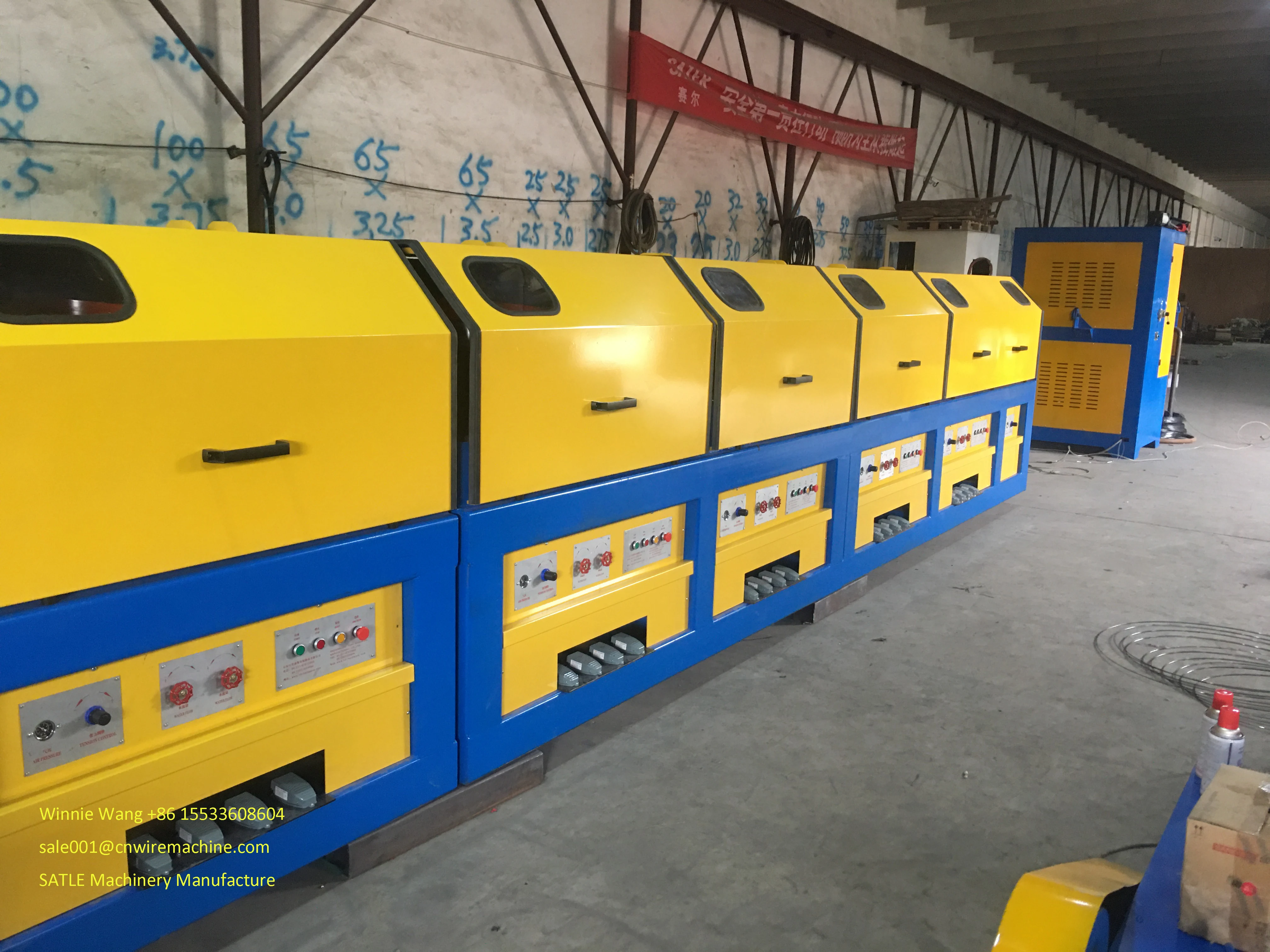

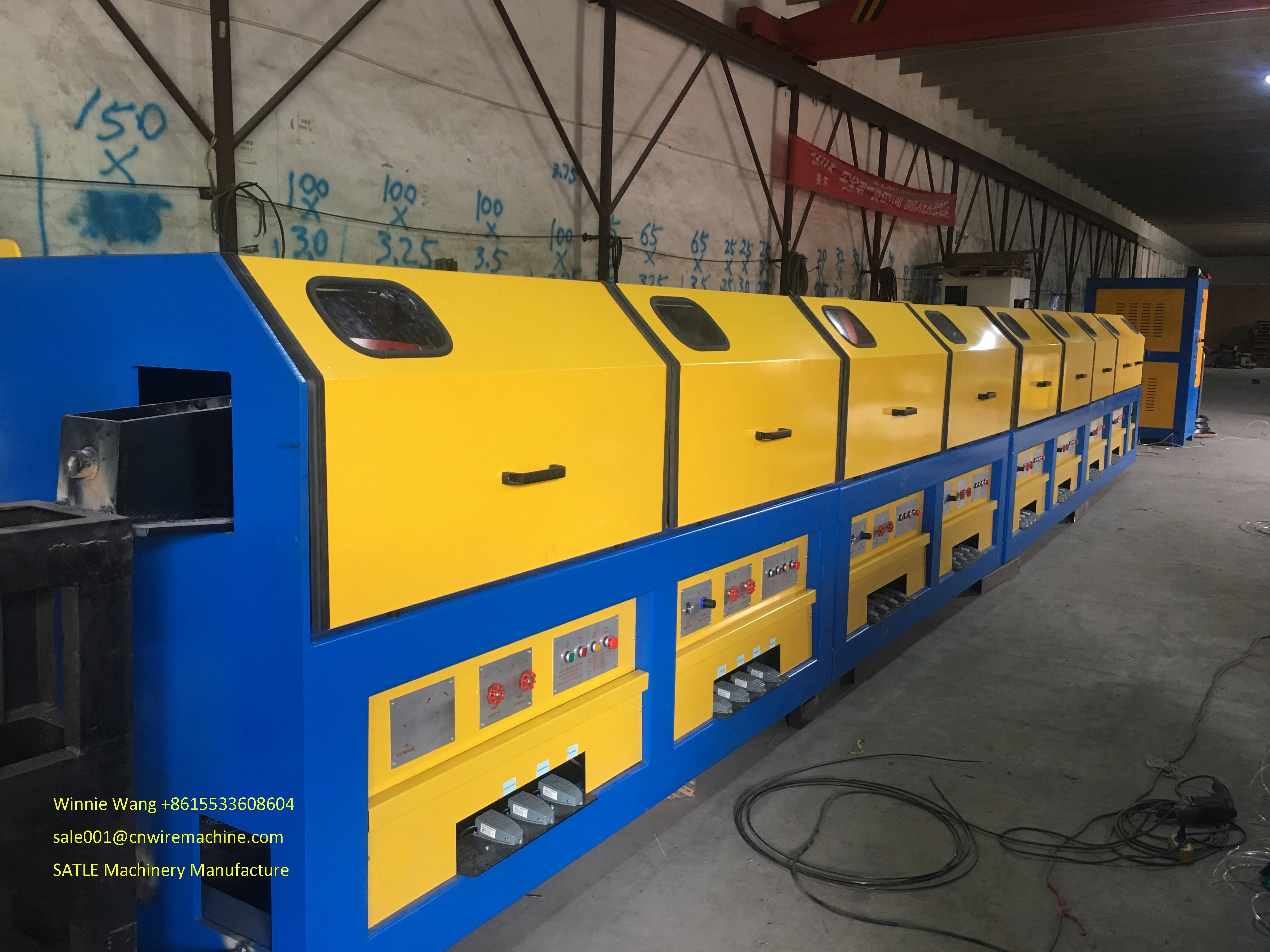

Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm,with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.
2.Working flows and automation

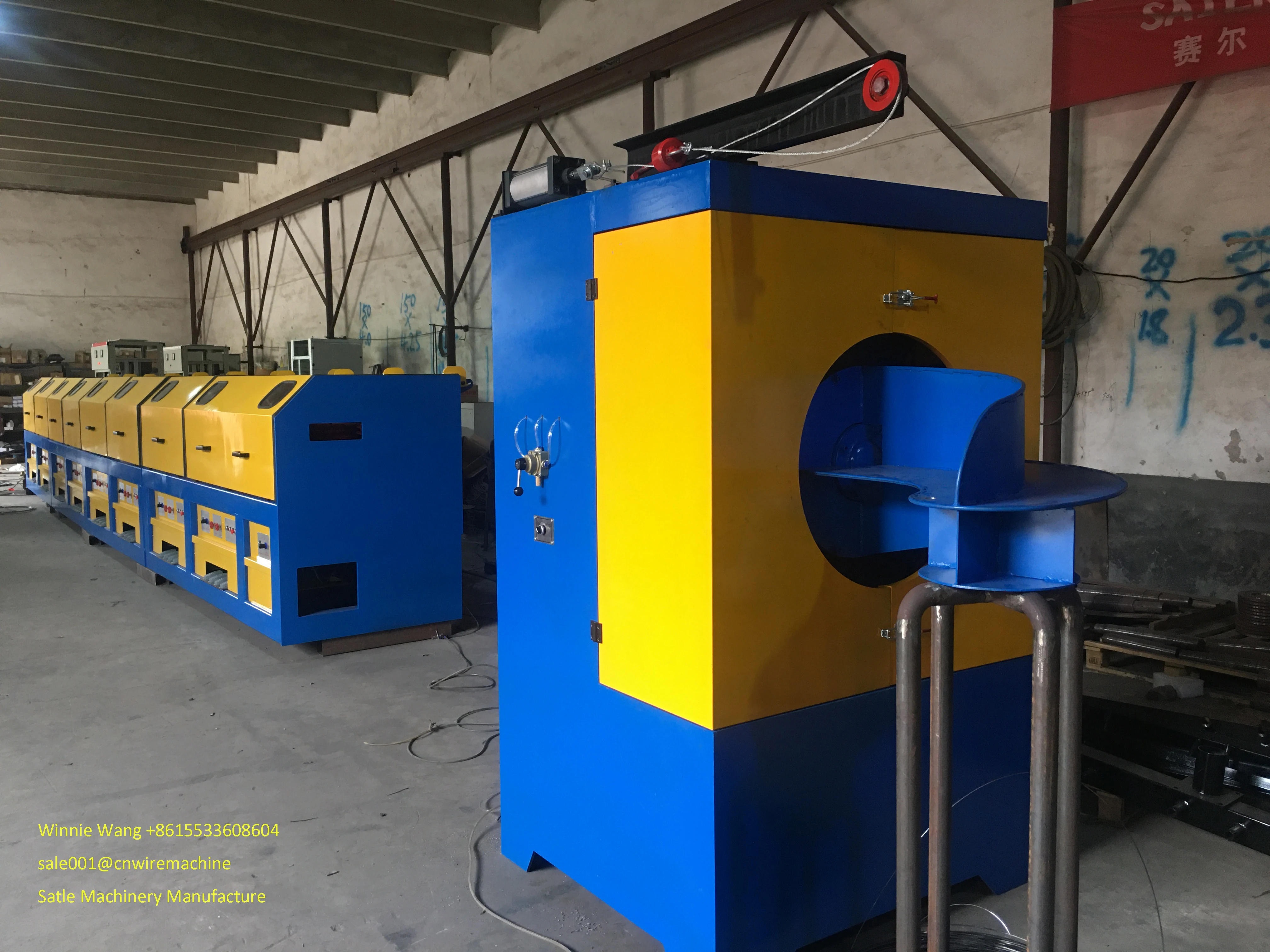

Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up
Main Features
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5)Good cooling system, final wire quality is very good.
Machine Parts

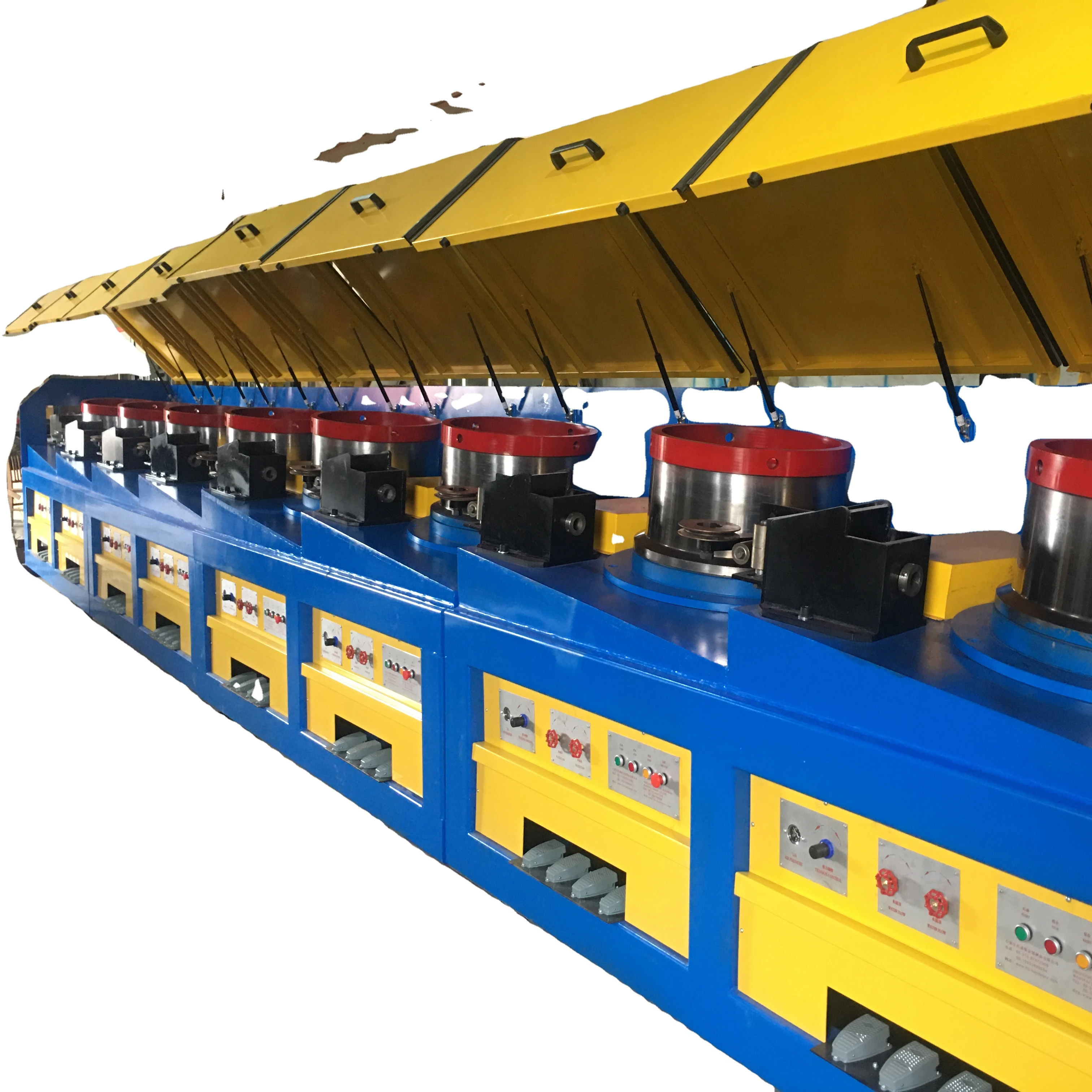

Name: Drawing drum
Cast steel ZG45, surface surfacing and spraying tungsten carbide, HRC60. Surface roughness less than 0.8mm.,hardness HRC>55, the interior part of the capstan is by the process of ZnAl corrosion spraying. The effective life of the capstan is over 22000 hours.
Name: Mold box cooling
The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good.
Packaging & Shipping
Company Information
Shijiazhuang Satle Machinery Manufacture Co.,Ltd. established in the year of 2001, is located in Shijiazhuang City, HeBei Province,China. The company, possessing a professional technical and production team, is mainly specialized in developing and manufacturing the whole set of welding wire production line and whole set metal wire drawing machine, including straight line wire drawing machine, water tank wire drawing machine, pulley wire drawing machine, horizontal drawing machine,trunk type take up machine,spooler take up machine, payoff machine, layer winding machine,straightening cutting machine and so on. Most the machines are automatic, high speed and effective. Our machines have been exported to South Korea,Malaysia,
Russia,Kazakhstan,Tajikistan,Brazil,India,South Africa,Zimbabwe,Guatemala,Egypt,Romania etc.All the products have gained the customers’ commend and approval in the world.
Our services:
1. We are always providing customers with not only the excellent solutions of steel wire production line, best related equipment and perfect services but also free technical services on the steel wire production line.
2. If you have any questions in the process of producing steel wire, or about steel wire production line, please feel free to contact us any time. Our solutions and quotation will be sent to you soon to meet you special requirements.
3. Welcome to visit our factory and Wire drawing production lines.
4.Engineers available to service machinery overseas.Free training to how to install the machine, how to use the machine.Online support.
5.Low charge for continue maintenance when warranty is expired.
FAQ
Is Satle a machine manufacturer?
|
Can your machine be customized?
|
What is your terms of payment?
|
How can I trust your company and ensure to get the goods if I order from you?
|
Our service
|
About online technology support?
|
Contact Information
Winnie Wang
+8615533608604
sale001 AT cnwiremachine DOT com
