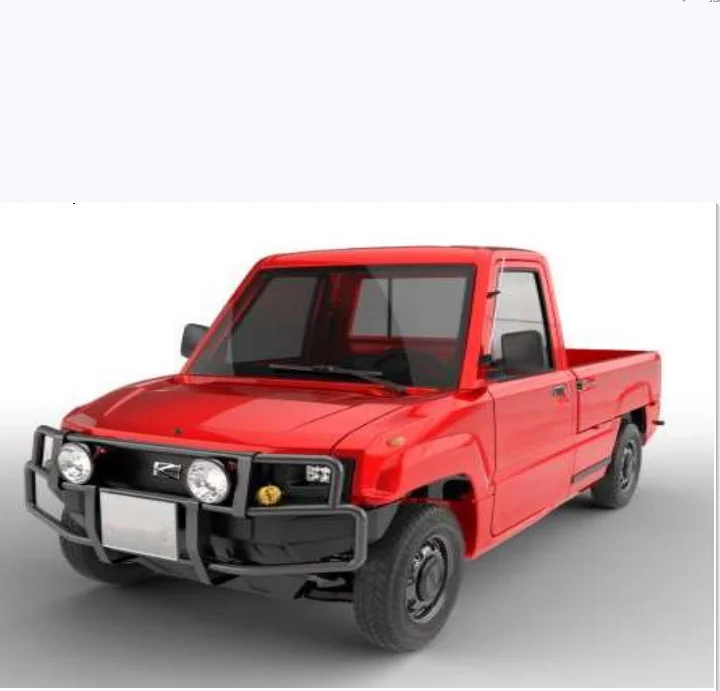

Chinese brand 45km/h electric pickup utility small electric truck with L7e certificate mini EU electric pickup truck
Basic parameters
Length × Width ×Height (mm)
3570X1370X1550
Cargo box size(mm)
1630X1220X300
Curb weight (kg)
680 kg
wheel base (mm)
2310
Thread Front(mm)
1195
Thread Rear(mm)
1190
Curb weight(kg)
730(with Battery)/530(without Battery)
Payload (kg)
500kg
Passenger
2
Performance parameters
Max Speed(km/h)
50 (Metro55)
Acceleration time( S 0-40km)
20
Maximum gradeability
20%
Min turning diameter(m)
<9
Maximum turning angle
36.3(outer wheel)/42(inner wheel)
Departure angle(°)
>38
Approach angle(°)
>35
Ground clearance(mm)
>150
Body Structure
Body of Cabin
sheet metal
Cargo box
Triple door bed
Battery / Motor
Battery capacity (V/Ah)
72V , 100Ah
Max. Range(empty,25℃,35km/h)
120
Battery Type
VRLA maintenance free power battery
Charger
portable
Charging time(h)
8~10
Motor type
AC asynchronous motor
Rated Power(KW)
4KW
Chassis/wheel brakes
Drive type
RWD
Front Suspension
double wishbone coil spring independent suspension
Rear suspension
parallel leaf spring type(5pcs)
Drive axle speed Ratio
Unitary 10.401
Brake front
Disc
Brake rear
Drum
Wheel
12X4B(steel wheel 4X114.3)
Tire
145 R12LT
Steering type
gears chains
Brake assist
Yes
Configuration
windshield wiper
AC asynchronous motor
windshield washer
4 kW
Hood
Intelligent electronic controller
Door Lock
VRLA maintenance-free power battery
windows
72V / 100Ah
display screen
8 – 10 h
Company Information
Our company specializes in manufacturing buses for 25 years. We product buses from 6 meters to 18 meters. Our products have exported to Europe, Africa, South America, Southeast Asia and all round the world, it wins wide acclaim.
Packaging & Shipping
FAQ
1. How long the lead time for your products? It is about 45-50 days after deposit received.
2. How long is your warranty period? Electric vehicle: it is 36months or 300000km for whole vehicle, and 60months or 300000km for Electric romotor, electric machine controller and battery, whichever occurs first.
3.What is your package for products? We take marine anticorrosive packaging for every shipment.
4. Does your product can be customized? Yes, the colour and specification can be customized as required.
