Самоблокирующийся тандемный ящик тонкий скользящий мягкий закрывающийся Центральный держатель открывающийся замок
- Категория: Drawer Slide >>>
- Поставщик: Kunshan,Ruipuda,Metals,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.12 $* | 0.20 $* |
| Aug-19-2025 | 0.13 $* | 0.35 $* |
| Jul-19-2025 | 0.50 $* | 0.84 $* |
| Jun-19-2025 | 0.39 $* | 0.49 $* |
| May-19-2025 | 0.53 $* | 0.50 $* |
| Apr-19-2025 | 0.89 $* | 0.5 $* |
| Mar-19-2025 | 0.76 $* | 0.50 $* |
| Feb-19-2025 | 0.52 $* | 0.77 $* |
| Jan-19-2025 | 0.4 $* | 0.28 $* |
Характеристики
Product Description

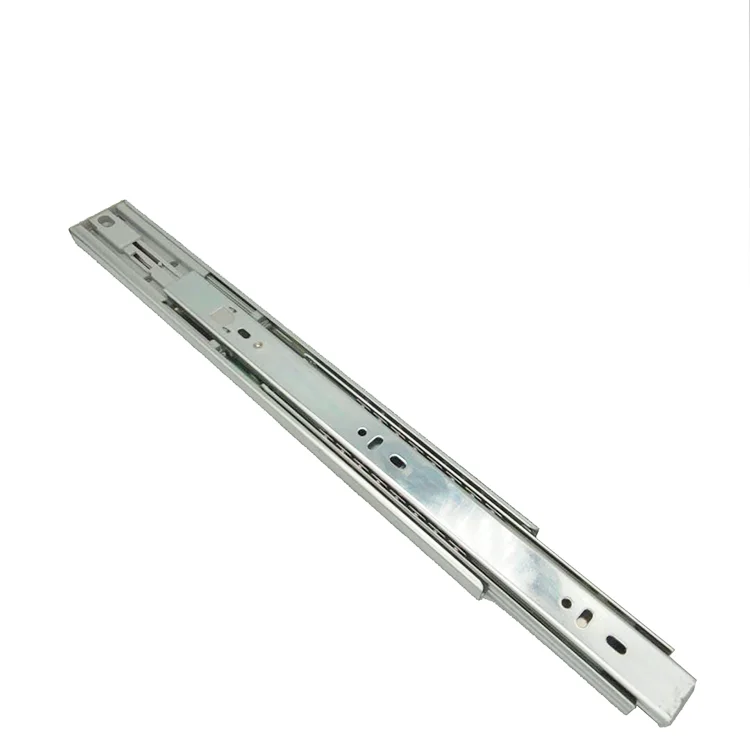

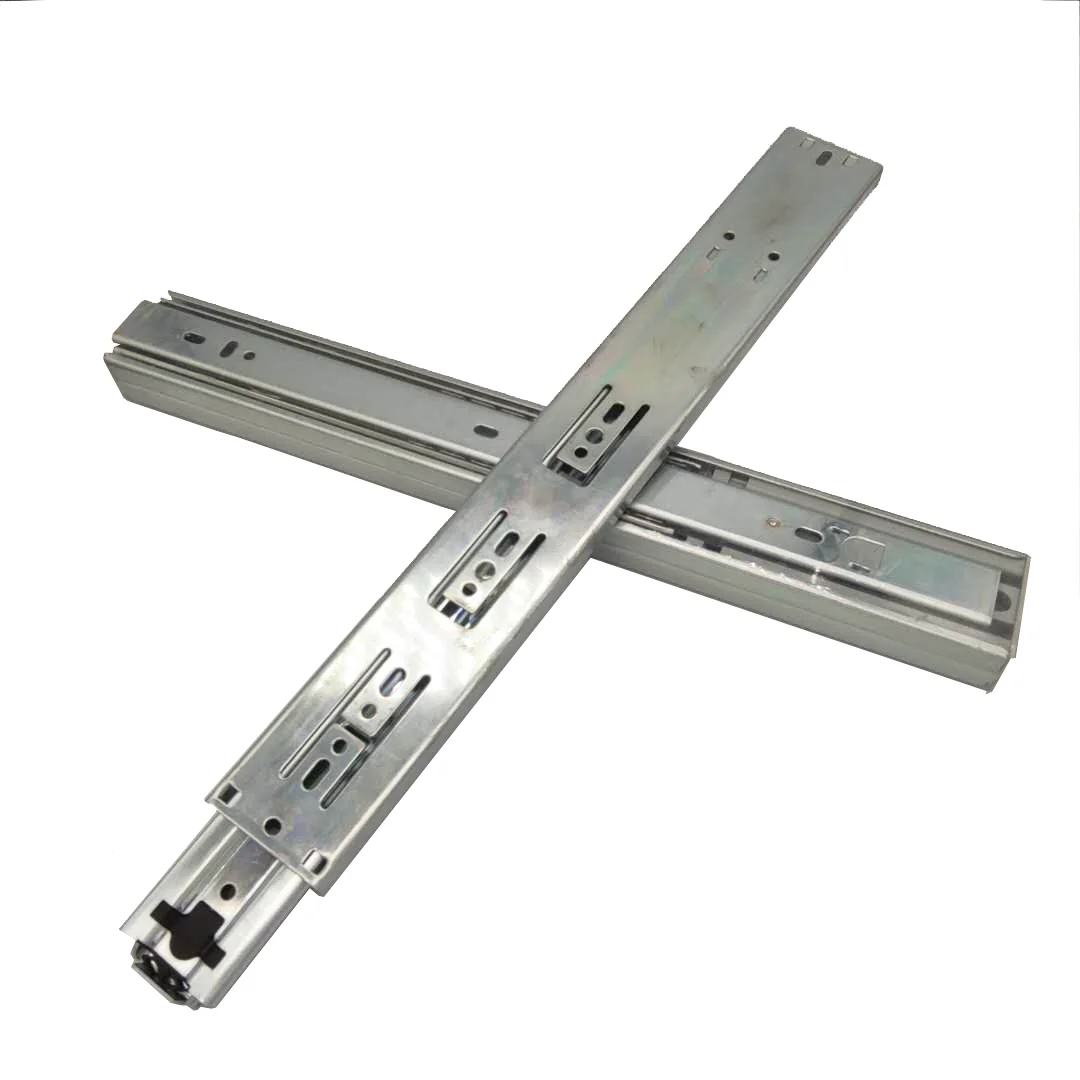

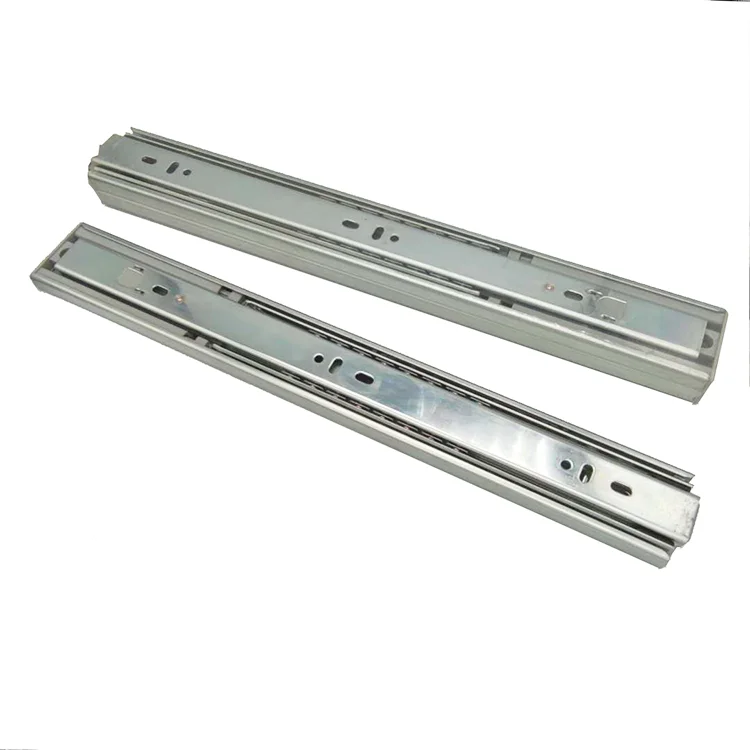

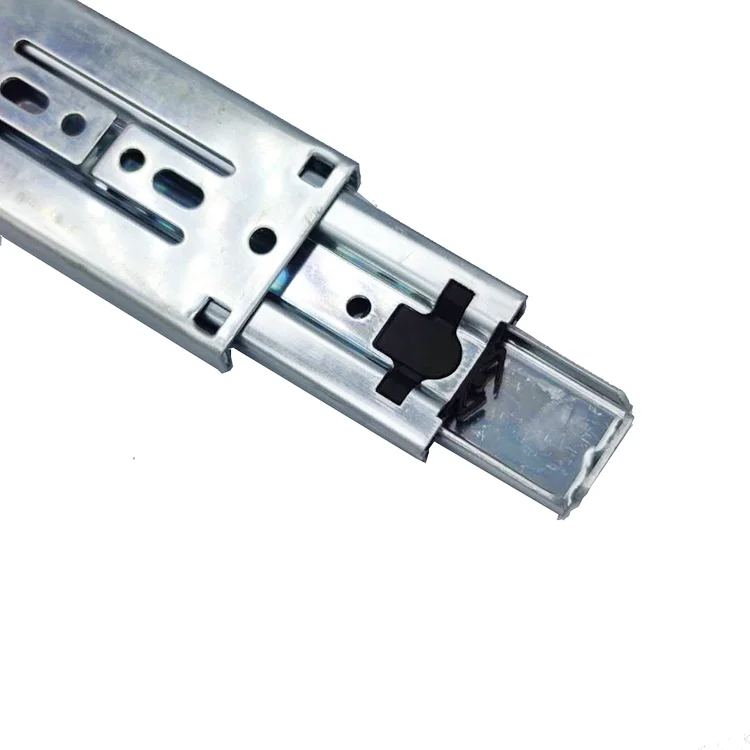

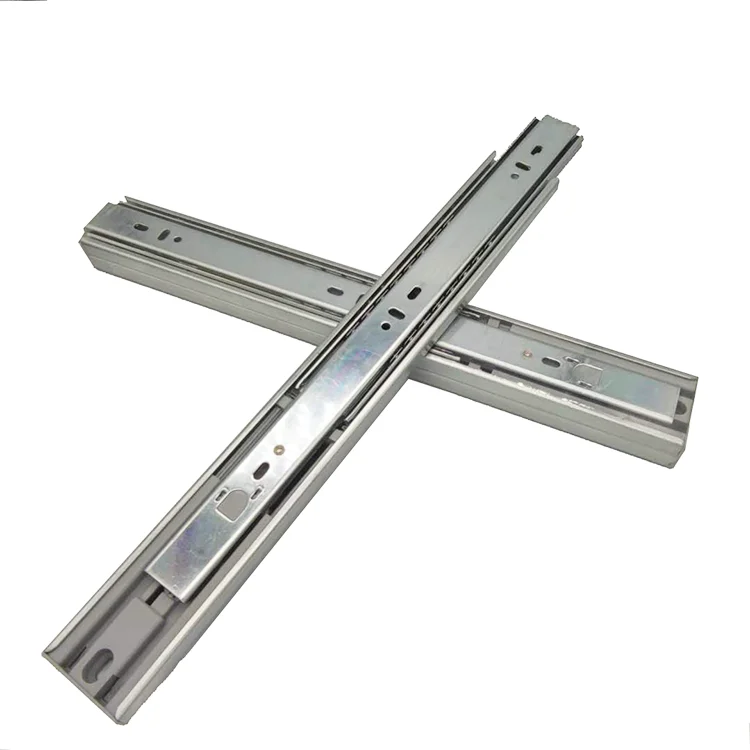

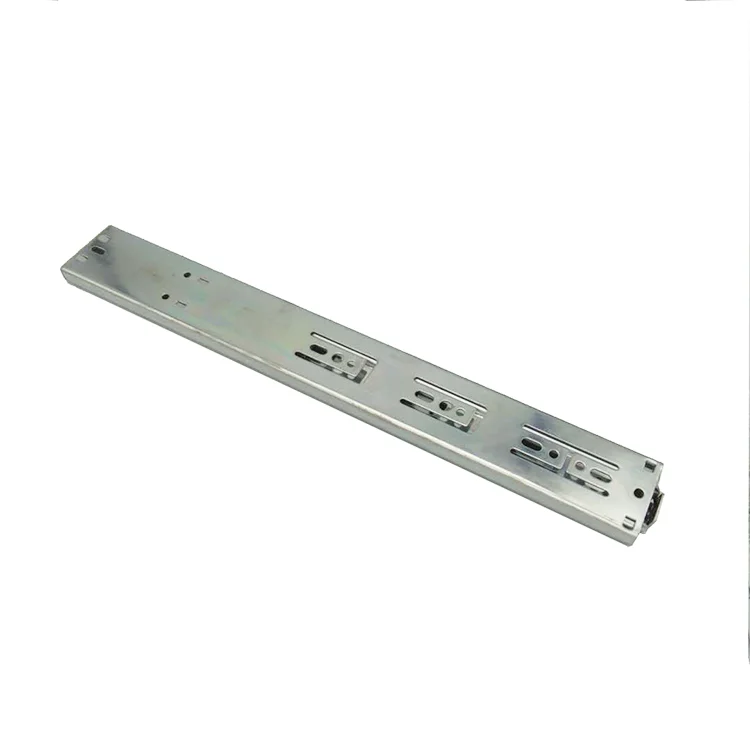

Product name | Kitchen Cabinet Undercount 3 Extension Soft Close Ball Bearing Push To Open Drawer Slide |
Feature | Rebound the slide rail, it will pop out automatically after pressing the drawer panel, and it will automatically lock when pressed again, no need to install the handle |
Material | Iron |
Features | Full-extension |
Size | 300-600mm |
Load Capacity | 35kg/pr(77-Ib) |
Surface | White zinc plated,Black zinc,color zinc |
Notice | Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us |
fastness and mute.
Include Push-open & soft close function
2 in 1.
Large space,easy to install and take
More Products
Installation Dimension
Item no. | Length | Travel | C1 | N | E | C2 | C3 | C4 |
45A30C.12 | 291.5 | 220 | / | 162.5 | / | / | / | / |
45A30C.14 | 341.5 | 317 | 195 | 212.5 | 128 | / | / | / |
45A30C.16 | 391.5 | 392 | 259 | 238 | 128 | 128 | / | 137.4 |
45A30C.18 | 441.5 | 442 | 259 | 263.5 | 160 | 160 | 114.2 | / |
45A30C.20 | 491.5 | 492 | 259 | 288.5 | 192 | 160 | 114.2 | 169.4 |
45A30C.22 | 541.5 | 542 | 259 | 313 | 224 | 192 | 176.2 | 201.4 |
45A30C.24 | 591.5 | 592 | 259 | 337.5 | 224 | 192 | 176.2 | 201.4 |
