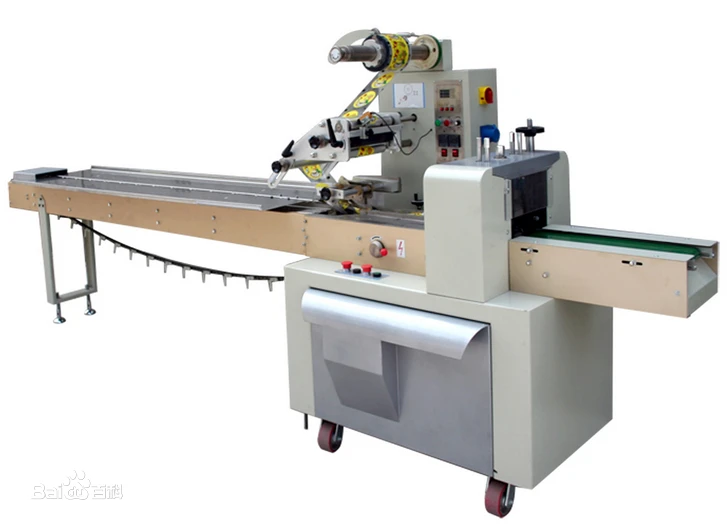

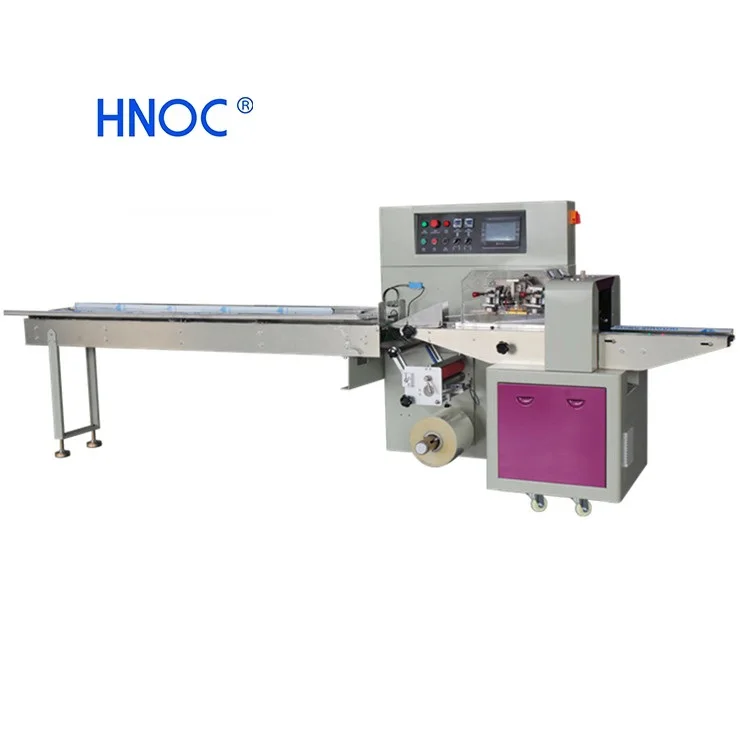

Двойной сетчатый ремень с сервоприводом подвижная упаковка для свежих овощей упаковочная машина целого
- Категория: Многофункциональные упаковочные машины >>>
- Поставщик: Henan,Ocean,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3273.60 $* | 3437.70 $* |
| Aug-15-2025 | 3245.99 $* | 3407.84 $* |
| Jul-15-2025 | 2723.82 $* | 2859.81 $* |
| Jun-15-2025 | 3190.68 $* | 3350.52 $* |
| May-15-2025 | 2778.14 $* | 2917.17 $* |
| Apr-15-2025 | 3135.27 $* | 3292.24 $* |
| Mar-15-2025 | 3108.46 $* | 3263.78 $* |
| Feb-15-2025 | 3080.20 $* | 3234.7 $* |
| Jan-15-2025 | 3053.61 $* | 3206.71 $* |
Характеристики
Product Description
Application

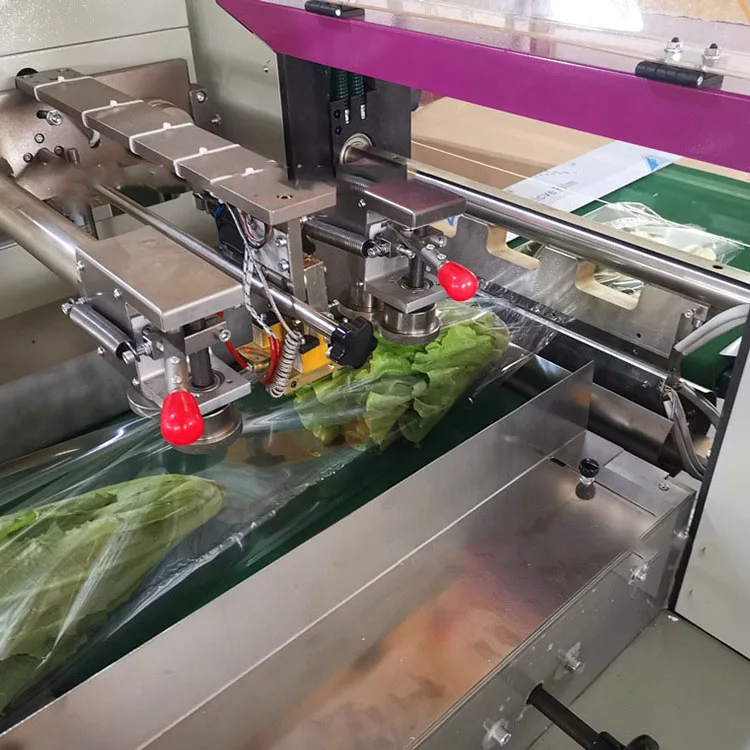

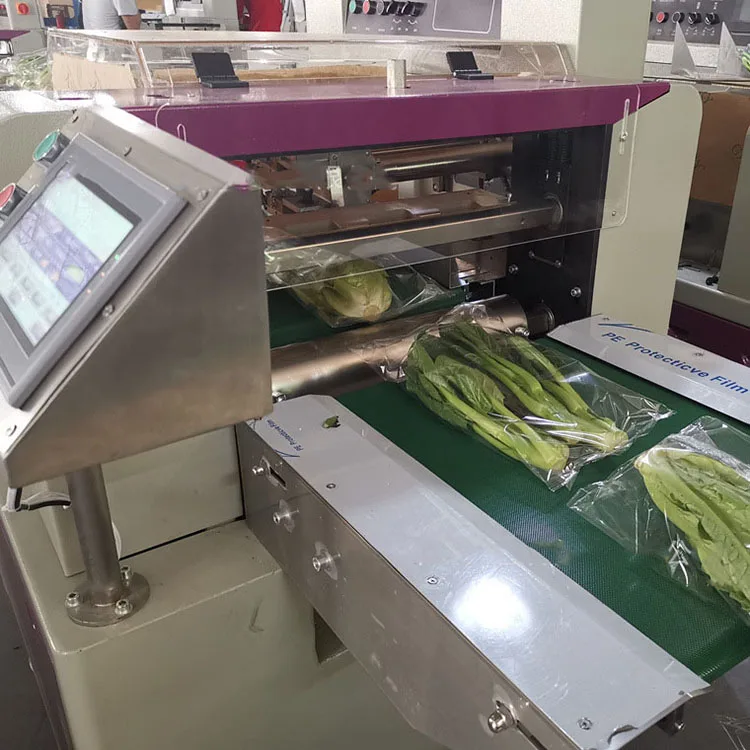

It is suitable for the packaging of various types of regular or irregular products such as candies, biscuits, cakes, moon cakes, hardware, daily necessities, vegetables and fruits.
Main performance and characteristics
1. Controlled by three servo motors, end sealing, middle sealing and feeding can be controlled independently;
2. There is no limit to the bag length, fixed length mode and induction bag length mode can be selected;
3. Anti-aircraft bag, cut material and stop, sense material start and stop;
4. The bag length is more precise and accurate, which is convenient for docking the production line.
Product parameter
model | HNOC-CM-450 | HNOC-CM-600 |
Film width | ≤450mm | ≤600mm |
Bag length | 140mm--Unlimited bag length | 160mm--Unlimited bag length |
Bag making width | 100-210mm | 140-280mm |
Product height | ≤120mm | ≤120mm |
Film diameter | ≤320mm | ≤320mm |

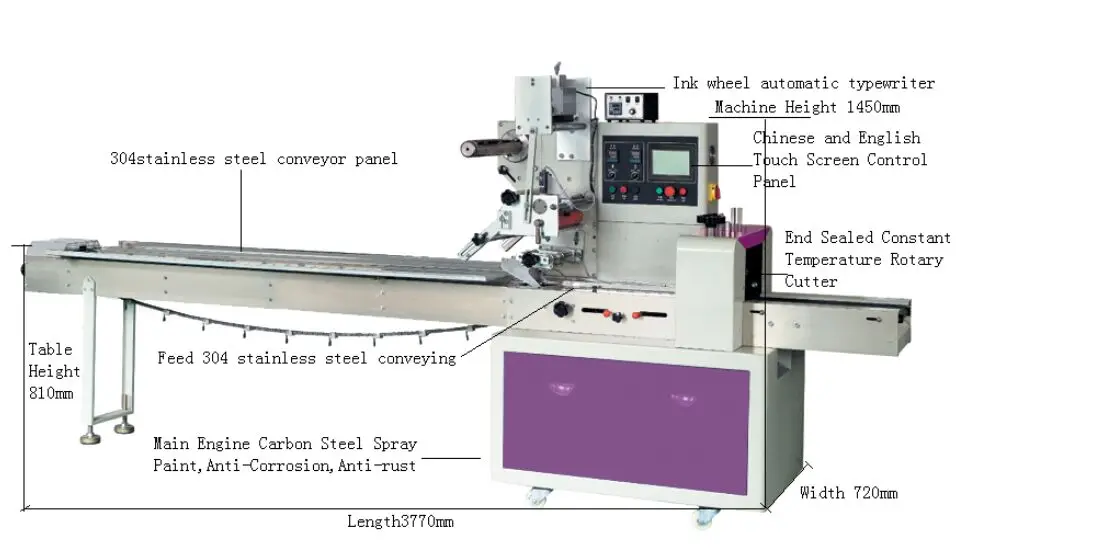

Machine size | L3920×W820×H1320 | L4020×W920×H1320 |
specification | 220V.50/60HZ.2.5KW | 220V.50/60HZ.2.6KW |
Machine weight | 600kg | 800kg |
1. Anti-Empty bag device: When the sensor does not detect the product, the sealing device of the packaging machine will stop running and wait for the conveyor belt to feed, and does not make empty bags to avoid unnecessary waste of the packaging film.2. Anti-cutting device: When the sensor detects that the product is misaligned, the device will automatically skip the product and wait for the next product to arrive. This not only eliminates the loss of the product being cut but also avoids the damage of the sealing props, thereby reducing the failure rate and prolonging the mechanical life.
3. Anti-bite device: When the sensor detects that there is something else or the product has been cut, the system will determine whether the item is cut, and will immediately return to the original point and stop.
4.V-type feeding conveyor belt: It is made of stainless steel baffle and belt that can be dismantled and washed, paying attention to the safety and hygiene of the machine.
5. Code device
6. Automatic length measuring device
4.V-type feeding conveyor belt: It is made of stainless steel baffle and belt that can be dismantled and washed, paying attention to the safety and hygiene of the machine.
5. Code device
6. Automatic length measuring device
7. There also is manul input length system to meet diffent material.
Related Products
 |  |  |
Manufacturing Techni
1. Adopt Box Motion reciprocating head seal to extend the sealing time to ensure a better and more beautiful sealing effect.
2. Adopt three-sided sponge to reduce the exhaust effect required for the packaging of Flammulina velutipes/ Enokitake.
3. The size of the packaging machine is reasonable, which is convenient for the user to arrange the position of the machine.
4. In order to better realize the stability of the packaging machine and the adjustment capability of the machine itself, a 2-axis servo motors are installed in each drive unit, and the error accuracy is reduced to about 3 mm.
5. Operating the handle can easily adjust the tension between the drive roller and the heating roller in the middle seal section.
6. Up to 3 types of product information can be registered in the touch screen to realize a production mode with multiple varieties.
7. The feeding conveyor belt is made of stainless steel baffles and belts that can be disassembled for washing simply, paying attention to the safety and health of the machine.
8. The surface maintenance of the sealing part of the packaging machine and the cleaning of the waste generated during the packaging of the product can also be carried out simply.
Packing & Delivery
Company Profile
Our company has successfully developed the latest products in many industries, such as: automatic bottle unscrambler, high viscosity servo filling machine, rotary filling and rotating machine, rotary labeling machine, rotary capping machine, automatic unpacking , Packing, sealing machine, barrel film bagging machine,etc. At present, they have passed ISO9001 quality system certification and obtained a number of stand-alone utility model patent certificates. Their production scale and technical level are among the highest in the domestic industry.Our products are exported to the United States, France, Britain, Asia, the Middle East and other parts of the world. We will come up with the best products and best service to cooperate with you!
Exhibition
FAQ
A: We are factory.
2.Q: Can I get a sample?
A: Yes, we can provide sample to you within 5 days.
A: Yes, we can provide sample to you within 5 days.
3.Q: What is your MOQ?
A: It depends on your requirements and product, but for trial order, we can accommodate you.
4.Q: What certificates can you provide?
A: We can provide CE certificate for our product.
5.Q: How long is your delivery date?
5.Q: How long is your delivery date?
A: Usually our delivery date is 45 days after order confirmed. But we can adjust it according
to the order demands and our production schedule.
to the order demands and our production schedule.
