Электическая Бетономешалка
US $109.12
Прямая поставка с завода бетоносмесительная установка 60m 3/h
- Категория: Concrete Mixers >>>
- Поставщик: Shanghai,ZENITH,Mineral,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 50799.27 $* | 51815.35 $* |
| Jul-19-2025 | 41199.49 $* | 42023.16 $* |
| Jun-19-2025 | 49999.50 $* | 50999.33 $* |
| May-19-2025 | 49599.65 $* | 50591.31 $* |
| Apr-19-2025 | 39599.92 $* | 40391.90 $* |
| Mar-19-2025 | 48799.63 $* | 49775.7 $* |
| Feb-19-2025 | 48399.12 $* | 49367.65 $* |
| Jan-19-2025 | 47999.52 $* | 48959.5 $* |
Характеристики
Factory direct supplier 60m3/h concrete batching plant with diesel engine
Product Description

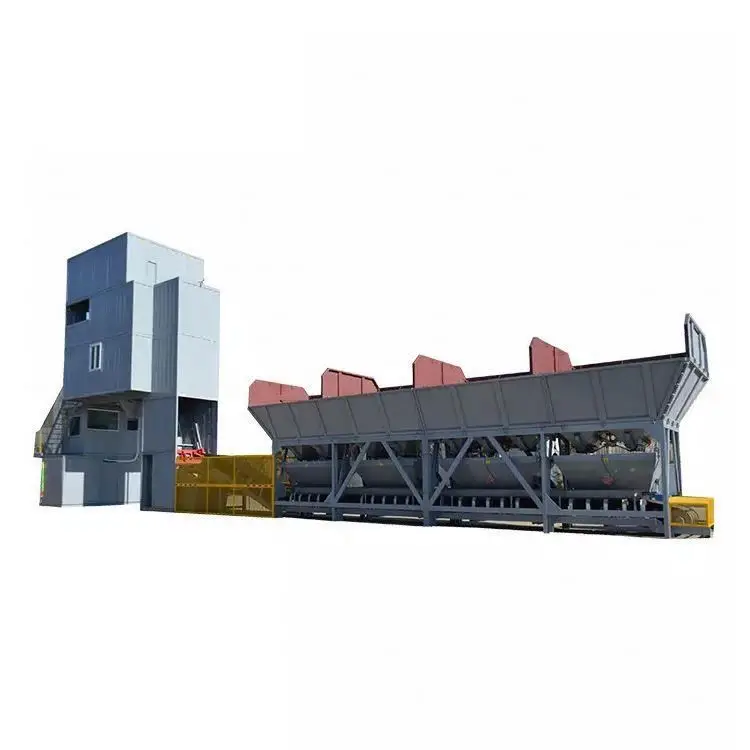

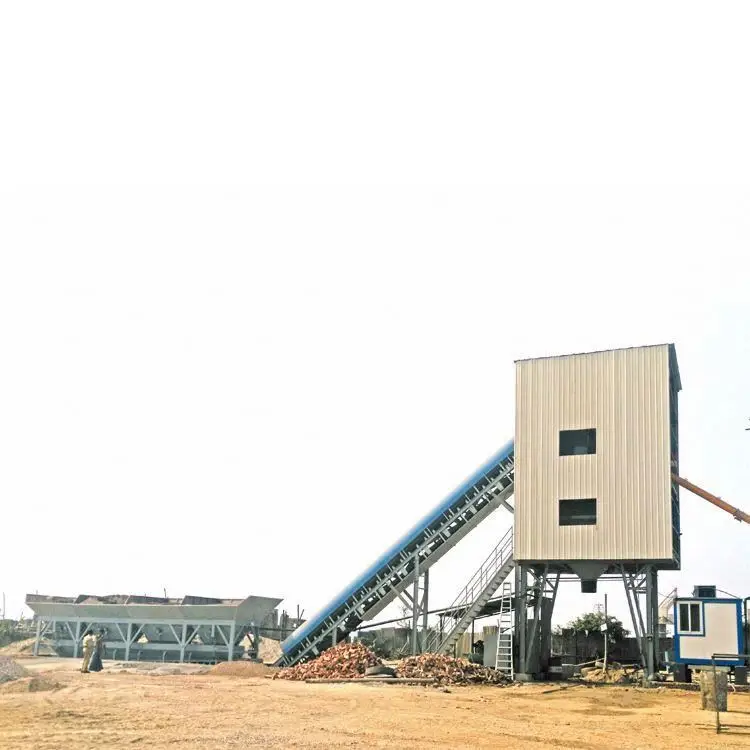

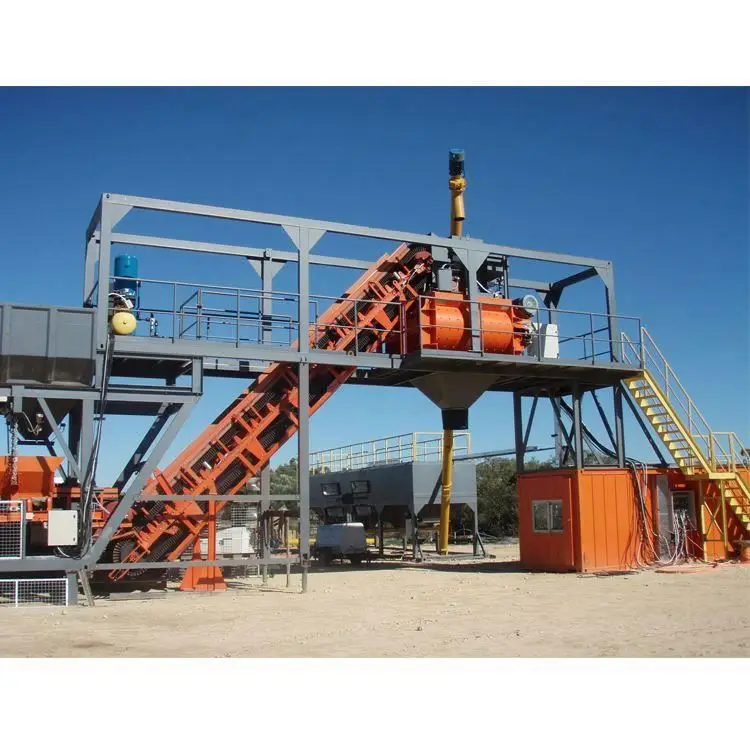

60m3/h concrete batching plant
60m3/h concrete batching plant is an innovative movable (by trailer) concrete batching plant designed to fulfill a variety of applications. It’s suitable for distant construction projects like roads, bridges,ports and any other smaller projects.
Main technical parameters
Models | Production(m³/hr) | Mixer | Weighing precision | Total power | Weight | Trailing speed | Tread(Outer sider) | Turning radius | |
Aggregate | Others | ||||||||
YHZD25 | 25 | JD500 | ≤2% | ≤1% | ≈65 | 21 | 15 | 3300 | 9.5 |
YHZS35 | 35 | JS750 | ≤2% | ≤1% | ≈75 | 24 | 15 | 3300 | 9.5 |
YHZS50 | 50 | JS1000 | ≤2% | ≤1% | ≈82 | 26 | 15 | 3400 | 10 |
YHZS75 | 75 | JS1500 | ≤2% | ≤1% | ≈100 | 34 | 15 | 3400 | 10 |

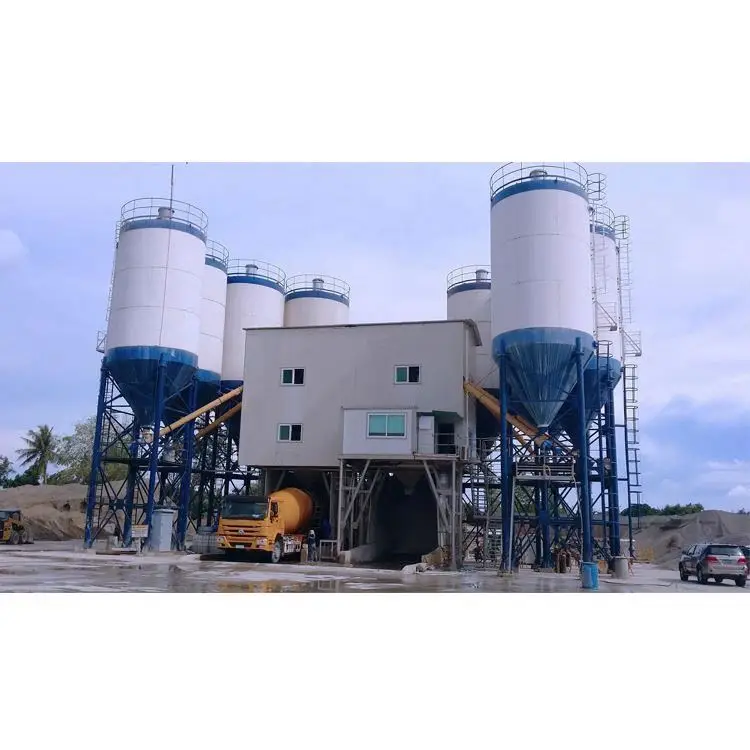

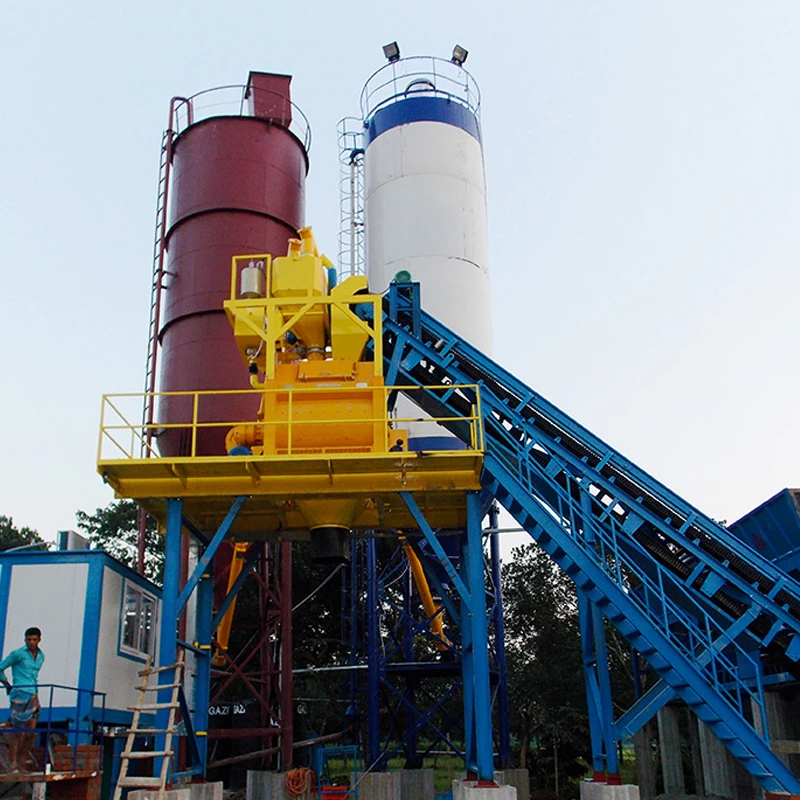

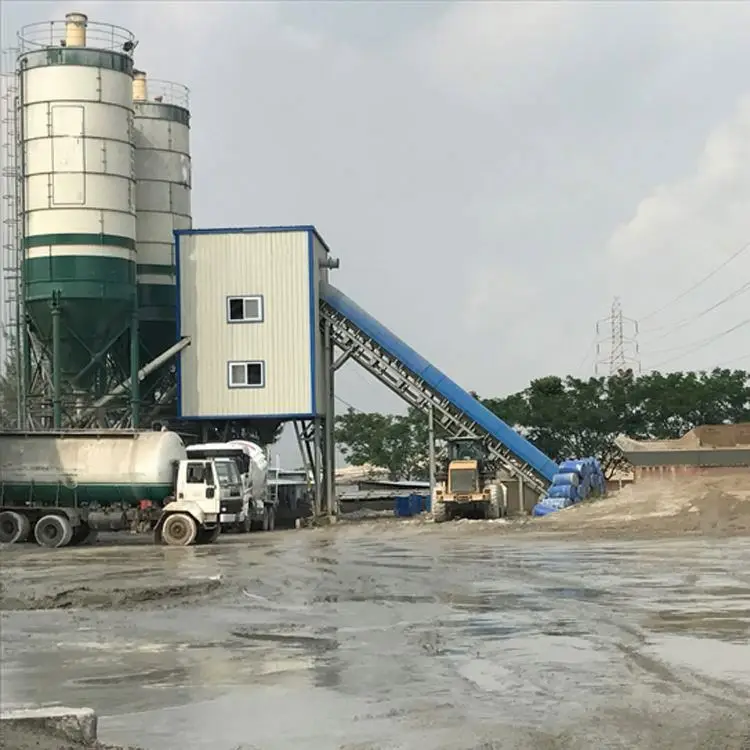

Stationary Concrete Batching Plant
The stationary Concrete Batching Plant is composed of aggregates batcher, twin shaft mixer, weighing system , conveying system, cement supply system and PLC control system. The operation is easy and automatic. The stationary concrete batching plant is used for wide application of concrete productions.
Main technical parameters
Models | HZD25 | HZS35 | HZS50(60) | HZS75(90) | HZS100(120) | HZS150(180) | HZS200(240) | |
Production(m³/hr) | 25 | 35 | 50(60) | 75(90) | 100(120) | 150(180) | 200(240) | |
Mixer | Models | JD500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
Mixing Power(kw) | 22 | 2×18.5 | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | |
Output(m³) | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 4 | |
Aggregate Size(mm) | ≤25 | ≤35 | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | |
Hopper | Hopper Capacity(m³) | 4 | 6 | 13(15) | 15(15) | 15(20) | 15(20) | 30 |
Hopper Quantity | 4 | 4 | 3-4 | 3-4 | 3-4 | 4 | 4 | |
Mixing Cycle Time(s) | 72 | 72 | 72(60) | 72(60) | 72(60) | 72(60) | 72(60) | |
Conveyor Capacity(t/hr) | 100 | 120 | 200 | 300 | 400 | 600 | 800 | |
Scope and Precision of Weighing | Aggregate(kg) | 1000±2% | 1500±2% | 2500±2% | 3500±2% | 4500±2% | 7000±2% | 2×4500±2% |
Cement(kg) | 300±1% | 450±1% | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | |
Fly ash(kg) | 100±1% | 150±1% | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | |
Water(kg) | 150±1% | 150±1% | 300±1% | 500±1% | 600±1% | 800±1% | 1000±1% | |
Additive(kg) | 20±1% | 20±1% | 30±1% | 30±1% | 50±1% | 50±1% | 100±1% | |
Total Power(kw)(without screw conveyor) | ≈65 | ≈72 | ≈92 | ≈108 | ≈118 | ≈172 | ≈230 | |
Discharge Height(m) | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | |
Company Information
We are professional concrete batching & mixing plant equipment supplier and exporter in China.
You could always get excellent concrete batching plants, concrete mixers for the precast concrete with competitive price from us.
Our ZENITH company has a history of more than fifteen years, is a scientific and technological enterprise which is specializing in research and development, manufacture, sales and service of concrete batching plant. Our company covers an area of 35,000 square meters with a production plant area of 22,000 square meters. The company has a staff more than 300 people, including senior engineers,skilled workers and administrative personnel., we have developed a complete concrete mixing plant production line:
Stationary Concrete Batching Plant
Mobile Concrete Batching Plant
Stabilized Soil Mixing Plant
Mobile Stabilized Soil Mixing Plant
Concrete Plant Parts
Our Services
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit zenith working machines or complete plant in the site.
To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of Zenith, they are now strategically located home and abroad, working for our customers.
Packaging & Shipping
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Get Price
If you are interested with our products, please don't hesitate to contact us now!
You can tell me the following questions, Then I can send you accurate quotation, including additional discount !
1. what is the capacity you need per hour?
2. Your contact information. Both Email and phone number are essential, we can contact you easier.
Now,please click the following contact to send us email or chat online to get the price!
