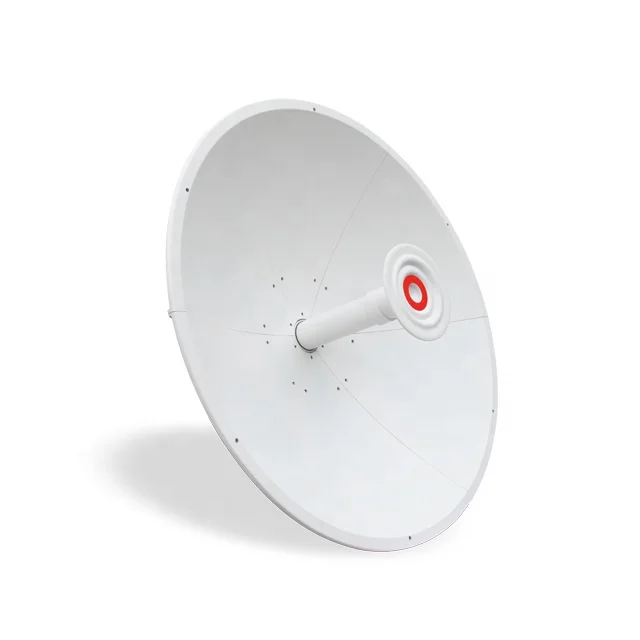

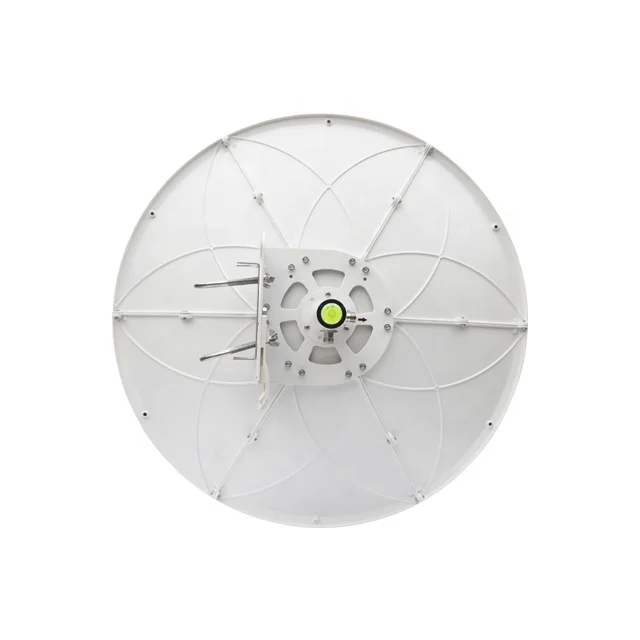

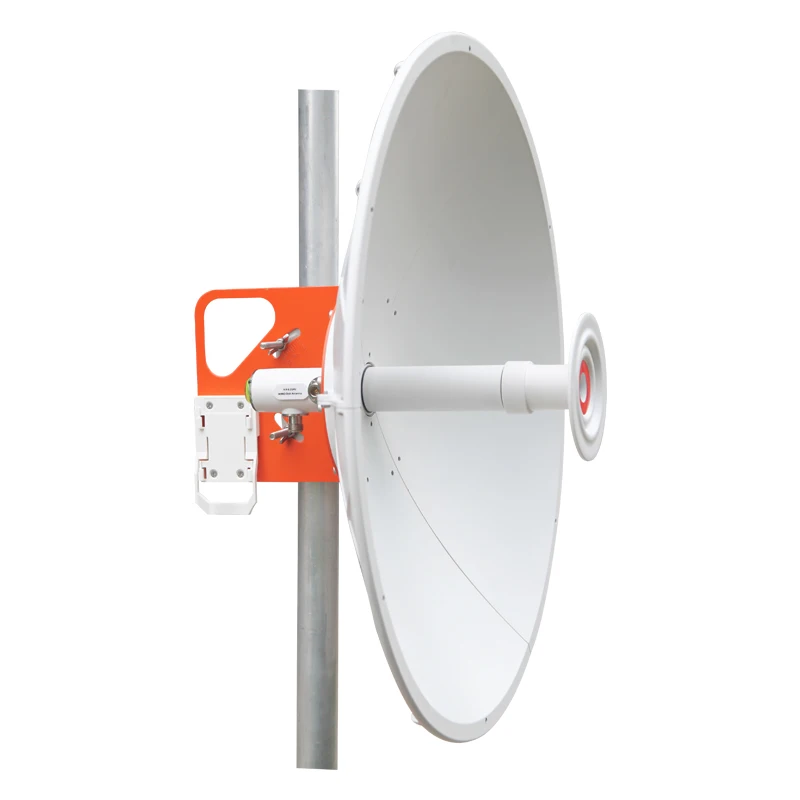

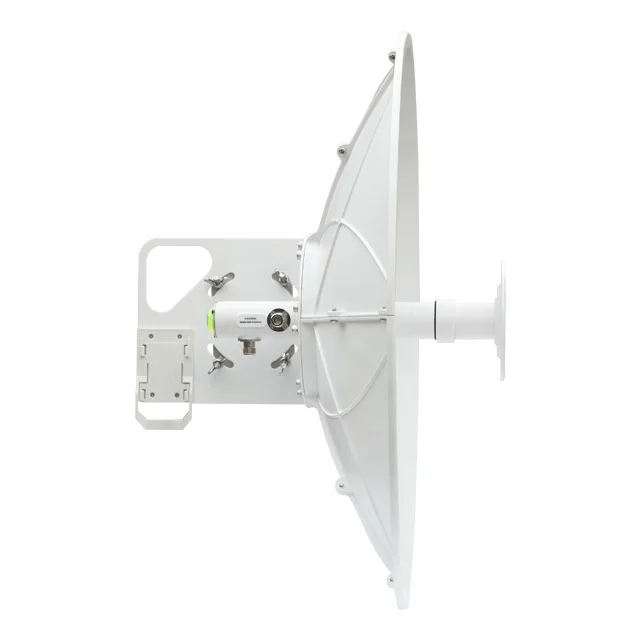

Lanbowan 30 дБи airMAX 2x2 PtP мостовая

Категория: Communication Antenna >>>
Поставщик: Lanbowan,Communication,Ltd.

Цена:69,00 $ - 99,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	88.78 $*	90.39 $*
Jul-18-2025	71.11 $*	72.57 $*
Jun-18-2025	86.35 $*	88.68 $*
May-18-2025	86.27 $*	88.0 $*
Apr-18-2025	68.36 $*	69.8 $*
Mar-18-2025	84.82 $*	86.38 $*
Feb-18-2025	83.66 $*	85.97 $*
Jan-18-2025	83.52 $*	85.35 $*

Характеристики

Product Description

Features

_{1.Stable gain over ultra-wide bandwidth of 4.9 GHz - 6.4 GHz}

_{2.Optimized F/B & side-lobe suppression minimizes interference}

_{3.Installs in minutes to reduce service calls and installation time}

_{4.Quick connect waveguide allows rapid change of polarization}

_{5.Integrated handle / hoisting hook for added safety and convenient installation}

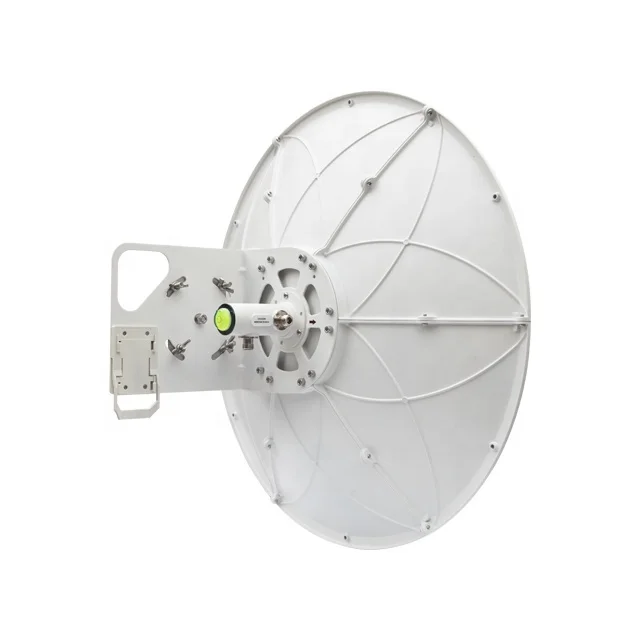

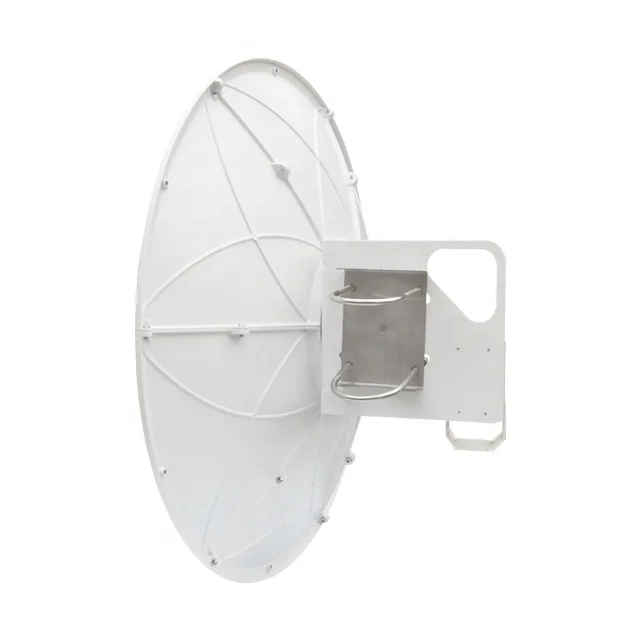

6. Heavy-duty bracket with fine elevation and azimuth adjustment

Application

* Campus and Academic Installations
* High Power, Long Range Point to Point applications
* Wireless Internet Providers and ISPs
* Disaster recovery and rapid deployment applications
* Municipal and Government Installations

Product Paramenters

Model	ANT4965D30P6-MIMO
Frequency range	4.9-6.5GHz
Gain	30dBi
VSWR	<2.0
Polarization	Dual Slant (V/H or ±45°)
Isolation	>30dB
Front to Back Ratio	>35dB
Azimuth Beam Width	5°
Elevation Beam Width	5°
Maximum Power	50W
Impedance	50Ω
Lighting protection	DC Ground
Connector	2 * N Female
Antenna Size	φ0.6m
Antenna Weight	6.5kg
Antenna color	white
Diameter of the Pole	Φ30mm to φ80mm
Mechanical Tilt	± 15°
Operational Temperature	-40°C to +70°C (-32°F to +158°F)


Antenna Patterns
