Производство меда/машина для обработки меда
US $2500-$4000
Высокое качество машина для обработки меда сумка корпус фильтра с диаметром 4 дюйма * длина 8 25 дюймов цедильного мешка фильтрование
- Категория: Оборудование для переработки меда >>>
- Поставщик: Hangzhou,Tianshan,Precision,Filter,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 364.59 $* | 382.85 $* |
| Aug-15-2025 | 361.3 $* | 379.44 $* |
| Jul-15-2025 | 303.52 $* | 318.14 $* |
| Jun-15-2025 | 355.54 $* | 373.48 $* |
| May-15-2025 | 309.33 $* | 324.28 $* |
| Apr-15-2025 | 349.68 $* | 366.84 $* |
| Mar-15-2025 | 346.76 $* | 363.92 $* |
| Feb-15-2025 | 343.41 $* | 360.19 $* |
| Jan-15-2025 | 340.20 $* | 357.53 $* |
Характеристики

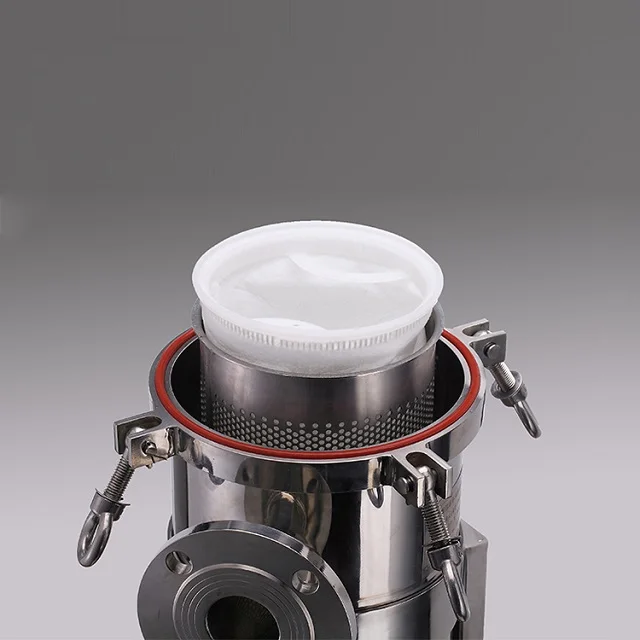

High quality Honey processing machine bag filter housing with diameter 4inch * length 8.25 inch filter bag for liquid filtration
Product Description
Jacket insulation filter Have double structure, The jacket layer can pass through steam or thermal oil, in order to maintain or improve the temperature of the fluid to prevent fluid coagulation, improve the filtration rate of viscous liquid , or to meet the next process temperature requirements.
Please kindly provide flow rate , pressure , temperature , filter media etc data ,so that we can recommend suitable type .
Main advantages
01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.
02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .
03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.
04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.
05.Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without cleaning,and time saving and labor saving.
06.Filtration bag could be use repeated after cleaning to save cost.
07.bag filter application scope is broad, with flexible operation and multiple installation .
Welcome to inquiry more detail .
Email:lyy(at)tsjmlc.com Whatsapp:+86 18538816823
Specifications
Technical parameters
| Design pressure: 0.96MPa 30min |
Maximum working pressure:0.60MPa | |
Surface smoothness:Ra≤0.2 | |
Design flow rate:Ra≤0.2 | |
Inlet&outlet type thread or flange | |

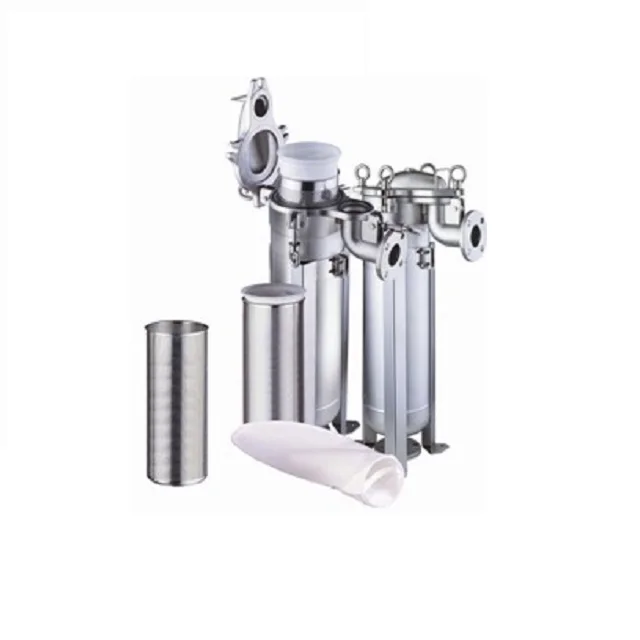

Type:single bag & multi bag filter housing | |
Designed for bag filtration system

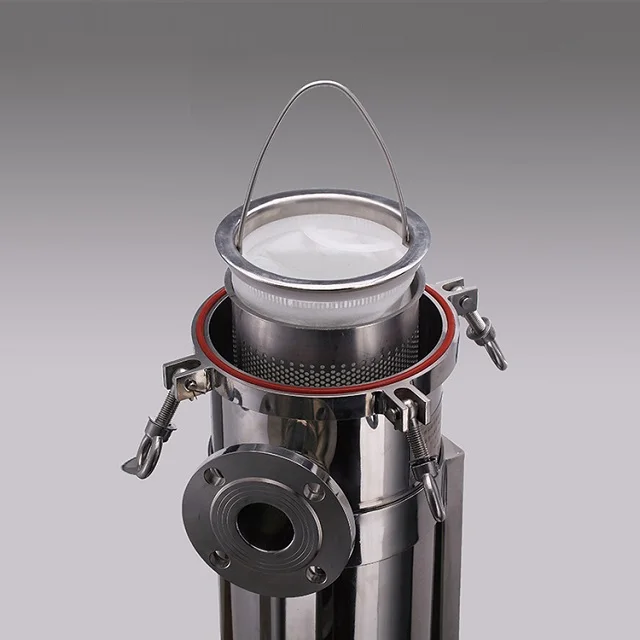

| Different kinds of bag support baskets to fit for |
wide range of filter bags | |
Complete stainless steel structure | Made of 100% SUS304, SUS316L, PP |
Easy to clean
| Surface is mechanical polished or sand blasting passivation. |
dished end to aid clean down |

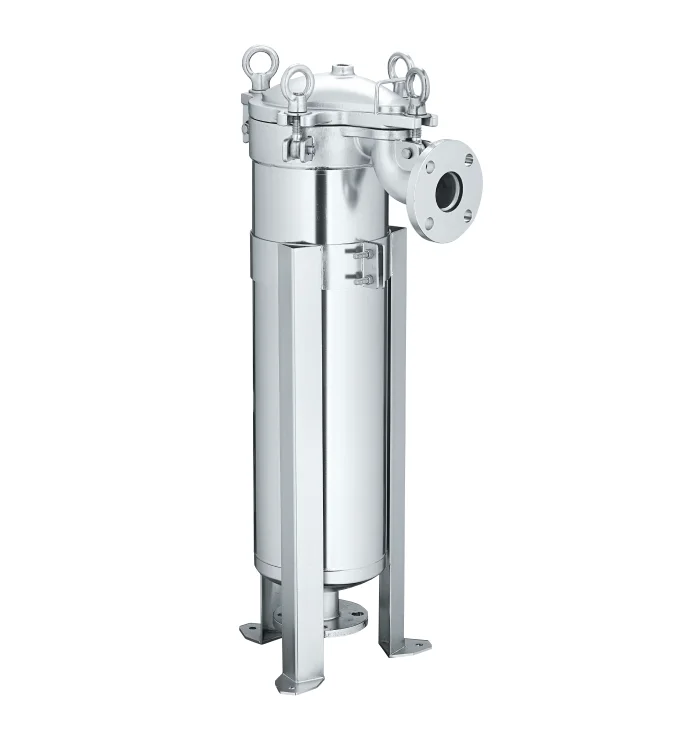

Specifications for single bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) | ||
| 1 | BJD1 | 220 | 550 | 2" thread, clamp, flange | 1 | 20 |
| 2 | BJD2 | 220 | 950 | 2" thread, clamp, flange | 2 | 40 |
| 3 | BJD4 | 130 | 650 | 1" thread, clamp, flange | 4 | 10 |

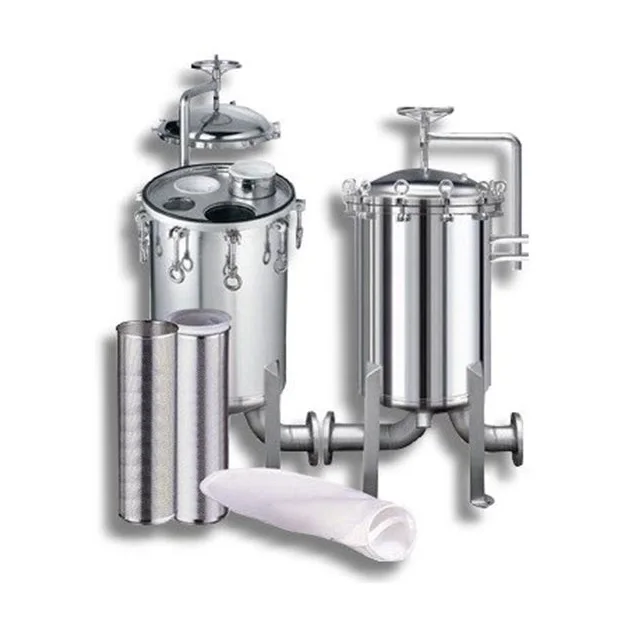

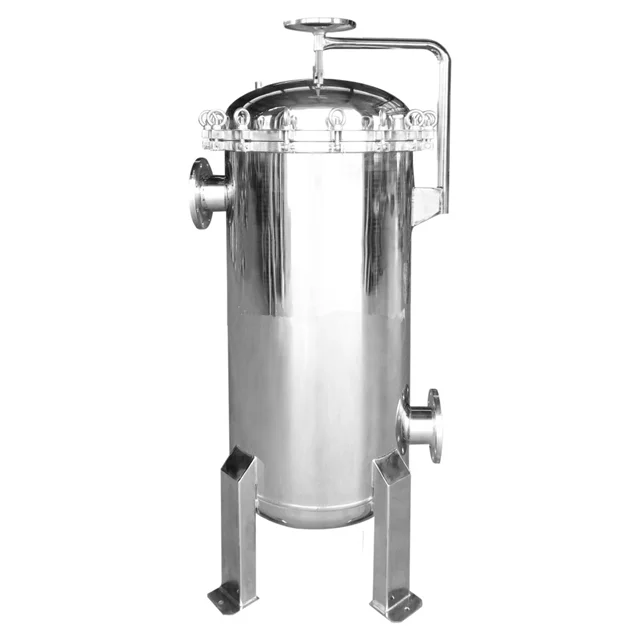

Specifications for multi bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) | ||
| 1 | BJD2-2 | 400 | 1600 | 3" thread, clamp, flange | 2*2 | 80 |
| 2 | BJD2-3 | 500 | 1600 | 3" thread, clamp, flange | 2*3 | 120 |
| 3 | BJD2-4 | 550 | 1600 | 4" clamp, flange | 2*4 | 160 |
| 4 | BJD2-5 | 600 | 1600 | 4" clamp, flange | 2*% | 200 |
Ordering Guide
| PRODUCT | Bag Size | Bag Q'ty | Inlet/Outlet | Connection | Surface | Materials | |
| BJD | 1 -#1 bag | 01 - Single | A- side in and side out | K-coupling | S- sand blasting | 304 | |
| 2 - #2 bag | 02 - Two | B- side in and bottom out | F-bolt | T- polished | 316L | ||
| 3 - #3 bag | 03 - Three | C- bottom in and bottom out | S- thread | PP | |||
| 4 - #4 bag | 04 - Four | D- top in and bottom out | How to order ?-example | ||||
| 5 - #5 bag | 06 - Six | Bag size: #1; Bag Q'ty: Single | |||||
| 6 - #6 bag | 08 - Eight | Inlet/outlet: side in and side out | |||||
| 7 - #7 bag | 12 - Twelve | Connection: coupling | |||||
| X - other size | Surface: sand blasting | ||||||
| Material: SUS304 | |||||||
| Selection code is: BJD101AKS304 | |||||||
 |  |  |
Operating Conditions(Bag Filter):
Max.Operating Pressure: 6 bar(87psi) , 10.34bar(150psi)
Max.Operating Temperature: 120°C
Applications(bag filter housing eaton replacement):
| Processing Chemicals | Paints,Inks,Coolants |
| Oils,Edible Oils, Vegetable Oils | Pharmaceuticals |
| Sugar Syrup | Cleaning Fluids |
About us
Other products
Click on the image for more details
PES Filter Cartridge Stainless Steel Filter Housing Capsule Filter
Bag Filter Housing PTFE Membrane roll Stainless Steel Sintered Filter
Our service
1,24-hour Response
We responds any request from our clients within 24 hours, saving your time and labor.
2,Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
3,Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.
4,Free Storage Area
We are providing free storage area to our client,to achieve mix loading purposes.
FAQ
1 How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
contact us
Sales Enginner : Fiona Li
Whats app:+86 18538816823
EMail: lyy(at)tsjmlc.com
Best wishes!
