Высококачественная машина для литья под давлением изготовления рамок
- Категория: Injection Molding Machines >>>
- Поставщик: Lanson,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 42333.48 $* | 43180.3 $* |
| Jul-16-2025 | 34333.40 $* | 35020.16 $* |
| Jun-16-2025 | 41666.62 $* | 42499.23 $* |
| May-16-2025 | 41333.85 $* | 42160.69 $* |
| Apr-16-2025 | 33000.53 $* | 33660.60 $* |
| Mar-16-2025 | 40666.51 $* | 41479.81 $* |
| Feb-16-2025 | 40333.2 $* | 41140.17 $* |
| Jan-16-2025 | 40000.24 $* | 40800.89 $* |
Характеристики
Products Description

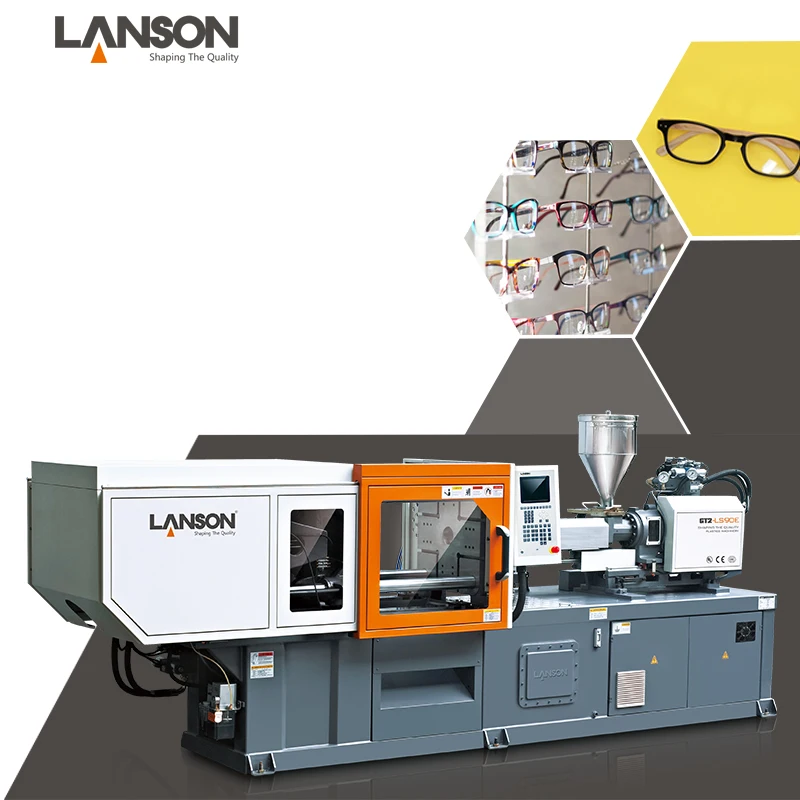

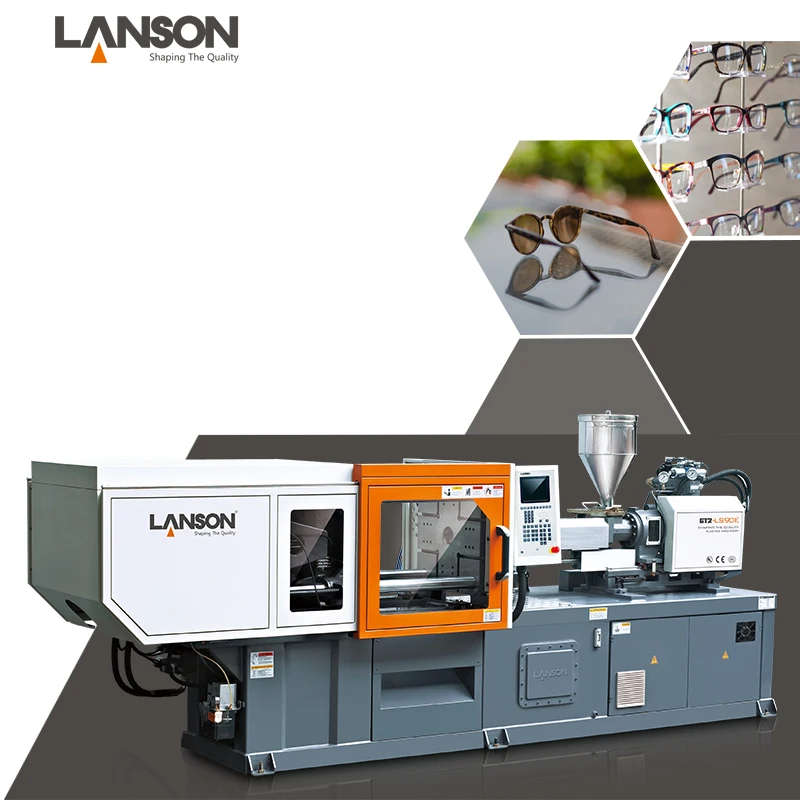

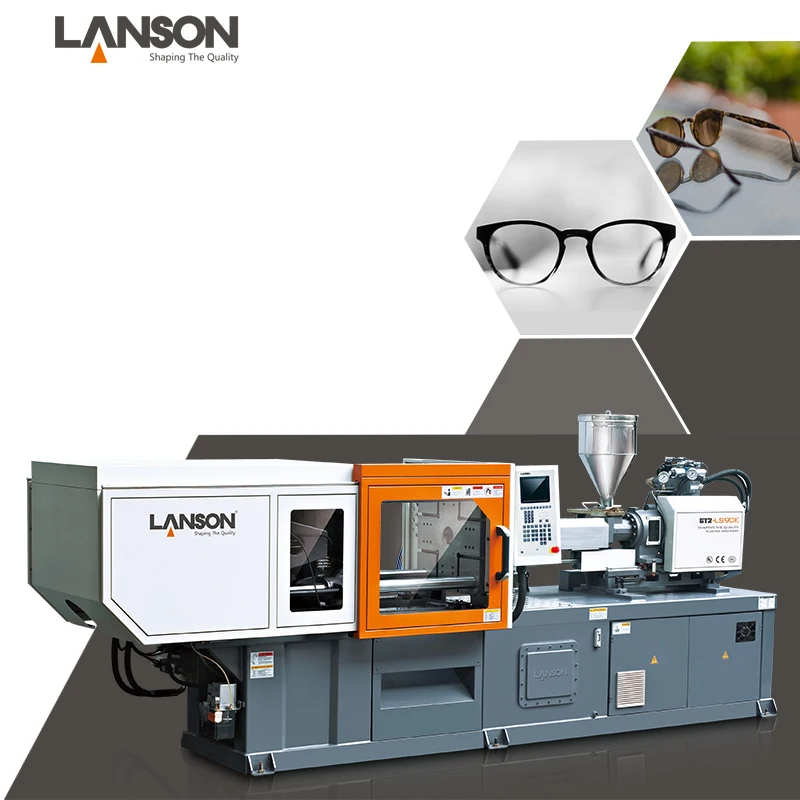

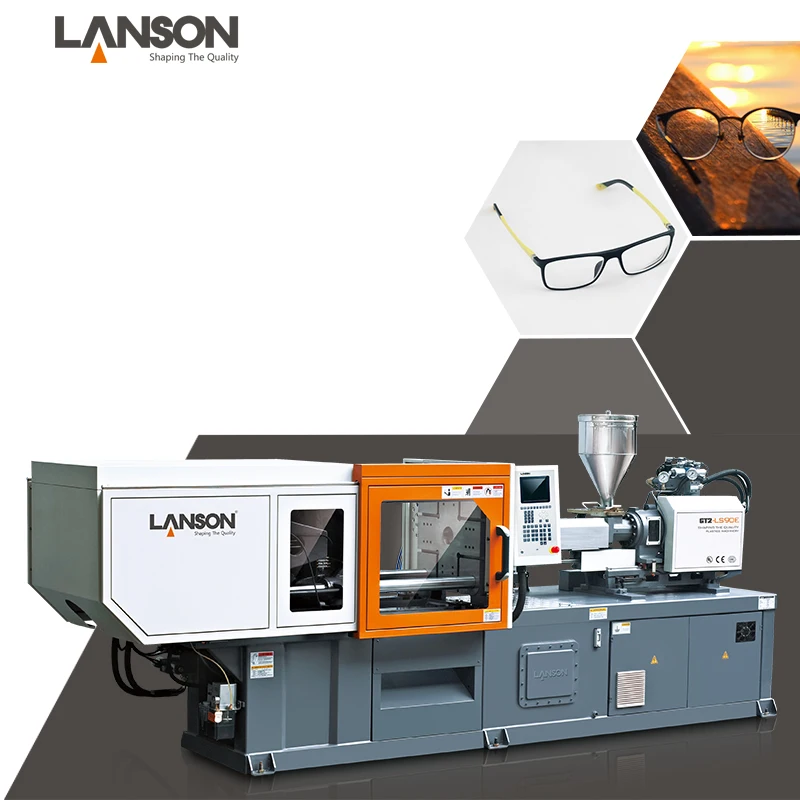

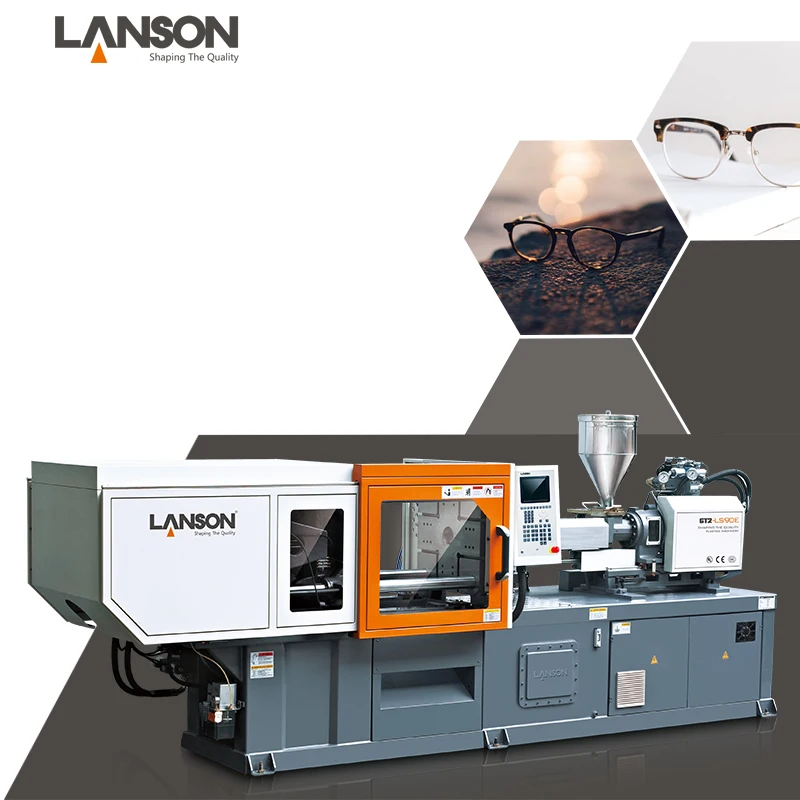

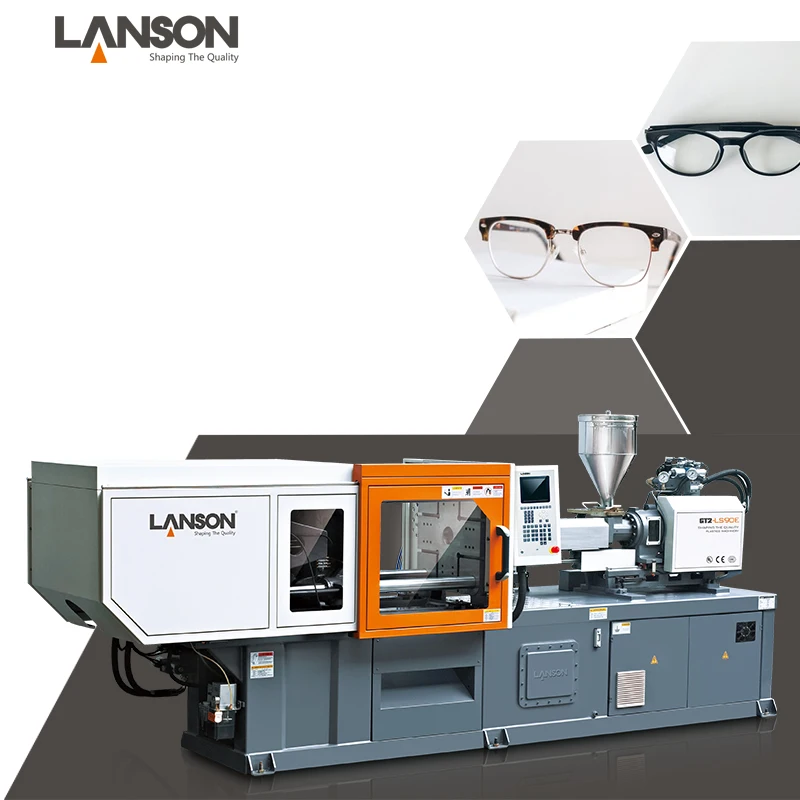

Hot sale products GT2 series single injection molding machine
GT2 series single injection molding machine integrates Lanson's mature single injection cylinder technology and employing cutting-edge industrial concept and technical research platform. It features precision, fast response, high efficiency and energy saving with 27 national patents.
Details Images
GT2 series single injection system features
Injection cylinder, plasticizing motor and screw work together in one linear axis to improve injection pressure and speed, which is attain to precision injection modling with high precision and high speed. Injection efficiency increase than traditional twin-cylinder 97.5%
Manufacturing Technique
Toshiba TOSNUC 999 Milling Machine
6 sets of this kind high-end machines to make sure platen, toggle, circuit board, cylinder components unit under high precision CNC machining, persuing the machine high precision performance.
Parkson UBM-11020RS CNC machine
10 sets of this kind advance equipment to strictly control components precision and longer service life, to make sure Lanson injection molding machine precision beyond the industry level.
Doosan Duma 280M Lathe machine
Over 40 sets imported machining equipments to maintain frame, sheet metal, parts processing surface spraying forming complete independent supply capacity.
Installation Instructions
Injection System Features
1. Single injection cylinder
2. Injection unit linear guide way
3. injection action connect with control valve rigidit
4. Optional screw and barrel
Clamping System Features
1. High rigidity high strength
2. Accurate and timesaving gear mold adjusting device
3. Widened toggle with long service life
4. Centralizing electric lubrication
Control System Features
1. diversification professional control system
2. equip with servo control system
3. famous brand hydraulic component
4. precision hydraulic filter element
Product Paramenters
Model | Unit | GT2-LS60E | GT2-LS90E | GT2-LS120E | ||||||
Screw No. | A | B | A | B | A | B | ||||
Screw Diameter | mm | 22 | 25 | 22 | 25 | 25 | 28 | |||
Screw Ratio | L/D | 20 | 20 | 20 | 20 | 20 | 21 | |||
Shot Volume | cm3 | 53 | 69 | 42 | 54 | 61 | 77 | |||
Shot Weight(PS) | g | 48 | 62 | 38 | 49 | 55.8 | 70 | |||
Plasticizing Capacity(PS) | g/s | 3.8 | 5 | 4.7 | 6 | 6 | 8.7 | |||
Injection Pressure | Mpa | 404 | 313 | 446 | 346 | 378 | 301 | |||
Screw Speed | rpm | 210 | 260 | 260 | ||||||
Clamping Force | KN | 600 | 900 | 1200 | ||||||
Mould Opening Stroke | mm | 280 | 320 | 410 | ||||||
Space between Tie Bar | mm | 310x310 | 360x360 | 410X410 | ||||||
Platen Size | mm | 470x470 | 550x550 | 620X620 | ||||||
Max. Mold Height | mm | 160 | 185 | 185 | ||||||
Min. Mold Height | mm | 310 | 385 | 445 | ||||||
Ejector Stroke | mm | 80 | 100 | 100 | ||||||
Ejector Force | KN | 28 | 31 | 42 | ||||||
Ejector Number | PC | 3 | 5 | 5 | ||||||
Hydraulic Pressure | MPa | 14.5 | 16 | 17.5 | ||||||
Pump Motor Power | KW | 7.5 | 11 | 11 | ||||||
Heater Power | KW | 6 | 6 | 7 | ||||||
Oil Tank Capacity | L | 220 | 220 | 270 | ||||||
Machine Dimension(LXWXH) | mm | 3880x980x1795 | 4080x1142x1874 | 4502x1236x1911 | ||||||
Machine Weight | ton | 2.2 | 3 | 4 | ||||||
Machine Applications
Product packaging
Certifications
Company Profile
Lanson Precision Machinery Co., Ltd
Founded in 2005 by Joint Ascent Technology Limited, Guangdong Lanson Precision Machinery Co., Ltd is a high-tech enterprise engaged in development and production of precision machienry. Lanson has advanced equipments for designing, processing, manufacturing and testing. Our main products are plastic injection molding machine and die casting machine for aluminum and magnesium. We dedicate to provide professional turn-key molding solution to customers.
