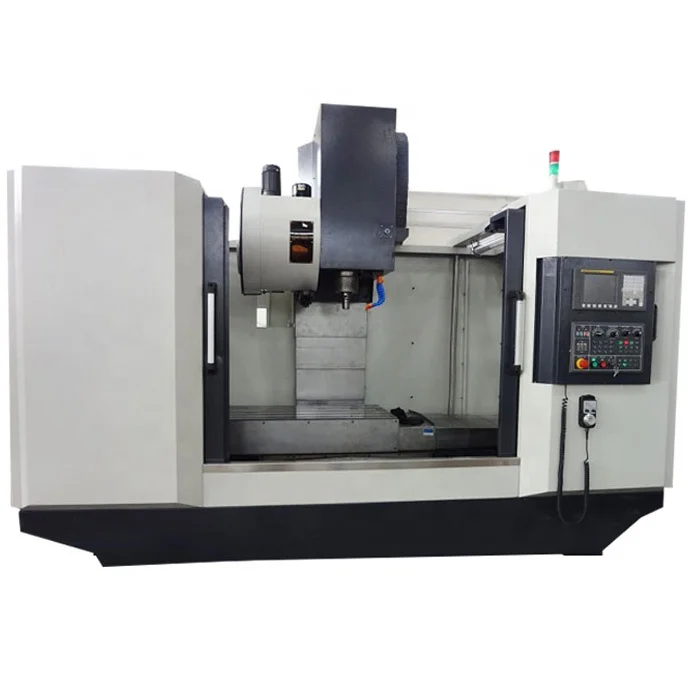

vmc1160 factory price big 3 axis metal vertical cnc milling machine center
Product Description
vmc1160 factory price big 3 axis metal vertical cnc milling machine center is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.
Specification of vmc1160 factory price big 3 axis metal vertical cnc milling machine center
Items
Details
Unit
VMC1160
Table
Size
mm
1200×600
Travel of 3 axis(X/Y/Z)
mm
1100/600/600
Max, table load
kg
1000
T-slot
Size
mm
5-18×120
Spindle
Spindle taper
BT40
Distance from Spindle center to Colum guide
mm
650
Distance of spindle head to table
mm
130-780
Max speed
rpm
8000
Motor power
KW
11/15
Accuracy
Positioning accuracy(X/Y/Z)
mm
±0.01/±0.008/±0.008
Repeatability(X/Y/Z)
mm
±0.005
Axis motor
Power of X/Y/Z
Kw
2.5/2.5/2.5
Torque of X/Z
Nm
16/24
Feeding speed
Rapid feed of X/Y/Z
m/min
36/36/24(linear guide way)
Cutting feed of X/Y/Z
m/min
10
Weight
Kg
7800
Dimension
mm
3300*2800*2700
Power
V
3 phase 380V,
Configuration:
1. High strength resin sand casting
2.3th axis/4th axis/5th axis harden guide way/ linear guide way

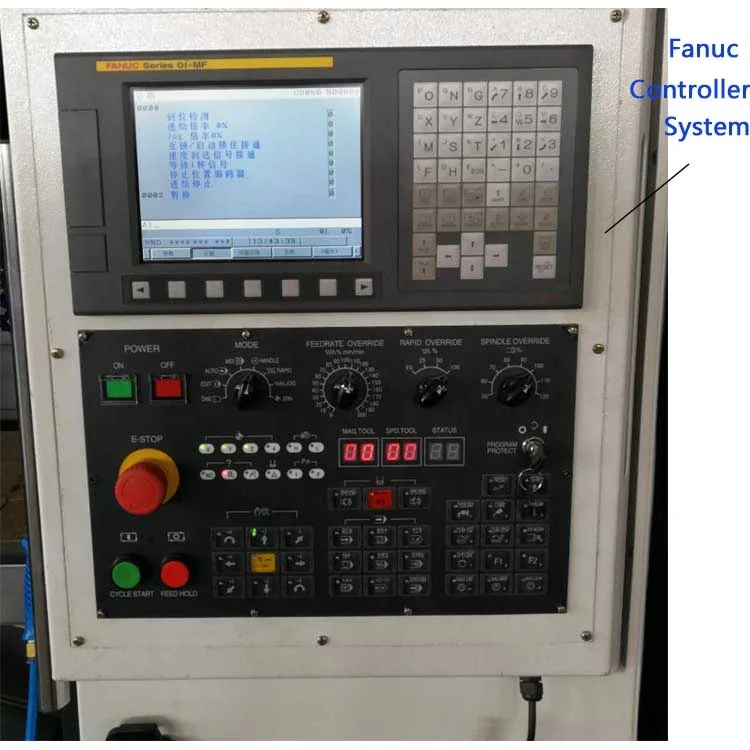

2.Siemens808D /Fanuc/GSK/Syntec controller system
3. BT40 high speed Taiwan spindle unit 8000rpm/10000rpm or more
4. Separate the handwheel
5. Pneumatic broach system
6. Full- guard
7. Automatic intermittent lubrication
Product Feature
The feature of vmc1160 Chinese siemens controller 3 axis 5 axis vertical metal cnc machining center :
1. High precision and high efficiency. Workpieces in a clamping can be completed in a multi-process processing, but also with a tool library, and automatic tool change function. 2. The complexity of programming, the processing center has these rich features, determines the complexity of the processing center programming. 3. Machinable complex surfaces. Machining center can achieve three or more axis of the linkage control to ensure that the tool for complex surface processing. 4. More features. Machining center in addition to a linear interpolation and circular interpolation function, but also has a variety of processing fixed cycle, tool radius automatic compensation, tool length automatic compensation, the process of graphic display, man-machine dialogue, automatic fault diagnosis, offline programming and other functions
Why choose us?
Why choose our vmc1160 factory price big 3 axis metal vertical cnc milling machine center ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers. 2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process. 3.Direct factory price,provide competitive factory price and save your costs. 4.7×24 hours after-sale service,Any questions, please contact us directly at any time 5.Strong packing,will protect the goods from any possible damage during transit. 6.TRADE ASSURANCE,protect your orders from payment to delivery.
Company Information

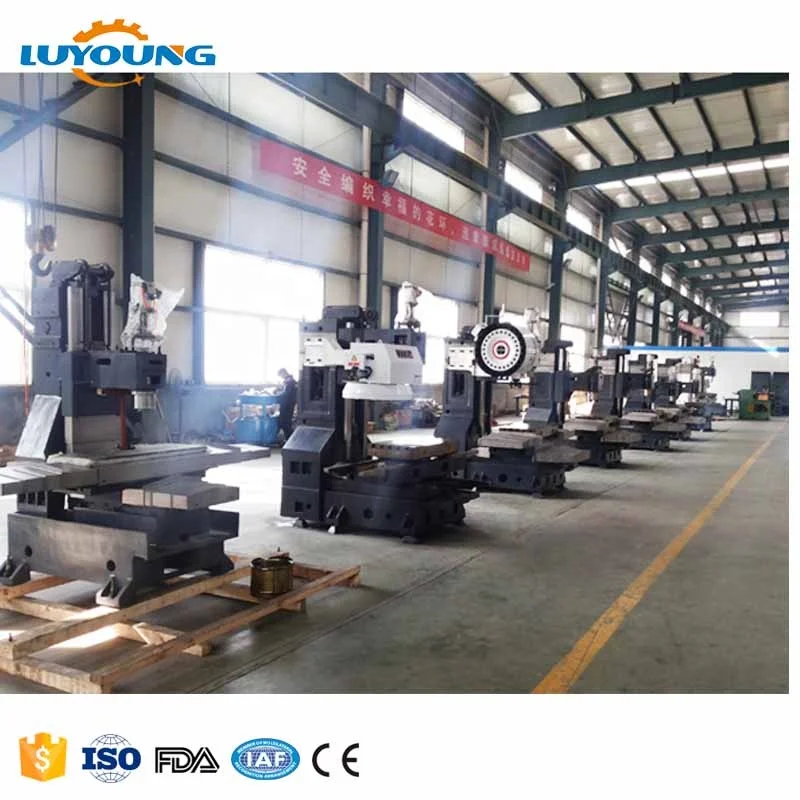

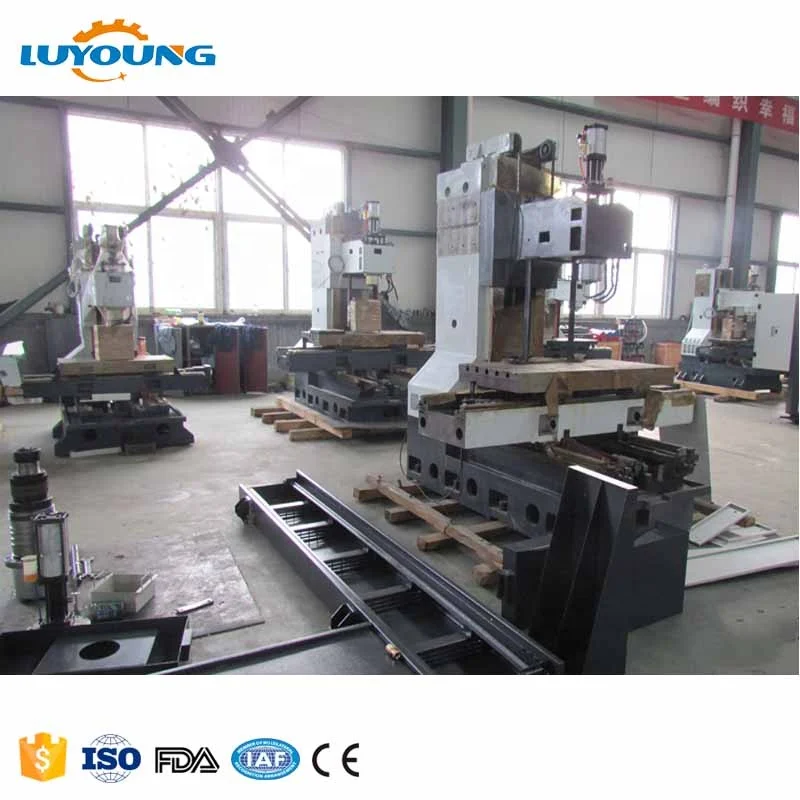

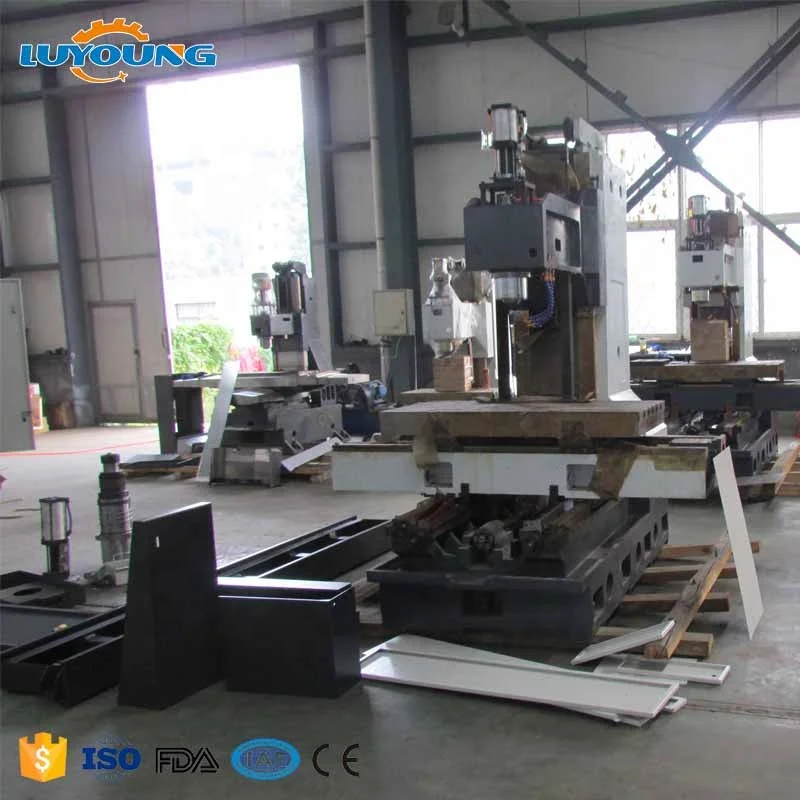

20 years' production experience
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year. 1.More than 20 years of production experience. 2.Exported more than 40 countries. 3.More than 300 staffs in factory. 4.CE and ISO9001 certification . 5.7×24 hours online service.
Who choose us?
The products have exported more than 40 countries around the world, please look who choose us:
Feedback from our customer:
After-Sales Service
7×24 hours after-sale service
1. Warranty for one year. 2.Supply 7×24 hours online technology support. 3.Professional solution one by one. 4.Free training for customers online or in our factory. 5.The oversea service is available.
Packaging & Shipping
Strong packing will protect the goods from any possible damage during transit
1.Port: Qingdao port or Shanghai port 2.Payment method: T/T, L/C, D/P, D/D etc. 3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment. 4.Delivery time: 30 days after receive the 30%T/T deposit.
FAQ
1.Does the vmc1160 factory price big 3 axis metal vertical cnc milling machine center can be customized?
Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs.
2.How long is the warranty period of the cnc lathe machine?
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service.
3.What time is your work time?
We work online 24 hours a day, offer quotes and technical support at any time.
4.Do you use the Trade Assurance on Alibaba?
Yes, all of the order use this.Can guarantee the quality of the product and your payment.
5.How to get a quote?
Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours.
