Автономные солнечные панели морские навигационные фонари/освещение морских судов/морские лодочные фонари для буя и морского


Поделиться:


Цена:5 128,57 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 6102.88 $* 6407.50 $*
Aug-15-2025 6051.13 $* 6354.33 $*
Jul-15-2025 5077.21 $* 5331.21 $*
Jun-15-2025 5948.47 $* 6245.14 $*
May-15-2025 5179.43 $* 5438.78 $*
Apr-15-2025 5846.30 $* 6138.45 $*
Mar-15-2025 5795.70 $* 6085.30 $*
Feb-15-2025 5743.14 $* 6030.67 $*
Jan-15-2025 5692.23 $* 5977.12 $*

Характеристики

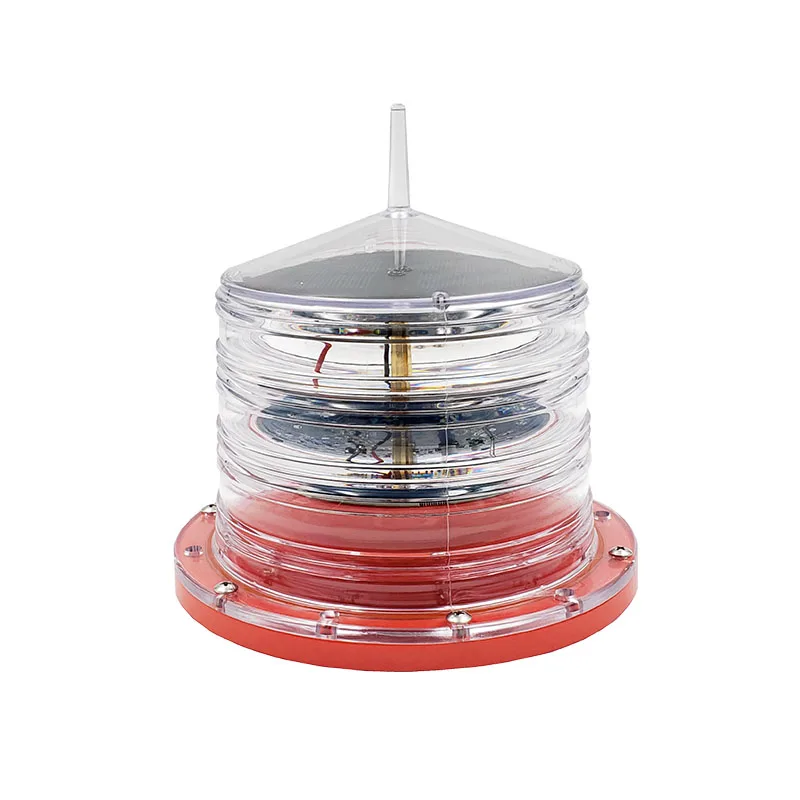

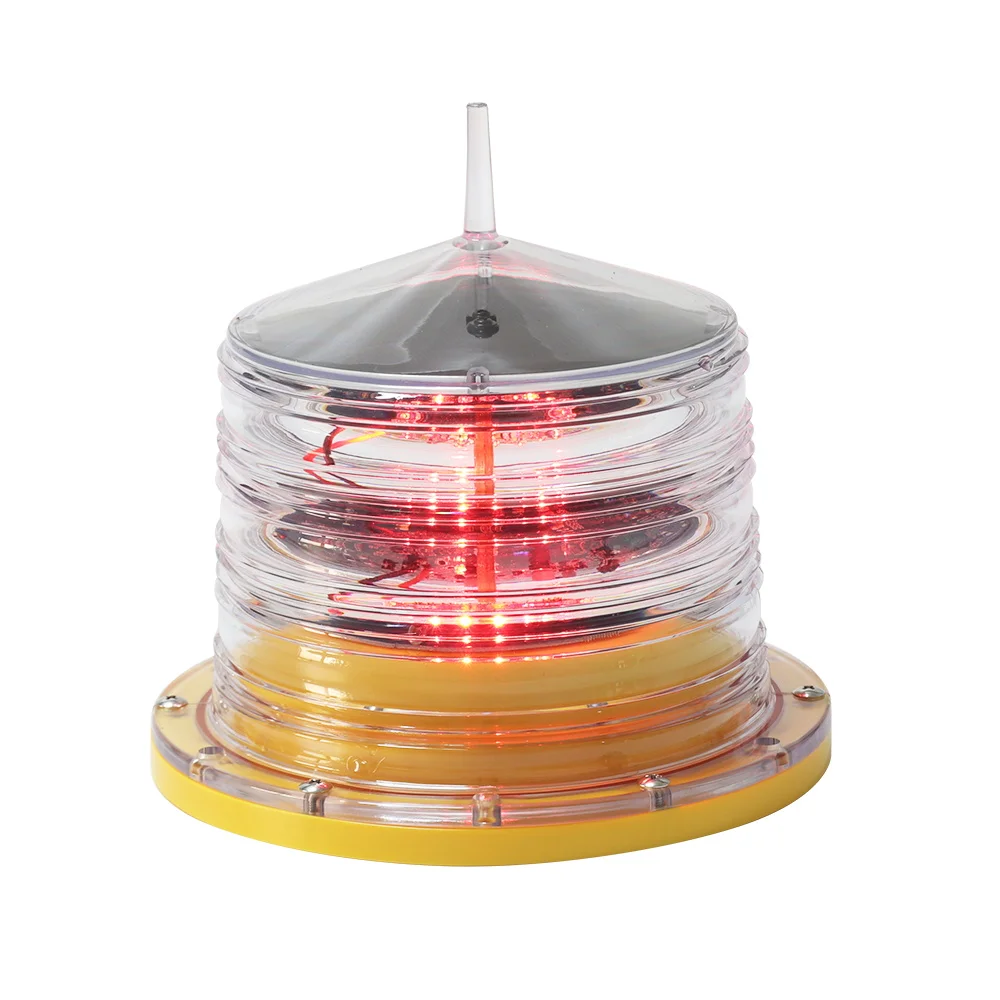

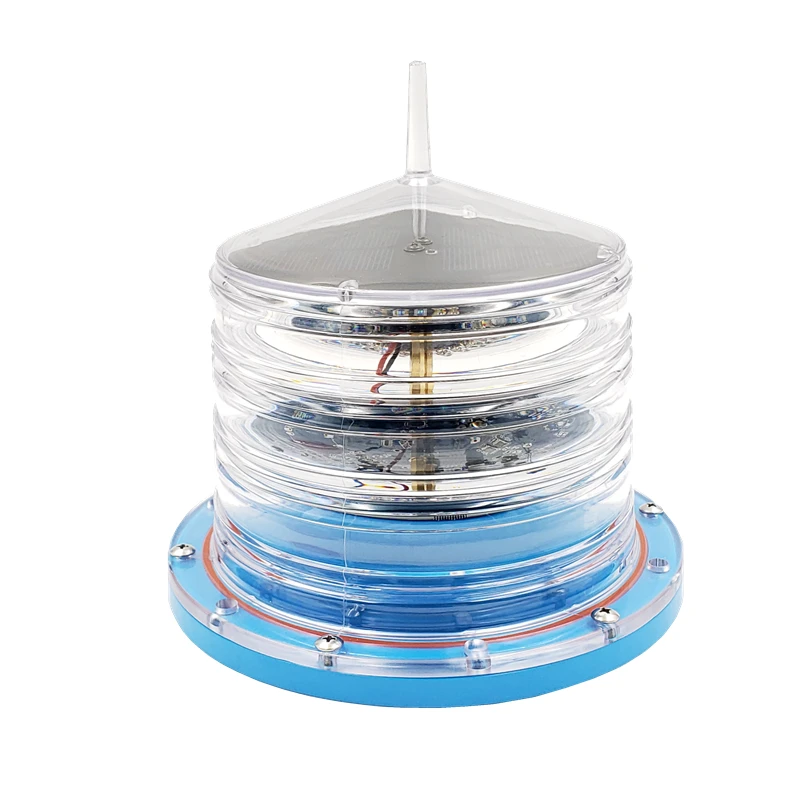

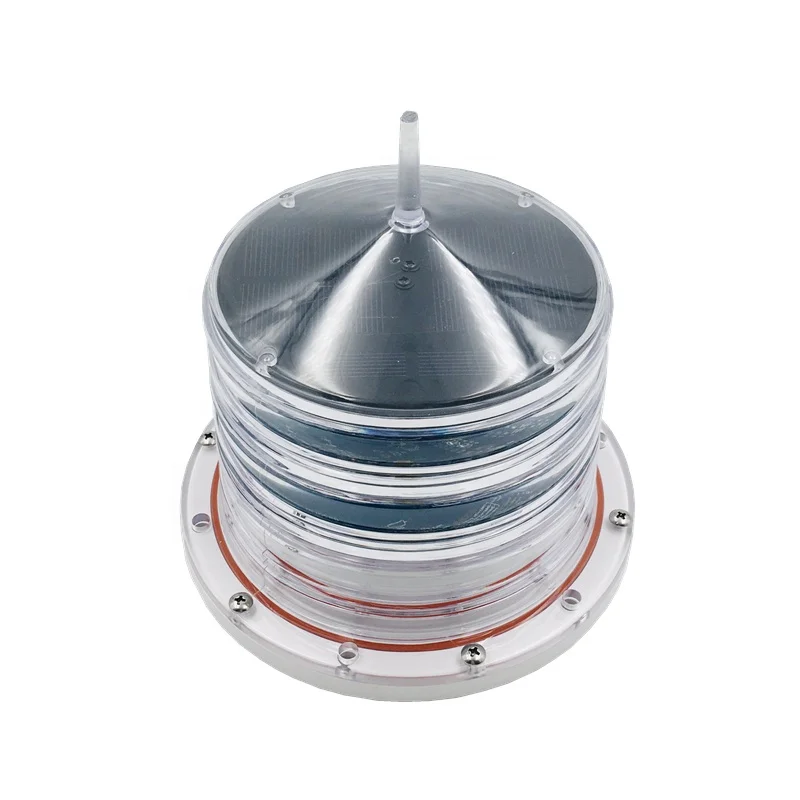

Self contained solar panel marine navigation lantern

Model type:GS-LS/E

Product Overviews

Product Overviews

GS-LS/E Range 1~4 NM Solar powered marine boat lamp adopts insert integrated design Solar panel whose photoelectric conversion efficiency can reach to 25%, cooperated with solar dedicated lithum iron phosphate battery as power supply.

Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery's charge & discharge statue and reduce its power consumption.

Light source adopts high efficient LED chip, which has advantage of high light intensity, low power consuption, long service life and so on.

marine buoy lights lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.

The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.

Our light is equiped with GPS timing synchronization module, infrared remote control. It has built-in 350 kinds of light characters code, RS232/485 port and light intensity is adjustable.

Product Details

Name

Parameter

Name

Parameter

Type

GS-LS/E

Light Source Life

>100000 hours

Power Provider

Mono-crystalline silicon solar panel

Optional Emitting Light Colors

Red, Amber Yellow, Green, Blue, White

Battery Capacity

3.2V3.3AH

Battery Type

Replaceable lithium iron phosphate battery

Battery lifespan

>5years

Solar panel voltage

5.5V

Solar panel Power Consumption

2W

Solar panel lifespan

>20years

Power Consumption

2W

Vertical Divergence

>10°

Visual Range

1~4 NM

Horizontal Out-put

360°

LED Quantity

20pcs

Overall Size(mm)

186mm(D)x190mm(H)

Light Source

LED

Installation Size(mm)

D170mm x M6

Working temperature

-40℃~70

Wind-speed Ability

80m/s

Storage temperature

-40℃~70℃

Working mode

Flashing(20tims/min)

Sun Switch Illumination Threshold

300LUX±100LUX

Steady Burning Intensity

32.5cd

Continuous Burning Time in rainy days

>20 days

(12 hours a day)

Flashing Intensity

33cd

Weight

1.2kg

IP Protection

IP65




Dimension Drawing

Dimension Drawing


Project Case

case

_20200109165611

lvyou_04



Feedback

2



FAQ

FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q9:What is a lighthouse beacon?

A:The lighthouse beacon is the light that shines out over the waters at night to warn ships of treacherous reefs and rocks.
