BL-17 Новый автоматический аппарат для Сращивания Оптических Волокон ARC FTTH на
- Категория: Fiber Optic Equipment >>>
- Поставщик: Beijing,Byx,Optical,Fiber,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 809.20 $* | 849.67 $* |
| Aug-19-2025 | 802.53 $* | 842.55 $* |
| Jul-19-2025 | 673.23 $* | 707.46 $* |
| Jun-19-2025 | 789.58 $* | 828.56 $* |
| May-19-2025 | 687.69 $* | 721.34 $* |
| Apr-19-2025 | 775.89 $* | 814.59 $* |
| Mar-19-2025 | 768.97 $* | 806.11 $* |
| Feb-19-2025 | 762.45 $* | 800.33 $* |
| Jan-19-2025 | 755.98 $* | 793.56 $* |
Характеристики
Product Description
BL-17 New Automatic ARC FTTH Optical Fiber Fusion Splicer Splicing Machine for Sale
Model | BL-17 | ||||||
Appicable Fibers | SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) | ||||||
Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable | ||||||
Cleaved Length | Coating Diameter: 0.125-1mm/Cleave length:8-16mm | ||||||
Splicing Mode | Preset 41 splicing modes, storable 100 modes | ||||||
Typical Splice Loss | SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard) | ||||||
Return Loss | ≥60db | ||||||
Lighting | Three powerful white LED and iluminated keypads | ||||||
Splicing Time | SM fast mode: 6s | ||||||
Estimated Splice Loss | yes | ||||||
Protection Sleeve Length | 20-60mm | ||||||
Heating tank | Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes | ||||||
Heating Time | Fast heating time: 13s, Typical Heating Time: 30s | ||||||
Results Storage | 1 000 records | ||||||
Tension Test | 1.5-2.0N | ||||||
Display | 90° bi-directional view,4.3" high resolution display with touch screen | ||||||
Fiber View & Magnification | X,Y,XY,X/Y:380×Magnification | ||||||
Power Supply | AC Input 100-240V,DC Input 12-15V | ||||||
Battery capacity | 4800mAh battery capacity | ||||||
Heating times | typical above 180 times(splicing+heating) | ||||||
Operating Methods | Button/Touch Screen | ||||||
Automatic Calibration | Automatic ARC calibration by air pressure and temperature | ||||||
Electrode Life | 3000 ARCS, can be extended by using an electrode grinder | ||||||
Terminal | USB 2.0 | ||||||
Weight | 1.8 KG (including rubber Bumper) | ||||||
Dimension | 140W*165L*138Hmm (including rubber Bumper) | ||||||
Operating Condition | Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s | ||||||
Storage Condition | 0~95% relative humidity, -40~80℃; battery storage: -20~30℃ | ||||||
Product Description:
BL-17 is mainly used for fiber-to-home applications. FTTx Cladding Alignment Fusion Splicer,Auto splice mode manifest
user-friendly design;Dust-proof,water-proof,high temperature resistance,adapting to various altitude and formidable nature
conditions;4.3' ' high reslolution LCD touch screen with 380x magnification,visible clearly bare eyes;Packed with datachable
4800mAh battery,more than 230 times of splicing and heating;3 high-power white LEDs and illuminated keypads simplifies your work
at night;Detachable multifunction fixture,suitable for various fiber types.German CNC technique and integrated fiber-adjust frame,
which make performance much stable.Built -in Japanese components and Korean chipset.
user-friendly design;Dust-proof,water-proof,high temperature resistance,adapting to various altitude and formidable nature
conditions;4.3' ' high reslolution LCD touch screen with 380x magnification,visible clearly bare eyes;Packed with datachable
4800mAh battery,more than 230 times of splicing and heating;3 high-power white LEDs and illuminated keypads simplifies your work
at night;Detachable multifunction fixture,suitable for various fiber types.German CNC technique and integrated fiber-adjust frame,
which make performance much stable.Built -in Japanese components and Korean chipset.
Product Paramenters
Features:
(1) The machine's appearance color is black and golden yellow. It is specially used for short distance work and maintenance from
optical fiber to home
(2) There are four windproof covers (damp proof, dust proof, shock proof and frost proof)
(3) BL-17 has three high-power LED white lights, light and dark operation more heart-saving
(4) The shielding cover is wind-proof, freeze-proof, quake-proof, water-proof, provide the protection for fiber; clear plastic button,
for convenient operation, with handle and strap
(5) Large capacity battery up to 4800 mA, Port Ultra Mini USB 2.0

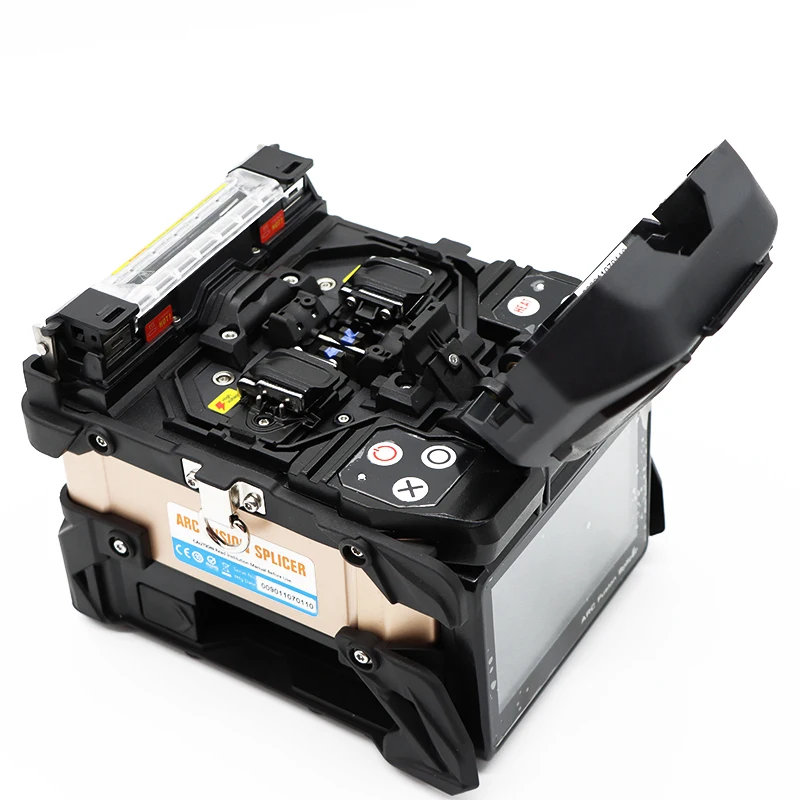

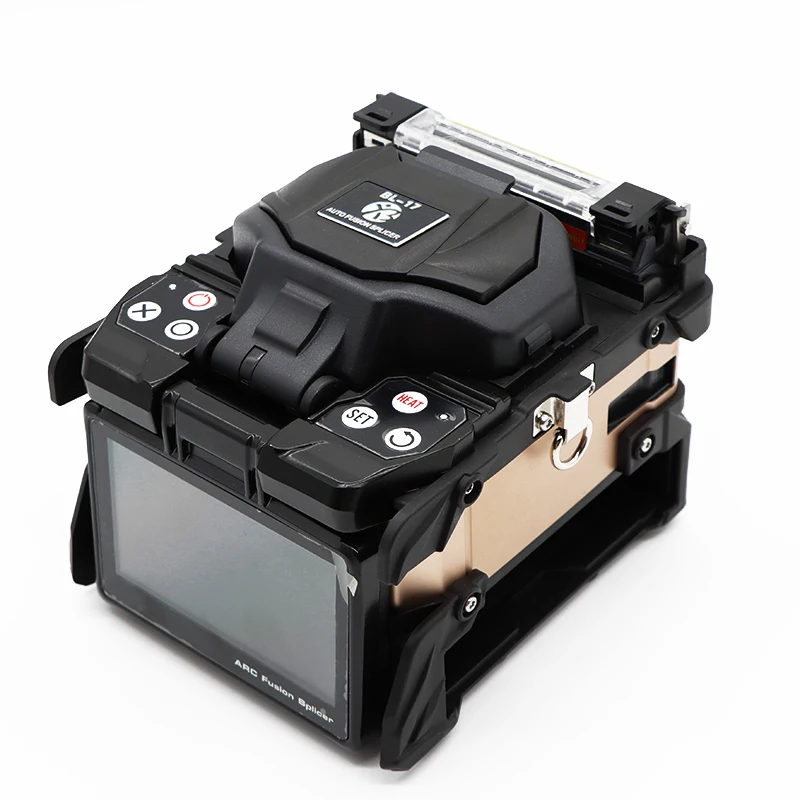

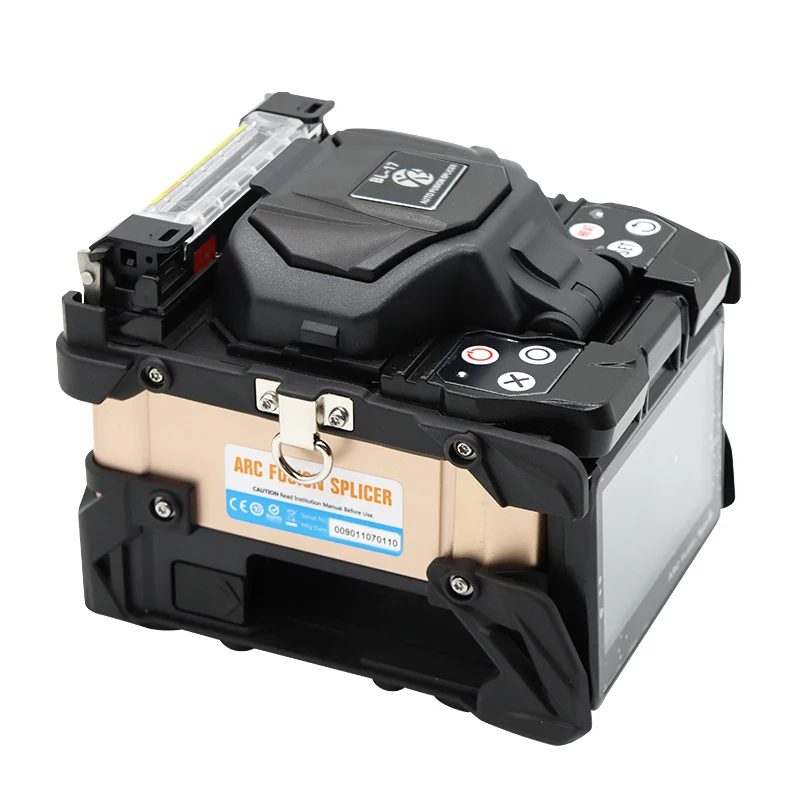

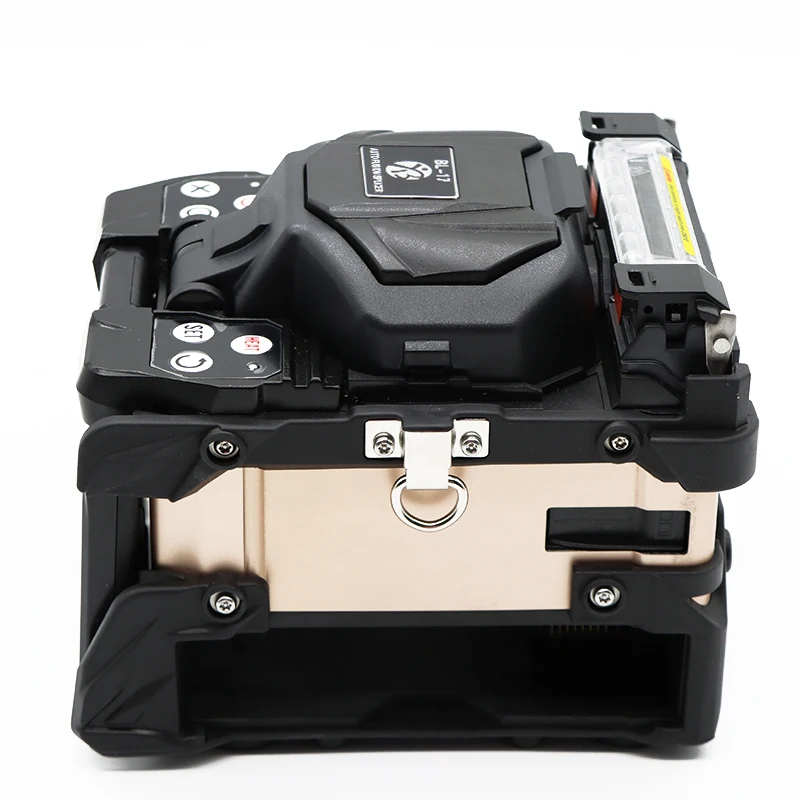

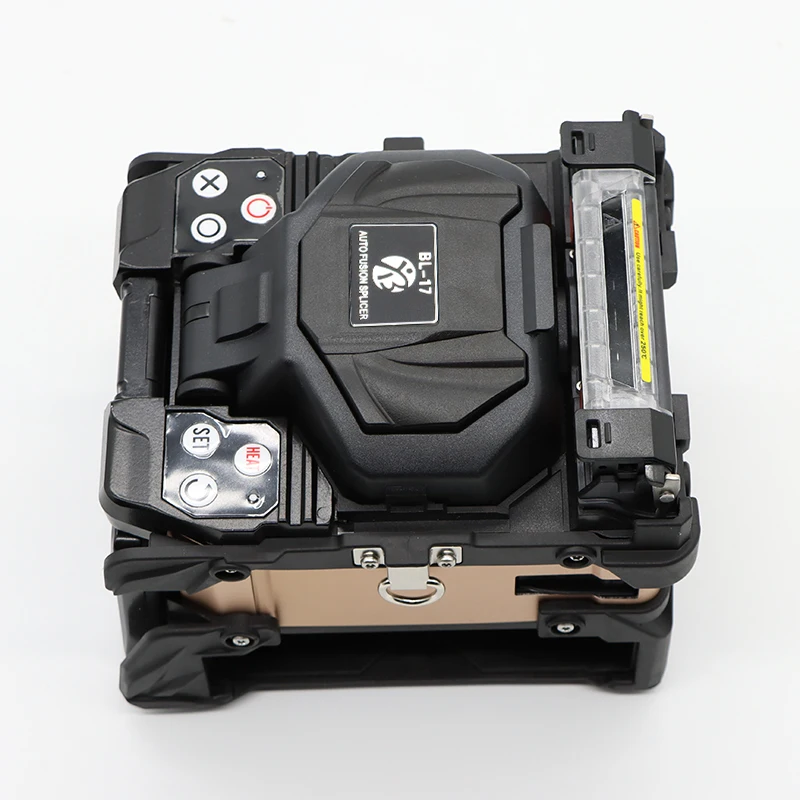

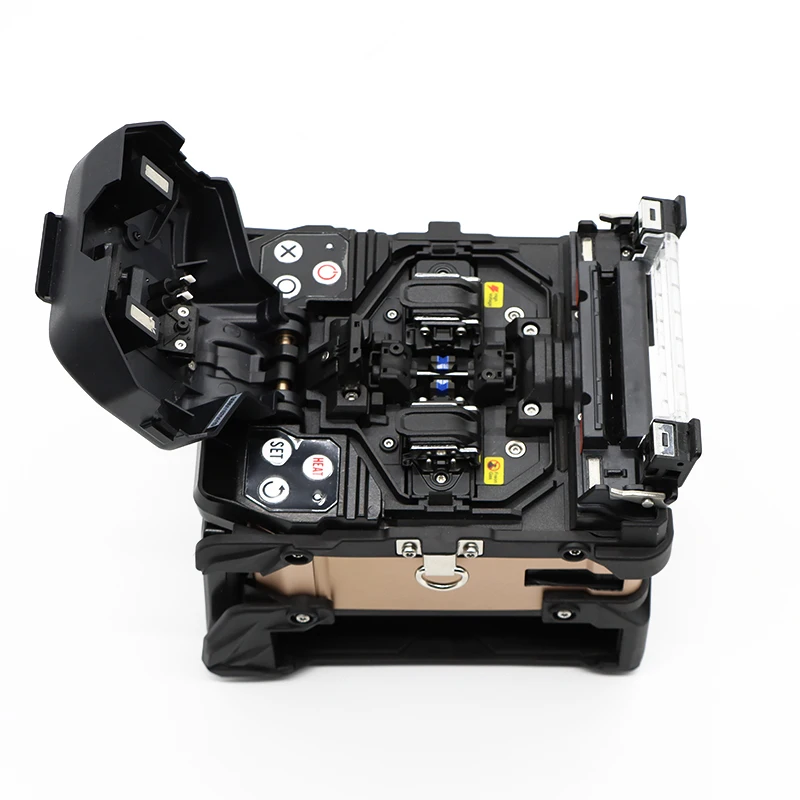

Detailed Images
Company Introduction
FAQ
1. who are we?
We are based in Beijing, China, start from 2009,sell to Domestic Market(30.00%),Southeast Asia(12.00%),North
America(10.00%),Eastern Europe(9.00%),Mid East(8.00%),Southern Europe(6.00%),South America(6.00%),South Asia(5.00%),Eastern
Asia(4.00%),Northern Europe(4.00%),Africa(3.00%),Western Europe(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber optic Equipment(Fiber optic cables),Communication Cables(Network Cables/Coaxial Cables),Fiber Optic Fusion Splicer,Fiber
Optic Patch Cord/Converter/Adapter,ODF/Fiber Optic pigtail/
4. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Arabic,Russian,Korean
We are based in Beijing, China, start from 2009,sell to Domestic Market(30.00%),Southeast Asia(12.00%),North
America(10.00%),Eastern Europe(9.00%),Mid East(8.00%),Southern Europe(6.00%),South America(6.00%),South Asia(5.00%),Eastern
Asia(4.00%),Northern Europe(4.00%),Africa(3.00%),Western Europe(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber optic Equipment(Fiber optic cables),Communication Cables(Network Cables/Coaxial Cables),Fiber Optic Fusion Splicer,Fiber
Optic Patch Cord/Converter/Adapter,ODF/Fiber Optic pigtail/
4. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Arabic,Russian,Korean
