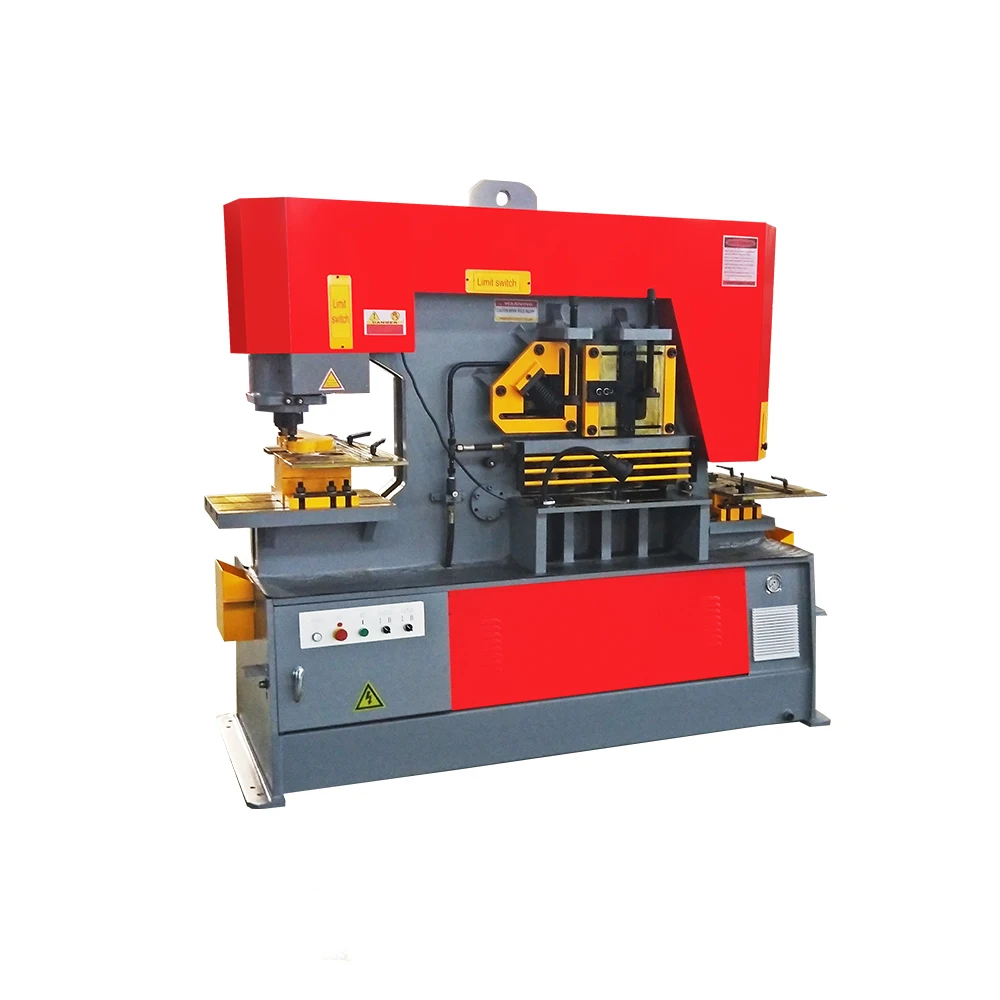

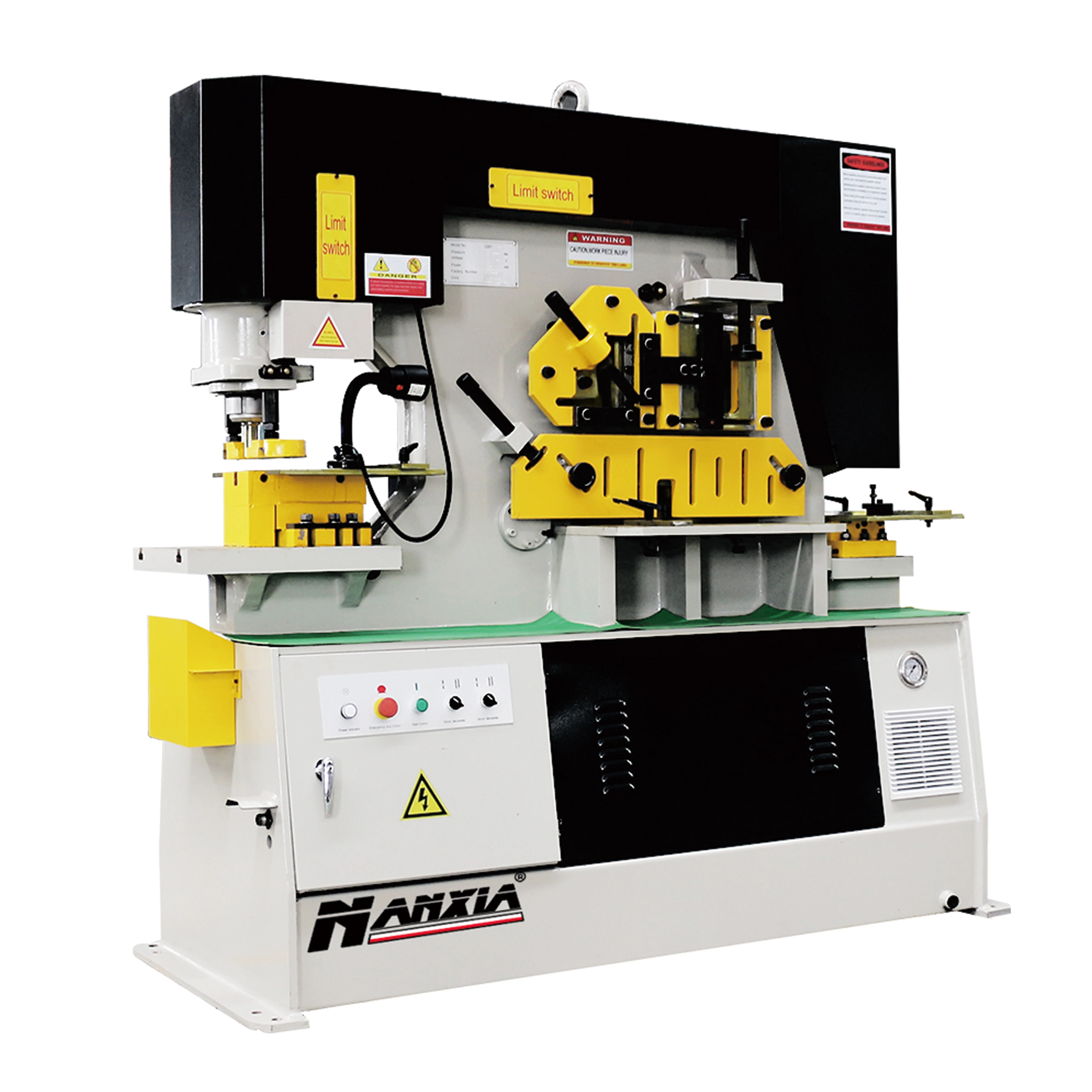

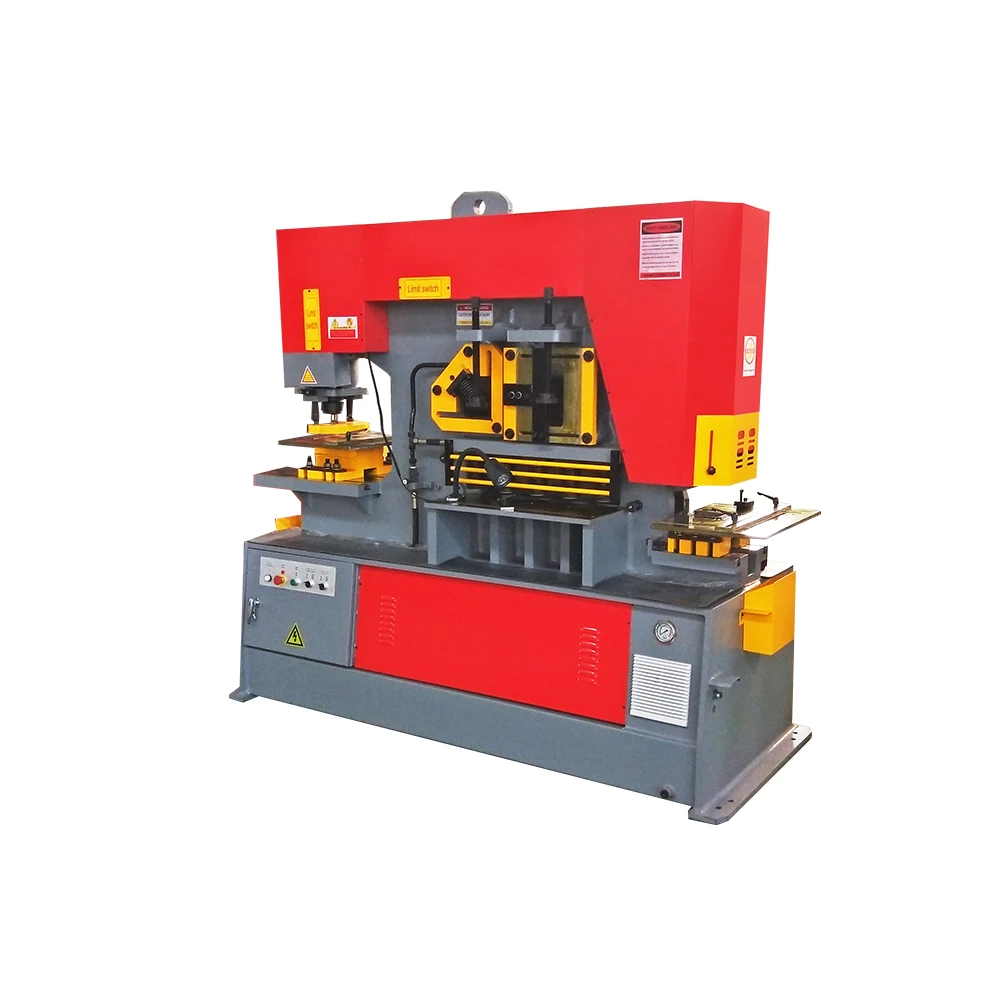

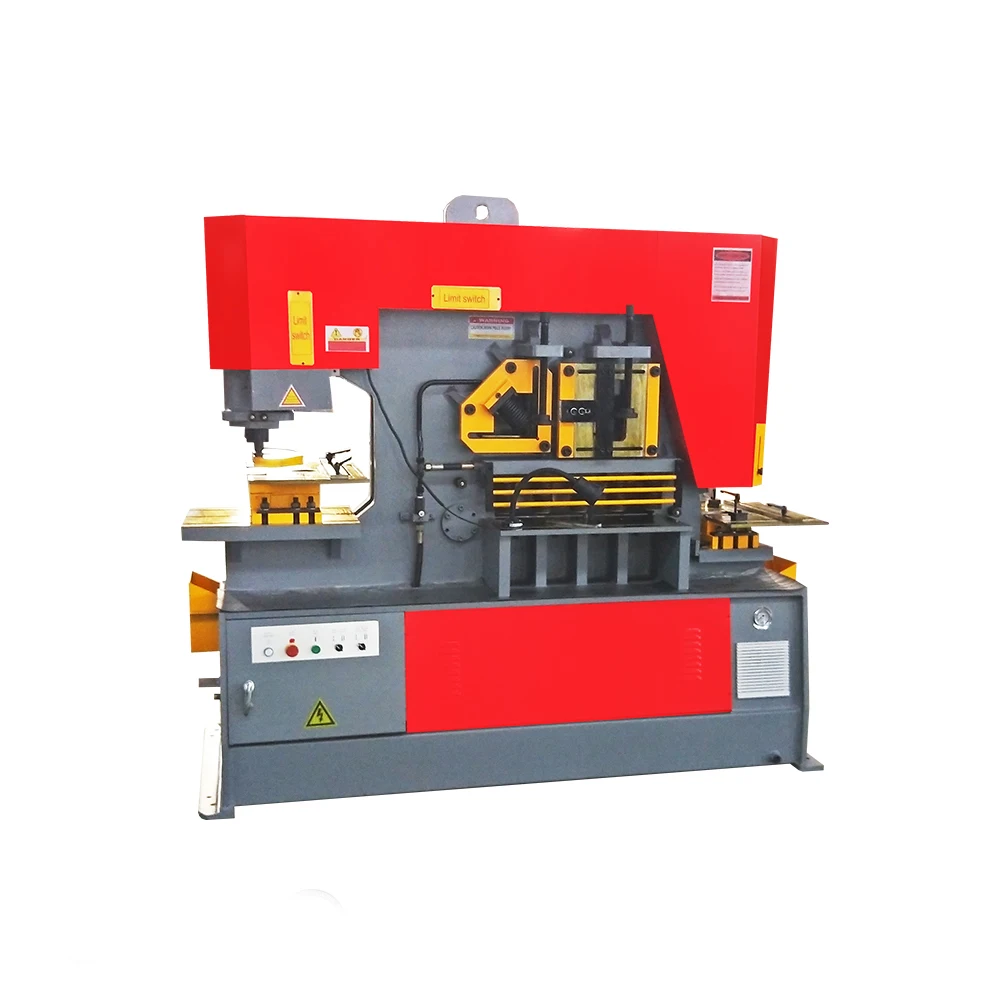

Гидравлический металлообработчик Nanxia Q35Y серии 55t угловой стальной канал режущий станок высокого
- Категория: Электро-гидравлический гибочный пресс >>>
- Поставщик: Anhui,Nanxia,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.53 $* | 0.75 $* |
| Aug-19-2025 | 0.92 $* | 0.75 $* |
| Jul-19-2025 | 0.53 $* | 0.35 $* |
| Jun-19-2025 | 0.95 $* | 0.47 $* |
| May-19-2025 | 0.57 $* | 0.3 $* |
| Apr-19-2025 | 0.61 $* | 0.17 $* |
| Mar-19-2025 | 0.11 $* | 0.11 $* |
| Feb-19-2025 | 0.38 $* | 0.0 $* |
| Jan-19-2025 | 0.89 $* | 0.81 $* |
Характеристики
Product Description
Specification
Model | Q35Y-16 (IW-60) | Q35Y-20 ( IW-90) | Q35Y-25 (IW-120) | Q35Y-30 (IW-140) |
Working pressure（KN） | 600 | 900 | 1200 | 1400 |
Max. cutting thickness（mm） | 16 | 20 | 25 | 26 |
Max. cutting length(mm) | 400 | 480 | 600 | 600 |
Tensile strength of sheet metal | ≤450 | ≤450 | ≤450 | ≤450 |
Max. Capacities | 25×16 | 30×20 | 35×25 | 38×26 |
Max. Stroke Length | 80 | 80 | 80 | 80 |
Throat Depth Standard | 305 | 355 | 400 | 600 |
Working Height | 1030 | 1084 | 1142 | 1209 |
SHEARING | ||||
Flat Bar | 250×16 | 330×20 | 300×25 | 355×30 |
Alternative | 400×8 | 480×10 | 600×16 | 600×20 |
Blade Length | 410 | 485 | 620 | 610 |
Working Height | 890 | 894 | 891 | 897 |
ANGEL CUTTING | ||||
At 90°cut | 125x125×12 | 140x140×12 | 160×160x16 | 180x180×16 |
At 45°Mitre | 70×10 | 70×10 | 70×10 | 70×10 |
Working Height | 1130 | 1139 | 1200 | 1220 |
SECTION CUTTING | ||||
Round / Square Bar | 45 | 50 | 60 | 65 |
Channel / I bar | 130×65 | 160×88 | 200x100 | 280×122 |
T bar | 90×12 | 90×12 | 90×12 | 90×12 |
NOTCHING | ||||
Material Thickness | 10 | 13 | 14 | 16 |
Width | 57 | 57 | 57 | 57 |
Depth: Vee -Rect. | 60-90 | 60-90 | 60-90 | 60-90 |
Working Height | 890 | 883 | 886 | 898 |
Packing & Delivery
Company Profile
Certifications
FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
