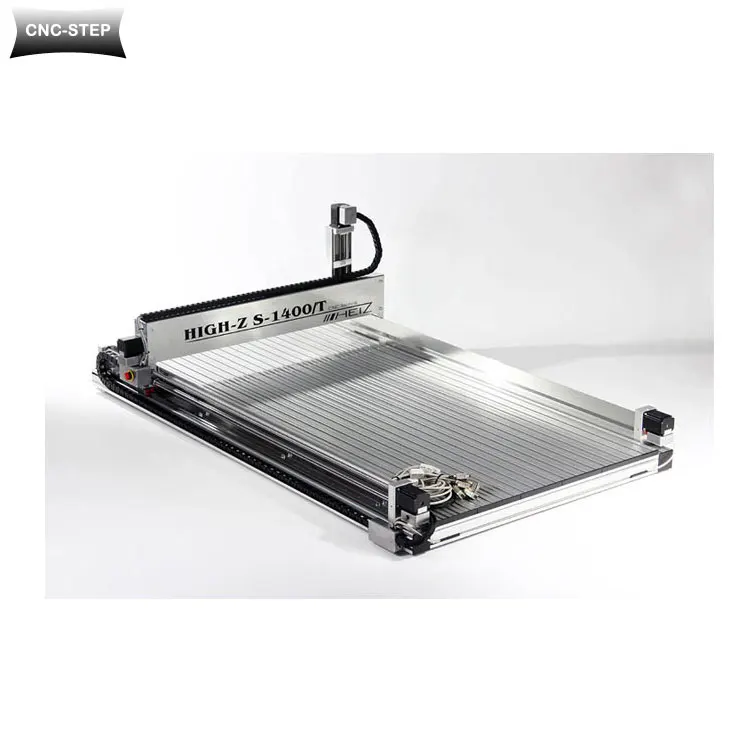

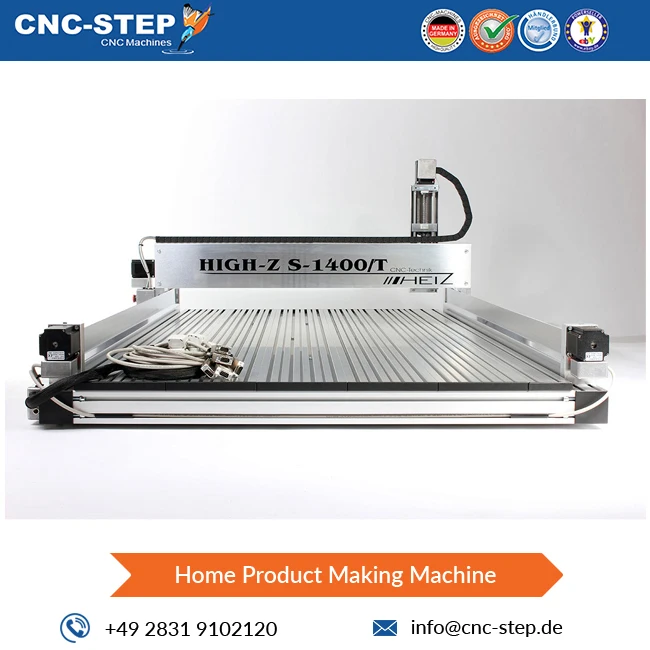

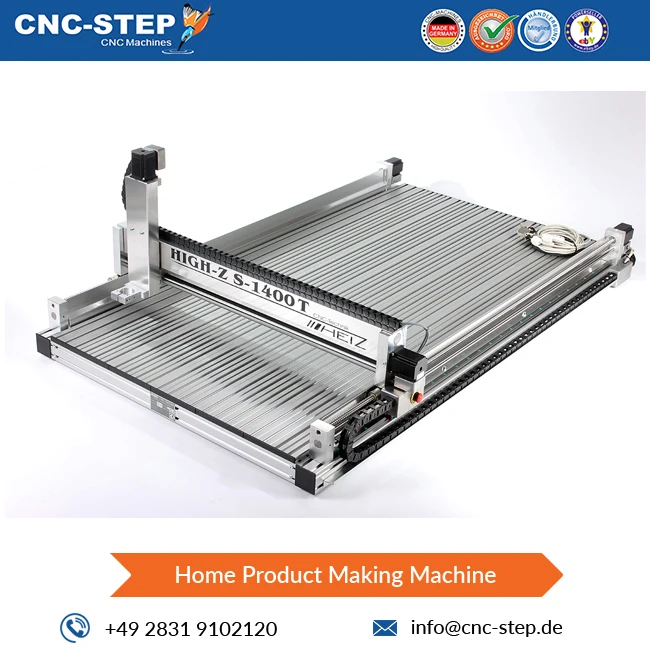

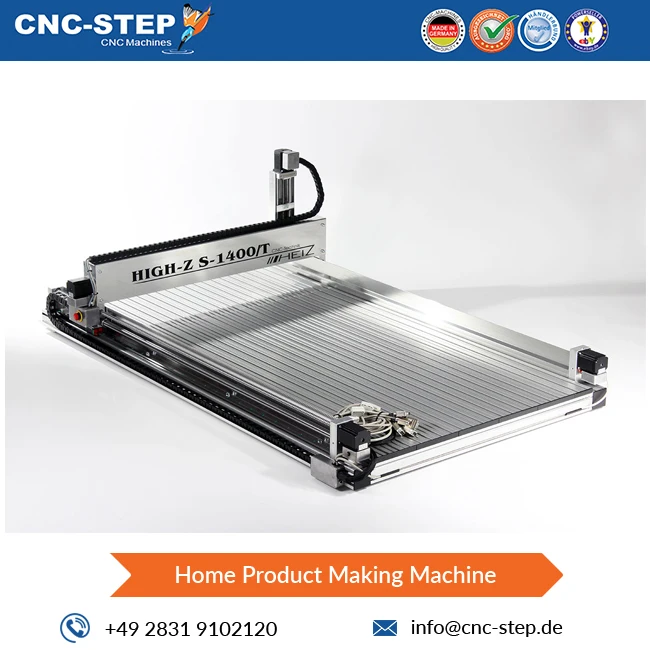

Manufacturer of Top Quality High Performance High-Z S-1400/T Home Product Making Machine
While purchasing a High-Z/T, you get tested & proven technology. These CNC routers were conceived especially for higher traverse speed and for more extended precision (repetition precision approximately 0,02 mm).

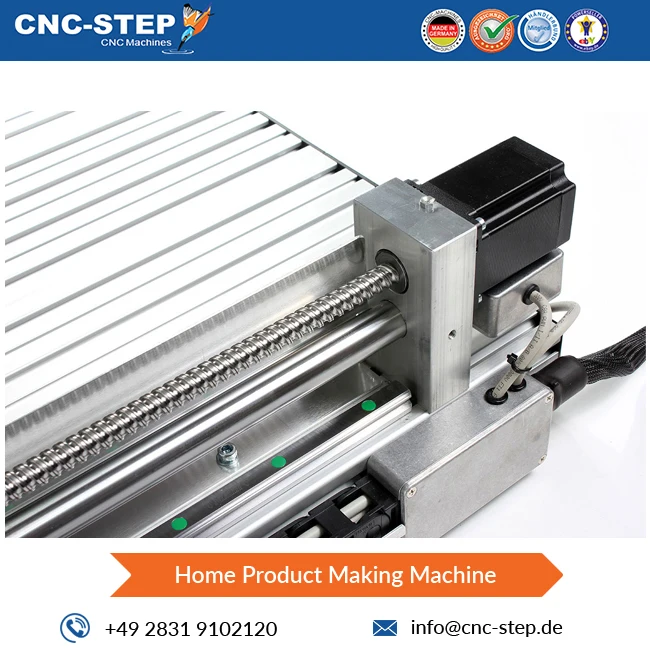

The installed ball screws enable the High-Z/T engraving and milling results with excellent precision and a nearly unmeasurable backlash of only approximately 0,01 mm. Simultaneously there are great traverse speeds up to around 6500 mm/min possible.
This 3D-milling-machine series is useful in the hobby and as well in the industrial sector for works like milling, engraving, drilling or cutting.

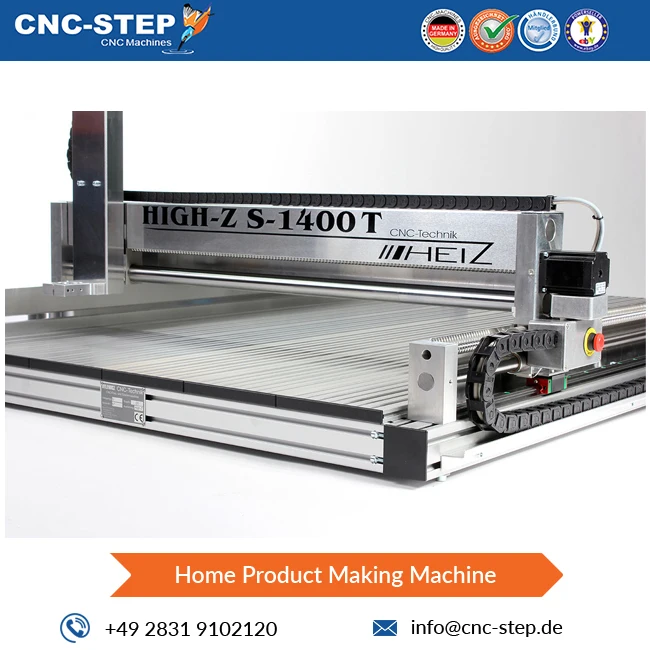

All our CNC machines are equipped with energy-chains on every axis. This allows much better cabling management. Also, you will find on every CNC machine an emergency stop button. An additional emergency stop is located in front of the controller.
The CNC machines come with CNC controller and ConstruCAM-3D* Software (*not included with High-Z S-400)
From us you receive not only support before, but also after your purchase support for a machine life long via phone or TeamViewer.
Contact us for more information and the matching machine especially for your application.
To operate the CNC portal milling machine CNC control software and milling motor are necessary. Both can also be purchased optionally with us.
It requires an assembly of the suction adapter and safety enclosure on our CNC machines for commissioning that is CE compliant.
Specifications
Product Name
Home Product Making Machine
Model Number
High-Z S-1400/T
Table size / clamping area: 1790 x 890 mm
Travel Paths: X=1400 mm; Y=800 mm; Z= 110 mm
Total dimensions including motors: L x W x H = approximately 1796 x 1070 x 577 mm
Weight approximately 82 kg
Working speed max. 12000 mm/min
Technical resolution: 0,005 mm
Backlash: +/-0,015 mm
Accuracy 0,01 mm
Tool holder (Ø 43 mm): euro neck
Compression during milling process on X-axis and two motors for constant tension
Limit- and reference switch on every axe
Emergency button doubly secured
Clean cabling because of energy chain
Incl. ConstruCAM-3D software
Arame substructure for universal application
Approximately 2 hour long briefing during collection and unlimited telephone support via Team Viewer Software are also included
Product Applications
In our working examples, you discover inspiring CNC applications which you'll be able to realise rapidly and successfully with our exact and solid CNC machines. And all this without programming a G-Code. Our free ConstruCAM-3D software covers nearly all possibilities.
Examples for CNC applications
Customers are using our CNC machines for different applications. Here you can find several impressions, images and videos from users in the educational and commercial sector.
