Product Description
Industrial Small Scale Wheat Flour Mill Plant 10t Maize Flour Milling Machinery Rice Paddy Corn Grinding Machine In Africa
6F2250(40\\35)double coarse flour roller mill equipment line. Mainly used for corn, beans and other coarse grain flour.It has the
characteristics of wide application range, high degree of automation, reasonable structure, stable operation, stable and reliable performance.Well received by domestic and foreign users.
characteristics of wide application range, high degree of automation, reasonable structure, stable operation, stable and reliable performance.Well received by domestic and foreign users.
1. High production capacity of wheat flour mill, small floor area, beautiful appearance, low energy consumption.
2. Specially designed for the production of high fineness wheat flour, powder mesh size 40~120.
3. Equipped with the best grinding head and roller.
4. Automatic and semi-automatic operation.
2. Specially designed for the production of high fineness wheat flour, powder mesh size 40~120.
3. Equipped with the best grinding head and roller.
4. Automatic and semi-automatic operation.
Model | Capacity(kg/h) | Roller size(mm) | Speed of quick roller(r/min) | Power(kw) | weight(kg) | Dimension(mm) |
6F2235 | 400-500 | 222*350 | 650 | 7.5+3 | 900 | 2400*1000*3150 |
6F2240 | 450-550 | 222*400 | 650 | 11+3 | 1000 | 2450*1000*3150 |
6F2250 | 500-600 | 222*500 | 650 | 15+4 | 1200 | 2550*1000*3150 |

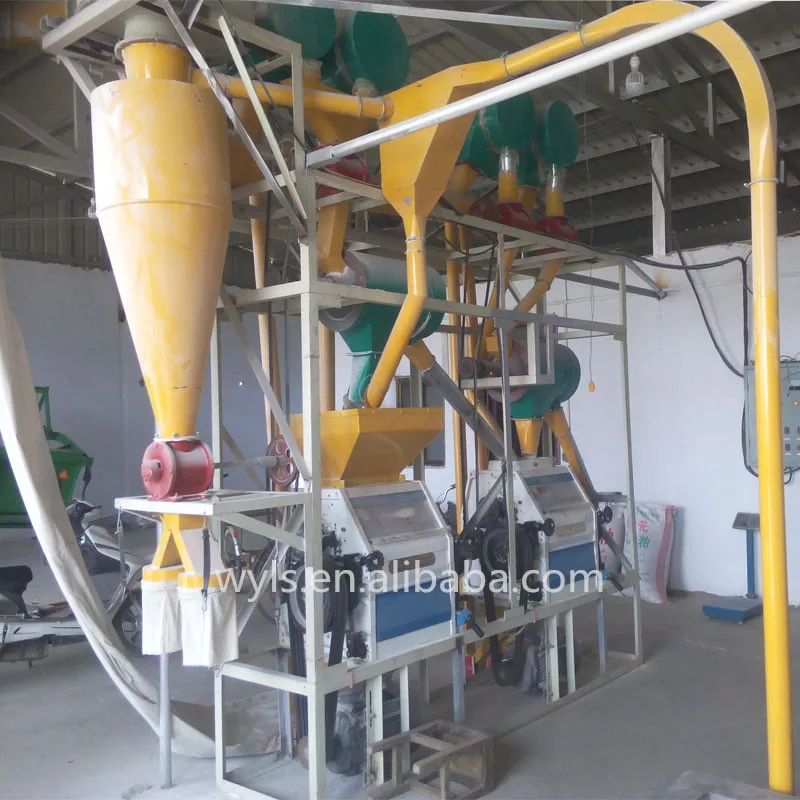

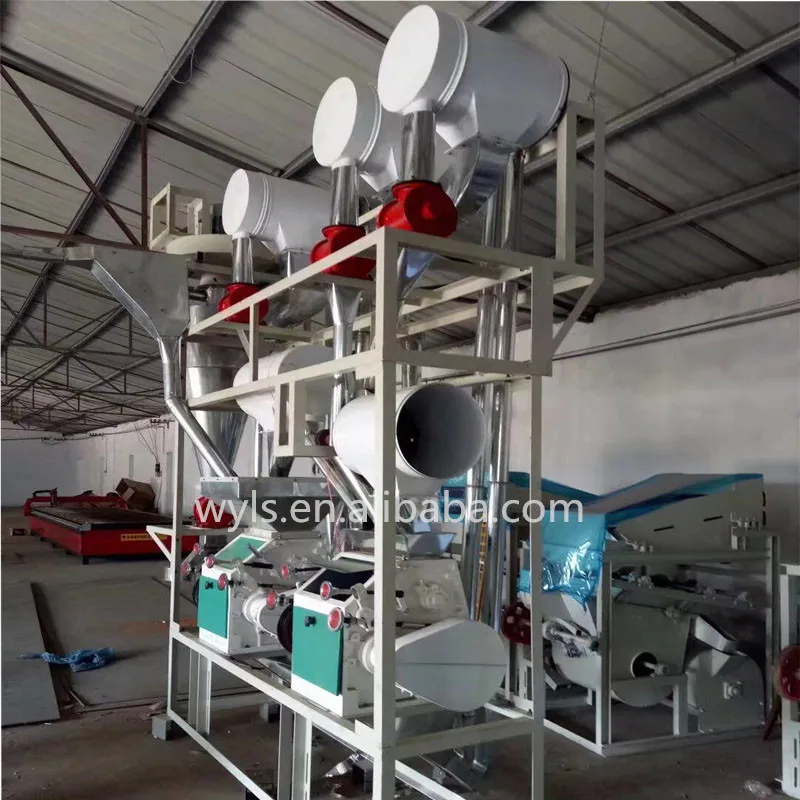

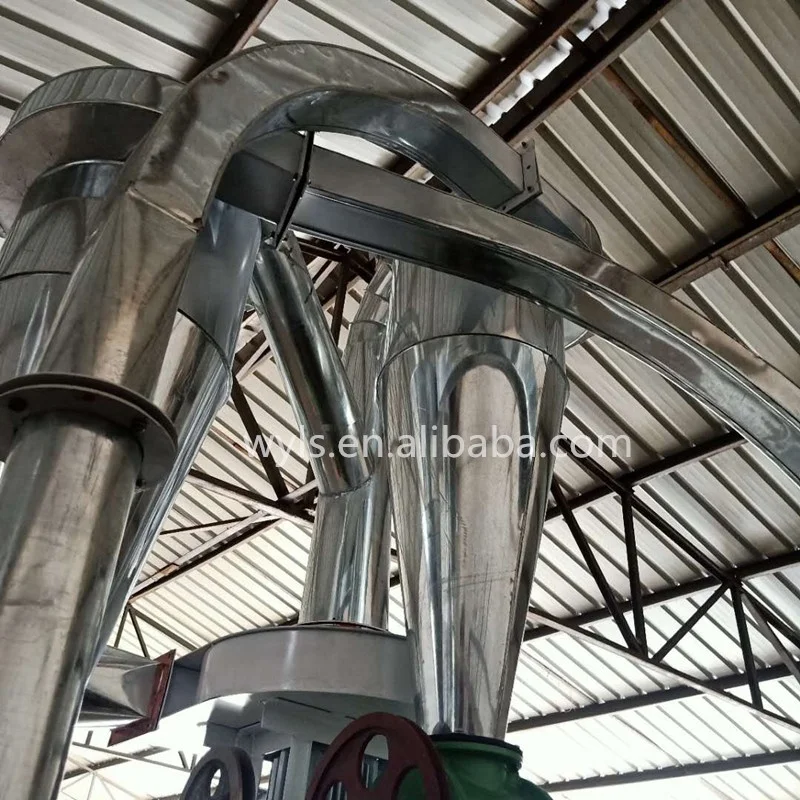

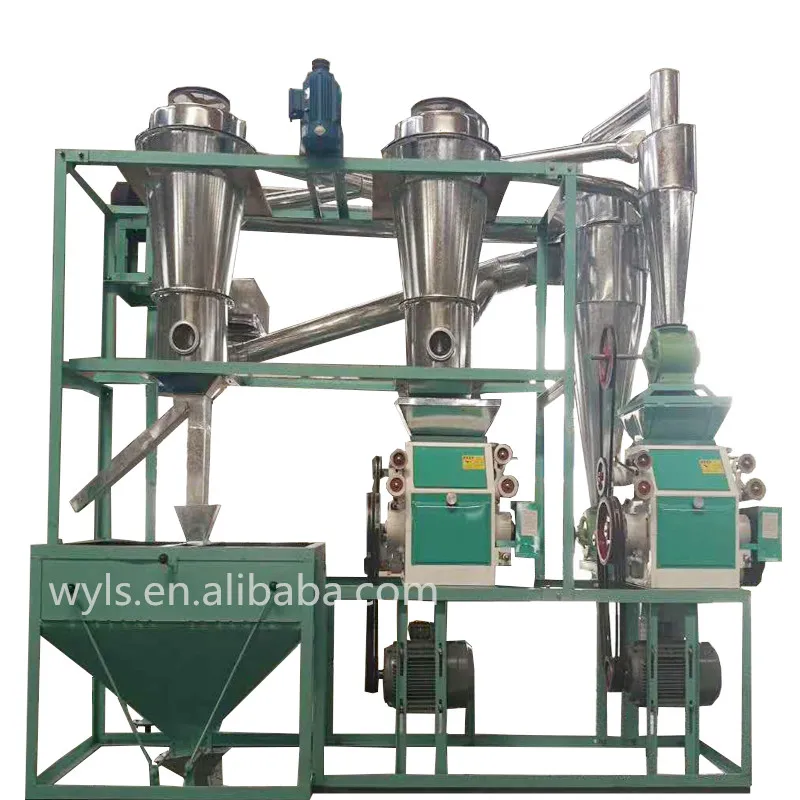

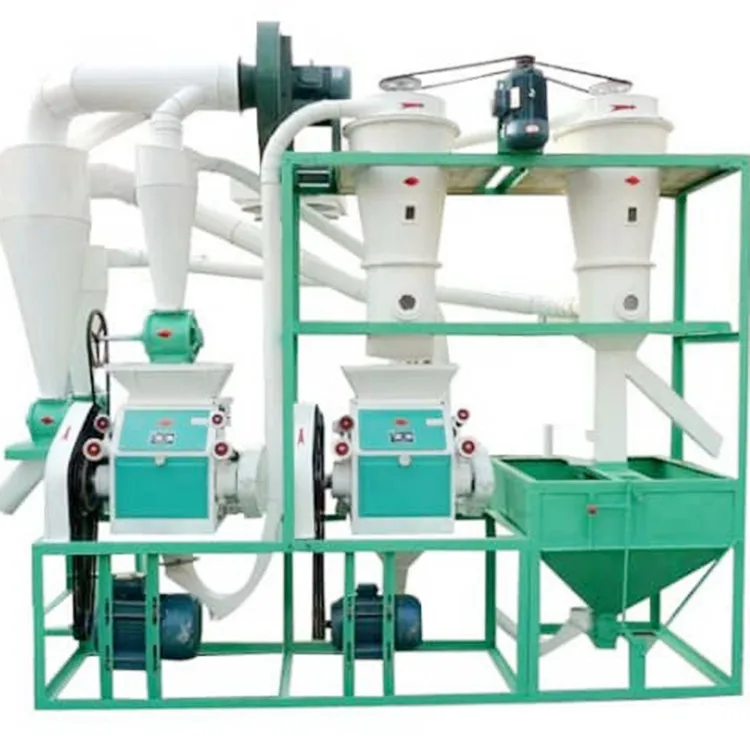

Product Show
6F Series (40\\35/50) Double screen sieve powder mill features
1. The machine has full functions (it can process wheat, corn, cocoa beans,buckwheat, naked oats, coconut flour and other food crops), high degree of automation (only one feeding, the whole process of mechanization).
2. Easy installation (all interfaces are connected with flanges), small floor space (one ordinary house can be installed),simple operation (just operate the joystick).
3. Low noise, no dust, safe and hygienic, energy saving and environmental protection.
4. Reasonable structure, stable operation, stable and reliable performance.It is mainly suitable for processing merchants and coarse grain flour processing plants in rural areas.
The finished products by this mill, are characterized by fine flour, high gluten content, little impurity and high nutritional value, and are well received in the international market.
1. The machine has full functions (it can process wheat, corn, cocoa beans,buckwheat, naked oats, coconut flour and other food crops), high degree of automation (only one feeding, the whole process of mechanization).
2. Easy installation (all interfaces are connected with flanges), small floor space (one ordinary house can be installed),simple operation (just operate the joystick).
3. Low noise, no dust, safe and hygienic, energy saving and environmental protection.
4. Reasonable structure, stable operation, stable and reliable performance.It is mainly suitable for processing merchants and coarse grain flour processing plants in rural areas.
The finished products by this mill, are characterized by fine flour, high gluten content, little impurity and high nutritional value, and are well received in the international market.
Main structure and process flow
The machine is divided into three parts: the cleaning part, the grinding part and the screening part.
(I) The net grain part: equipped with our advanced technology of screening, stone removal and threshing combination grain clearing machine, the process is shortened, that is, original wheat → combination cleaning machine (two sieve → stone removal → threshing wheat) → moist wheat screw conveyor→ net wheat bin. This process is transported by a high-pressure fan. The whole process is completed by air selection, which ensures the quality of net grain.

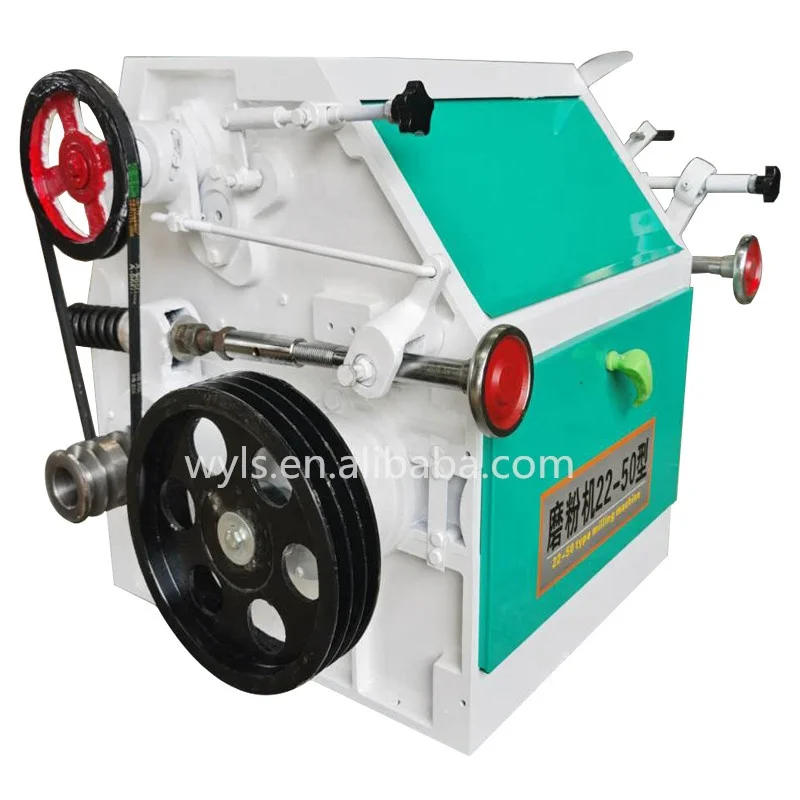

(ii) Grinding part: Grinding of wheat, mainly done by a mill.Wheat strip away the use of mechanical strength, the endosperm scraped from the dander, and the endosperm ground into a fine powder, this is one of the main coal pulverizing process, flour mill upper and lower, upper part for feeding, the lower is the roller, or by a pair of gear differential rotation synchronous belt,driving roller, break the supplies, peeling, scraping and research, such as function, achieve the goal of grinding.The grinding degree of the material can be achieved by adjusting the gap between the grinding rollers.Finally, pull the handle to separate the gate to realize the separation of the two grinding rollers, and the feeding mechanism also stops feeding automatically.
(iii) Screening part: the ground materials are sifted through their respective feeder → extractor → powder extractor (round sieve),and the materials are sifted through the powder extractor (round sieve), and the flour is filtered through the flour extractor (round sieve).
(I) The net grain part: equipped with our advanced technology of screening, stone removal and threshing combination grain clearing machine, the process is shortened, that is, original wheat → combination cleaning machine (two sieve → stone removal → threshing wheat) → moist wheat screw conveyor→ net wheat bin. This process is transported by a high-pressure fan. The whole process is completed by air selection, which ensures the quality of net grain.
(ii) Grinding part: Grinding of wheat, mainly done by a mill.Wheat strip away the use of mechanical strength, the endosperm scraped from the dander, and the endosperm ground into a fine powder, this is one of the main coal pulverizing process, flour mill upper and lower, upper part for feeding, the lower is the roller, or by a pair of gear differential rotation synchronous belt,driving roller, break the supplies, peeling, scraping and research, such as function, achieve the goal of grinding.The grinding degree of the material can be achieved by adjusting the gap between the grinding rollers.Finally, pull the handle to separate the gate to realize the separation of the two grinding rollers, and the feeding mechanism also stops feeding automatically.
(iii) Screening part: the ground materials are sifted through their respective feeder → extractor → powder extractor (round sieve),and the materials are sifted through the powder extractor (round sieve), and the flour is filtered through the flour extractor (round sieve).
