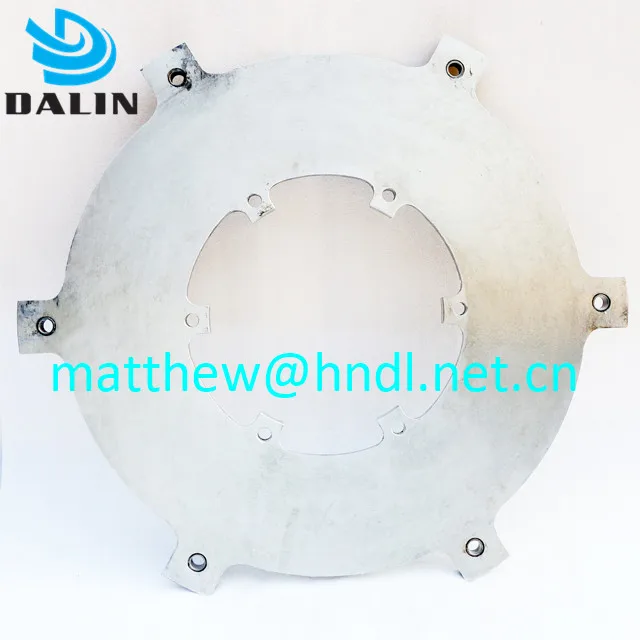

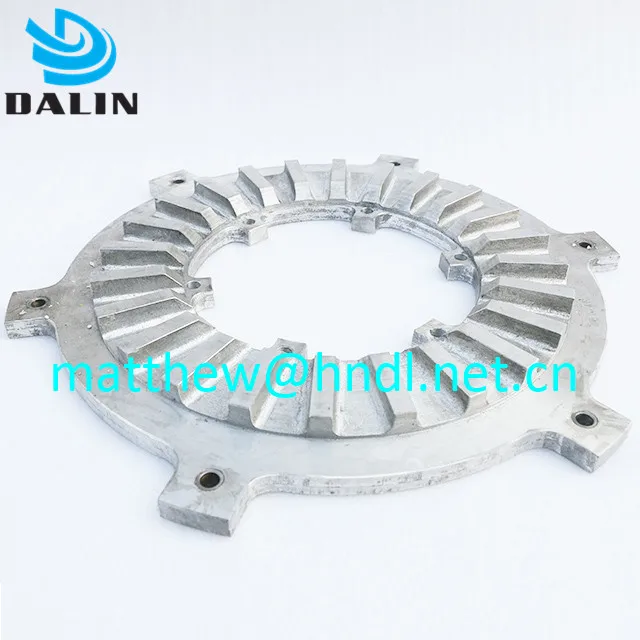

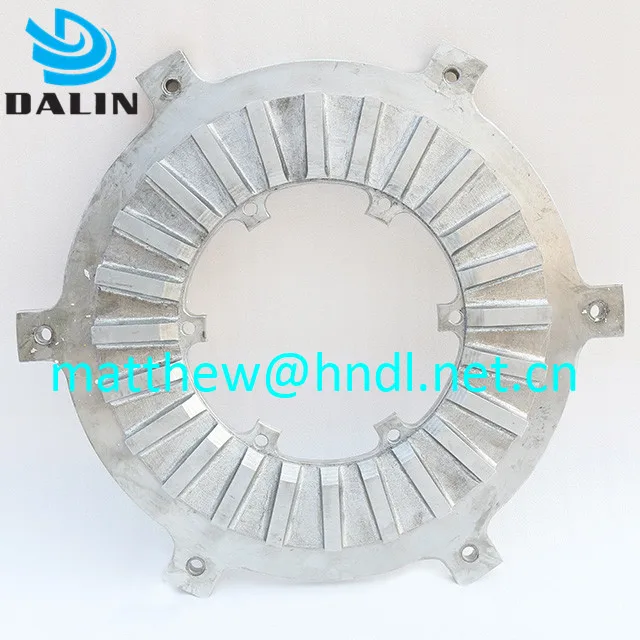

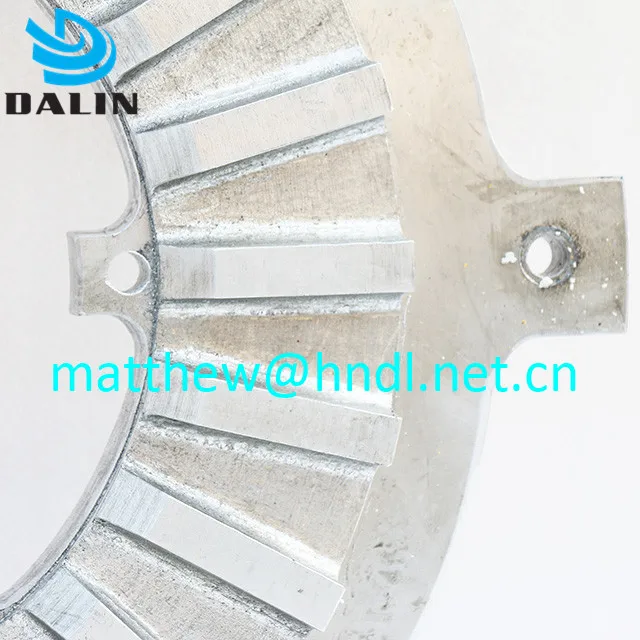

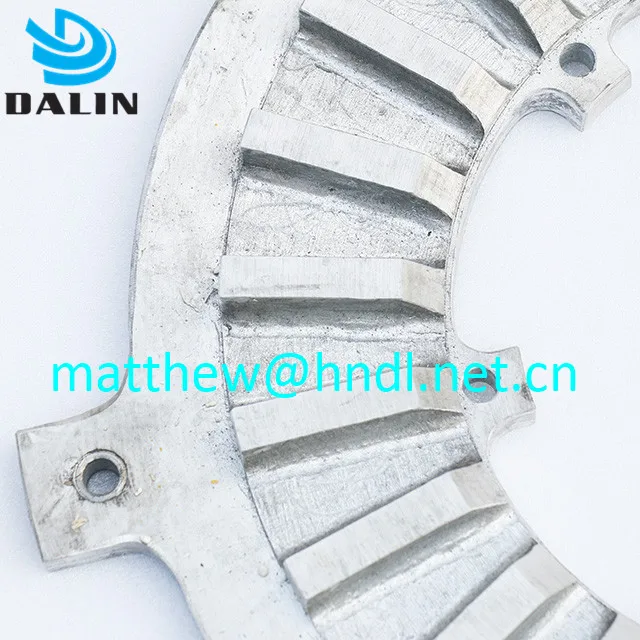

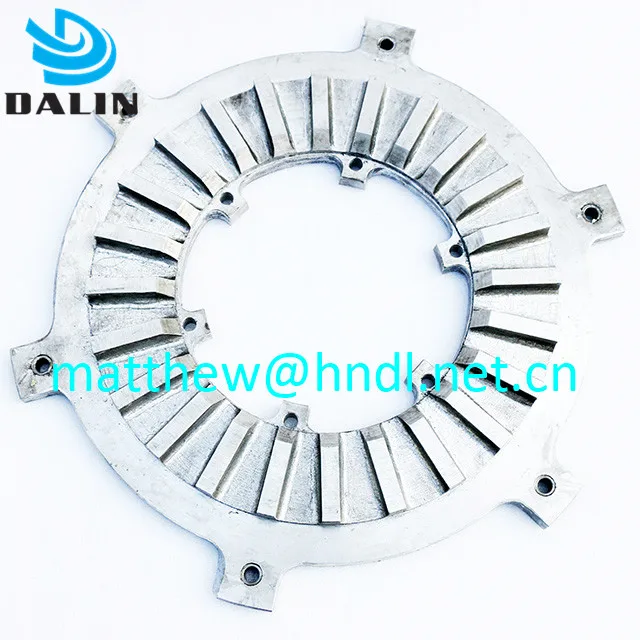

18 inch aluminum Rubflex eaton airflex press plate

Цена:*

Количество:

18 inch aluminum Rubflex

press plate

124WCB2,224WCB2,324WCBWCB2,424WCB2,136WCB2,236WCB2,336WCB2,436WCB2
Parts(Standard)	124WCB2 146465A(514825)	224WCB2 146466A(514826)	324WCB2 146467A(514827)	424WCB2 146468A(514828)
English name	124WCB2 146465A(514825)	224WCB2 146466A(514826)	324WCB2 146467A(514827)	424WCB2 146468A(514828)
English name	Part No.	Part No.	Part No.	Part No.
Mounting Flange Sub Assembly.	513348-01	513348-01	513348-01	513348-01
Mounting Flange	513337	513337	513337	513337
Wear Plate	508459	508459	508459	508459
Stud	000245*0069	000245*0069	000245*0069	000245*0069
Friction Disc	508725	508725	508725	508725
Friction Disc Core	510745	510745	510745	510745
Clamp Tube	306542-05	306542-20	306542-23	306542-24
Pressure Plate	513345	513345	513345	513345
Flat Washer	000153*0641	000153*0641	000153*0641	000153*0641
Locknut	000110*0073	000110*0073	000110*0073	000110*0073
Cylinder	513264	513264	513264	513264
Lip Seal	000402*0023	000402*0023	000402*0023	000402*0023
Lip Seal	000402*0024	000402*0024	000402*0024	000402*0024
Gear	411672	410970	412433	413195
Wear Spacer	N/A	308396	308396	308396
Reaction Plate Sub Assembly.	N/A	513348-02	513348-02	513348-02
Reaction Plate	N/A	513343	513343	513343
Pistion	513317	513317	513317	513317
Release Spring	416751-02	416751-02	416751-02	416751-02
Inner Support Ring	413107	413107	413107	413107
Outer Support Ring	413108	413108	413108	413108
Flat Head Screw	000294*407	000294*407	000294*407	000294*407
Pipe Plug	000077*0021	000077*0021	000077*0021	000077*0021
