Популярный товар низкая цена автоматическая мойка автомобиля
- Категория: Car Washer >>>
- Поставщик: Shandong,Boyou,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 21420.96 $* | 22491.7 $* |
| Aug-19-2025 | 21240.12 $* | 22302.71 $* |
| Jul-19-2025 | 17820.27 $* | 18711.87 $* |
| Jun-19-2025 | 20880.85 $* | 21924.96 $* |
| May-19-2025 | 18180.35 $* | 19089.18 $* |
| Apr-19-2025 | 20520.42 $* | 21546.31 $* |
| Mar-19-2025 | 20340.99 $* | 21357.74 $* |
| Feb-19-2025 | 20160.65 $* | 21168.78 $* |
| Jan-19-2025 | 19980.33 $* | 20979.75 $* |
Характеристики

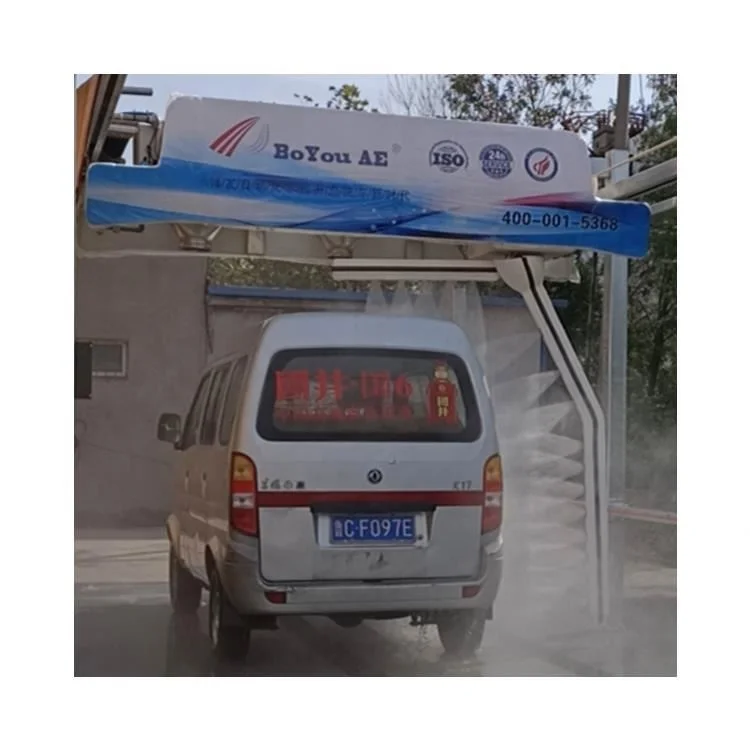

High pressure sprinkler effect display
Soft water film wax sprinkler effect display
High pressure sprinkler effect display
The machine frame is working in the humid environment everyday, Use the 304# stainless steel as the frame to supply the long
running life of the whole machine.
running life of the whole machine.
The mobile driving device of car washing machine adopts German Siemens motor
Wiring harness chain of car washing machine
Basic equipment parameters | ||||||
Project Description | Basic parameters | Mode configuration | Standard √ Optional O | |||
Car washing machine outer frame installation size requirements | Standard mode | √ | ||||
Frame mounting length | 6500mm~7500mm | Precision mode | √ | |||
Frame mounting width | 3200mm ~ 4000mm | Chassis flush | √ | |||
Frame mounting height | 2900mm-3300mm | Rotating smart flush | √ | |||
High pressure pump and dosing pump integrated station power | Tire washing | √ | ||||
High pressure piston pump and motor power | 15kw | Car wash spray | √ | |||
Car wash liquid pump | 40W | Coated water wax spray | √ | |||
Coated water wax plus liquid pump | 40W | Spray high foam shampoo | √ | |||
Pic central processor | 80W | LED prompt guidance | √ | |||
Man-machine control panel | 80W | Statistics of car washing times | √ | |||
Operating system power | Fault self-test | √ | ||||
Longitudinal stepless variable frequency motor | 500W | Antifreeze automatic emptying | √ | |||
Lateral servo motor | 750W | Automatic standby | √ | |||
Cantilever drive servo motor | 750W | Remote control | √ | |||
Average energy consumption breakdown | Smart card payment | O | ||||
Chassis flushing water | 28L/vehicle | WeChat payment | O | |||
Vehicle washing water | 100-150L/vehicle | Water tank | O | |||
Crystal was consumption | 20ml-40ml/vehicle | Air compressor | O | |||
Magic shampoo consumption | 50ml-100ml/vehicle | |||||
Overglow shampoo consumption | 70ml-100ml/vehicle | |||||
time consuming | ||||||
Rinse speed | 28S/vehicle | |||||
Soft water film wax | 30S/vehicle | |||||
Magic shampoo glazing | 30S/vehicle | |||||
Over glow Hi-gloss | 30S/vehicle | |||||
Air drying | 50S/vehicle | |||||
Electricity consumption | 1.5-1.8KWH/Vehicle | |||||
Shandong Boyou Automation Equipment Co., Ltd. is a high-tech enterprise specializing in the manufacture and sale of fully automatic car washing machines in China.Our company is a leading-edge automatic car washing machine developed and manufactured. It has won the favor of customers with its unique structure, beautiful appearance, excellent production and advanced technology. The company is committed to technological upgrading, improving the function and quality of its products, taking the lead in passing the ISO 9001 international quality management system certification, and has a number of invention patent technologies.
The company has professional and technical personnel, engineers, and sales and after-sales service personnel, forming a team of high-quality young and highly innovative team spirit. The company has always been "people-oriented, technology-leading, integrity management, create a well-known brand" for the purpose, as always, to provide customers with reliable products, perfect service, common development, and create success.
The company has professional and technical personnel, engineers, and sales and after-sales service personnel, forming a team of high-quality young and highly innovative team spirit. The company has always been "people-oriented, technology-leading, integrity management, create a well-known brand" for the purpose, as always, to provide customers with reliable products, perfect service, common development, and create success.
Clear workshop
Use the manage rules to make the workshop be clear and comfortable, all the parts be sort on the right place.
Loading and delivery
Your car washing machine will be packed in a special wooden box to avoid damage during logistics transportation
1. who are we?
We are based in Shandong, China, start from 2016,sell to North America(30.00%),Eastern Europe(20.00%),Southeast Asia(20.00%),South
America(10.00%),Africa(10.00%),Central America(10.00%).
2. What's the wash bay land dimensions required for BoYou AEwash installation ? ( Length×width×height ）Length:6500mm~12000mm
width:3300mm~3700mm
height:2900mm~3300mm
3.What need to be prepared before machine installation
* 3 phase industry power supply, 25Kw.
* Water supply, with a water tank. ( 2000 liters )
* Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.
* Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting support
frames, floor horizontal error less than 3cm.
* Scaffold 2 pcs.
* Electric Hammer 1 pc, configurated 10, 14, 16 drill each one piece.
* Electric Welder 1 pc.
* Polisher 1 pc.
* Infrared Level 1 pc.
* Rough twine 10 meters.
* Hand Electric Drill 1 pc.
4. how can we guarantee quality?
We have a professional R & D, production, quality team, from the product design, production, delivery and other strict standards
and specifications, we combine many years of technical experience and technical principles of the car washing machine industry to
achieve the true meaning of the full intelligent car cleaning equipment.
5.what can you buy from us?
1.24-hour automatic car washing
2.Fully automated, no manual operation is required
3.Improve cleaning speed and quality
4.Save water, electricity and labor
5.Reduce labor costs
6.A variety of options to meet the needs of different customers
7.High cost performance
We are based in Shandong, China, start from 2016,sell to North America(30.00%),Eastern Europe(20.00%),Southeast Asia(20.00%),South
America(10.00%),Africa(10.00%),Central America(10.00%).
2. What's the wash bay land dimensions required for BoYou AEwash installation ? ( Length×width×height ）Length:6500mm~12000mm
width:3300mm~3700mm
height:2900mm~3300mm
3.What need to be prepared before machine installation
* 3 phase industry power supply, 25Kw.
* Water supply, with a water tank. ( 2000 liters )
* Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.
* Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting support
frames, floor horizontal error less than 3cm.
* Scaffold 2 pcs.
* Electric Hammer 1 pc, configurated 10, 14, 16 drill each one piece.
* Electric Welder 1 pc.
* Polisher 1 pc.
* Infrared Level 1 pc.
* Rough twine 10 meters.
* Hand Electric Drill 1 pc.
4. how can we guarantee quality?
We have a professional R & D, production, quality team, from the product design, production, delivery and other strict standards
and specifications, we combine many years of technical experience and technical principles of the car washing machine industry to
achieve the true meaning of the full intelligent car cleaning equipment.
5.what can you buy from us?
1.24-hour automatic car washing
2.Fully automated, no manual operation is required
3.Improve cleaning speed and quality
4.Save water, electricity and labor
5.Reduce labor costs
6.A variety of options to meet the needs of different customers
7.High cost performance
