Криогенная СПГ хранения автомобиля натуральный газовый баллон баков контейнеров

Криогенная СПГ хранения автомобиля натуральный газовый баллон баков контейнеров

Категория: Сосуды высокого давления >>>
Поставщик: Shandong,Shengrun,Automobile,Co.,Ltd.

Цена:67 000,00 $ - 69 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	79730.38 $*	83717.55 $*
Aug-15-2025	79060.59 $*	83013.45 $*
Jul-15-2025	66330.32 $*	69647.72 $*
Jun-15-2025	77720.43 $*	81606.88 $*
May-15-2025	67670.33 $*	71054.2 $*
Apr-15-2025	76380.79 $*	80199.69 $*
Mar-15-2025	75710.61 $*	79496.26 $*
Feb-15-2025	75040.38 $*	78792.93 $*
Jan-15-2025	74370.62 $*	78089.74 $*

Характеристики

Cryogenic lng storage vehicle natural gas cylinder containers tanks

Products Description

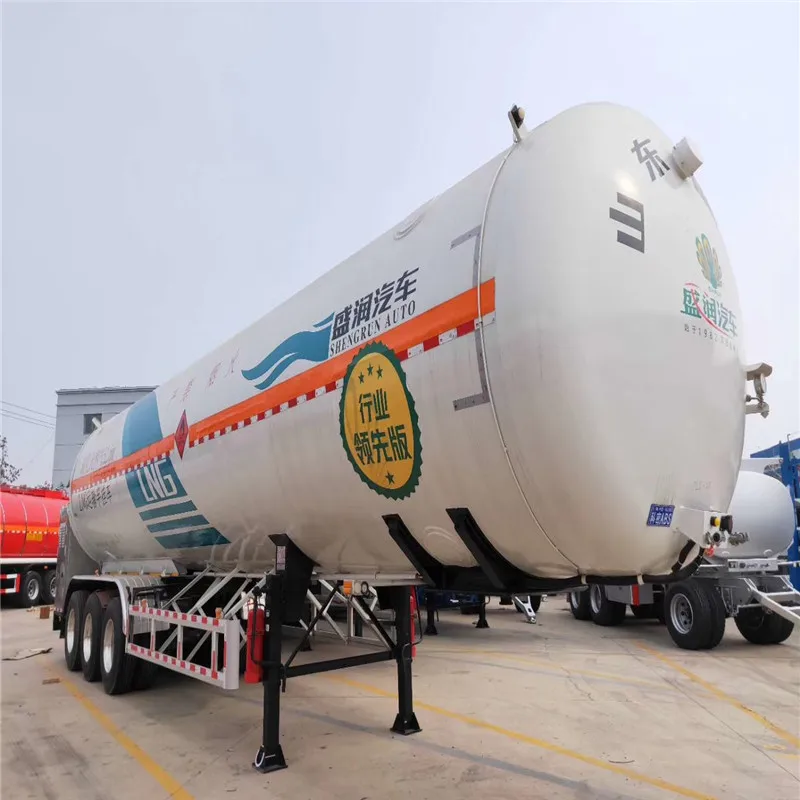

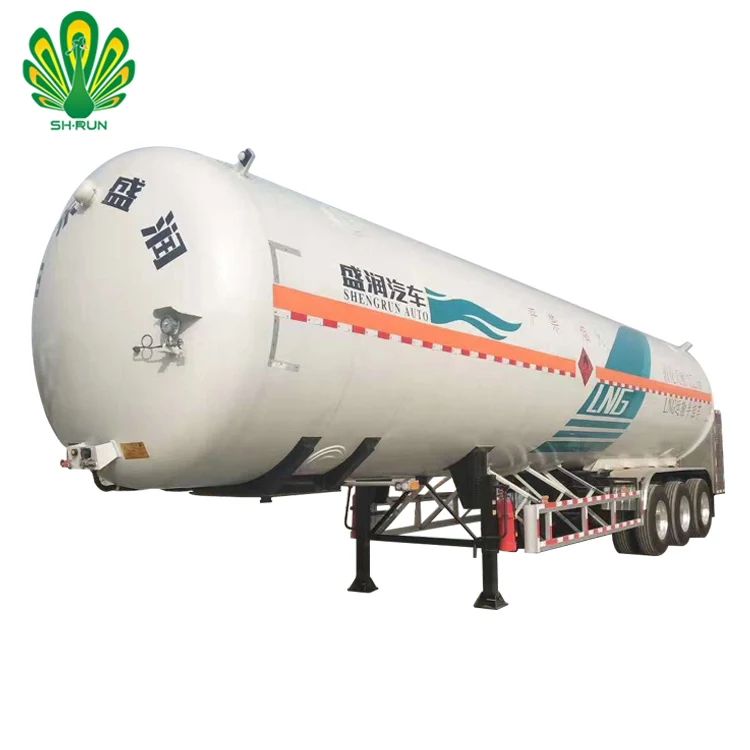

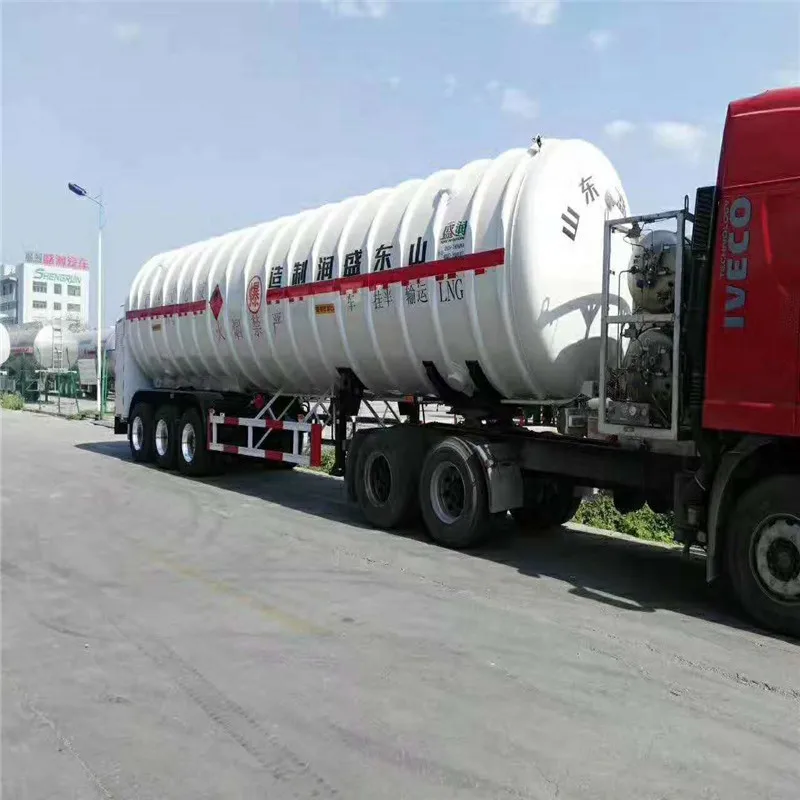

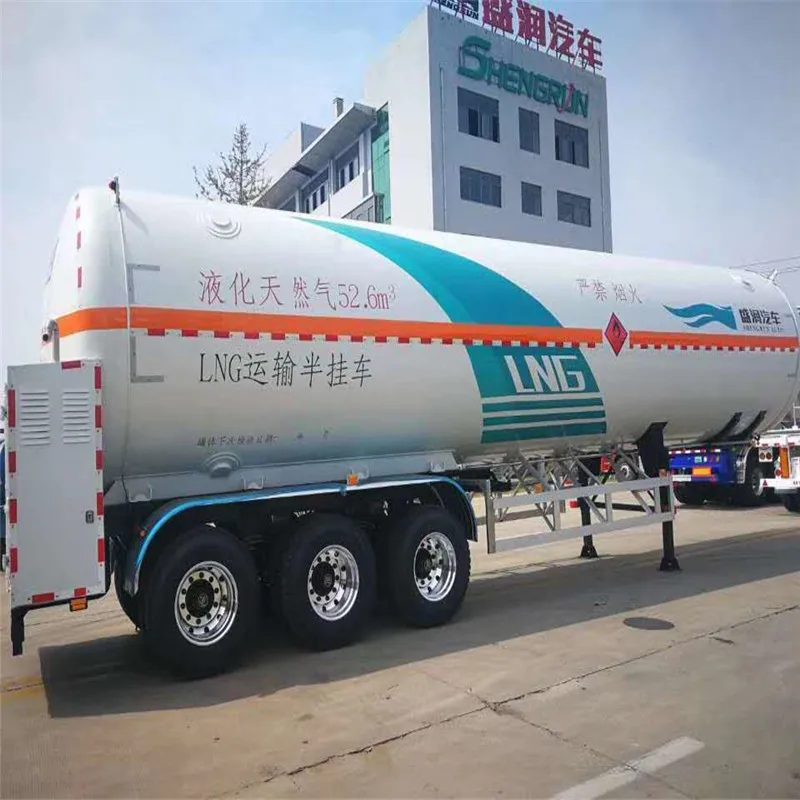

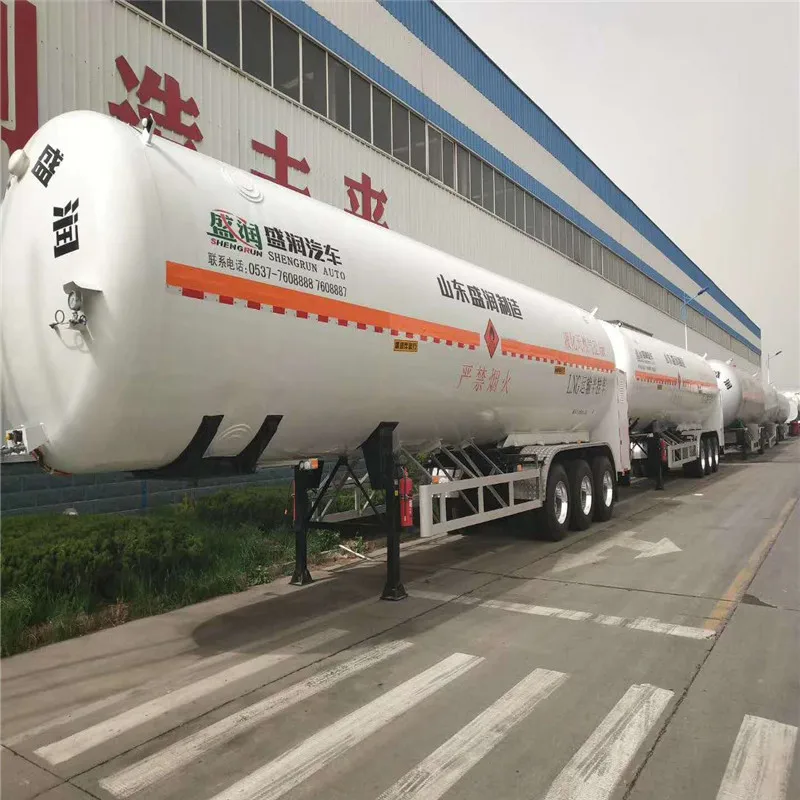

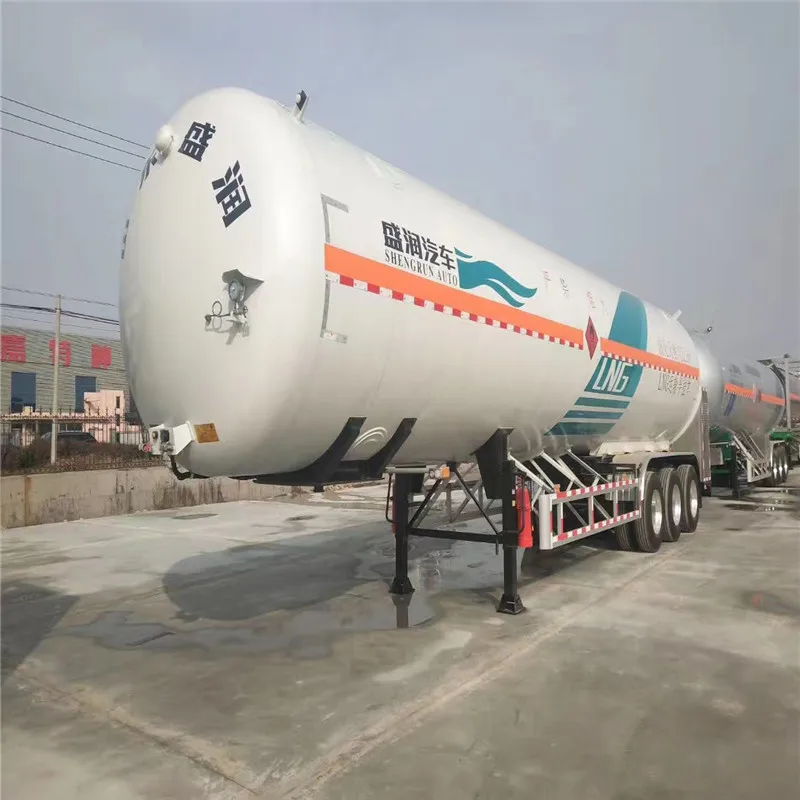

"Shengrun" Brand LNG Semi Trailer
LNG, short for Liquefied Natural Gas ; LNG tank trailer is used to transport liquefied natural gas. Because liquefied natural gas needs to be compressed and cooled to the boiling point (-161.5 ℃) before it can become a liquid, there are strict requirements for the LNG transportation by road. The LNG transport trailer needs to have the conditions of -161.5 degrees Celsius and 0.1 MPa.
Shengrun have many models LNG Tank Trailer
Material: carbon steel
Volume: 27 - 70 cbm
Axles: 2-4 axles

Specification

General data					Tank body
Chassis model			Q345B	Parameter			Inner tank	Outer tank
Tractor model			--	Filling medium			Liquid Natural Gas
Engine power KW			--	Work temperature ℃			-162	-19~50
Kerb mass ㎏			19833	Design temperature ℃			-196	50
The maximum allowed filling weight kg			20167	Work pressure MPa			≤0.64	-0.1
Total mass ㎏			40000	Design pressure MPa			0.64	-0.1
Distribution of axle load in full load	King pin ㎏	16100	Corrosion allowance mm			0	1
		Rear axle ㎏	23900	Joint efficiency			1	0.85
Design speed limit Km/h	Straight road	80	Material			S30408	Q345R
		Turn	20	Rated filling rate %			90
Front overhang/rear overhang mm			-/1650	Capacity m³			52.6
Approach angle/departure angle°			-/21°	Medium density ㎏/m³			426
Maximum stable side-inclination in full load °			≥23°	Air test pressure MPa			0.86
Overall dimension（LWH） mm			12870×2500×3900	Air tight test pressure MPa			0.64	helium mass spectrometer leak detection
Design working life Years			10	Thermally insulation thickness/material mm			25/aluminum foil+Degreased fibre paper
Applicable mode of transportation			Road	Safety valve
Emergency valve					Type			DAH-25
Type	Gas phase	DJQ-40B/DJQ-32B	Form			Full lift
		Liquid phase	DJQ-50B	Norminal pressure MPa			4
Specification	Gas phase	DN40/32	Valve base size mm			20
		Liquid phase	DN50	Rated pressure MPa			0.69
Form			Emergency valve and excess flow cut off valve	Discharge-pressure MPa			≤0.76
Operation mode			Pneumatic	Return-pressure MPa			≥0.63
Closed stop time			≤8S	Diameter of rupture disk mm			--
Melt closed temperature ℃			75±5	Burst pressure of rupture disk MPa			--
Level gauge					L.U.S
Type			MZC-IIA	Type	Gas phase
Form			Combined differential pressure		Liquid phase
Nominal pressure MPa			4	Specification	Gas phase
Measurement range mm			0～2500		Liquid phase
Precision			2.5	Pattern			Flange
Pressure gauge	Model	YN-100T	Norminal pressure MPa
		Precision	1.6	Conducting electrostatic tape type			JD-2
Trailer configuration	（1）King pin：90#（bolted type）			（7）Air chamber：6 double			(13) One piece tool box
		（2）Landing gear：JOST C200			（8）Suspension：Machanical suspension			(14) Aluminum valve box
		（3）Leaf spring：10 pcs			（9）Spare tyre carrier：1 sets			(15) 24V 7-pin ISO 1185 socket
		（4）Axle：Fuwa 13T*3pcs			（10）ABS:4S2M			(16) LED light
		（5）Tyre：12R22.5,12pcs			（11）8Kg*2pcs fire extinguiser with boxes			(17) 3M reflective sticker
		（6）Rim：Steel 9.00*22.5,12pcs			（12）Aluminum side fender and mud guard			(18) Relay valve: WABCO

Product Advantages

Anti-fracture

National patented T-shaped beam, bearing capacity and torsion resistance are 3-5times that of traditional L-shaped longitudinal beam.

Anti-damage

ASME standard carbon steel tank body, One-time forming anti-wave board, absorb the impact of liquid, without welding, no cracking, and better stability

Anti-vibration

U-shaped connection between tank body and chassis is more stable and firmer than direct bolt connection.

Anti-leakage

Robot welding+patented Tooling fixture, the quality and strength of the weld are higher than that of the cylinder plate.

Anti-rollover

The center of gravity of the body and chassis is 5-10cm lower than that of peer manufacturers, the tank is lighter, and the safety and anti-rollover ability is stronger.

Packing & Shipping

We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers and trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.

Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, or customized packing as your request.
Professional goods shipping forwarder.

Our Service

1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3. Lifelong Parts Supports.
4. Engineer available service oversea.

Advantage of Choose Us

Certificates

The company has passed ISM/ASME/EMARK/ADR certification, rated by state as high-tech enterprise. And obtained more than 60 national patents.

Factory scale

Shengrun company since 1983, covers an area of 530 acres, two major production areas of east and west,total assets of 460 million yuan, more than 1,300 employees, including more than 260 professional operation and technical personnel.

Qualification

Shandong Shengrun automobile Co.,Ltd. is a special vehicle and semi-trailer announcement management enterprise approved by the ministry of industry and information technology.

Equipment

With domestic and international advanced production lines and modern Tooling and inspection and testing equipment more than 1000 sets, thus ensuring quality products quality.
