Двухъядерный процессор с низким энергопотреблением беспроводная плата для разработки Wi-Fi модулей Интернета вещей ESP-WROOM-32
- Категория: Системы разработки и IoT продукты >>>
- Поставщик: Shenzhen,Tianqisheng,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.91 $* | 0.54 $* |
| Aug-16-2025 | 0.51 $* | 0.47 $* |
| Jul-16-2025 | 0.5 $* | 0.45 $* |
| Jun-16-2025 | 0.72 $* | 0.71 $* |
| May-16-2025 | 0.68 $* | 0.51 $* |
| Apr-16-2025 | 0.54 $* | 0.6 $* |
| Mar-16-2025 | 0.17 $* | 0.5 $* |
| Feb-16-2025 | 0.62 $* | 0.35 $* |
| Jan-16-2025 | 0.51 $* | 0.72 $* |
Характеристики
You may also like
Product Details

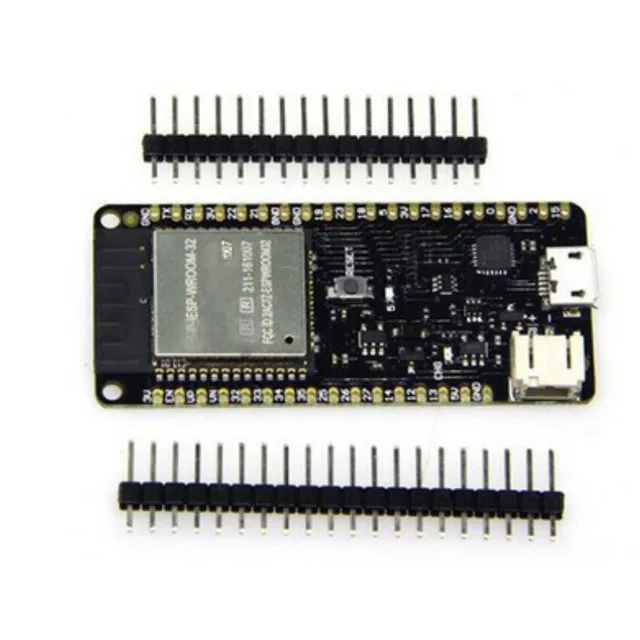

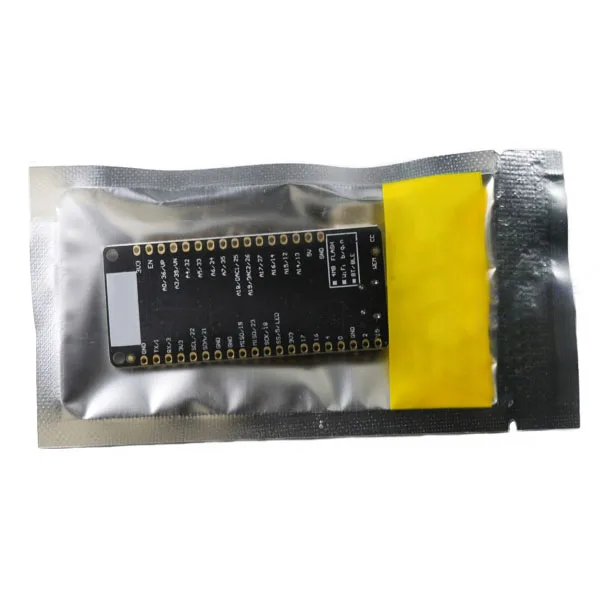

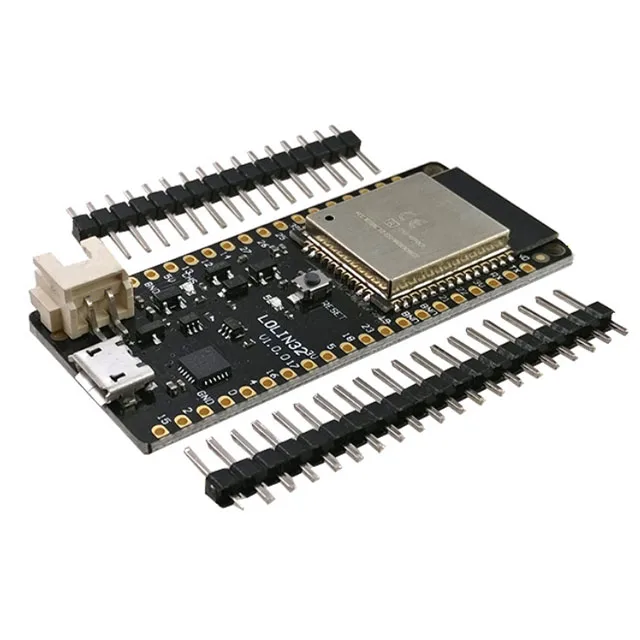

D1 LOLIN32 V1.0.0 ESP32 | ||
Features | ||
Wireless Internet access | ||
4 MB flash memory | ||
Lithium battery interface, 500mA maximum charging current | ||
Package | ||
16 p needles x1pcs | ||
X1pcs 20 p a needle | ||
2.WEMOS x1pcs | ||
ESP-WROOM-32 ESP-32S | ||
ESP32 incorporates antenna switches, RF BALUN, power amplifiers, low noise amplifiers, filters and power management modules, with the entire solution taking up the least amount of printed circuit board area. 2.4 GHz Wi-Fi plus dual mode chip TSMC low power 40nm technology, power consumption performance and rf performance, safe and reliable, easy to expand to various applications. | ||
ESP-32S | ||
ESP32 incorporates antenna switches, RF BALUN, power amplifiers, low noise amplifiers, filters and power management modules, with the entire solution taking up the least amount of printed circuit board area. 2.4 GHz Wi-Fi plus dual mode chip TSMC low power consumption 40nm technology, power consumption and rf performance is the best, safe and reliable, easy to expand to various applications. Feature High cost performance Small volume. Easy to embed into any product Powerful features, support LWIP protocol, Freertos Supports three modes: AP,STA, and AP+STA co-existence mode Lua programming, make your development easier | ||

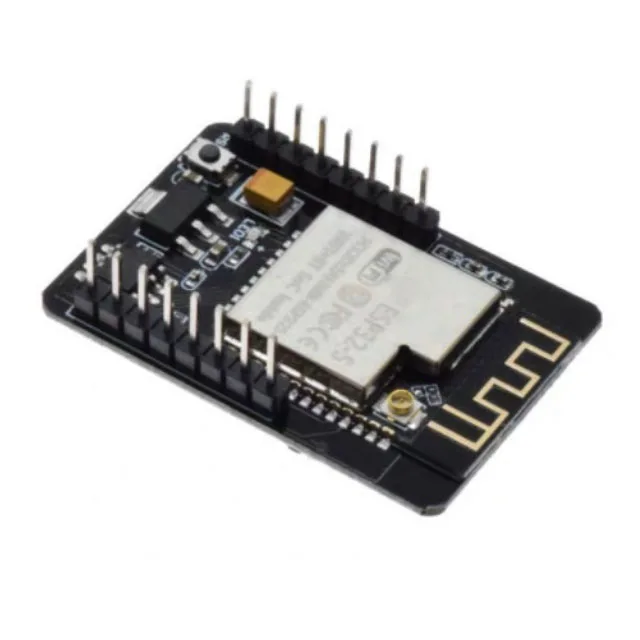

ESP32-CAM With OV2640 | ||
Features: - Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module - Low-power dual-core 32-bit CPU for application processors - Up to 240MHz, up to 600 DMIPS - Built-in 520 KB SRAM, external 4M PSRAM - Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC - Support OV2640 and OV7670 cameras with built-in flash - Support for images WiFI upload -Support TF card - Support multiple sleep modes - Embedded Lwip and FreeRTOS - Support STA/AP/STA+AP working mode - Support Smart Config/AirKiss One-click distribution network - Support for serial local upgrade and remote firmware upgrade (FOTA) Description: The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 27*40.5*4.5mm, with deep sleep current and a minimum of 6mA. ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications. ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals. Note: This product contains the OV2640 Camera Module. If you need to use the OV7670 camera, please purchase it separately. Package Included: 1 x ESP32-CAM Module 1 x Camera Module OV2640 | ||
ESP32 18650 OLED | ||
Product features ESP 32 Latest ESP version 32: Rev1 WiFi 4MB pSRAM 4 MB flash memory 3 d antenna Lola Product description Operating voltage: 1.8-3.7V Acceptable current: 10~14 mA Transmitting current: 120 mA@+20 dBm 90 mA@+17 dBm 29 mA@+13 dBm Operating frequency: 433/470 MHz(433 HMz version)/868m/ 915m (868 MHz version) Transmitting power: +20 dBm Reception sensitivity: -139 -136 dBm@Lora&125 Khz&SF=12&293 bps -118 dBm@Lora&125 Khz&SF=6&9380 bps - 123 dBm @ FSK & 5 Khz & 1.2 Kbps Frequency error: +/-15 kHz FIFO space: 64 bytes Data rate: 1.2K ~ 300kbps @FSK 0.018 K ~ 37.5 Kbps @ Lora Modulation mode: FSK, GFSK, MSK, GMSK, Lora TM, OOK Interface form: SPI Sleep current: 0.2uA@ sleep 1.5 uA @ free Operating temperature: -40℃-+85℃ Digital RSSI function Automatic frequency correction Automatic gain control Low pressure test Fast wake-up and frequency hopping Highly configurable packet handler Global positioning system GPS module NEO-6m, 3V-5V power universal Preset module with ceramic antenna, super signal Save the configuration parameter data EEPROM Backup battery with data There are LED signal indicators Default Baud rate: 9600 OLED description 1. Size: 0.96 inches 2. High resolution: 128*64 Color: white 4. Perspective: >160° Driver IC: SSD 1306.Driver IC: SSD 1306 6. Operating temperature: -30℃~80℃ 7. Module size (generous) : 27.0mm * 27.0mm *4.1mm 8. Support a variety of control chips: fully compatible with Arduino, 51 series, MSP 430 series, STM 32/2, CSR chips, etc (Lots of routines for reference) Wide voltage support: without any modification, direct support 3.3V~5V DC power supply 10. Ultra-low power consumption: normal operation: 0.04W 11. Minimum IO port occupancy display: IIC communication, as long as two IO ports | ||
ESP32-CAM/ESP32-CAM+CP2102
CPU ROM | ESP32, Xtensa® 32-bit LX6dual core processor, up to 600 DMIPS 448 kByte |
520 KByte SRAM RTC 16 KByte SRAM | |
IO | 9 |
Package | DIP-16 |
Storage | SPI Flash 32Mbit； 520KB SRAM+4M PSRAM |
Support interface | UART、SPk I2C、PWM |
Support TF card | up to 4G |
Serial rate | 115200 bps by default |
Image output format | JPEG (OV2640 only), BMP, grayscale |
Spectrum range | 2412~2484MHz |
WiFi 802.11 | B / g / N / D / E / I / K / R (802.1 in, up to 150 Mbps) A-MPDU and A-MSDU aggregation, supporting 0.4 |
S protection interval 2.4 ~ 2.5 GHz | |
v4.2 br / EDR and ble standards, nzif receiver with - 98 DBM sensitivity, class-1, class-2 and class-3 | |
Transmitter, support AFH (frequency modulation adaptive), support CVSD and SBC audio format | |
Supply voltage | 5V 2A |
Size | 27,40.5*45（±0.2）mm |

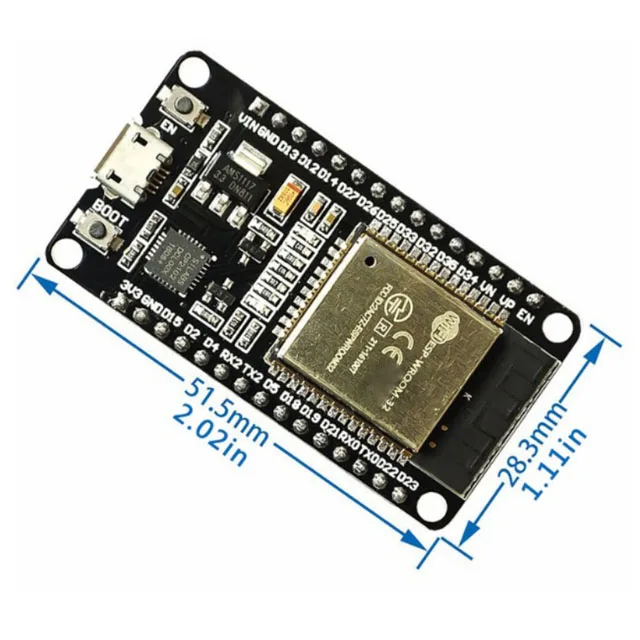

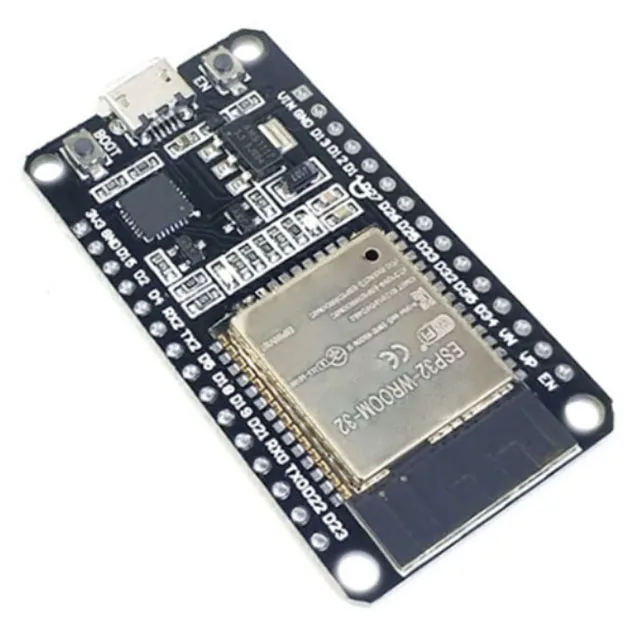

ESP32 | ||
Feature 2. Automatic download is supported without manual switching between download and operation modes. 3. Gold sinking process 4. Support development on Windows systems (Cygwin and MSYS32 simulation environments) and Linux systems 5. Support ESP32 - Arduino Description Esp-wroom-32 is a versatile and powerful Wi-Fi+BT+BLE MCU module that can be used for low-power sensor networks and demanding tasks such as speech encoding, audio streaming and MP3 decoding. At the heart of the module is the ESP32-D0WDQ6 chip *, which is extensible and adaptive. The two CPU cores can be individually controlled or powered on. The clock frequency is adjustable from 80 MHz to 240 MHz. The user can cut off the CPU power and use the low-power coprocessor to constantly monitor the state change of the peripheral or whether some analog quantity exceeds the threshold. ESP32 also incorporates a wealth of peripherals, including capacitive touch sensors, Hall sensors, low noise sensor amplifiers, SD card interfaces, Ethernet interfaces, high-speed SDIO/SPI, UART, I2S and I2C. CPU And Memory Esp32-d0wdq6 comes with two low-power Xtensa® 32-bit LX6 MCU built-in. On-chip storage includes: • 448 KB OF ROM for program startup and kernel function calls. • 52 for data and instruction storage | ||
