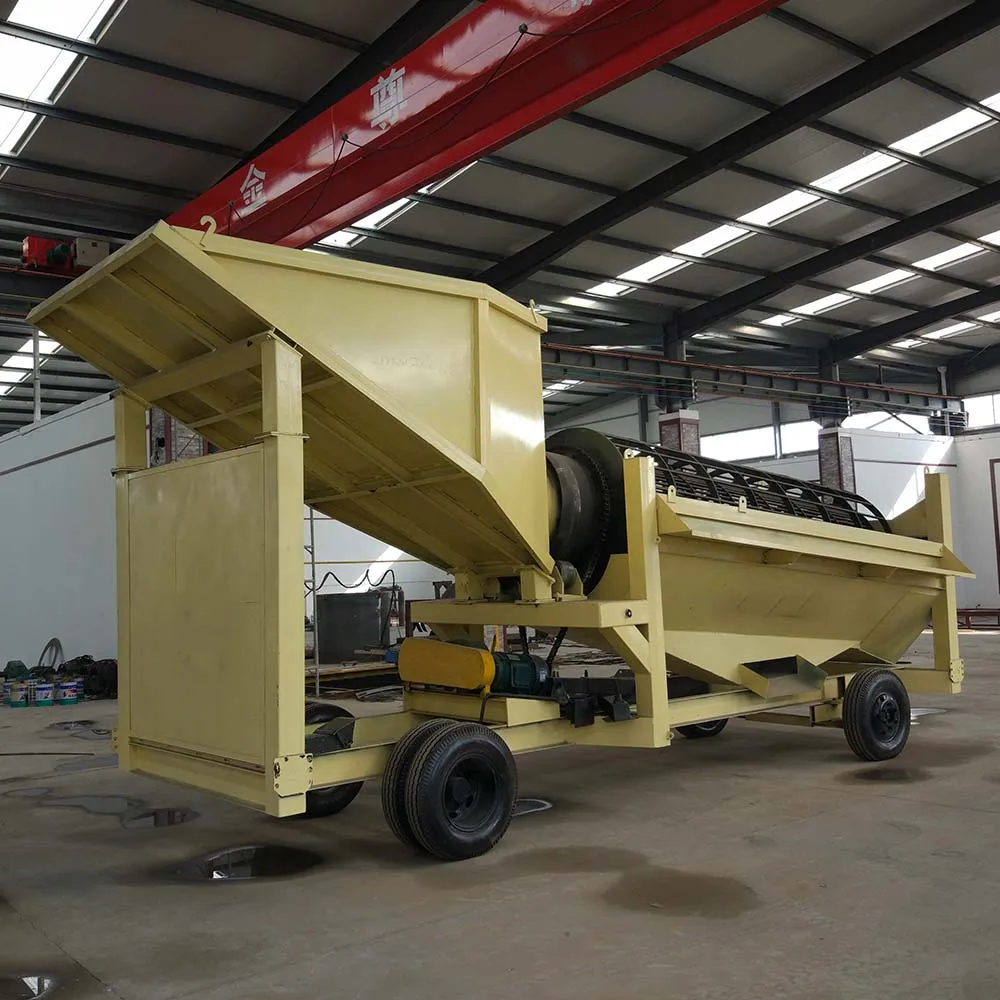

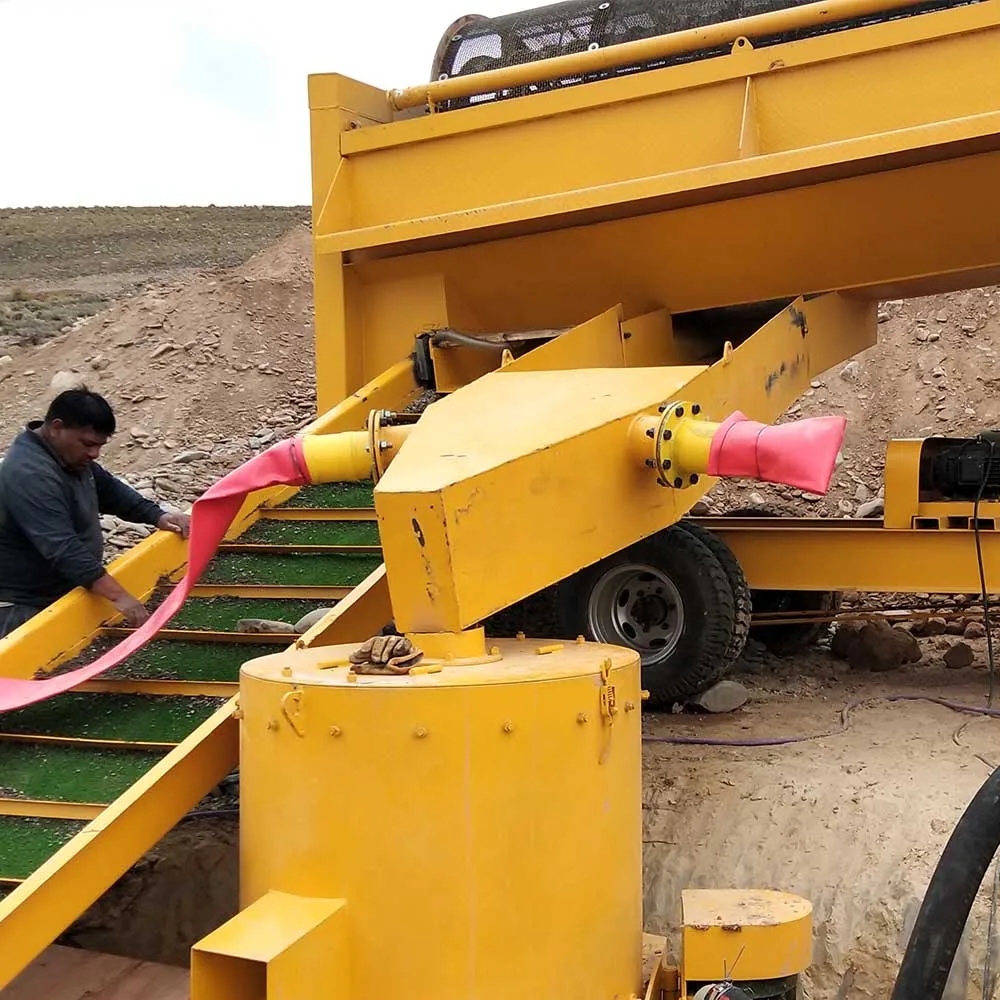

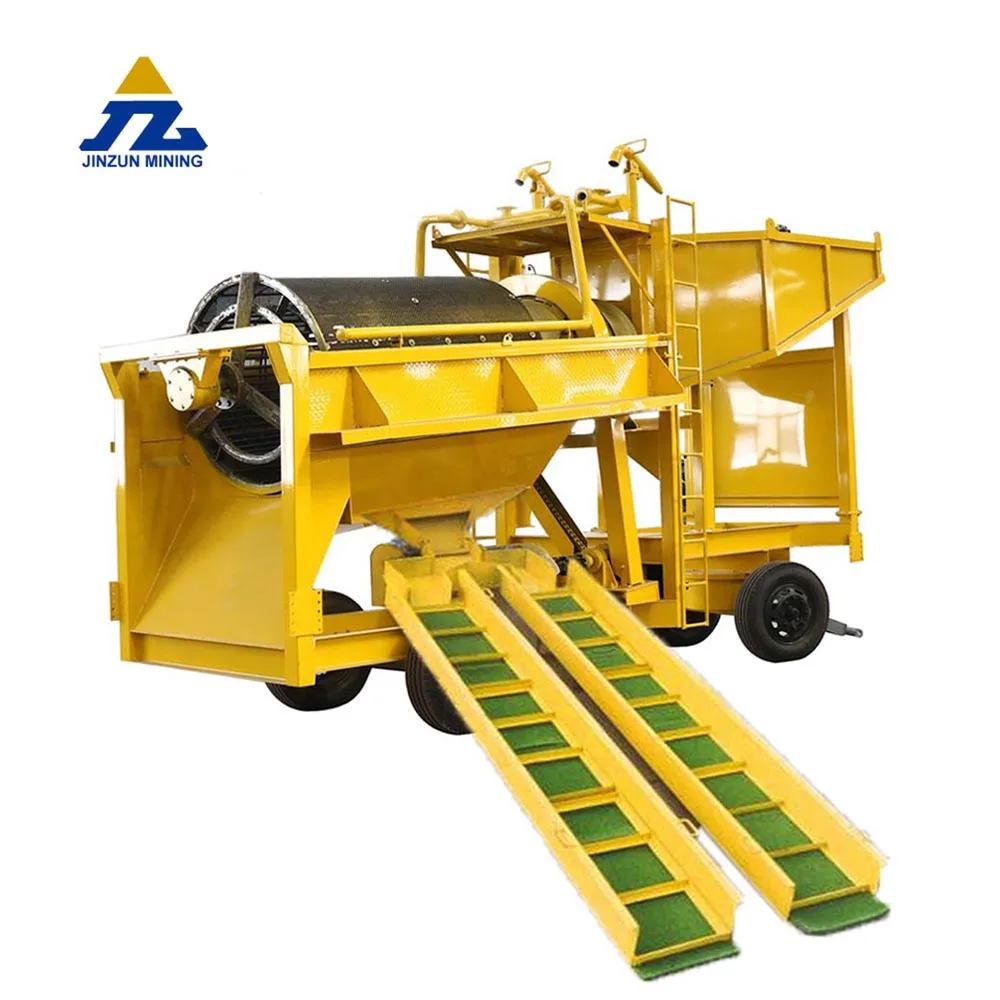

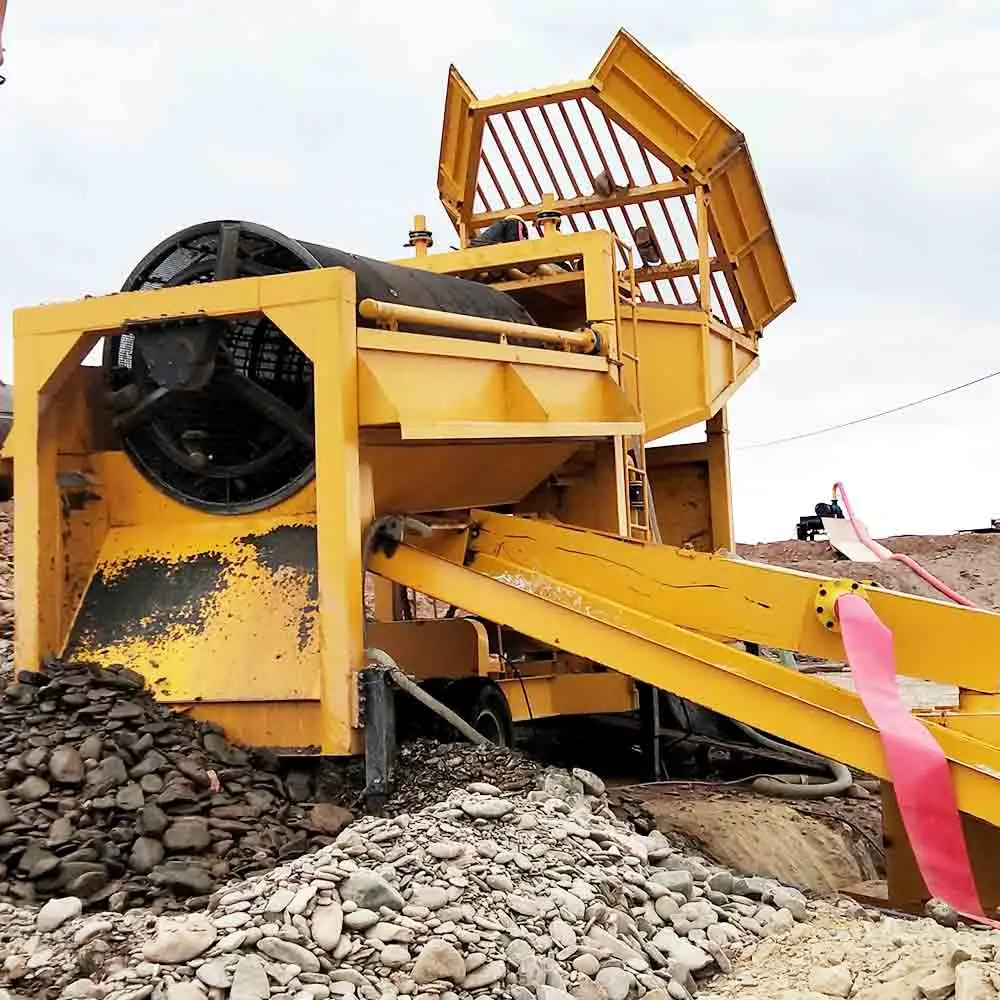

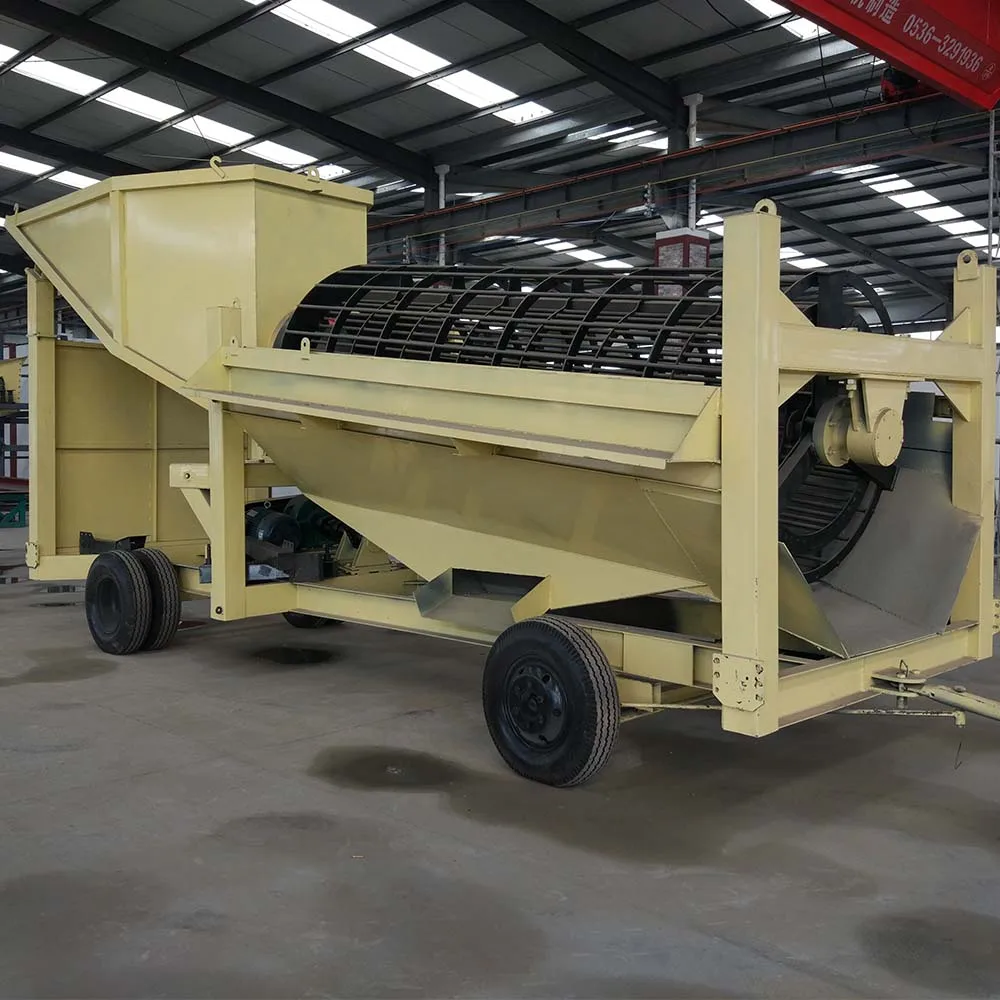

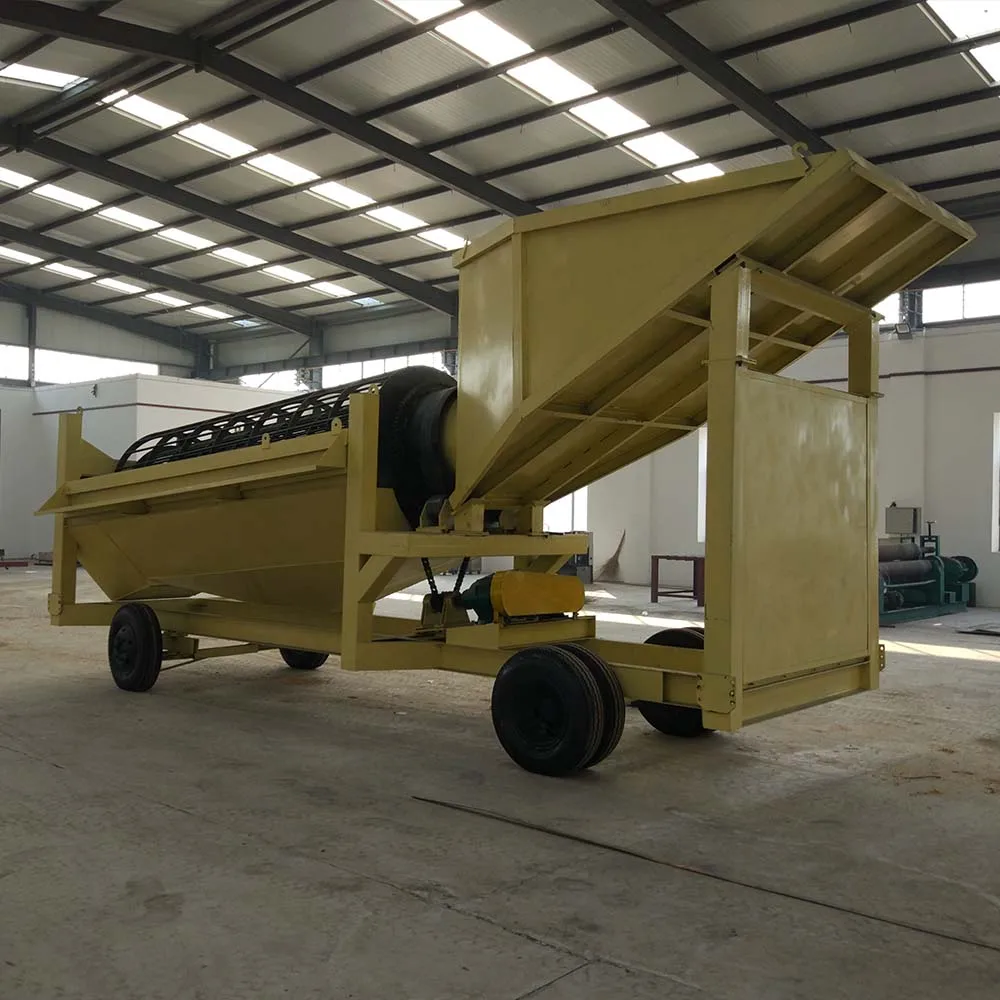

Jinzun Gold diamond trommel screen wash plant mining machinery with sluice box
Product Description
Jinzun Gold diamond trommel screen wash plant mining machinery with sluice box
The mining trommel screen is to filter out the big stones in the original ore and wash away the mud in the original ore.
We offer a variety of models, including mini trommel screen that can be operated by one person for small-scale mines and
heavy-duty washing plant for big-scale mines. We have passed ISO and CE international certification, safety is guaranteed.
heavy-duty washing plant for big-scale mines. We have passed ISO and CE international certification, safety is guaranteed.
operation possible and saves labor cost.
2.--Fixed-type and wheel-type are available according to clients’ requirements.
A).Wheel-type one has steering system which makes the equipment can be moved easily.
B).Fixed-type one is with sled chassis and can be used in beach area for easy moving in case wheels being trapped.
SPECIFICATION OF MINING MACHINERY TROMMEL SCREEN WASH PLANT | ||||||
Model | JZM50 | JZM150 | JZM400 | |||
Size | 7*2*3m | 9.8*3*4m | 15*3.5*5m | |||
Capacity | 50-100 tph | 150-250 tph | 400-450 tph | |||
Power | 24kw | 75kw | 200kw | |||
Feeder Hopper | 2*2.2m | 3.8*3m | 6*4m | |||
Sluice box | 1*2m (2pcs) | 1*6m (3pcs) | 1*6m (7pcs) | |||
Water power | 7.5kw | 45kw | 150kw | |||
Clay Scrubber | 1*2m | 1.3*2.5m | 2*2.5m | |||
Trommel Screen | 1.2*3m | 2*4m | 2*7m | |||
Recovery Rate | 98% | 98% | 98% | |||
This is the basic parameter, we can according to the condition of your mine to specify the exclusive scheme!
1.Feeding System
a. Streamlined design in Feed Hopper guarantees material can go into the equipment and be separated smoothly in case the material accumulates in the feed hopper.
b. Grizzly is equipped on the feed hopper which can separate away the big stone bigger than 80 to 150mm. The use of grizzly reduces
the working pressure and extend the service life.
the working pressure and extend the service life.
2.Screen System
a. Clay Scrubber is to break off hard clay's to increase gold recovery.
b. The double-layer Trommel Screen is made of high manganese steel wire. The support frame for screen is made of 20CrMo which is usually used as oil extraction rod.
b. The double-layer Trommel Screen is made of high manganese steel wire. The support frame for screen is made of 20CrMo which is usually used as oil extraction rod.
The screen is fixed by screws and is easy for screen changing. The screen exchanging period is more than half a year longer than other material’s screen’s 2 to 3 months.
3.Gold Recovery System
a. We designed patented Hydraulic Vibrating Sluice which has a higher recovery rate and not easily damaged.
b. Sluice Box is made of stainless steel. Anti-rust, anti-corrosion, anti-abrasion.Carpet in the sluice is made by Mitsubishi imported from Japan. Durable, double-layer, anti-skid, anti-abrasion, anti-corrosion, high recovery rate up to 99%.
4.Powering system
a. Power System is equipped with trailer for easy moving and its brand could be Weichai, Cummins or other brands required by clients.
b. Power System can be replaced by diesel engine. We always try our best to help clients to save energy and cost.
b. Power System can be replaced by diesel engine. We always try our best to help clients to save energy and cost.
5.Centrifugal Concentrator
We have fully-continuous (Knelson Continuous Variable- Discharge, CVD type) and Semi-continuous(Batch type) centrifugal gold concentrators for you to choose.
Application shows that the recovery can be as high as 99%
6.Shaking Table
The Shaking Table further processes small-sized concentrators form sluices or concentrates.
7.Mercury Amalgamator
With the help of Mercury, to extract all the gold out from the concentrates that recovered by the sluice and concentrators.
Recovery rate: 100%
Recovery rate: 100%
8.Gold Smelting Furnace
Smelting Furnace to smelting the gold sand and make into final product of gold bars.
JINZUN MINING PROCESS
Client Feedback
Madagascar
Surinam
Nigeria
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Qingzhou Jinzun Mining Machinery Co.,Ltd. Is large gold mining service company,Specialized in designing, manufacturing,installing and debugging of gold mining equipment as well as providing flow sheet design and course of training of mining.
Our company was founded in 2015 year as one of the best manufacturer of gold mining equipment in China.Our factory covers an area of 10,000 square meters.Main Products: Gold trommel, centrifugal concentrator, vibrating sluice, clay washer, vibrating screen, gold dredger etc.was well sold both home and abroad. Exported to Russia, Laos, Vietnam, Kazakhstan, Tajikistan, North Korea, the Philippines, Mongolia, Myanmar, Papua New Guinea, Indonesia, Fiji, South Africa, Ghana, Benin, Nigeria, Colombia, Mozambique, Sierra Leone, Cameroon, Brazil, Guyana, Honduras, more than 60 countries and areas.
Our Goal is to provide customers with one-stop service in the field of gold mining, including mineral analysis, processing test, engineering design, equipment production,equipment installation, equipment debugging and technical training etc integrated service, through the provision of our perfect services to solve all customer's problem from his investment to his return.
Our Goal is to provide customers with one-stop service in the field of gold mining, including mineral analysis, processing test, engineering design, equipment production,equipment installation, equipment debugging and technical training etc integrated service, through the provision of our perfect services to solve all customer's problem from his investment to his return.
FAQ
1. Are you factory?
Yes, established in 2002, over 15 years factory
2. How big are you?
In total 6 work shops, 15,000, office 3000, 80 workers
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment
4. Whats the capacity of the gold/diamond mining equipment
from 5TPH to 450TPH
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
Yes, established in 2002, over 15 years factory
2. How big are you?
In total 6 work shops, 15,000, office 3000, 80 workers
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment
4. Whats the capacity of the gold/diamond mining equipment
from 5TPH to 450TPH
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
