Промышленный пылесос DW773P
US $180.00
2020 Новый 11 кВт CE взрывозащищенный промышленный пылеуловитель среднего давления для литиевой батареи
- Категория: Industrial Vacuum Cleaner >>>
- Поставщик: Dongguan,VILLO,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 19992.37 $* | 20992.1 $* |
| Aug-19-2025 | 19824.9 $* | 20815.15 $* |
| Jul-19-2025 | 16632.8 $* | 17464.42 $* |
| Jun-19-2025 | 19488.58 $* | 20462.67 $* |
| May-19-2025 | 16968.81 $* | 17816.69 $* |
| Apr-19-2025 | 19152.93 $* | 20110.84 $* |
| Mar-19-2025 | 18984.17 $* | 19933.34 $* |
| Feb-19-2025 | 18816.44 $* | 19757.39 $* |
| Jan-19-2025 | 18648.61 $* | 19580.91 $* |
Характеристики

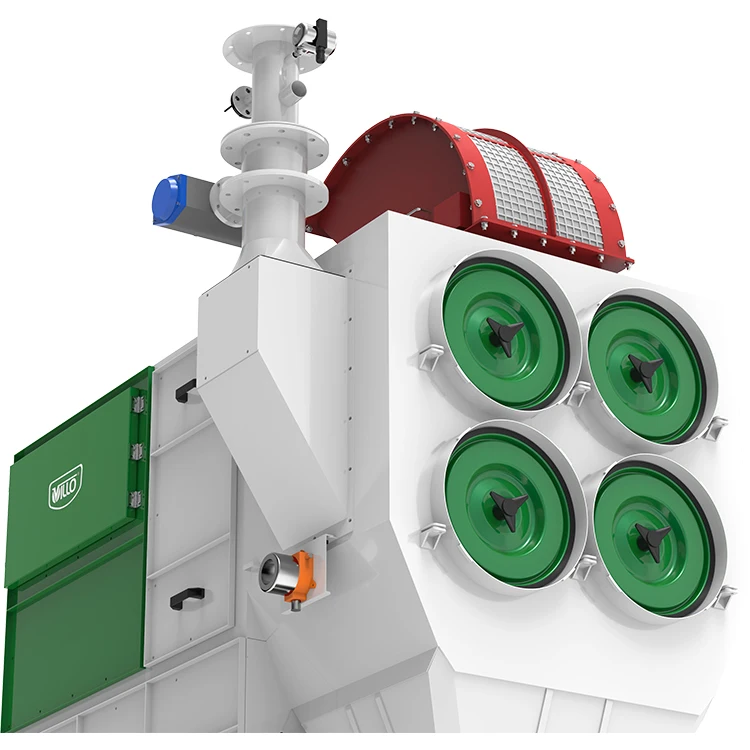

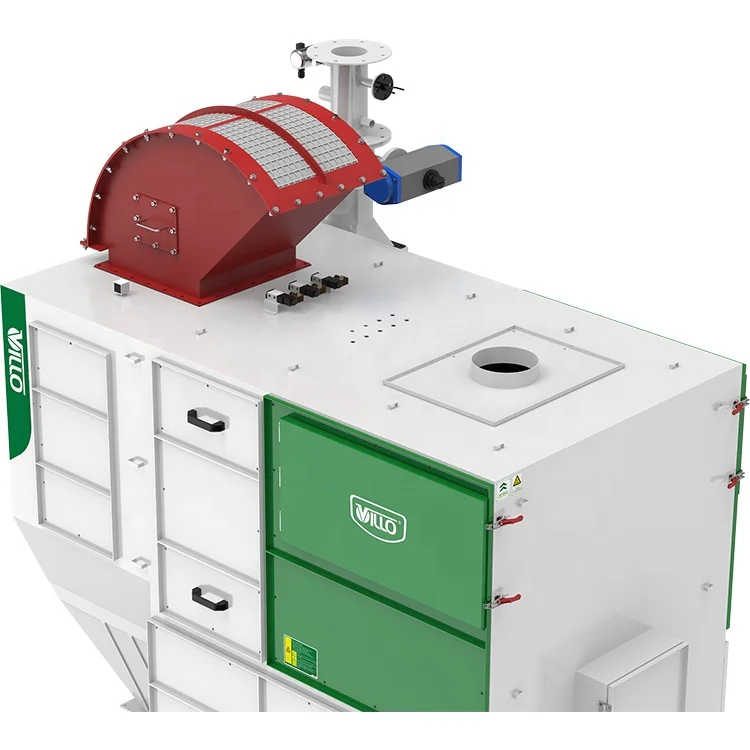

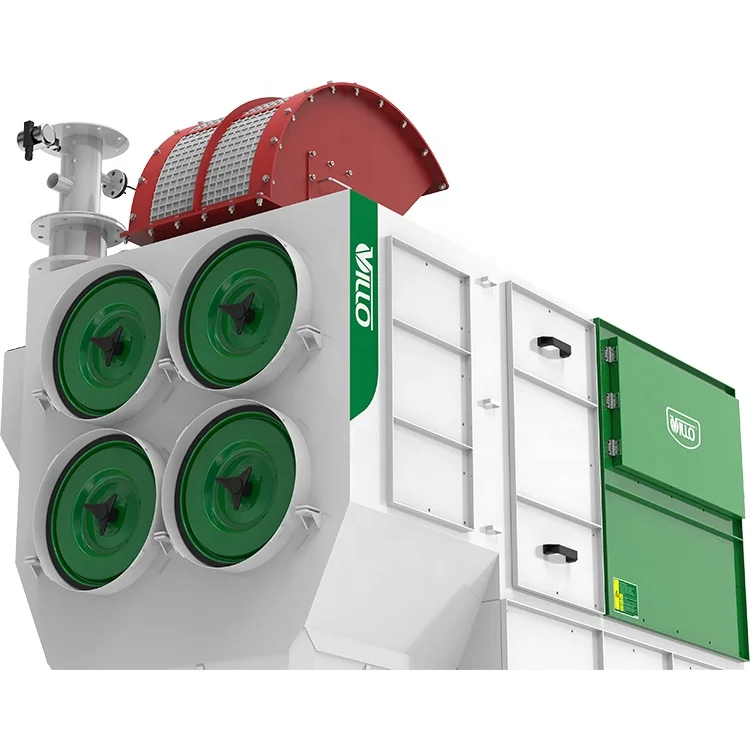

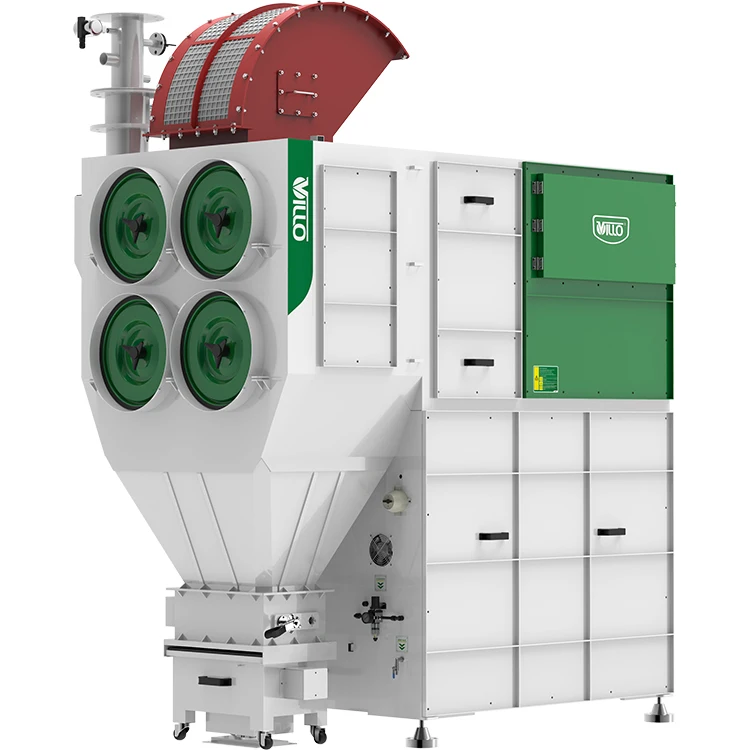

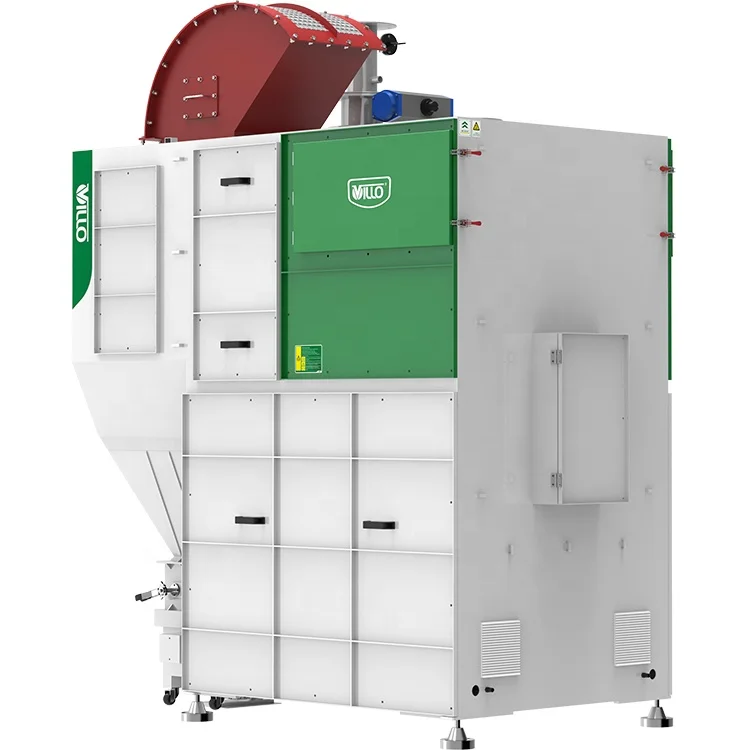

VJFGB Series Moderate High Negative Pressure Explosion Proof Dust Collector (horizontal type)
Product description
VJFGB Series is an explosion-proof industrial dust collector with high negative pressure, pulse jet cleaning, stable structure and small footprint. It meets the explosion-proof requirements in the environment with inflammable and explosive dust.
Applications
It is suitable for process such as mixing, cutting, bagging, grinding, sandblasting, plexiglass processing, vibrating screen, air transportation, packaging operation, etc.
Features
* Conductive material coated on the filter cartridge.
* Safety explosion venting membrane.
* Safety explosion venting membrane.
* Explosion proof motor and electrical control cabinet guarantees the safe running of the machine.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
* Horizontal installation would protect the filter from dust accumulation, which would ultimately increase the filter life, reduce
gasket leaks, and result in better pulse cleaning
gasket leaks, and result in better pulse cleaning

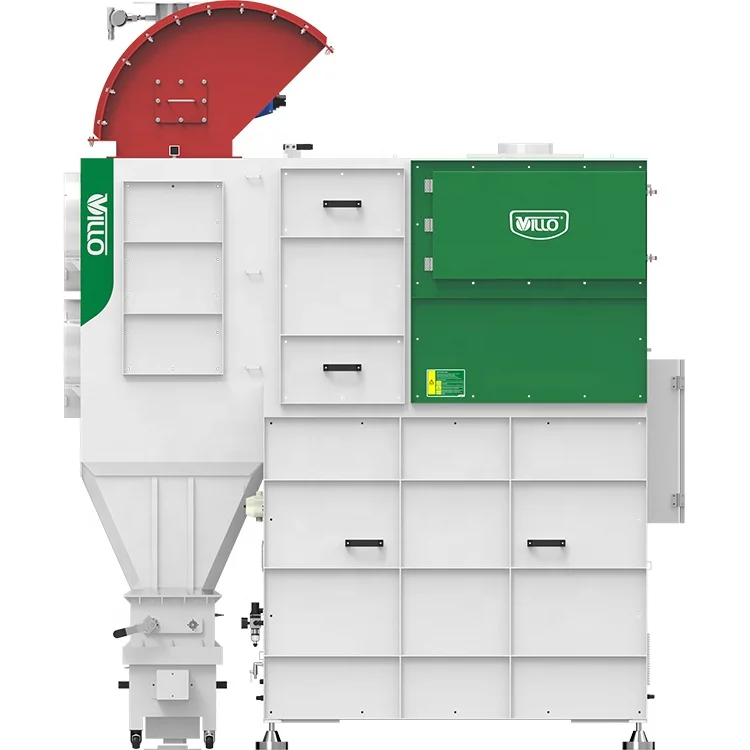

Right elevation
Left elevation
Front elevation
Technology Parameters
Model | VJFGB-1.5 | VJFGB-2.2 | VJFGB -3.7 | VJFGB -5.5 | VJFGB -7.5 | VJFGB-11W | VJFGB-15W | |||||||
Voltage (V/Hz) | 380 / 50 | |||||||||||||
Power (kW) / (HP) | 1.5 / 2.0 | 2.2 / 3.0 | 3.7 / 5.5 | 5.5 / 7.5 | 7.5 / 10 | 11 / 15 | 15 / 20 | |||||||
Starting current (A) | 25 | 40 | 54 | 65 | 95 | 120 | 150 | |||||||
Rated current (A) | 3.5 | 5 | 7.5 | 11.5 | 15.5 | 21.5 | 29.5 | |||||||
Max air flow (m³/h) / (CFM) | 1200 / 706 | 1980 / 1165 | 2880 / 1694 | 3000 / 1765 | 3600 / 2118 | 3900 / 2294 | 5400 / 3176 | |||||||
Max air pressure (Pa) / (mmH₂O) | 2000 / 204 | 2400 / 245 | 3800 / 387 | 4000 / 408 | 4000 / 408 | 5000 / 510 | 5000 / 510 | |||||||
Filter efficiency | 99% | |||||||||||||
Filter area (m²) / (sq.ft) | 11 / 118.5 | 22 / 237 | 22 / 237 | 44 / 474 | 44 / 474 | 44 / 474 | 66 / 710 | |||||||
Filter cleaning method | Pulse jet | |||||||||||||
Dia. air inlet (mm) / (in) | Ø 100 / 4 | Ø 150 / 6 | Ø 200 / 8 | Ø 200 / 8 | Ø 200 / 8 | Ø 250 / 10 | Ø 250 / 10 | |||||||
Dimension [L*W*H] (mm) / (in) | 750*700*1750 / 29.5*27.6*68.9 | 900*800*1850 / 35.5*31.5*72.9 | 900*800*1850 / 35.5*31.5*72.9 | 1000*900*1950 / 39.4*35.5*76.8 | 1000*900*1950 / 39.4*35.5*76.8 | 2460*1405*2610 / 96.9*55.3*102.8 | 2730*1870*2890 / 107.5*73.7*113.8 | |||||||
Anti-explosive level | ExdIIBT4 | |||||||||||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||||||||
Product Configuration
Antistatic cartridge filter
Explosion Proof Motor
Explosion Proof Electrical Box
Optional Configuration
Siemens Inverter
Flameless quench device
Soft Starter
