Newest Design Software Portable 3 Phase Power Quality Analyzer hzcr5000 data logger power quality analyzer



Product Description

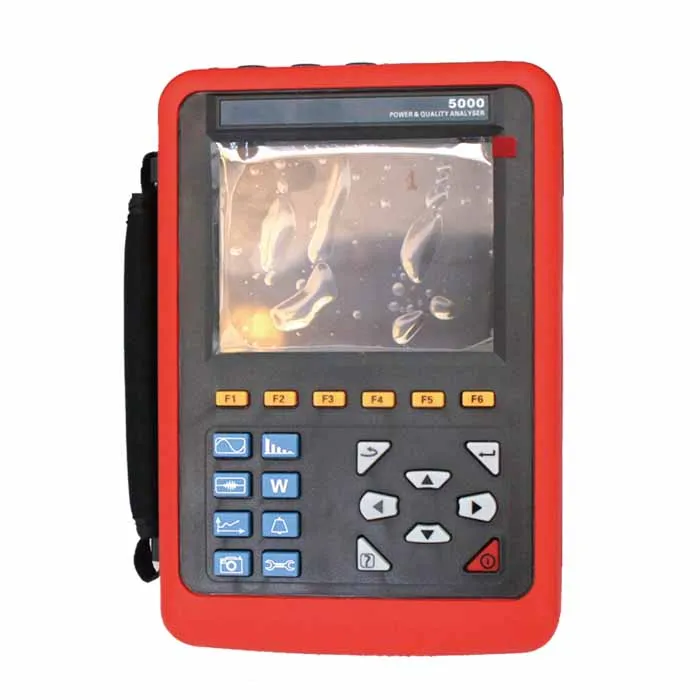

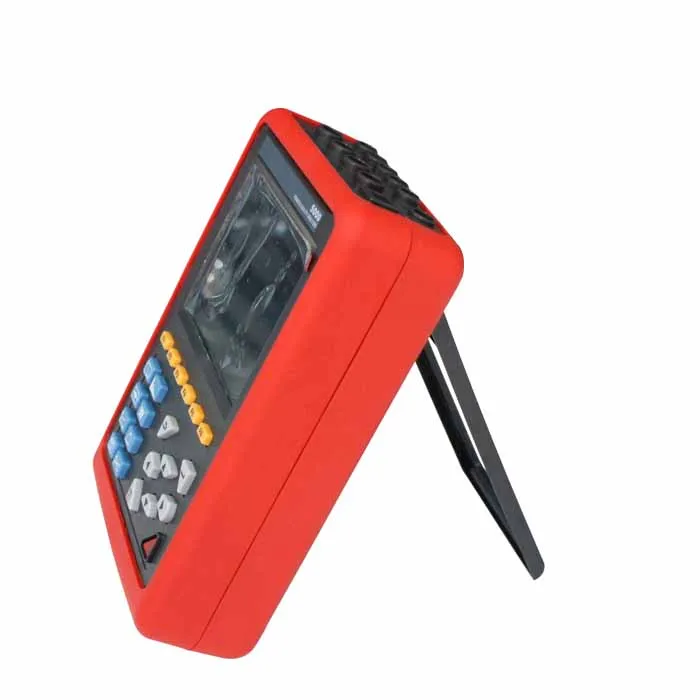

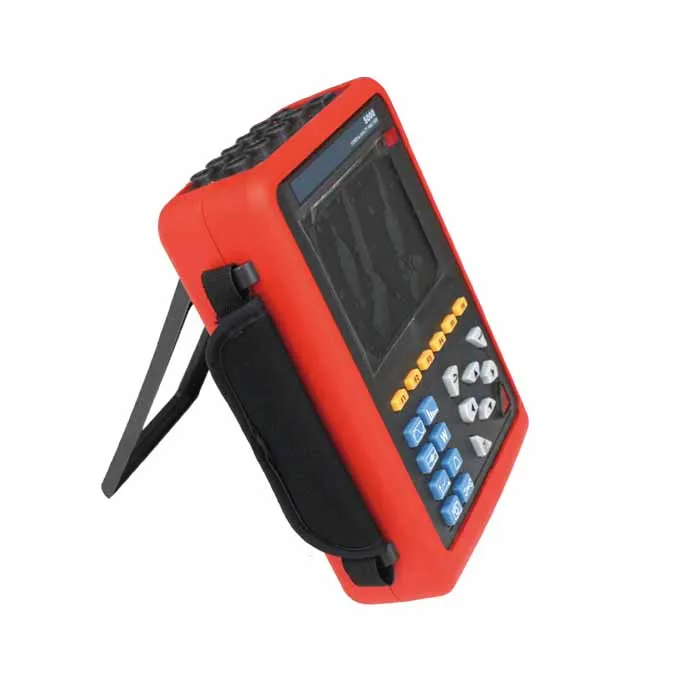

HZCR5000 Power Quality Analyzer is a comprehensive test instrument carefully developed by our company and specially designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on. Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Display real-time waveform, harmonic ratio bar charts of current voltage; Dynamically capture instantaneous change of voltage current, monitoring starting current, monitoring the power parameters and generate the alarm list, generate the trend chart for a long time record test data.








low Price 3 Phase Energy and Power Quality Analyzer HZCR5000 Technical specification


































































































Base condition and working condition



Influence factor


Test item


Base condition


Working condition


Environment temperature


All parameters


(23±2)°C


-10°C~ 40°C


Relative humidity


All parameters


40%~ 60%


<80%


Phase-to-neutral voltage


All parameters


(100±1%)V


1.0V~ 1000V


Phase-to-phase voltage


True RMS phase-to-phase voltage


(200±1%)V


1.0V~ 2000V


Current


True RMS current


(5±1%)A


10mA~ 1000A


Network frequency


All parameters


50Hz±0.1Hz


40Hz~ 70Hz


Phase shift


Active power and active energy


Cosφ=1


Cosφ: 0.2~ 1.0


Reactive power and reactive energy


Sinφ=1


Sinφ: 0.2~ 1.0


Harmonic


All parameters


<0.1%


0.0%~ 100%


Voltage unbalance


All parameters


<10%


0.0%~ 100%


Working voltage of device


All parameters


DC9.8V±0.1V


DC9.5V~ 10.5V


External electric field,

magnetic field


All parameters


Should be avoided


Test position


Measured related parameters of current


Tested wire at the center of clamp.



.jpg





Certification



process.jpg QQ20180531104737.png








Packaging & Shipping



511_05








Our Services


From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.


511_02







Company Information


Xuanzhaotong Electric Manufacturing Co., Ltd is ISO and CE certificated manufacturer ,we are suppliers of State Grid.





We are specialized in transformer oil test set, transformer test set,hipot tester, relay protection tester,underground cable fault locator, and so on. In addition, we also offer transformers with specifications and uses according to clients' requirements.





Our company has carried out a completed management system of production, scientific research and sales service. Our products are widely used in various electric power stations, electric power plants, factories and electric power systems.





Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price,and on-time delivery .
