Сертифицированный Цилиндрический литий-ионный аккумулятор INR 18650 UL2054 2600

Цена:1,85 $ - 2,15 $*

Количество:

UL2054 Certification Cylindrical INR 18650 li ion battery 2600mAh

18650 li ion battery

18650 lithium ion battery

Rechargeable 3.7V li ion battery

NO.	Item	Specifications
4.1	Nominal capacity	2600mAh 0.2C Discharge
4.1	min capacity	2500mAh 0.2C Discharge
4.2	Nominal voltage	3.7V
4.3	Charge current	Standard Charge :0.5C
4.4	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.01C
4.5	Charging time	Standard Charging Approx 5 hours Approx 2 .5hours
4.6	Max.charge current	Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off
4.7	Max.discharge current	Constant current 1.0C5A end voltage3.0V
4.8	Standard Discharge Current	Constant current 0.2 C5A end voltage3.0V
4.9	Discharge cut-off voltage	3.0V
4.10	Charge cut-off Voltage	4.2V
4.11	Initial Impedance	≤100mW
4.12	Weight	Approx:53g
4.13	Operating temperature	Charging: 0℃~45℃ Discharging:-20℃~60℃
4.14	Storage temperature	-5℃~35℃
4.15	Storage Humidity	≤75% RH
4.16	Appearance	Without scratch,distortion,contamination and leakage

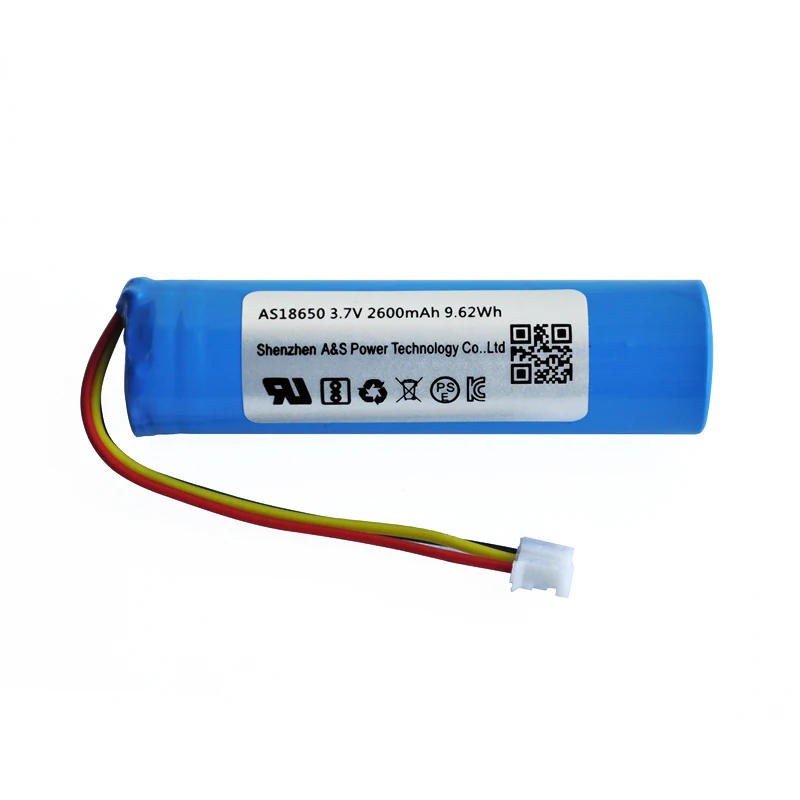

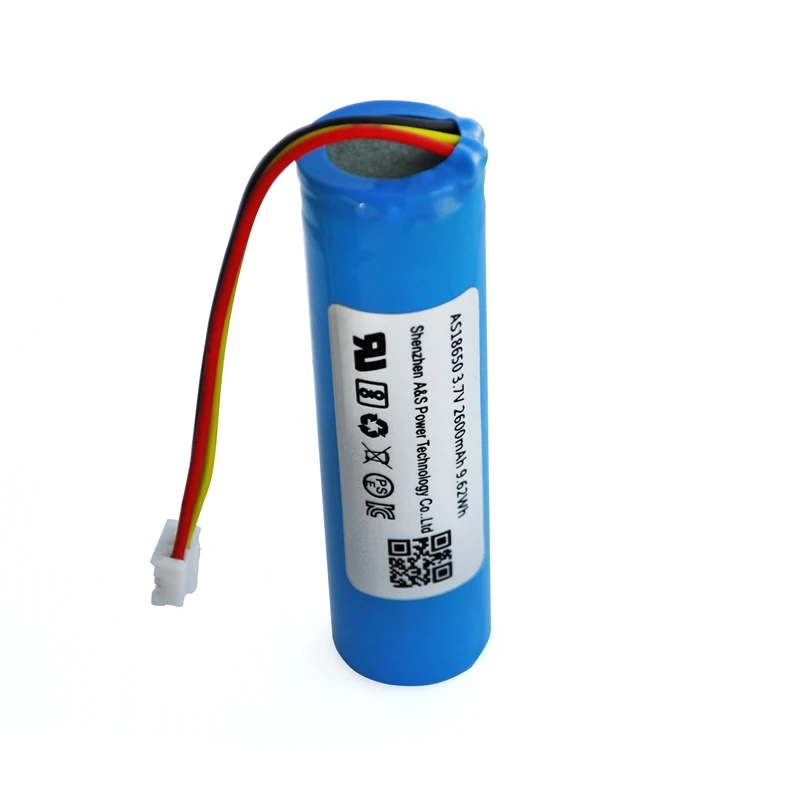

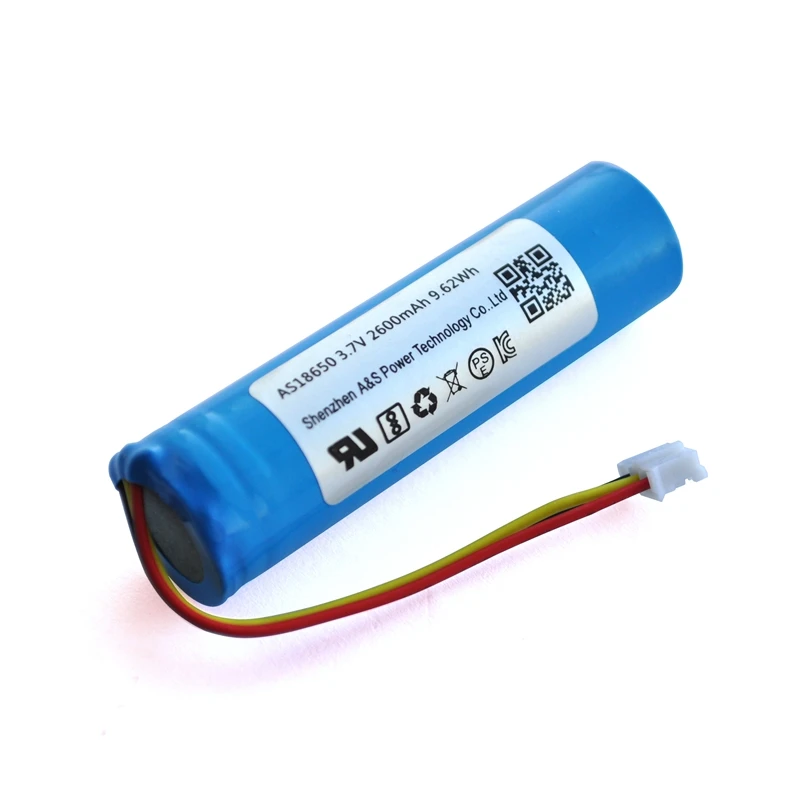

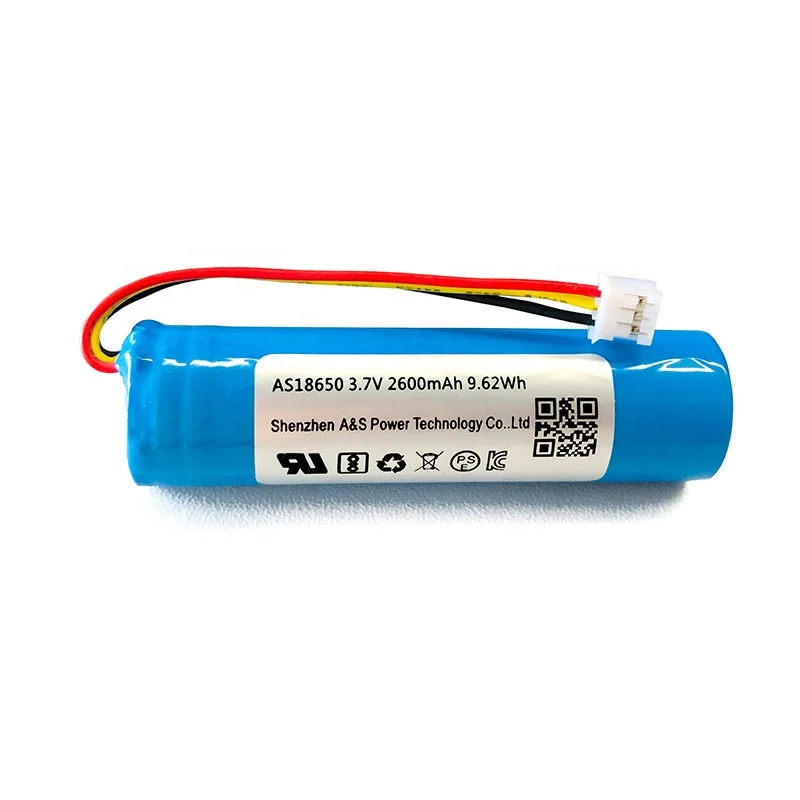

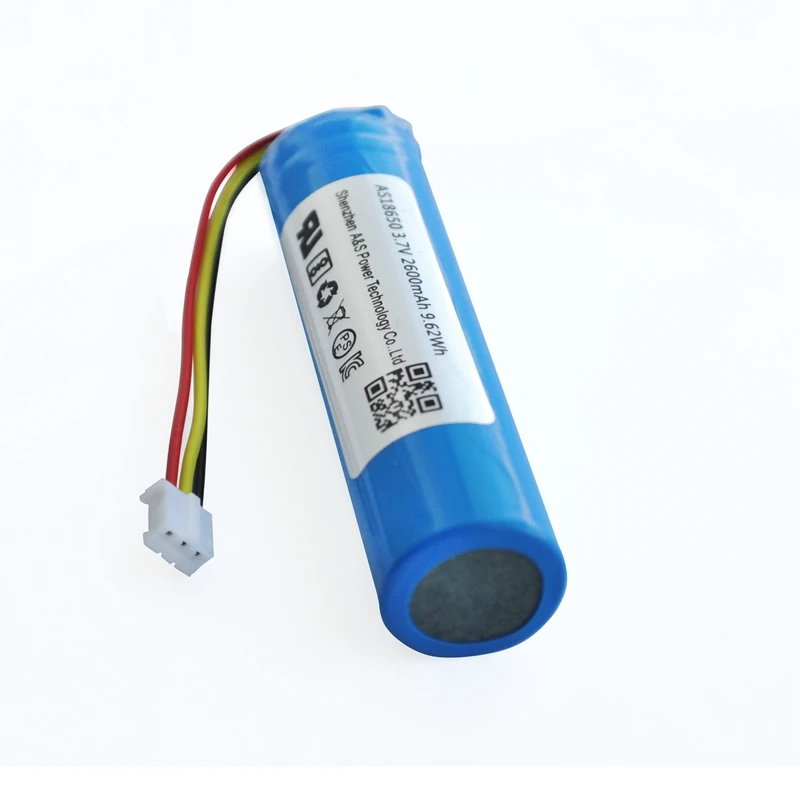

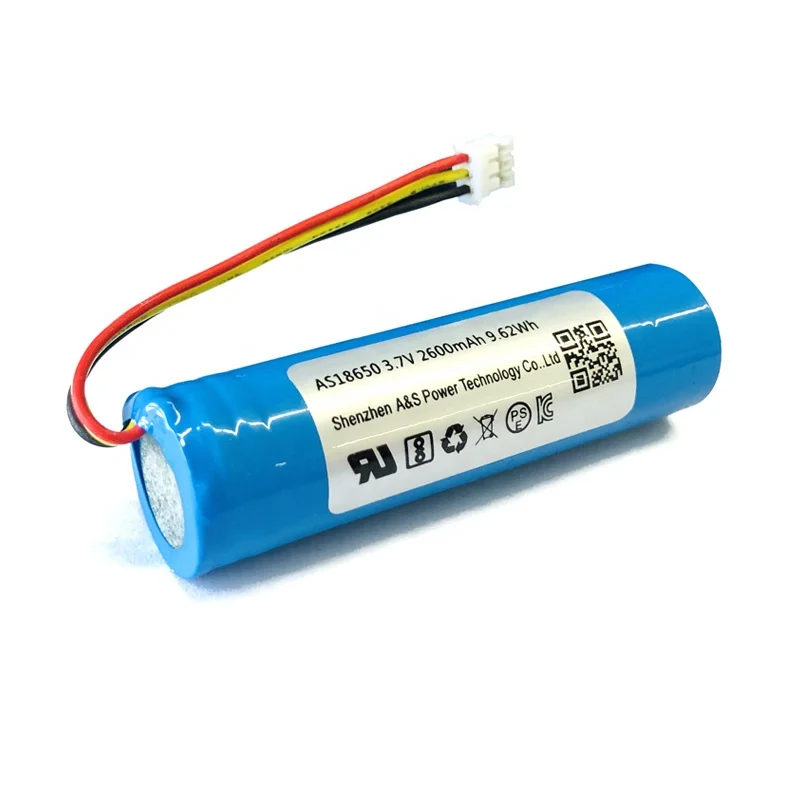

Product show

18650 2600mah 3.7V .jpg

Product Description

product display.jpg

wire connector

Model	Nominal voltage(V)	Capacity (mAh)	Max charge voltage(V)	Cut-off discharge voltage(V)	Max continuous discharge currnt(C)	Diameter φ ( mm)	Height (mm)	Weight (approx)(g)
AS-ICR18650	3.7	2000	4.25	2.75	3C	18	65	43.5
AS-ICR18650	3.7	2200	4.25	2.75	3C	18	65	45
AS-ICR18650	3.7	2500	4.25	2.75	3C	18	65	45.5
AS-ICR18650	3.7	2600	4.25	2.75	3C	18	65	46

Send inquiry and get a sample >>

Application


Mobile phones, tablets, Bluetooth headsets, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, LED lights, quadcopters, drones ,etc.

E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.

Tips: If you see our products and have questions about the products, please contact our account manager to send your specific needs, such as voltage, capacity, shape, size, working current, etc. We can customize and meet your needs according to your needs. The best lithium battery matched by the equipment, we are very happy to provide you with test samples, and will reply you as soon as possible, thank you!
