Производитель CNP CDL200 60 Гц вертикальный многоступенчатый центробежный электрический водяной насос высокого
- Категория: Pumps >>>
- Поставщик: Tiger,(hangzhou),Flow,Systems,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.47 $* | 0.52 $* |
| Aug-18-2025 | 0.9 $* | 0.90 $* |
| Jul-18-2025 | 0.76 $* | 0.16 $* |
| Jun-18-2025 | 0.67 $* | 0.15 $* |
| May-18-2025 | 0.45 $* | 0.4 $* |
| Apr-18-2025 | 0.80 $* | 0.92 $* |
| Mar-18-2025 | 0.44 $* | 0.50 $* |
| Feb-18-2025 | 0.16 $* | 0.56 $* |
| Jan-18-2025 | 0.42 $* | 0.35 $* |
Характеристики
Recommend Products
Product Description

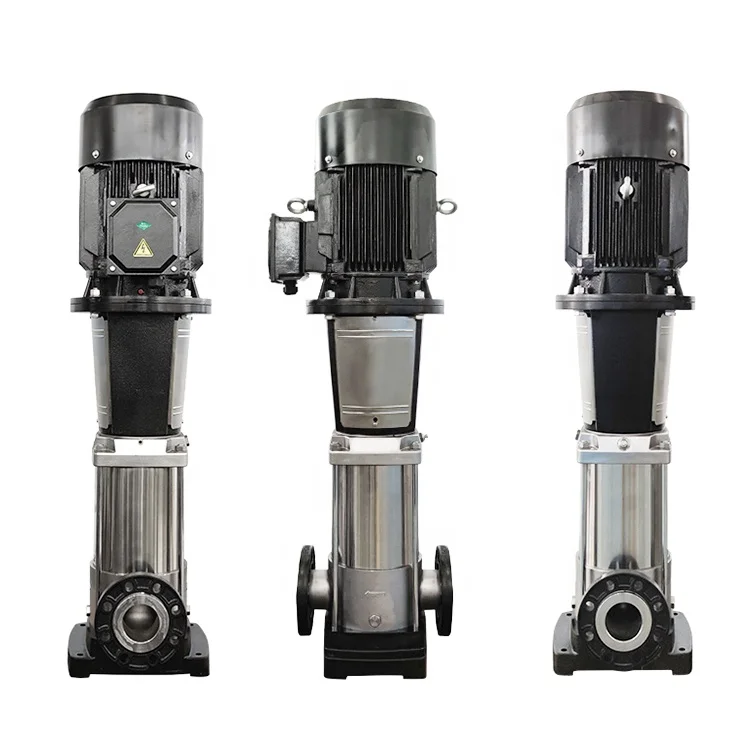

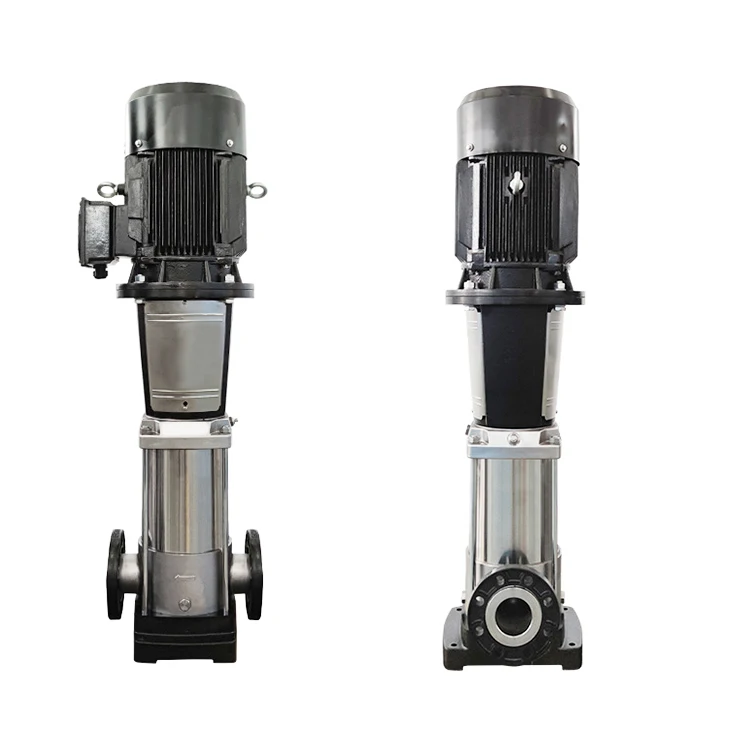

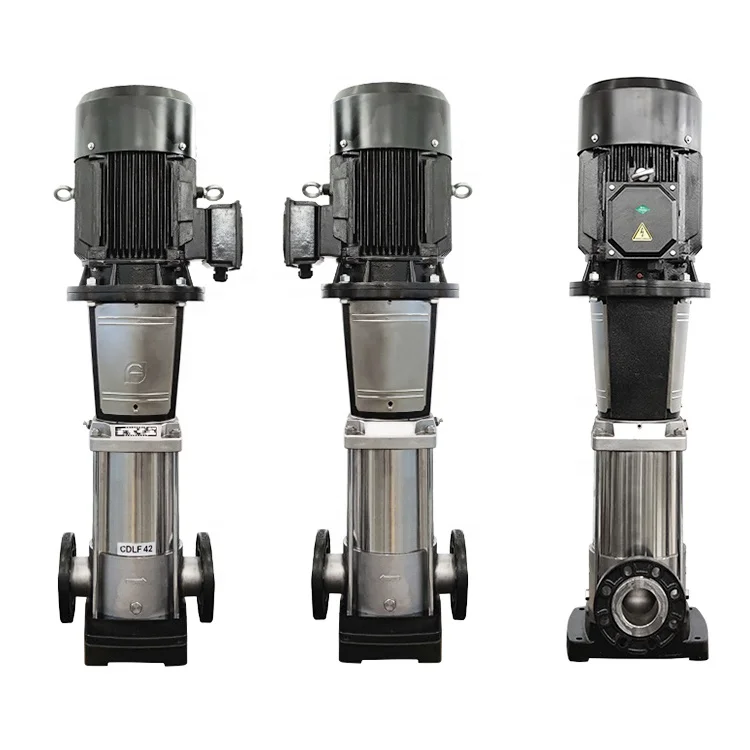

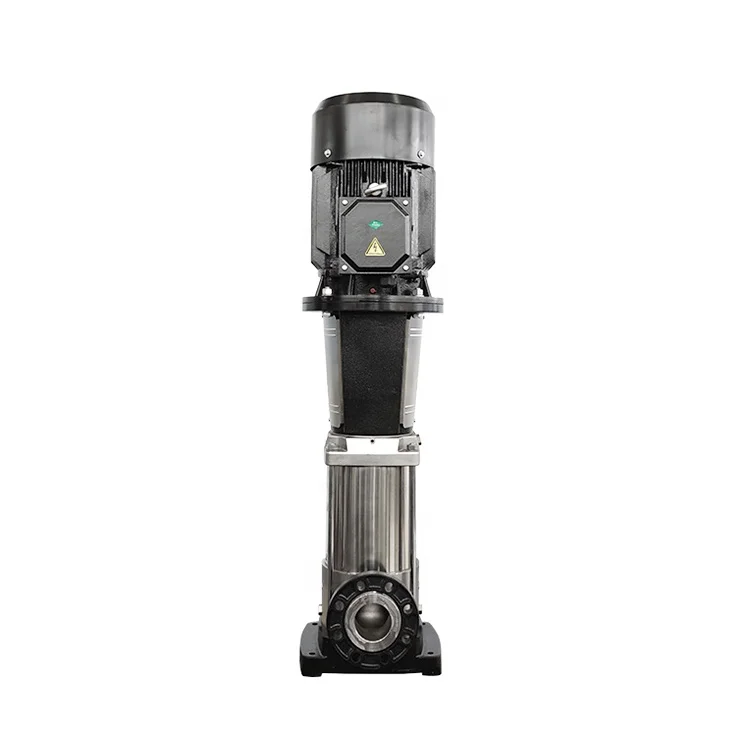

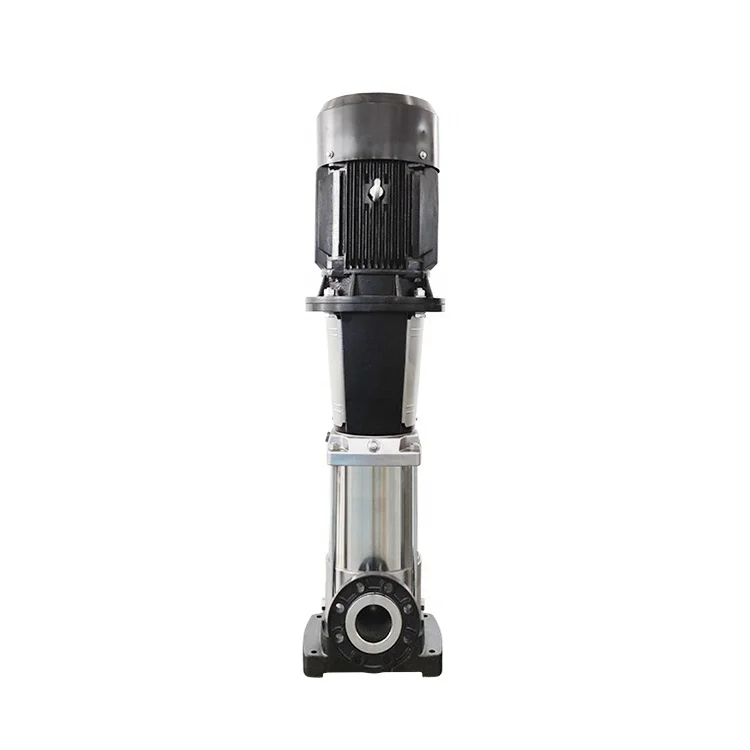

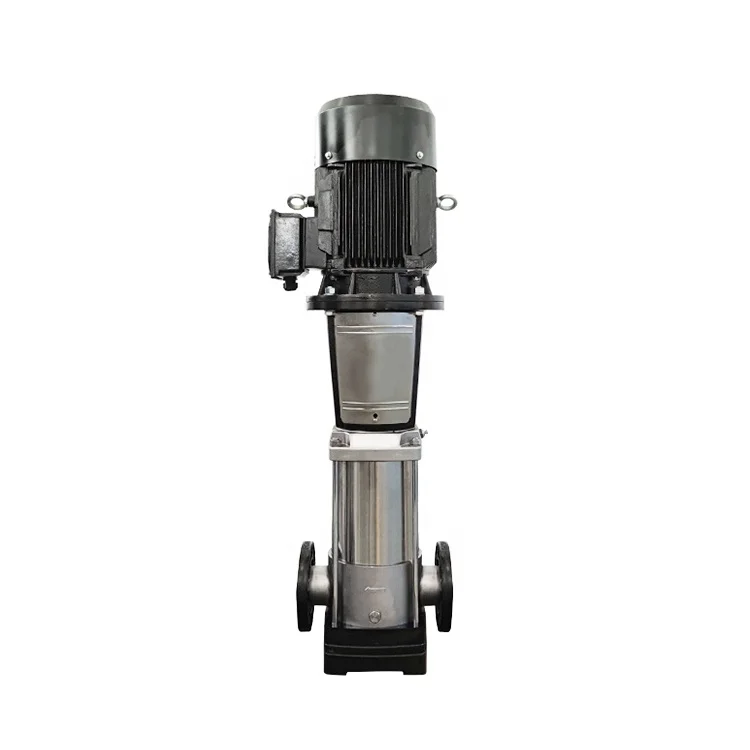

Product name | Manufacturer CNP CDL200 60HZ High Pressure Vertical Multistage Centrifugal Electric Water Pump |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description
Motor
Full-enclosed air-blast two-pole standard motor
Protection class: IP 55
Insulation class: F
Standard voltage: 60Hz: 3×200-230/346-400V
3×220-255/380-440V
3×220-277/380-480V
Operation conditions
Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
Liquid temperature: Normal temperature type: -15℃~+70℃，
Hot water type: -15℃~+120℃
Ambient temperature: up to+40℃
Altitude: up to1000m
Full-enclosed air-blast two-pole standard motor
Protection class: IP 55
Insulation class: F
Standard voltage: 60Hz: 3×200-230/346-400V
3×220-255/380-440V
3×220-277/380-480V
Operation conditions
Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
Liquid temperature: Normal temperature type: -15℃~+70℃，
Hot water type: -15℃~+120℃
Ambient temperature: up to+40℃
Altitude: up to1000m
Material
NO | Name | Material | ANSI/ASTM | |||
1 | Motor | |||||
2 | Pump Head | Cast Iron | ASTM25B | |||
3 | Discharge diffuser | |||||
4 | Top Diffuser | Stainless Steel | AISI 304 | |||
5 | Diffuser | Stainless Steel | AISI 304 | |||
6 | Support Diffuser | Stainless Steel | AISI 304 | |||
7 | Inducer | Stainless Steel | AISI 304 | |||
8 | Bearing | Tungsten Carbide | ||||
9 | Impeller | Stainless Steel | AISI 304 | |||
10 | Shaft | Stainless Steel | AISI304/316L | |||
11 | Impeller Sleeve | Stainless Steel | AISI 304 | |||
12 | Cylinder | Stainless Steel | AISI 304 | |||
13 | Coupling | Carbon Steel | AISI 304 | |||
CDLF | Submersible motor | |||||
15 | Sea Base | Stainless Steel | AISI 304 | |||
16 | Inlet&Outlet Chamber | Stainless Steel | AISI 304 | |||
17 | Base Plate | Cast Iron | ASTM25B | |||
CDL | ||||||
18 | Inlet&Outlet Chamber | Cast Iron | ASTM25B | |||
Performance Table
Product Categories
Company Profile
Packing & Shipping
FAQ
Q1: How can I get a price quote?
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Q2:May I get a cheaper price?
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB shanghai.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
Q7:How long to deliver the products?
Answer: The exact delivery date need to depend on your ordered quality and quantity. Usually Small orders will be shipped within 14days after received the full payment. Large orders will be shipped within 35-40days after received 30% balance payment.
Q8: Can I visit your factory before ordering?
Answer: Yes, you're warmly welcome to visit our factory.
Q9: What's your payment term?
Answer: 70% TT as initial payment & 30% TT balance payment before shipment.
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB shanghai.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
Q7:How long to deliver the products?
Answer: The exact delivery date need to depend on your ordered quality and quantity. Usually Small orders will be shipped within 14days after received the full payment. Large orders will be shipped within 35-40days after received 30% balance payment.
Q8: Can I visit your factory before ordering?
Answer: Yes, you're warmly welcome to visit our factory.
Q9: What's your payment term?
Answer: 70% TT as initial payment & 30% TT balance payment before shipment.
