RCCB отключающий дифференциальный ток устройства 4-полюсный автоматический утечки земли Тип B код для 7.4KW 11KW 22KW EV

Описание и отзывы

Трекер стоимости

Характеристики

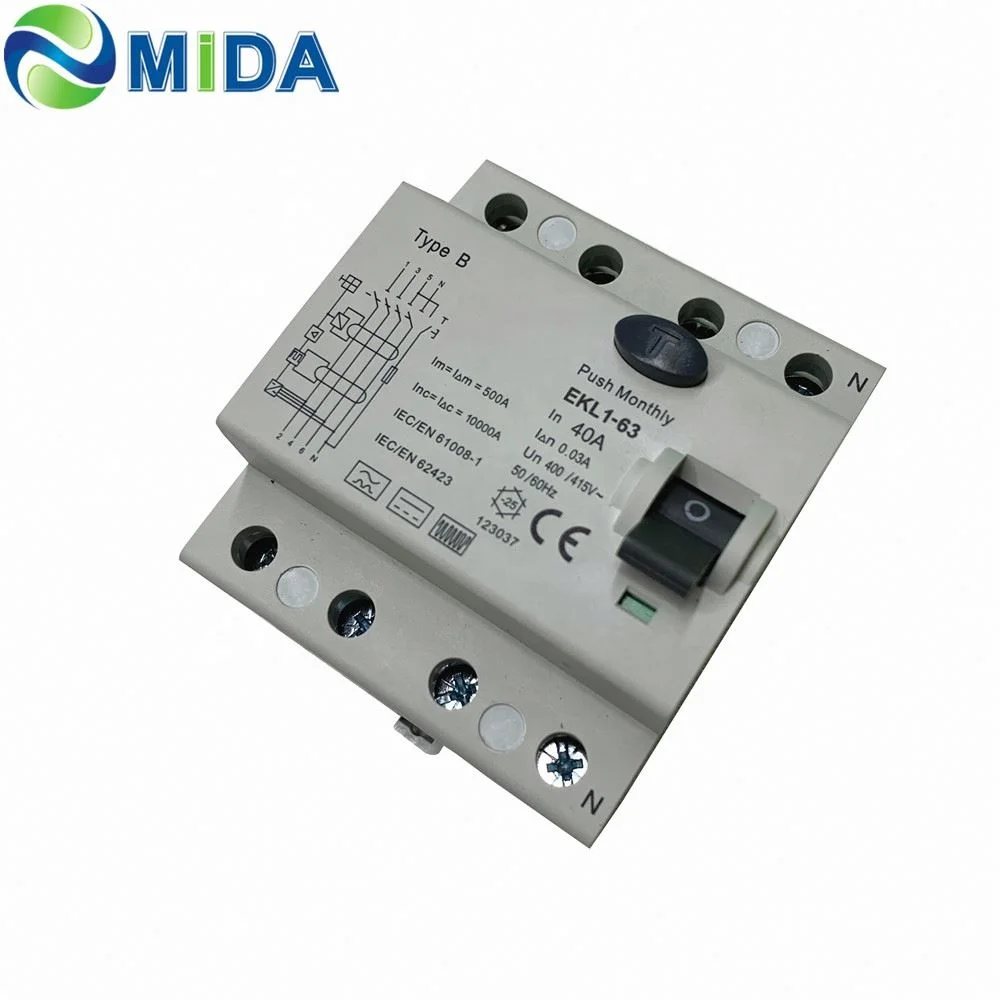

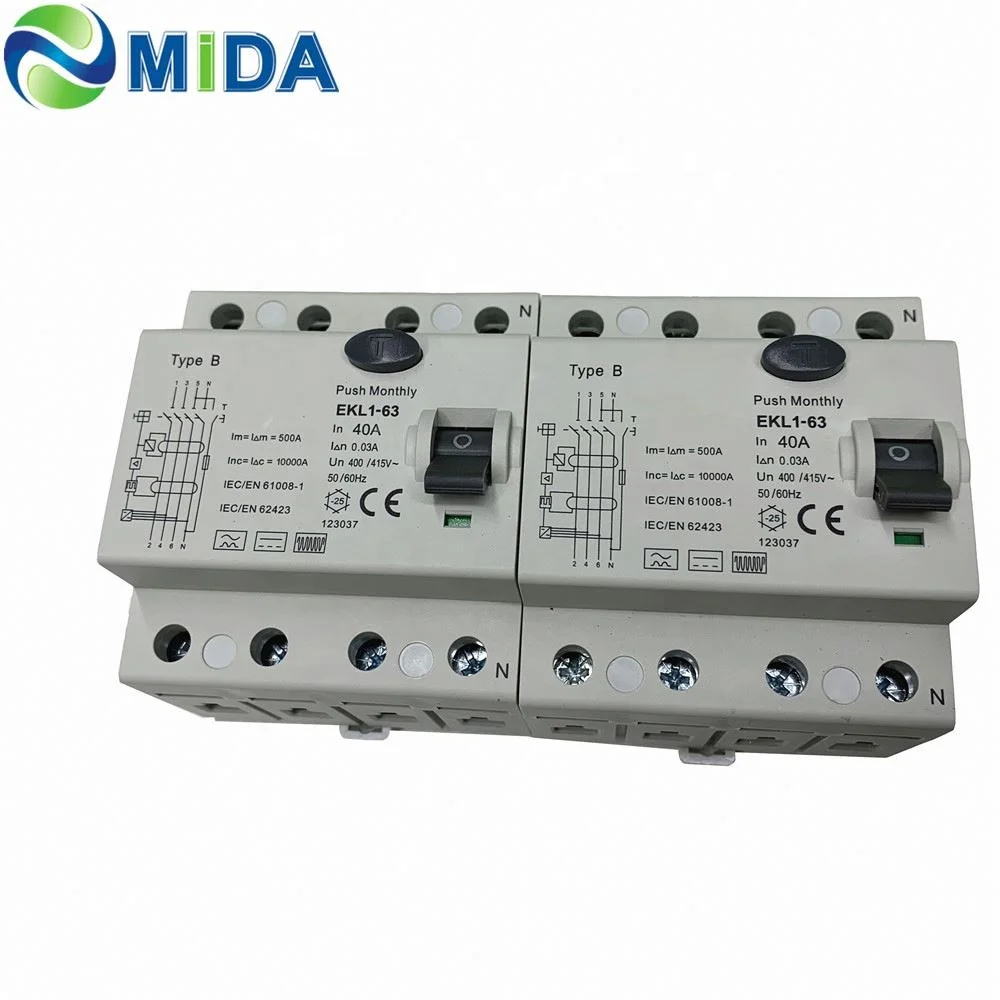

40A 63A 80A 2Pole 4Pole Type B RCD RCCB Residual Current Circuit Breaker

Type B RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire and/or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB EKL1-63B.



Electrical Features

Mode	Electromagnetic
Type(wave form of the earth leakage sensed)	B
Rated current In	25A,32A ,40A,63A,80A ,100A
Poles	2Pole 4Pole
Rated voltage Ue	4P 415V~
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated residual operation current(I n)	30mA ,100mA ,300mA
Rated residual making and breaking capacity (I m)	500(In=2540A) 630(In=63A)
Short-circuit current Inc= I c	10000A
SCPD fuse	10000
Break time under I n	≤0.1s
Rated impulse withstand voltage(1.5/50) Uimp	4000V
Dielectric test voltage at ind.Freq. for 1min	2.5kV
Electrical life	2,000 Cycles
Mechanical life	4,000 Cycles

Circuit Diagram

Overall and Installation Dimension(mm)

Application

EV & PV installations
Frequency converters
UPS installations
High-frequency power converters
Building site power supply cabinets

Function
Type B Circuit Breaker Control electric circuits.
Protect people against indirect contacts and additionalprotection against direct contacts.
Protect installations against fire hazard due to insulation faults.Residual current circuit breakers are used in housing, tertiarysector and industry Selection Detectable wave form
B class Tripping is ensured for sinusoidal AC residual currents pulsed DCresidual currents,
alternatingresidual sinusoidal currents up to1000Hz, pulsating direct residual EKL1-63B
currents and for smooth directresidual currents, whether applied suddenly or increasing slowly.
Tripping sensitivity 30mA -additional protection against direct contact EKL1-63B.
Tripping time Instantaneous,It ensures instantaneous tripping (without time- delay).

Construction and Feature

Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
In case of overload to protect circuit, RCCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually. Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity EKL1-63B
Applicable to terminal and pin/fork type busbar connection
Equipped with fi nger protected connection terminals EKL1-63B Residual Current Circuit Breaker
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity. Independent of power supply and line voltage, and free from external interference, voltage fluctuation EKL1-63B single-pole RCCB with two current paths; two-pole RCCB; three-pole RCCB; three-pole RCCB with four current paths, four-pole RCCB Current Circuit Breaker
