5 оси автоматической Козловых ЧПУ направляющий рельс с изолированным затвором (igbt) инвертировать установка воздушно-плазменной резки 100 Ампер

5 оси автоматической Козловых ЧПУ направляющий рельс с изолированным затвором (igbt) инвертировать установка воздушно-плазменной резки 100 Ампер

Категория: Metal Cutting Machinery >>>
Поставщик: Anhui,Sanxin,Heavy,Industry,Machinery,Manufacturing,Co.,Ltd.

Цена:1 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	1190.80 $*	1250.31 $*
Aug-16-2025	1180.83 $*	1239.90 $*
Jul-16-2025	990.28 $*	1040.79 $*
Jun-16-2025	1160.27 $*	1218.47 $*
May-16-2025	1010.33 $*	1061.84 $*
Apr-16-2025	1140.18 $*	1197.68 $*
Mar-16-2025	1130.88 $*	1187.91 $*
Feb-16-2025	1120.81 $*	1176.55 $*
Jan-16-2025	1110.39 $*	1166.73 $*

Характеристики

5 axis auto gantry cnc guide rail igbt invert air plasma cutter 100 amps price

Plasma cutting machine

Product Overview

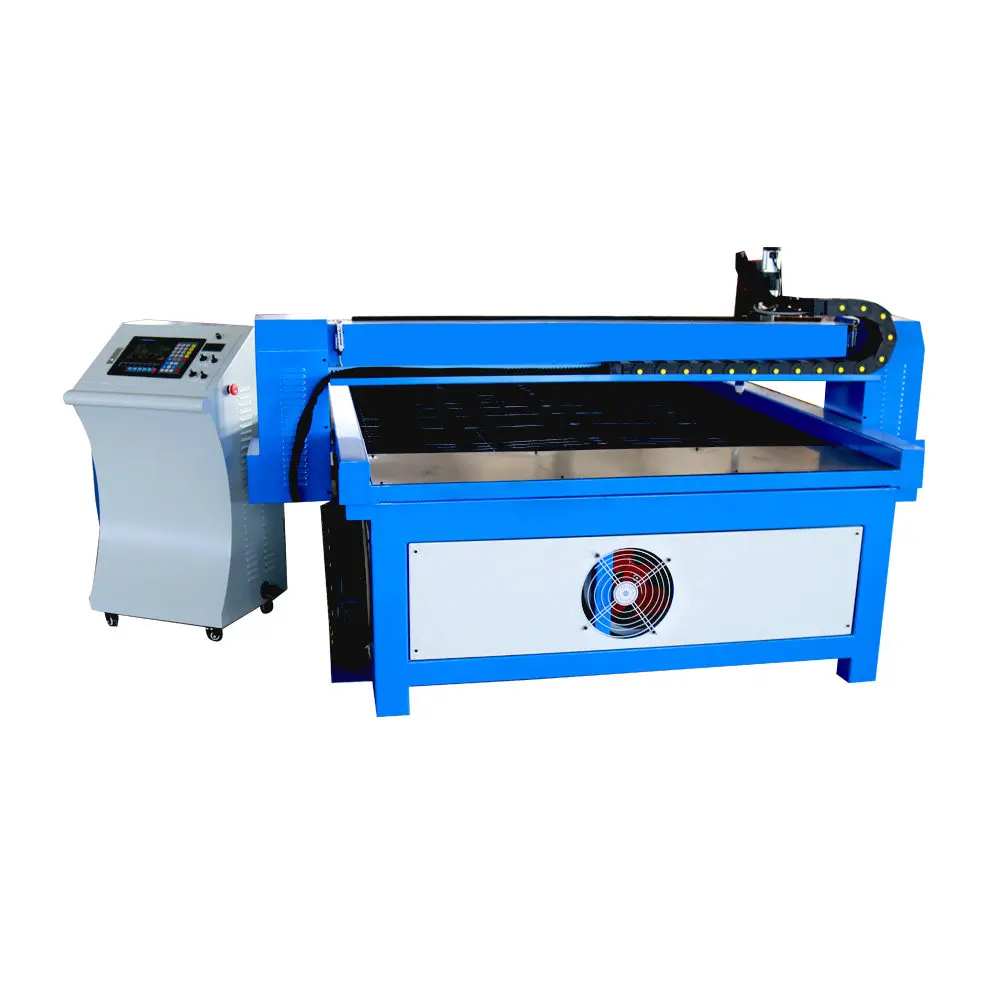

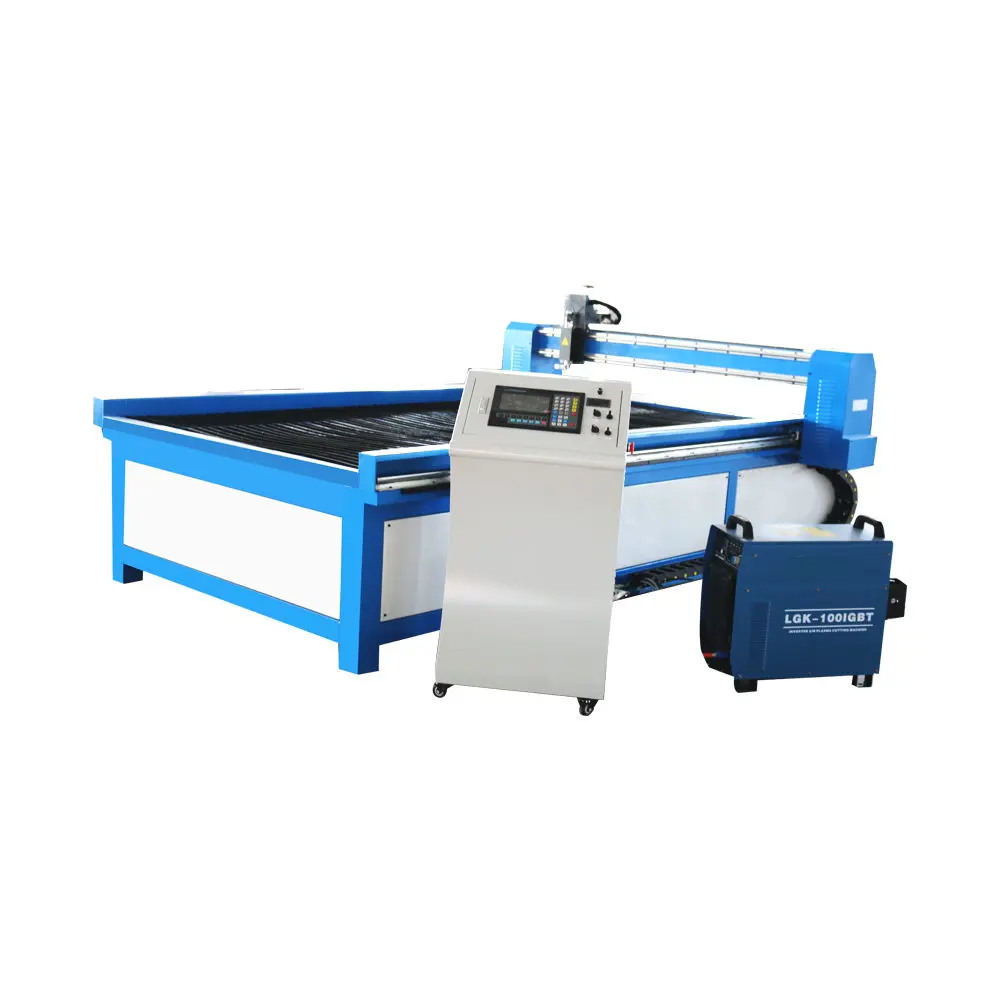

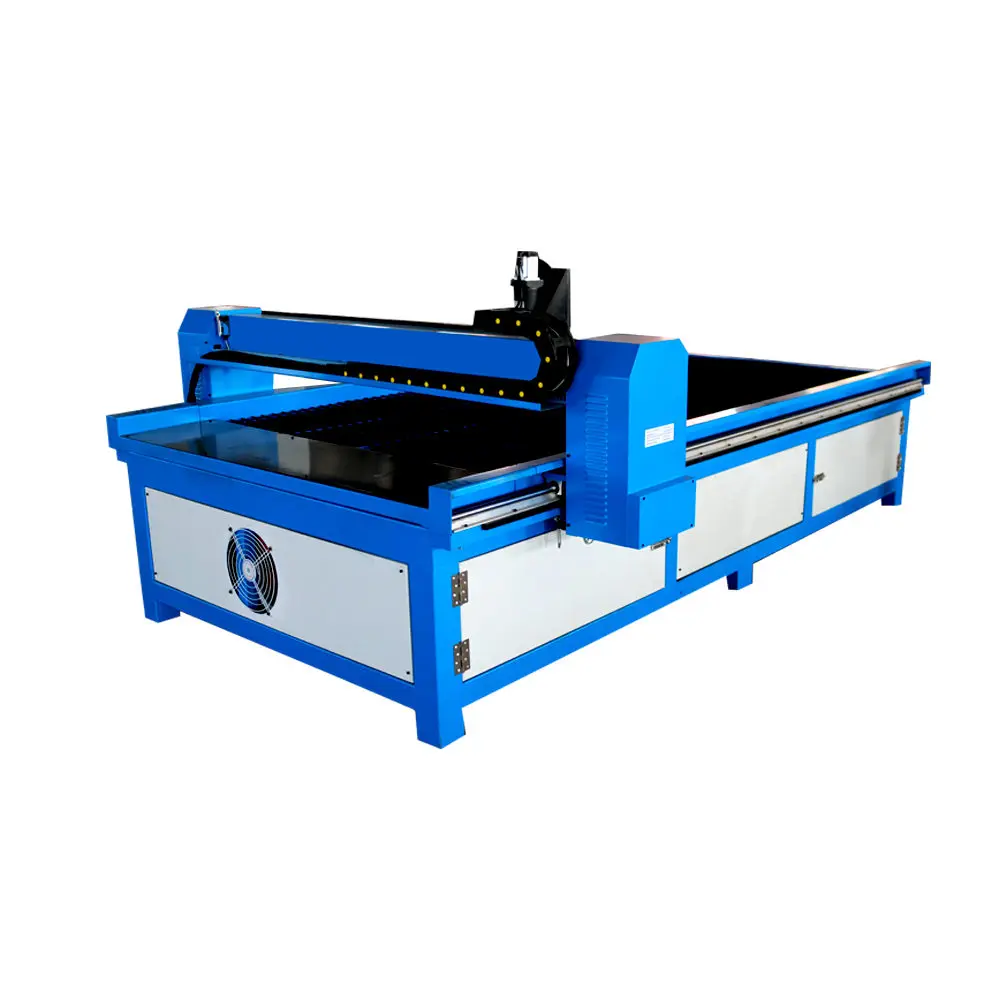

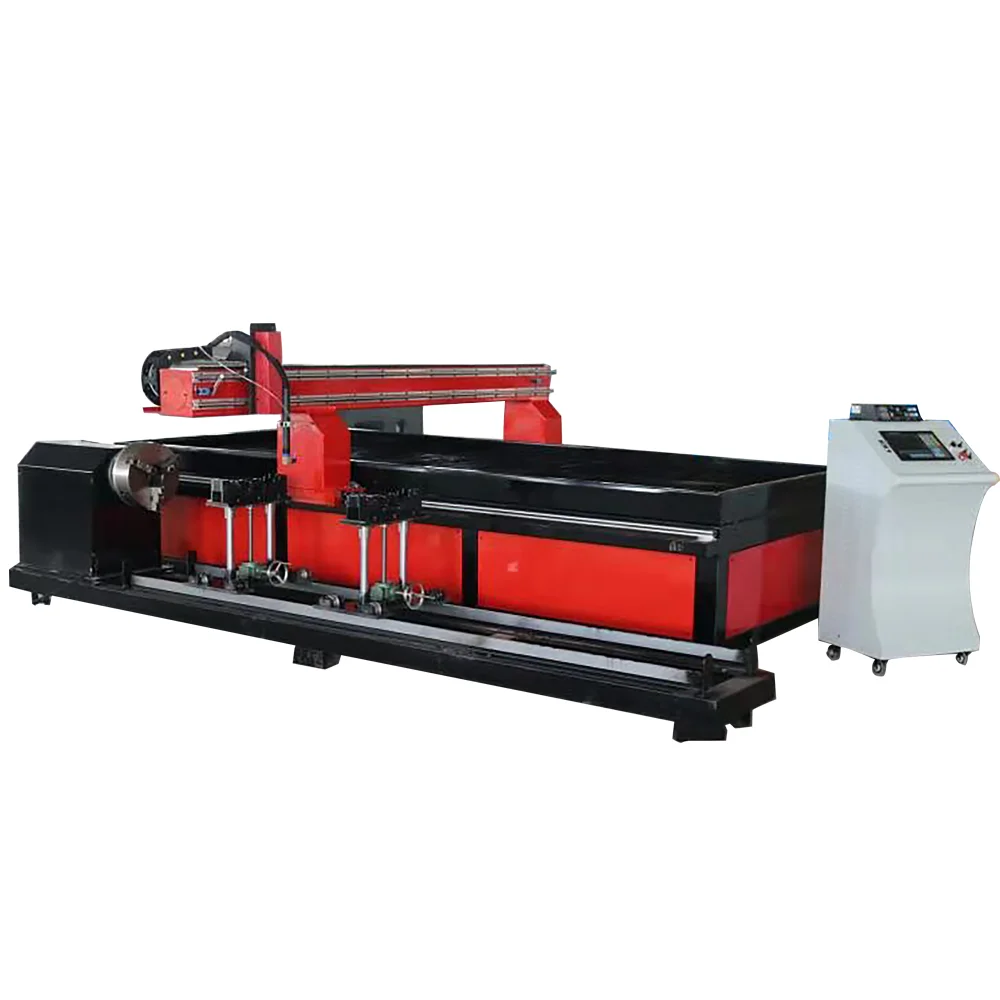

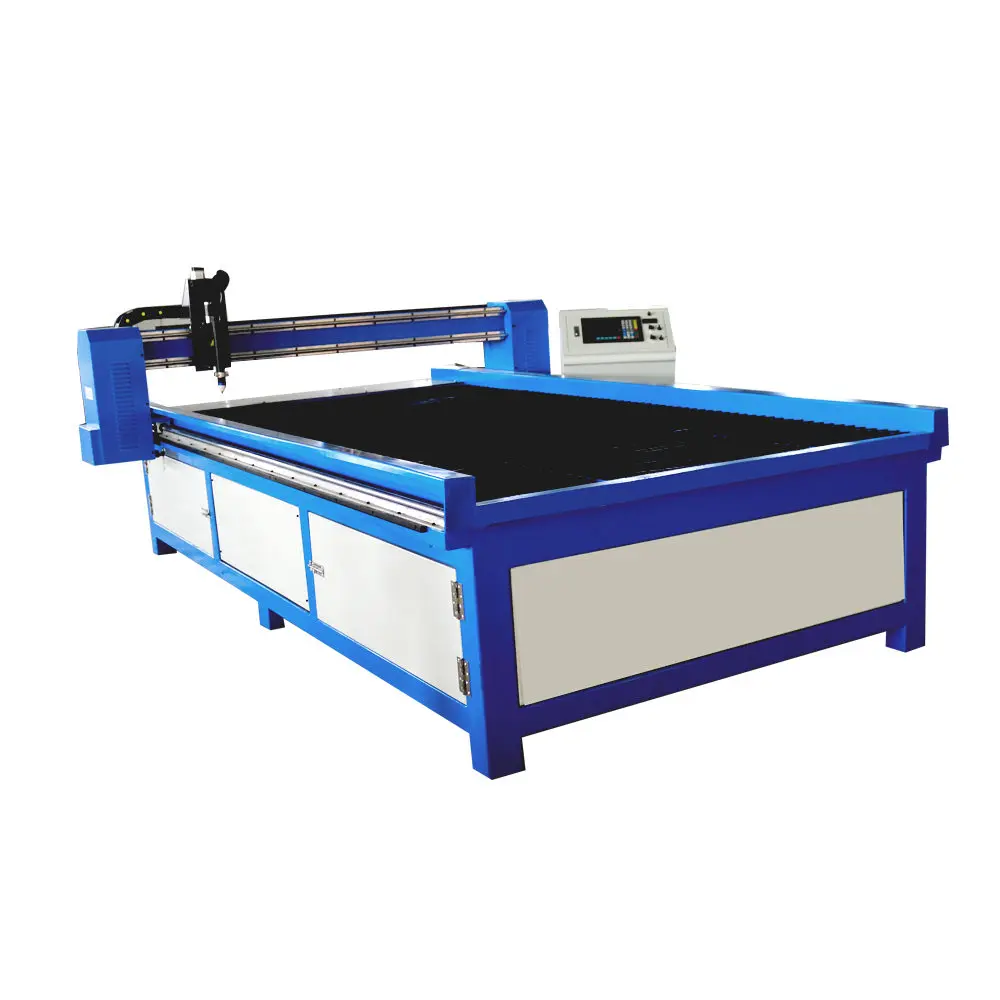

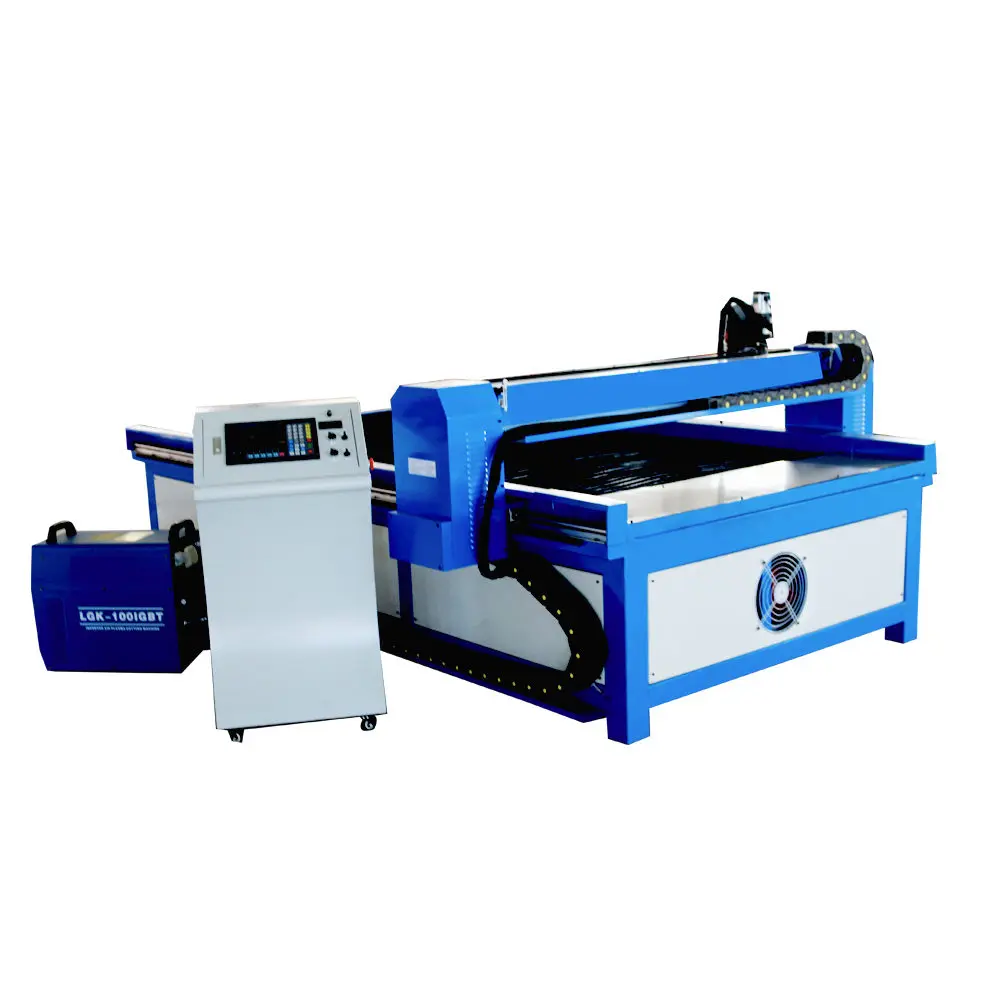

CNC Plasma Cutting Machine

Sanxin® plasma cutting machine continues to provide wide and flexible solutions with its low investment and operation cost advantages, being appropriate to production lines and automation, improved accurate cutting quality.

FEATURES AT A GLANCE

1. High Quality cut performance,Fast cutting speed,high precision and low cost for plasma cutter
2. The cutting incision is thin and tidily and can avoid the second processing.
3. High configurated CNC system,auto arc-striking and stable performance.
4. Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software)

plasma cutting machine

CNC plasma cutting machine

plasma cutter machine

PRODUCT SPECIFICATIONS

Item

Unit

63A

100A

120A

200A

300A

400A

Input Power

V/Hz

3~ 380V± 15% 50/60 Hz

Rated Input capacity

KVA

9.5

17.8

22.2

38.8

70.1

93.5

Rated Input Current

14.5

100

138

Rated Open Circuit Voltage

300

315

380

Rated Cutting Current

100

120

200

300

400

Rated Cutting Voltage

106

120

128

160

200

Current

30~63

30~100

30~120

40~200

60~300

60~400

Max Cut Thickness

Quality Cutting Thickness(Steel,hand-held)

0.3~12

0.3~22

0.3~25

1~45

1~50

Quality Cutting Thickness(Steel, machine)

Plasma gas

–

Compressed Air

Air Pressure

Mpa

0.3~0.5

0.45~0.6

Output Signal of Arc Voltage

–

1: 1 / 1: 20 1: 50 / 1: 100 Arc Voltage

Cutting Torch Cooling Mode

–

Air cooling

Air cooling/Water cooling

Rated Duty Cycle

60/40° C

100/40° C

Insulation Grade

–

Protection Grade

–

IP21S

PRODUCT CONFIGURATION

Unitized machine frame
Sanxin® Plasma cutting machine frames are a true unitized design, and are not bolted together. The machine frame is a single fabricated steel weldment that is stress relieved and machined. Large mills allow all mating surfaces to be machined in a single setup, including the 10 ft. X 24ft. Long bases.

Powerful drive system
Powerful drive system Sanxin® is configured with powerful AC servo drives that deliver rapid traverse speed of 2000IPM at 160MG acceleration in 0.5 seconds. Hardened & ground helical pinion gears, fixed pinion gear engagement and nearzero backlash gear heads ensure premium performance.

Self-cleaning table design
Plasma cutter machine cutting tables are independent of the machine frame. This unique approach maximizes machine accuracy and performance. Choose the table style that is best for your application-water table or zoned down draft air table. The self-cleaning cutting table, offered exclusively on the Sanxin, makes life easier.
