AWS A5.20 E71T 1 1C флюсовая сварочная
- Категория: Welding & Abrasives >>>
- Поставщик: Qingdao,Tensileweld,Welding,Consumables,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.0 $* | 0.5 $* |
| Aug-19-2025 | 0.84 $* | 0.17 $* |
| Jul-19-2025 | 0.21 $* | 0.22 $* |
| Jun-19-2025 | 0.18 $* | 0.97 $* |
| May-19-2025 | 0.9 $* | 0.35 $* |
| Apr-19-2025 | 0.14 $* | 0.32 $* |
| Mar-19-2025 | 0.66 $* | 0.50 $* |
| Feb-19-2025 | 0.58 $* | 0.19 $* |
| Jan-19-2025 | 0.2 $* | 0.12 $* |
Характеристики
Product Details
Flux Cored Tubular Welding Wire E70T-1C E71T-1 E71T-1C E71T-GS E71T-11 E308LT-1 E309LT-1 E316LT-1 Carbon Stainless Steel Mig
Flux Cored Welding Wire -- E71T-1C ( E71T-1 )
Chemical Composition of Deposited Metal(%)
C | Mn | Si | S | P | |
Standard | ≤0.12 | ≤1.75 | ≤0.90 | ≤0.03 | ≤0.03 |
Typical | 0.055 | 1.35 | 0.40 | 0.009 | 0.18 |
Yield Point ReH(Mpa) | Tensile Strength Rm(Mpa) | Elongation A4(%) | Impact Value(J) | Shield Gas | |||
-20℃ | -30℃ | CO2 | |||||
Standard | ≥375 | 490-660 | ≥22 | -- | ≥27 | purity≥99.98% | |
Typical | 440 | 535 | 32 | 120 | 110 | ||
The standarrd of mechanical properties conforms to shipping institutions and the certificate of inspection would follow ot unless the purchaser has special requirement.
Diffusible hydrogen in deposited metal:≤10ml/100g(mercury process)
X-ray radiographic inspection: Gread I
Diameter(mm) | 1.0 | 1.2 | 1.4 | 1.6 | ||
Current(A) | F | 100-280 | 120-300 | 150-380 | 180-430 | |
HF | 100-280 | 120-280 | 150-320 | 180-380 | ||
Current(A) | V,OH | 80-260 | 120-260 | 150-270 | 180-280 | |
H | 100-260 | 120-280 | 150-320 | 180-330 | ||
VD | 100-260 | 200-280 | 220-300 | 250-300 | ||
Noitice:
1.The flow rate of shield gas should within 20L-25L/min in welding.
2.The wire extention should be 15mm-25mm.
3.The surfaces to be welded must be cleaned away impurities of oil contamination, rust, moisture and so on.
4.The welding conditions mentioned above for reference only and it is better to do a welding procedure qualifiation according to project before put it into formal welding.

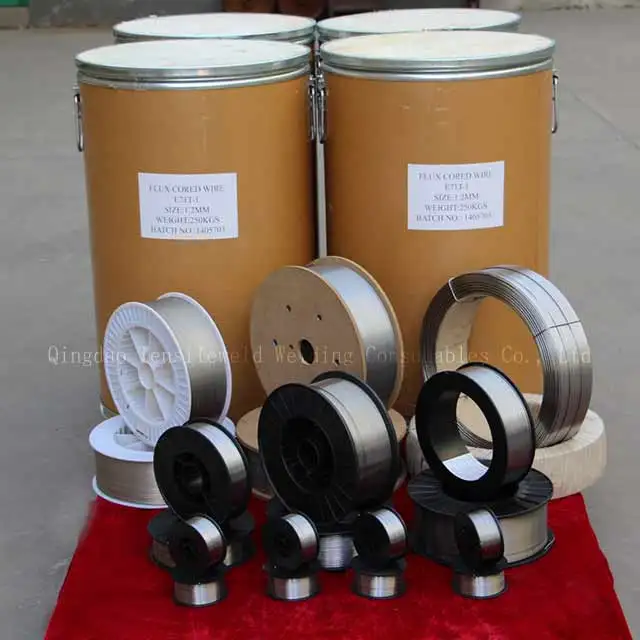

Packing & Delivery

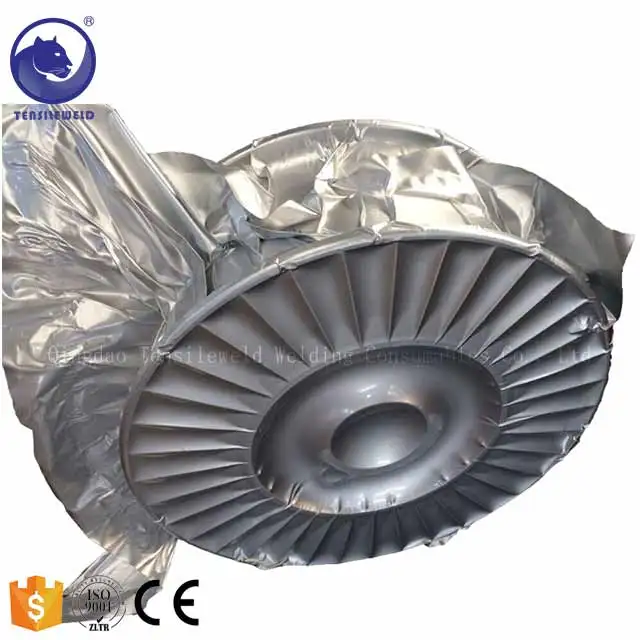

By Plastics Spools/Carton ( Aluminium Vacuum Foil Bags ) Then On Seaworthy Pallet
****Or Customize!!
Delivery: 15 days after confirm order
Kgs/Spool | Packing Style | Cartons/Pallet | N.W./Pallet | Remark |
1Kgs | plastIc spool/carton | 1000 cartons/pallet | 1000kgs | vacuum packing/seaworthy pallet |
5Kgs | plastIc spool/carton | 200 cartons/pallet | 1000kgs | vacuum packing/seaworthy pallet |
15Kgs | plastIc spool/carton | 72 cartons/pallet | 1080kgs | vacuum packing/seaworthy pallet |
